Hertel MTENNS164 1000146 1in Shank Triangle Turning Toolholder
Regular price
$75.05
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

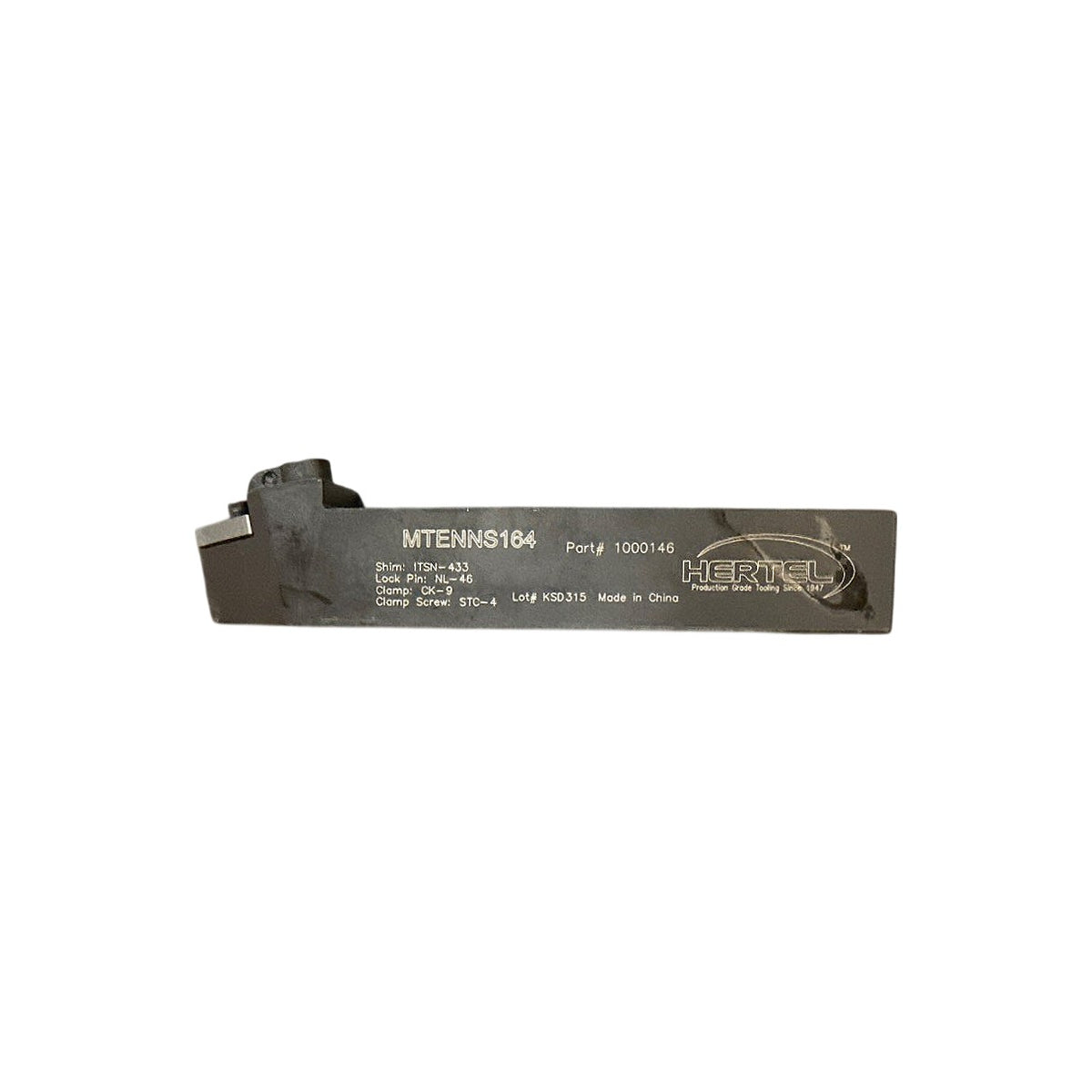

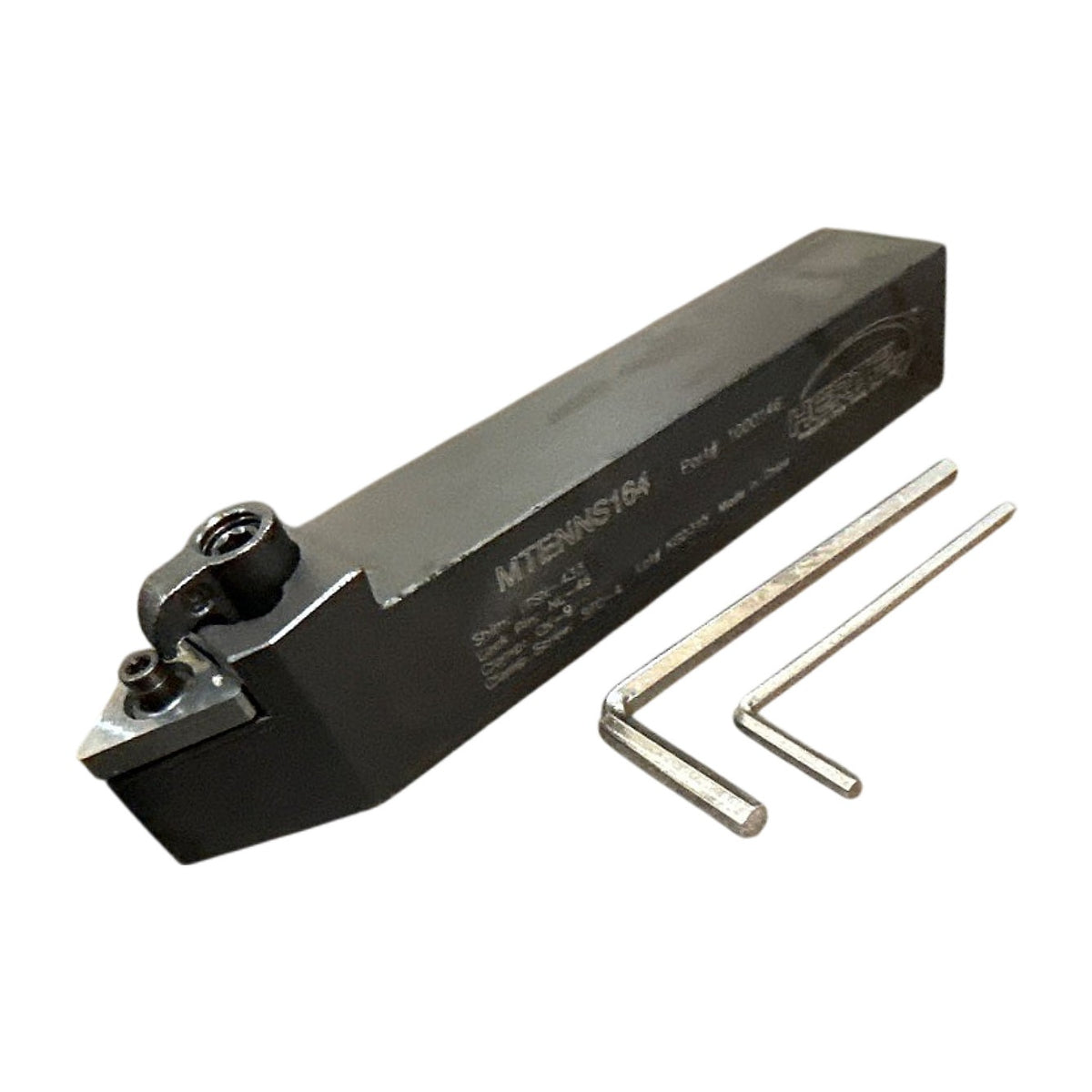

This new Hertel MTENNS164 (Part # 1000146) is an external turning toolholder with a 1 in shank, as marked on the tool and box label. Per the ISO holder code, it uses a top clamp with lock pin (M) for triangle (T) negative-rake inserts with 0° clearance (N), with a 60° lead angle (E) and neutral hand (N). The tool is laser-marked with its hardware: ITSN-433 shim, NL-46 lock pin, CK-9 clamp and STC-4 clamp screw. It has a black finish, is made in China, and ships with two hex keys. The photos and labels show MTENNS164, so buyers should verify this designation against the MTENNS184 listed in the request.
Product Specifications
| Brand | Hertel |
| Manufacturer Part Number | MTENNS164 |
| Item Number | 1000146 |
| Shank Size | 1 in |
| Insert Shape | Triangle (T) |
| Clamping Style | Top clamp w/ lock pin (M) |
| Lead Angle | 60° (E) |
| Insert Clearance Angle | 0° (N) |
| Hand of Tool | Neutral (N) |
| Operation | External Turning |
| Shim | ITSN-433 |
| Lock Pin | NL-46 |
| Clamp | CK-9 |
| Clamp Screw | STC-4 |
| Color | Black |
| Country of Origin | China |
| Included Items | 2 hex keys |
