Hoffman G521246G050 12000 BtuH 460V 3-Phase Enclosure Air Conditioner

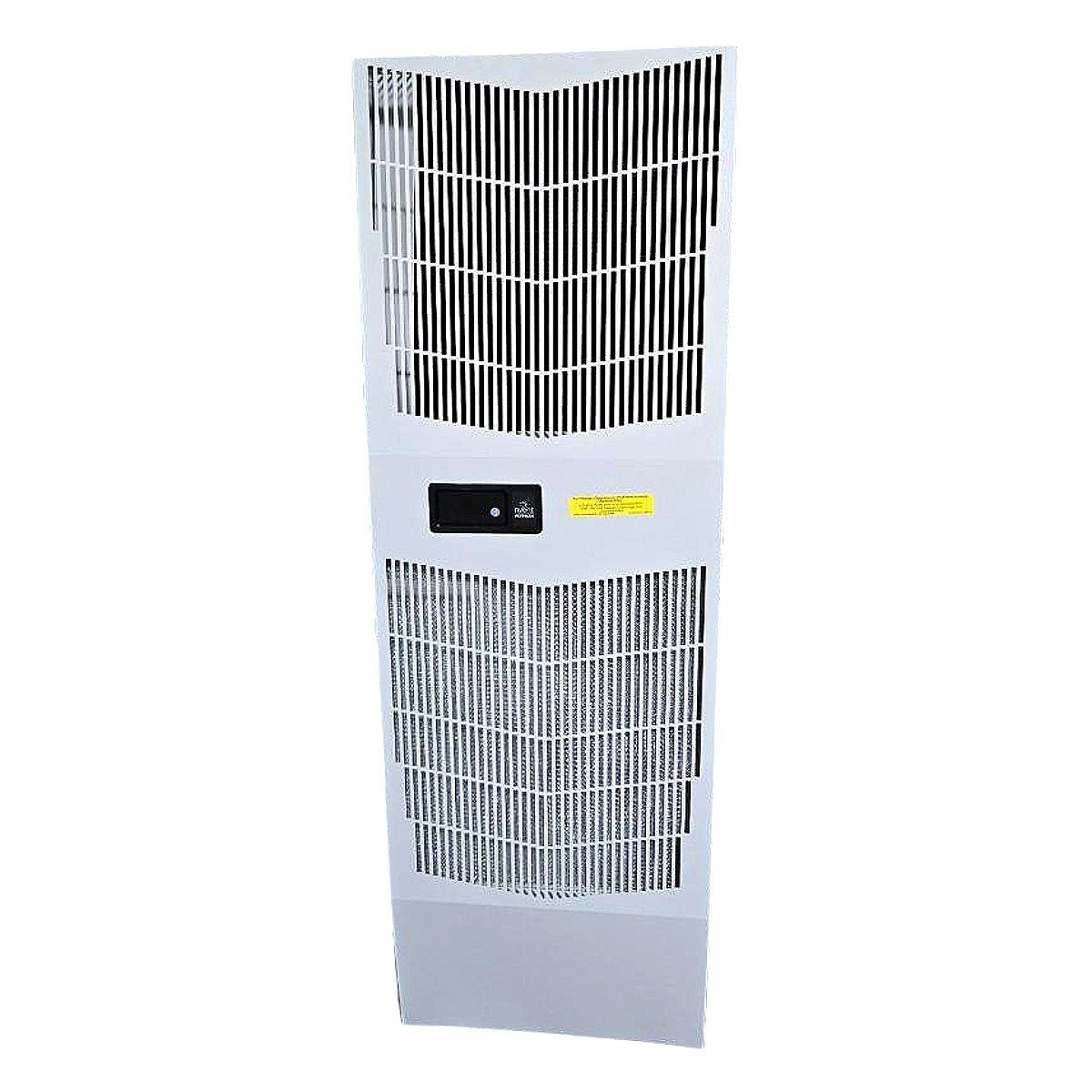

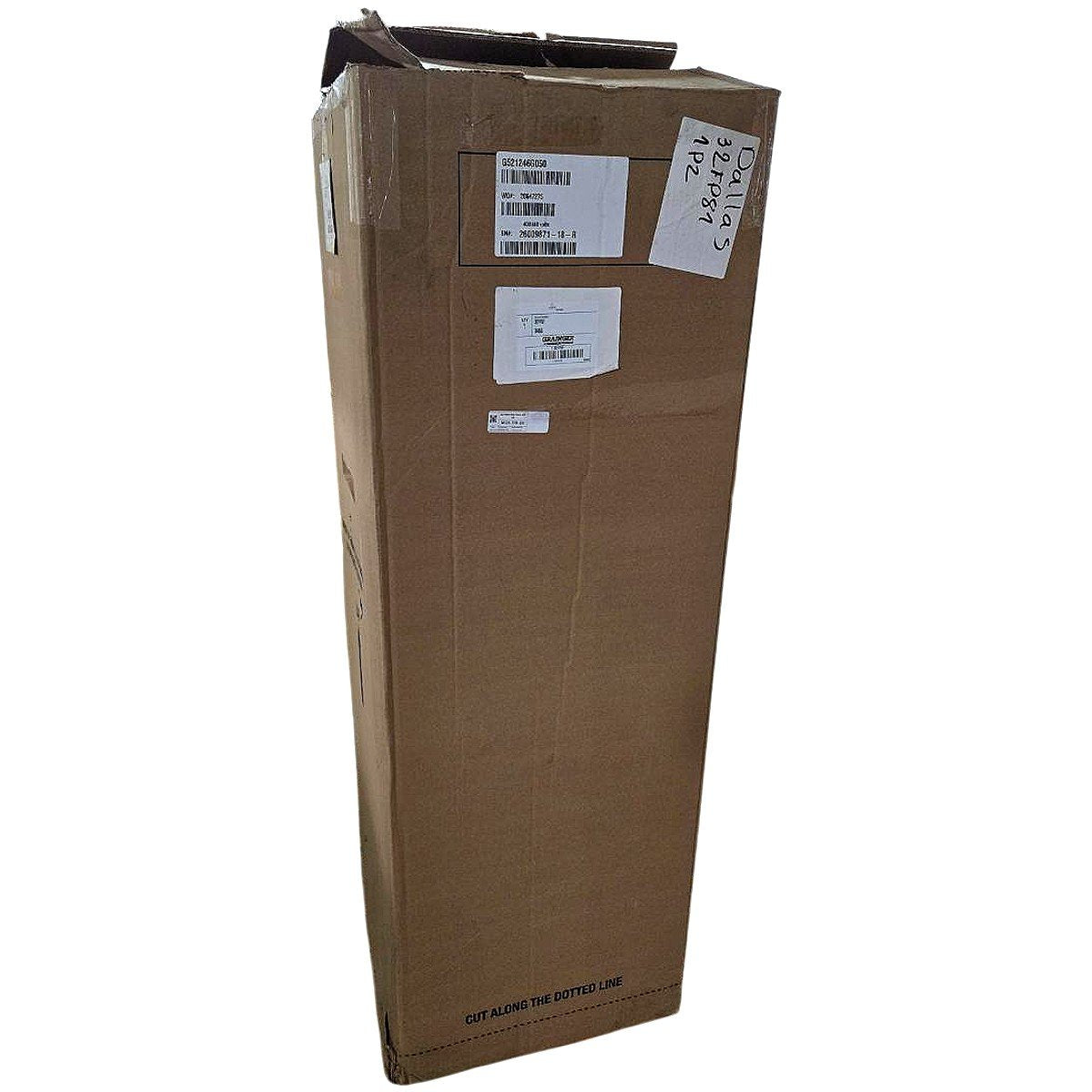

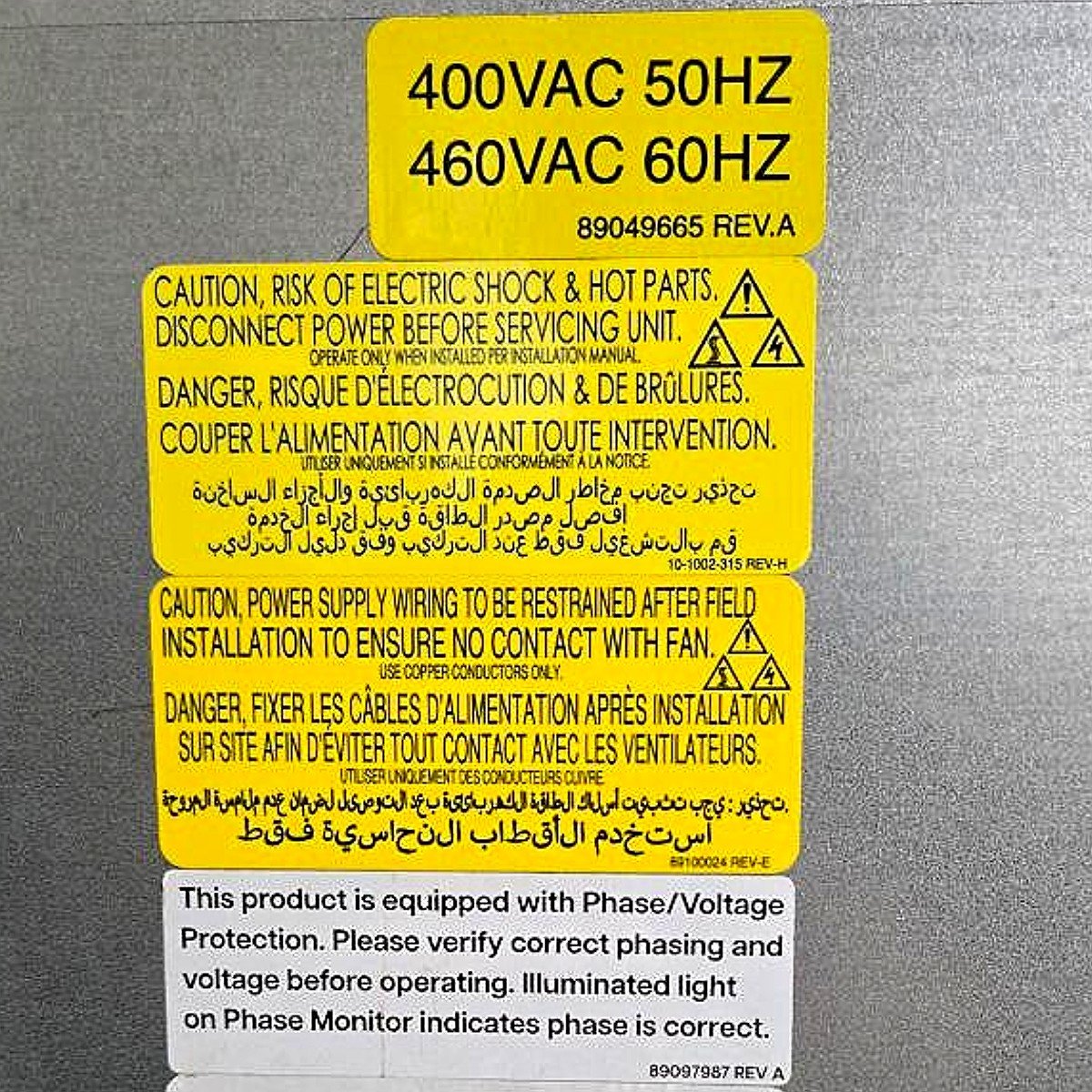

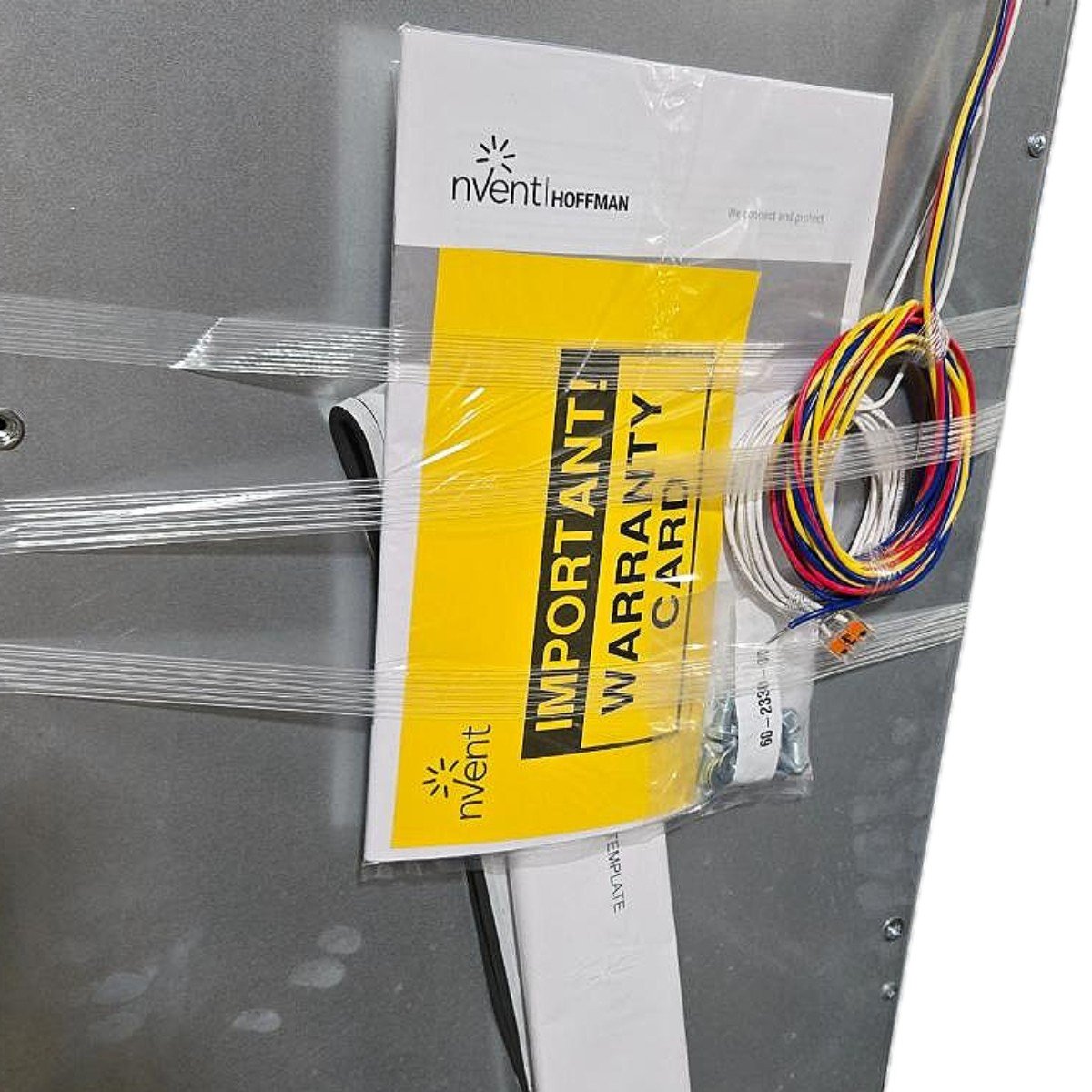

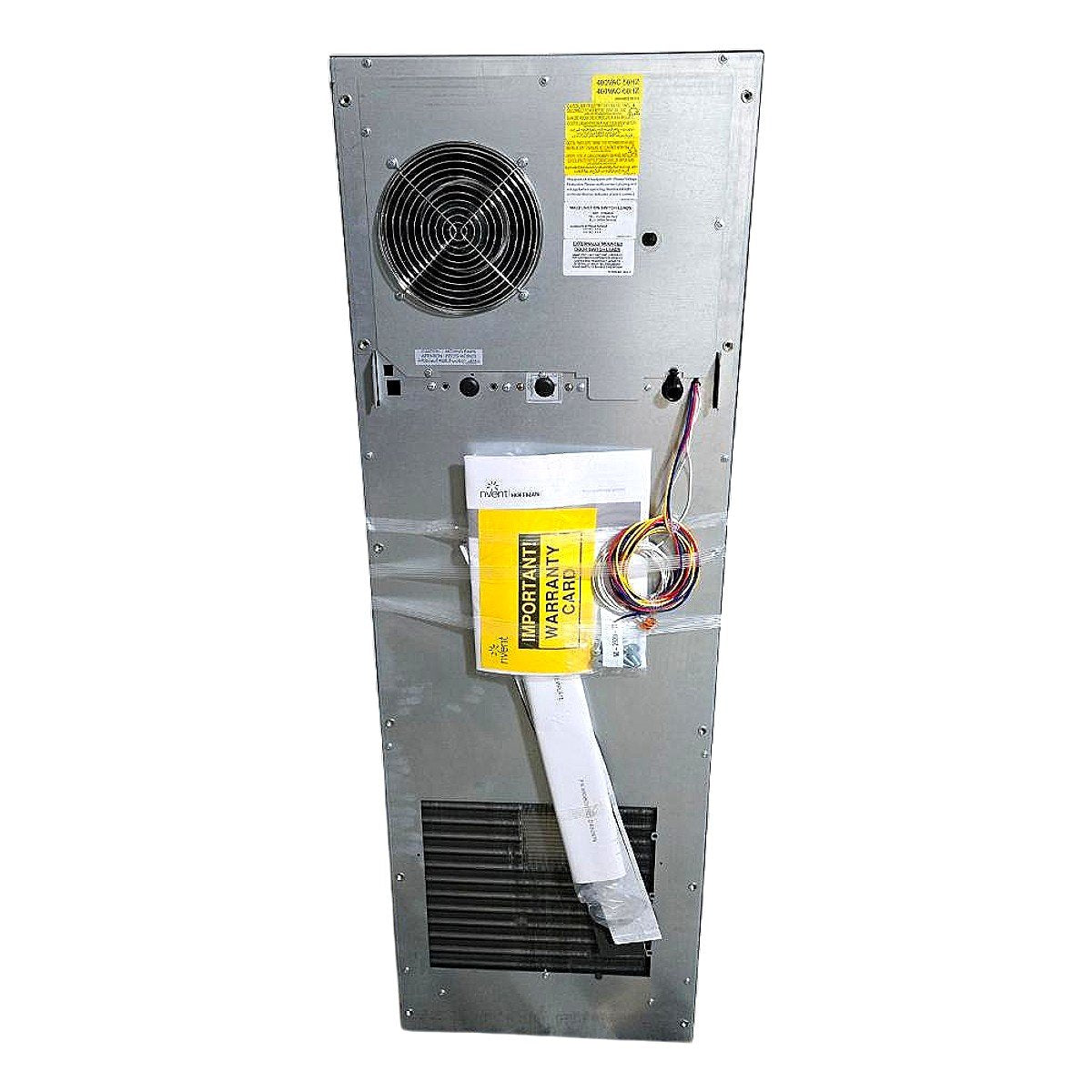

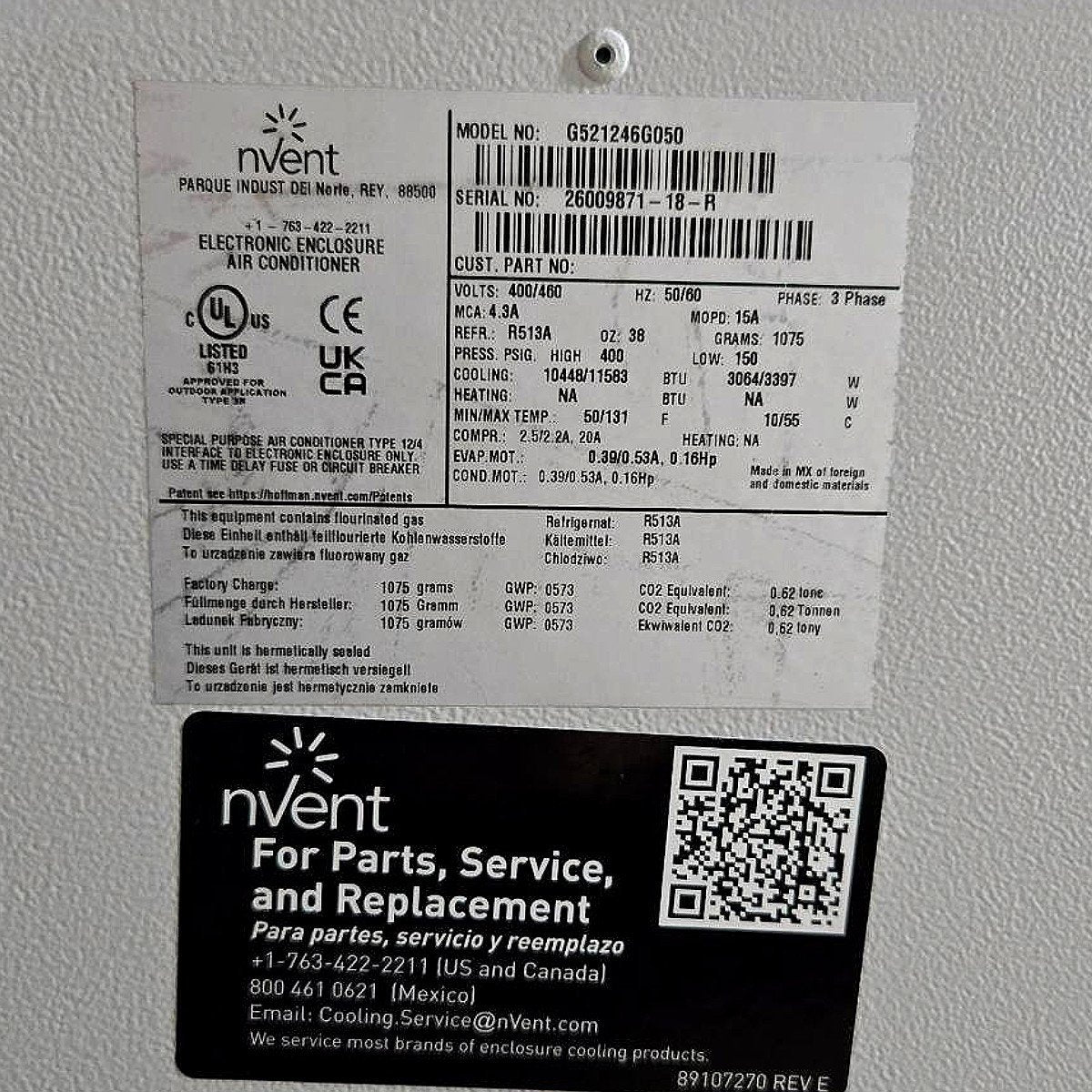

This Hoffman (nVent) G521246G050 is a wall-mount electronic enclosure air conditioner rated for 400/460 VAC, 50/60 Hz, 3-phase power, with a nameplate cooling capacity of 10,448/11,583 BTU/h (3,064/3,397 W) at 50/60 Hz and a nominal 12,000 BtuH rating. The hermetically sealed refrigeration circuit uses 1,075 g (38 oz) of R513A refrigerant, with 400 psig high-side and 150 psig low-side pressure ratings. Electrical data on the nameplate shows 4.3 A minimum circuit ampacity, 15 A maximum overcurrent protective device, a 2.5/2.2 A compressor, and 0.39/0.53 A, 0.16 hp evaporator and condenser fan motors. It operates at ambient temperatures from 50 to 131 °F (10 to 55 °C). It is UL Listed, CE and UKCA marked, approved for outdoor Type 3R application, and designated a special-purpose Type 12/4 air conditioner for interfacing to an electronic enclosure. A phase/voltage monitor protects against incorrect phasing, and the nameplate lists no heating function. This unit is new in its original carton and includes the warranty card, mounting template, hardware bag, and wiring leads shown strapped to the back panel.
