Honeywell LSA1A DPDT 10A 600VAC Heavy Duty Limit Switch
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

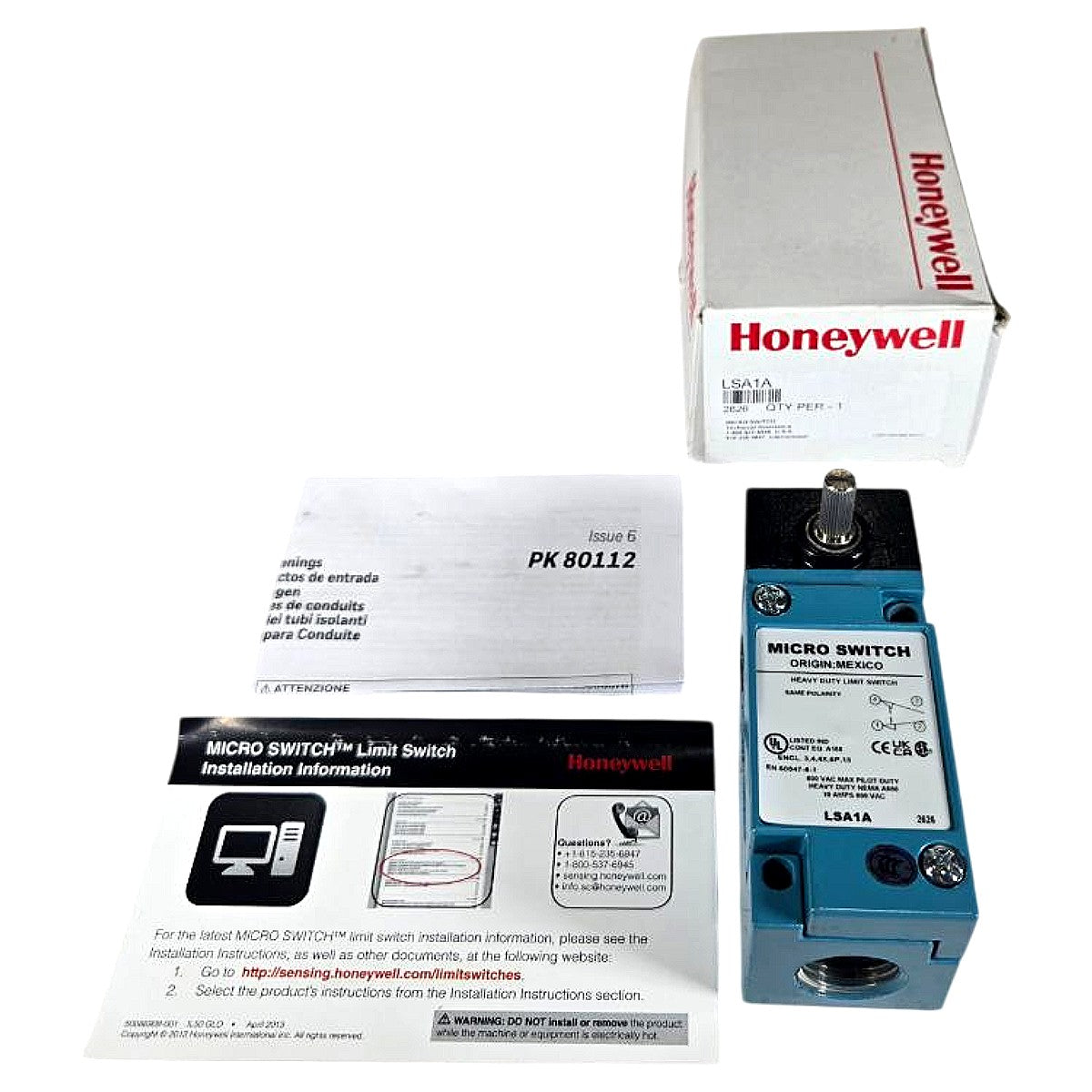

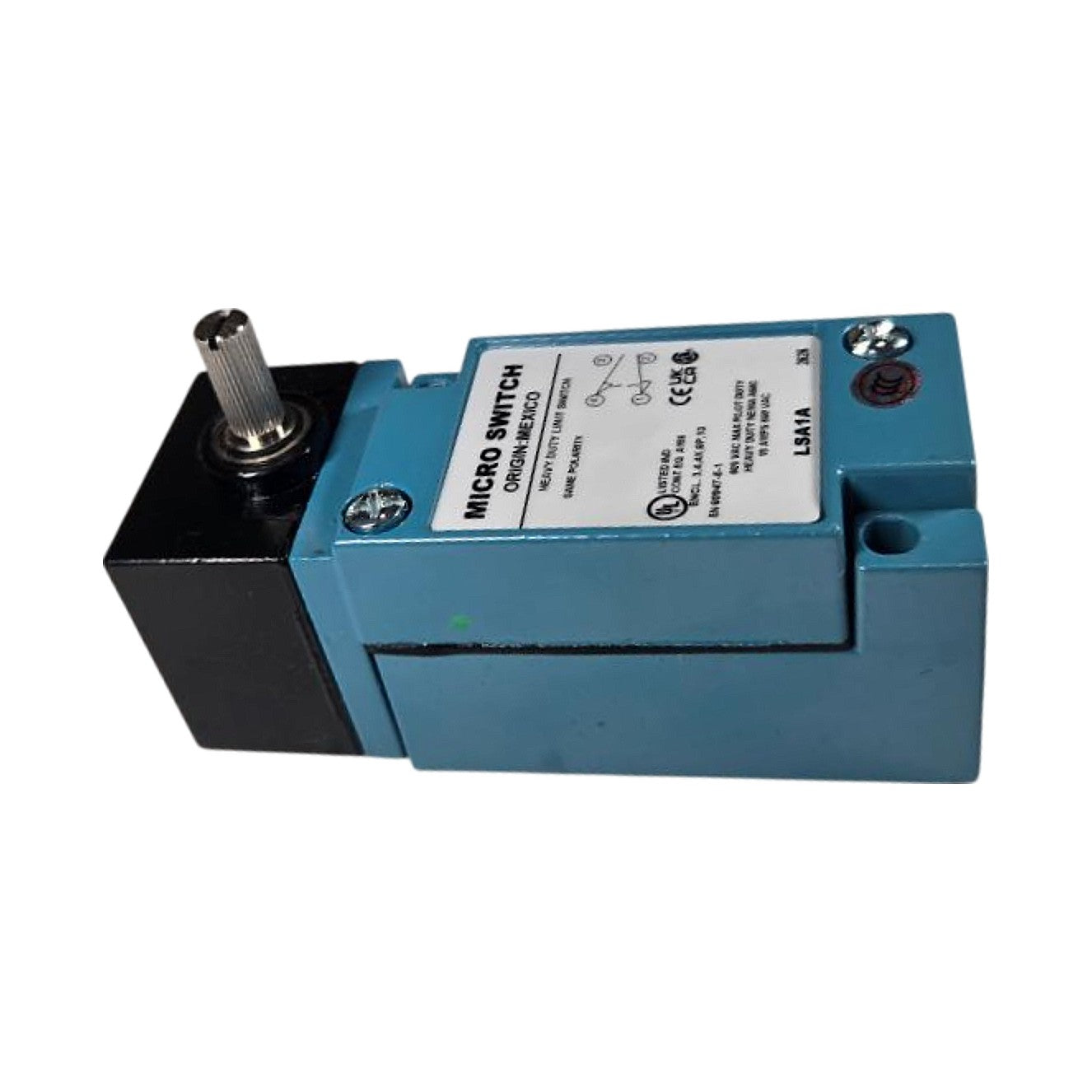

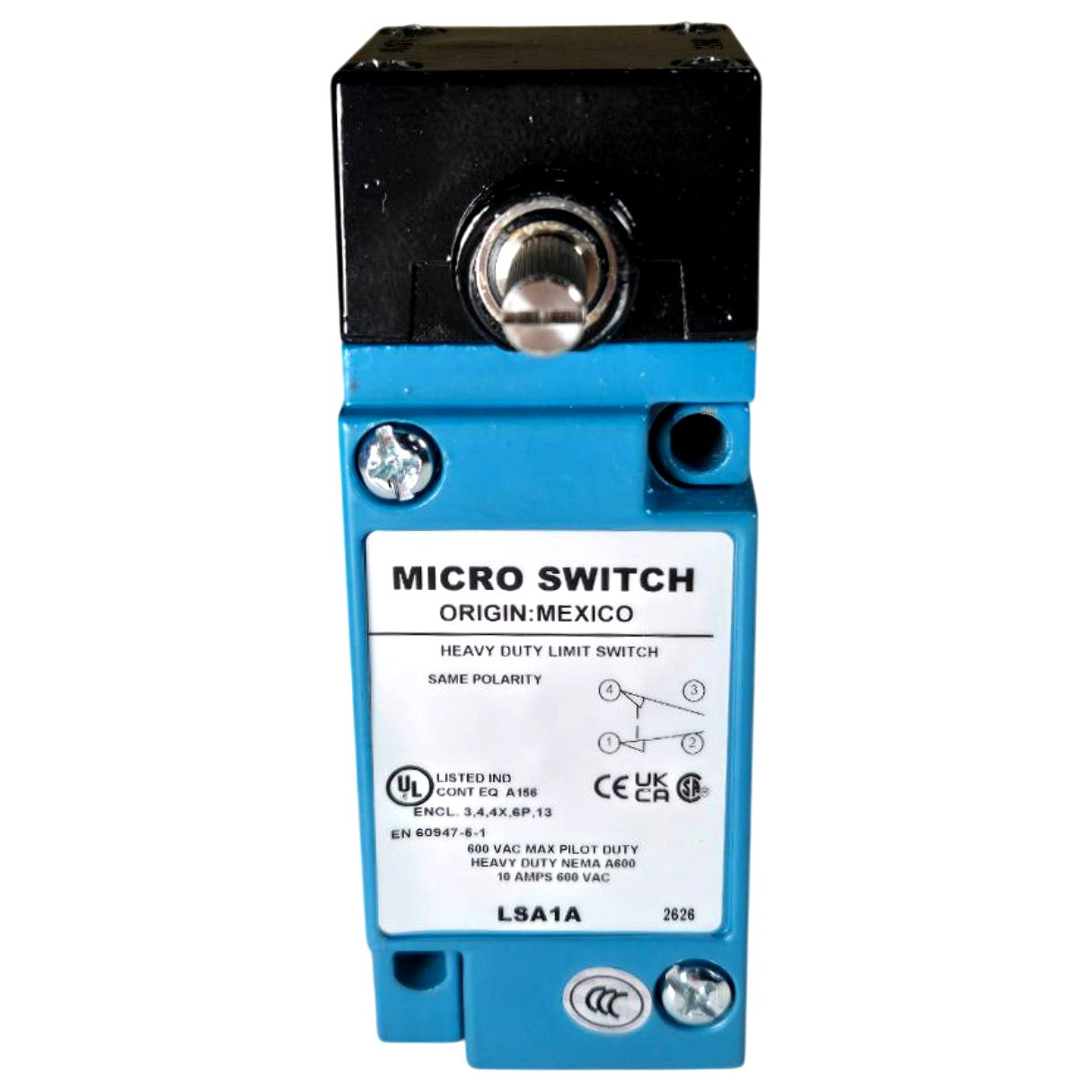

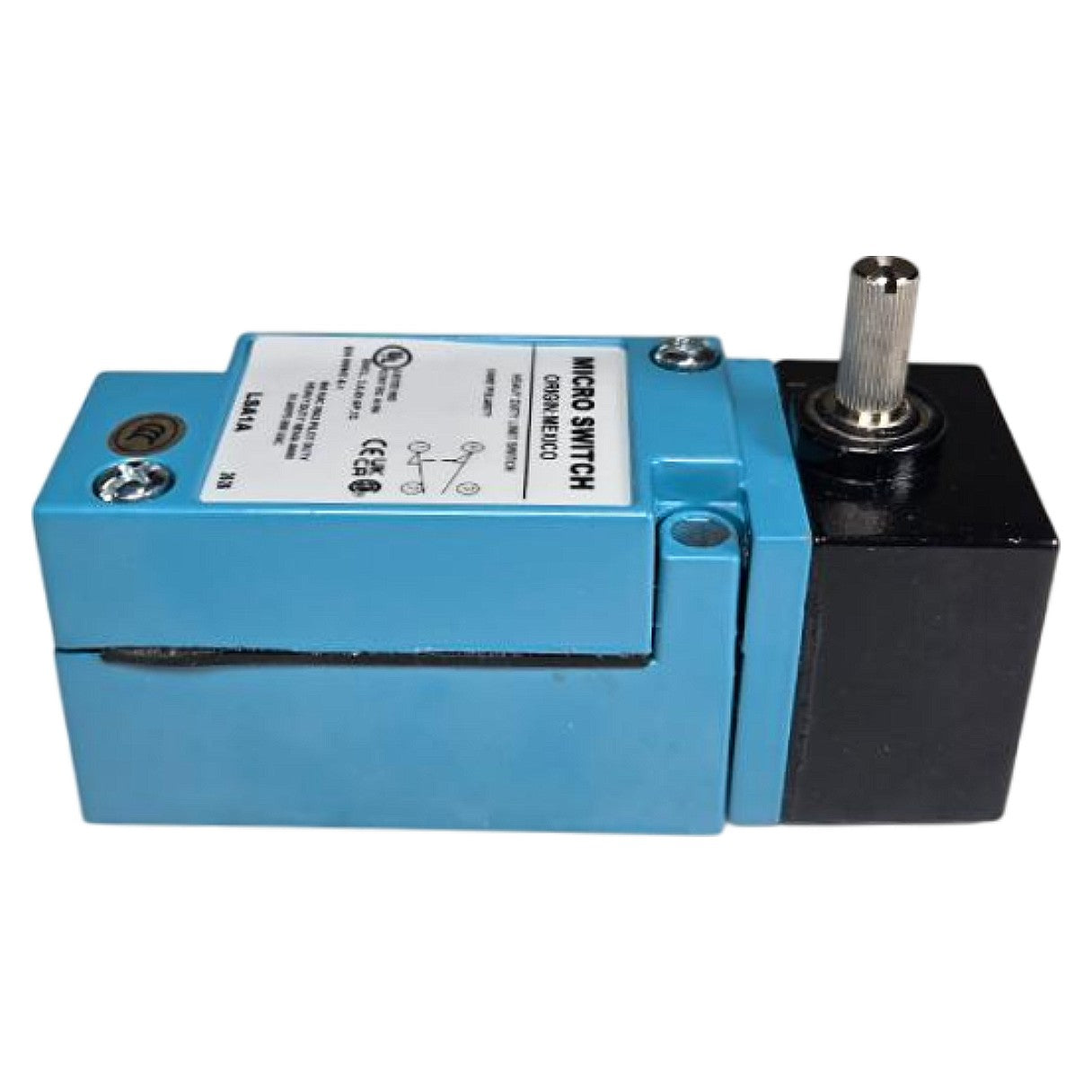

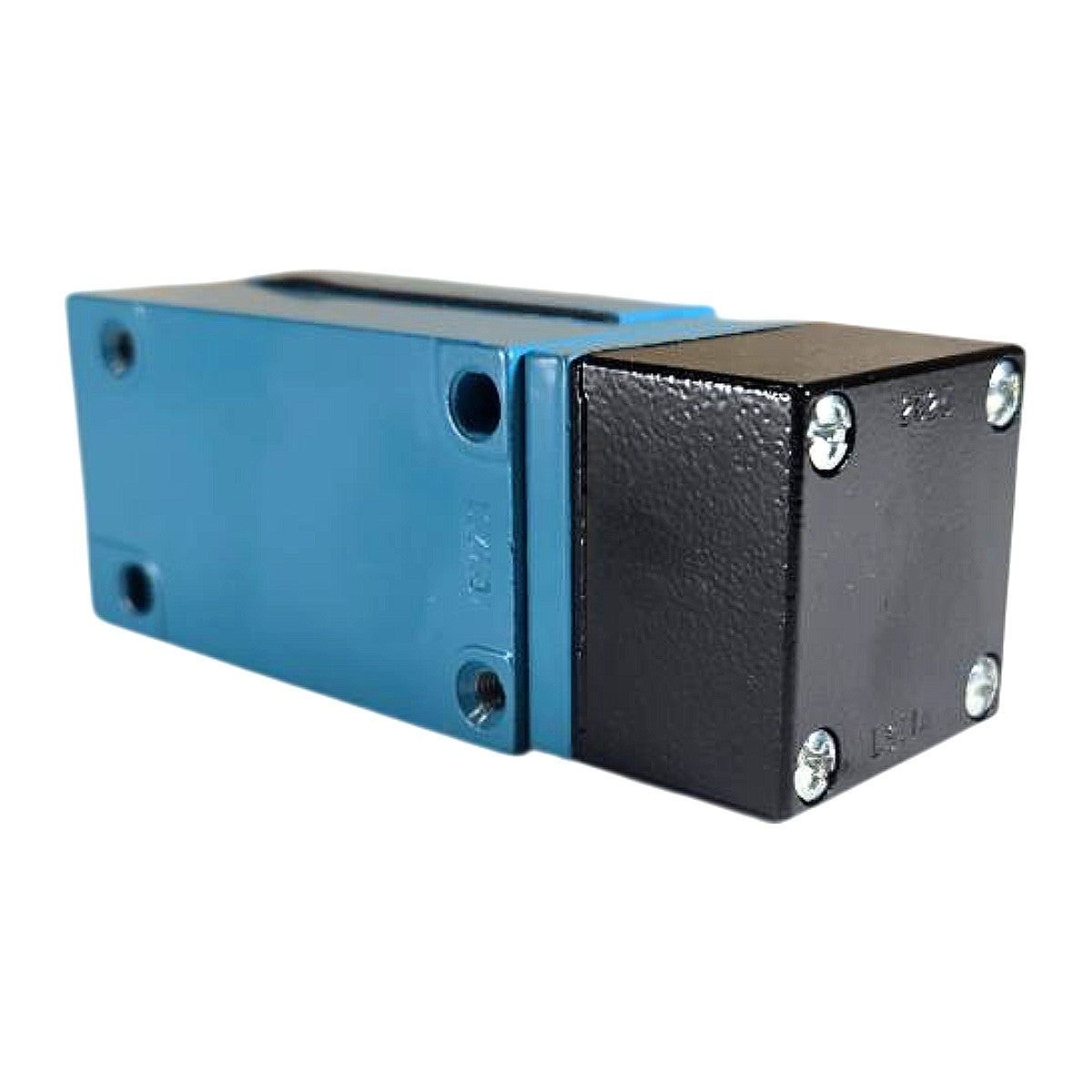

The Honeywell MICRO SWITCH LSA1A is a new, heavy-duty industrial limit switch featuring a die-cast zinc alloy body (blue) with a separate snap-action operator head (black) accepting side-rotary or top-push actuators — in this configuration fitted with a knurled plunger/stud actuator. The LSA1A encodes the LS series heavy-duty body (L), standard body size (S), with a 1A snap-action contact block providing 1NO/1NC (DPDT same-polarity) contacts rated 10 A at 600 VAC and 600 VAC maximum pilot duty per NEMA A600. The switch is rated for NEMA enclosures 3, 4, 4X, 6P, and 13, meets IEC/EN 60947-6-1, and carries UL Listed Industrial (CONT EQ A156), CE, UKCA, and CSA certifications, making it suitable for machine tool, material handling, conveyor, and packaging line position-sensing applications. The two-piece body/head construction allows the operator head to be replaced independently without rewiring; conduit entry accepts standard 3/4 in NPT fittings.
Product Specifications
| Brand | Honeywell MICRO SWITCH |
| MPN | LSA1A |
| Series | LS Heavy Duty |
| Switch Type | Heavy Duty Limit Switch |
| Contact Configuration | DPDT (1NO/1NC), Same Polarity |
| Voltage Rating | 600 VAC max |
| Current Rating | 10 A at 600 VAC |
| Pilot Duty Rating | 600 VAC max pilot duty, NEMA A600 |
| Actuator Type | Knurled plunger / stud (top push) |
| Head Type | Snap-action replaceable operator head |
| NEMA Enclosure Rating | 3, 4, 4X, 6P, 13 |
| IEC Standard | EN 60947-6-1 |
| Certifications | UL Listed IND, CE, UKCA, CSA |
| UL Category | CONT EQ A156 |
| Body Material | Die-cast zinc alloy |
| Country of Origin | Mexico |
| Conduit Entry | 3/4 in NPT |
| Condition | New |
