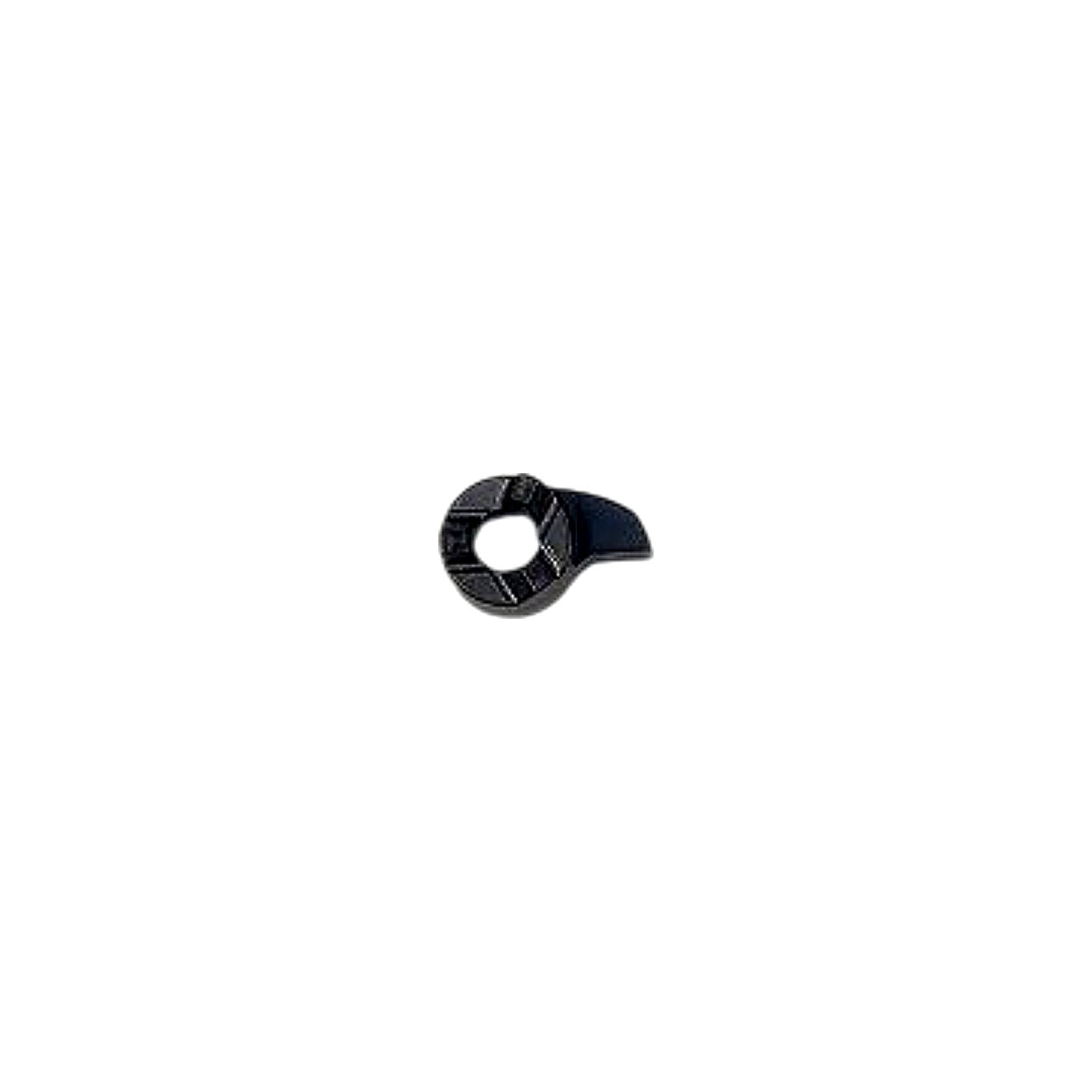

Horn RS10P.0200.2.D2 TH35 Carbide Grooving Insert

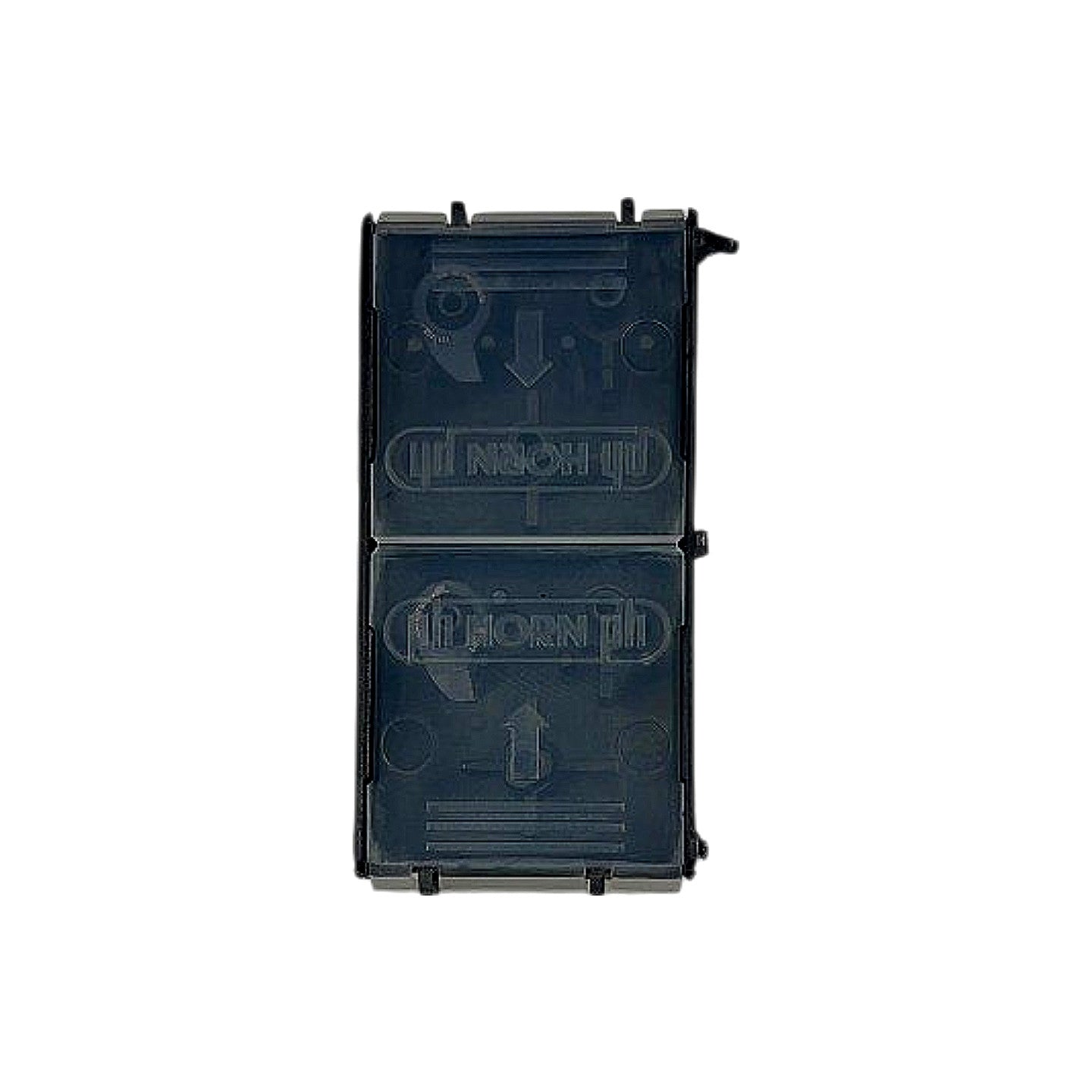

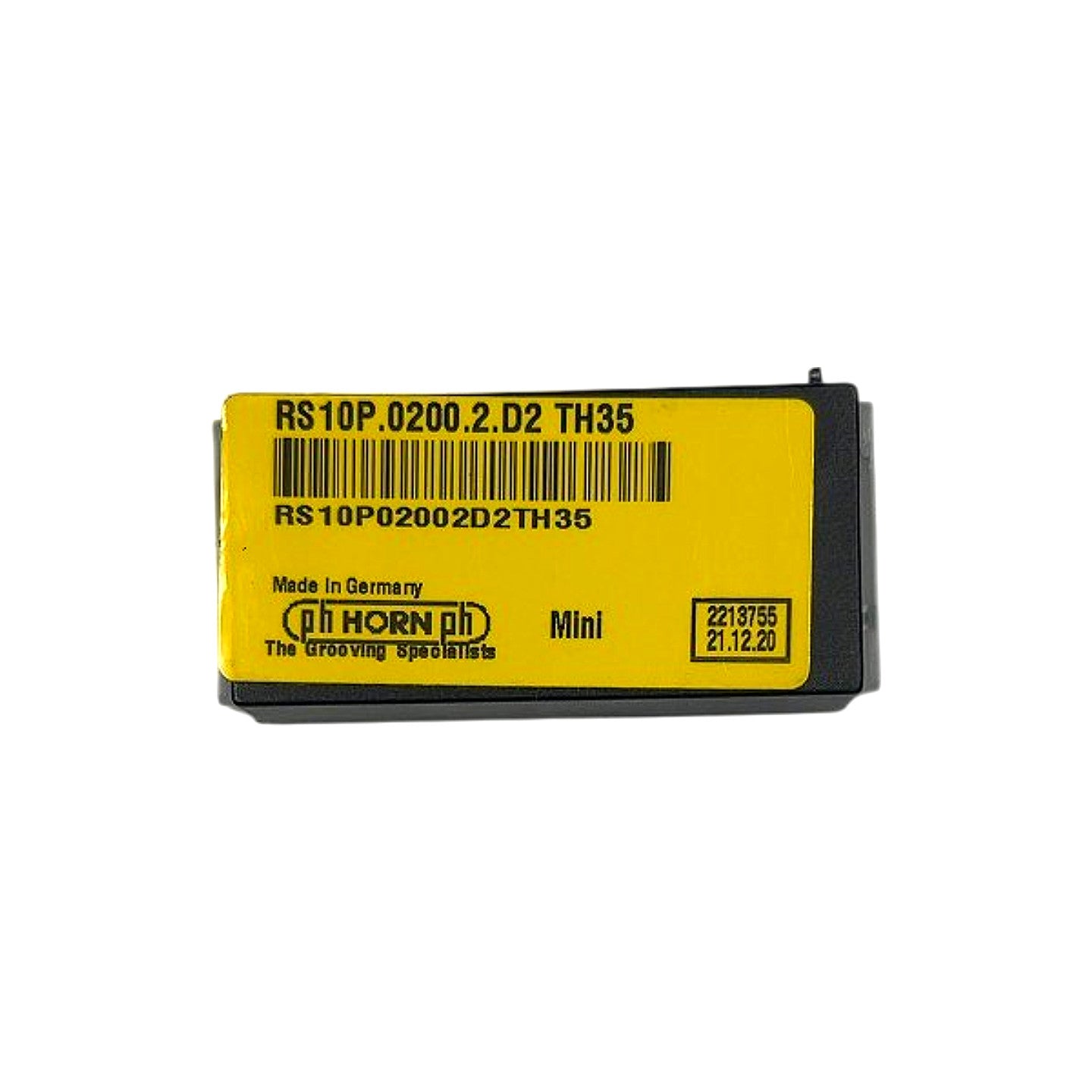

This is a new Horn RS10P.0200.2.D2 TH35 carbide grooving insert from Horn's System Mini product line, manufactured in Germany and packaged in Horn's standard twin-compartment Mini insert case. Decoding the part number: RS10P denotes the System Mini series with a 10 mm shank-system profile; 0200 indicates a 2.00 mm cutting width; the second position '2' specifies the insert seat/geometry variant; D2 designates the insert form/geometry for internal or external grooving; and TH35 is Horn's proprietary CVD-coated submicron carbide grade optimized for universal steel and stainless steel applications, offering a combination of high wear resistance and toughness. The TH35 grade features a TiAlN-based CVD coating that delivers extended tool life in interrupted cuts and on difficult-to-machine materials including austenitic stainless steels and low-alloy steels. These inserts are designed for use in Horn System Mini toolholders accepting the RS10P insert seat, suitable for external grooving, parting, and face grooving operations on CNC lathes.

Product Specifications
