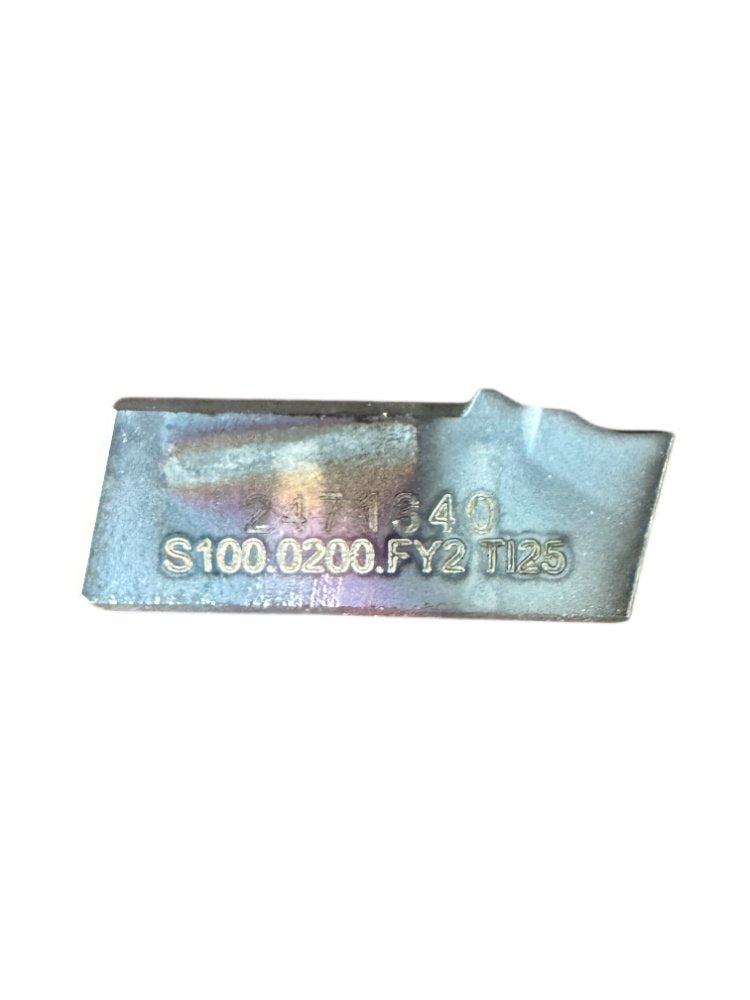

Horn S100.0200.FY2 TI25 2mm Carbide Grooving Insert (2 Pcs)

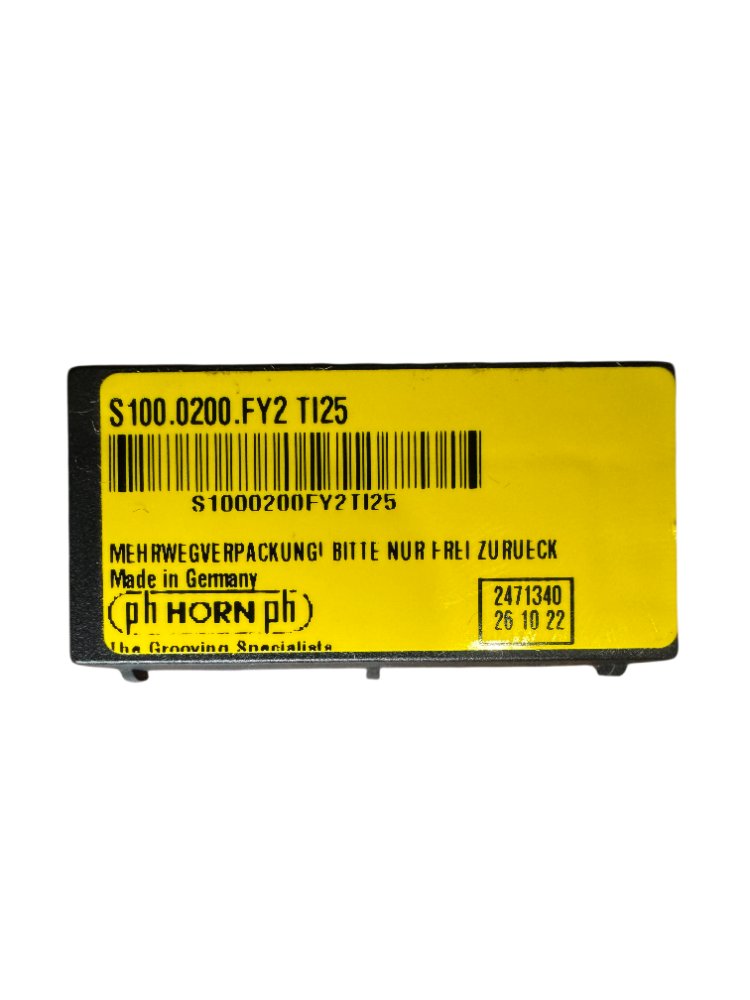

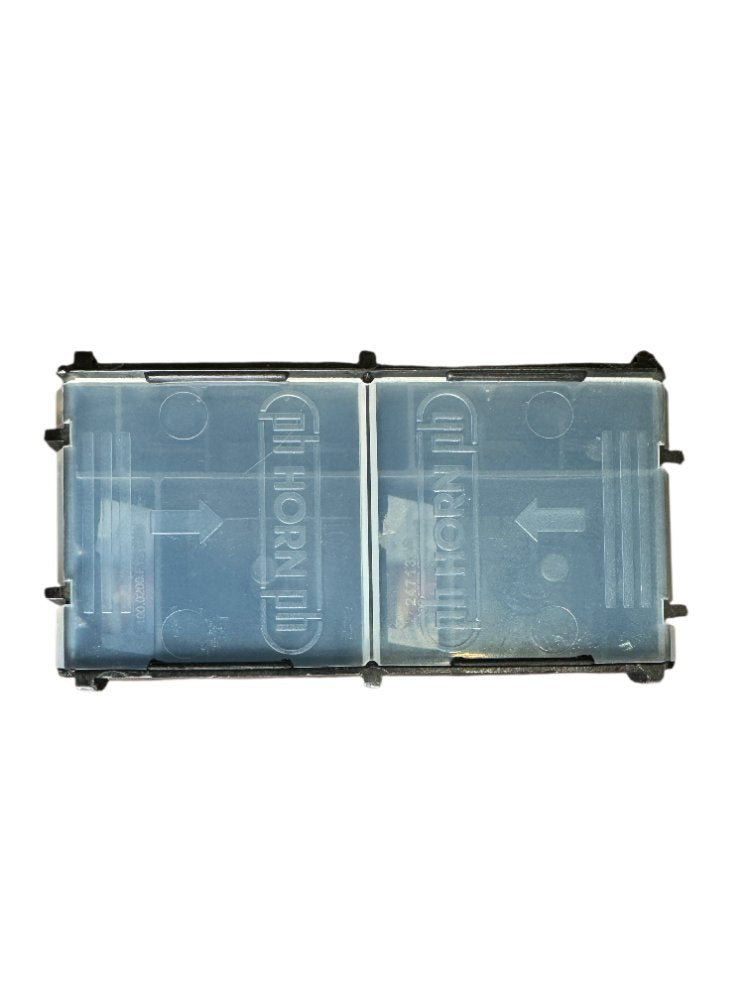

This is a new Horn S100.0200.FY2 TI25 carbide grooving insert from Paul Horn GmbH's System 100 series, made in Germany and supplied in Horn's standard reusable twin-cavity protective packaging. The part number decodes as follows: S100 designates the System 100 single-sided grooving insert system; 0200 specifies a 2.00 mm grooving width; FY2 identifies the chipbreaker/geometry (a two-sided face grooving or radial grooving geometry with integrated chip former suited for finishing and medium cuts); TI25 is Horn's uncoated or PVD-coated cermet/carbide substrate grade optimized for turning steel and stainless steel at high cutting speeds with excellent wear resistance and surface finish. System 100 inserts seat in Horn S100-series toolholders and boring bars designed for that blade-style clamping system, making them suitable for external and internal grooving, parting, and face grooving operations on CNC lathes where a 2.00 mm groove width is required.

Product Specifications
