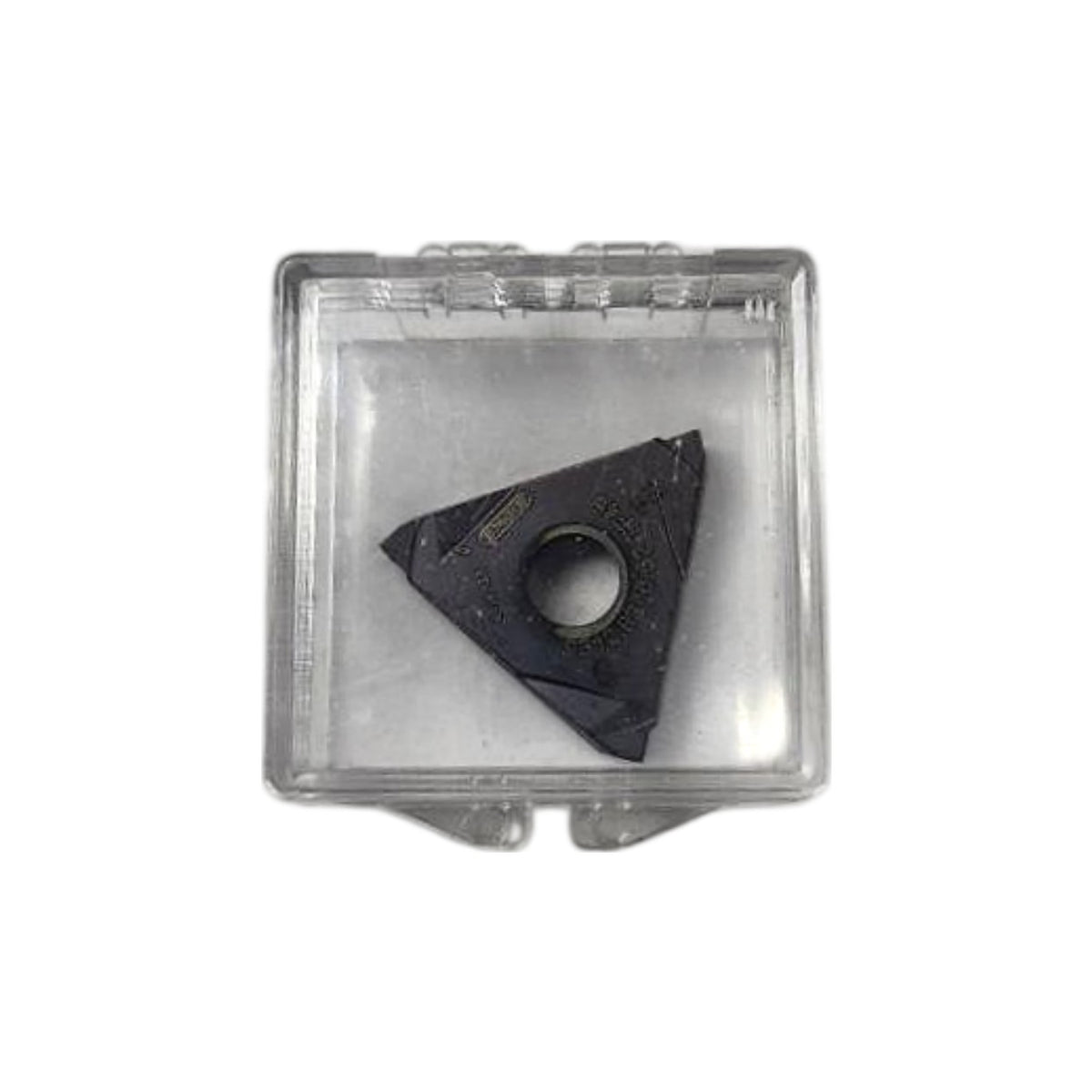

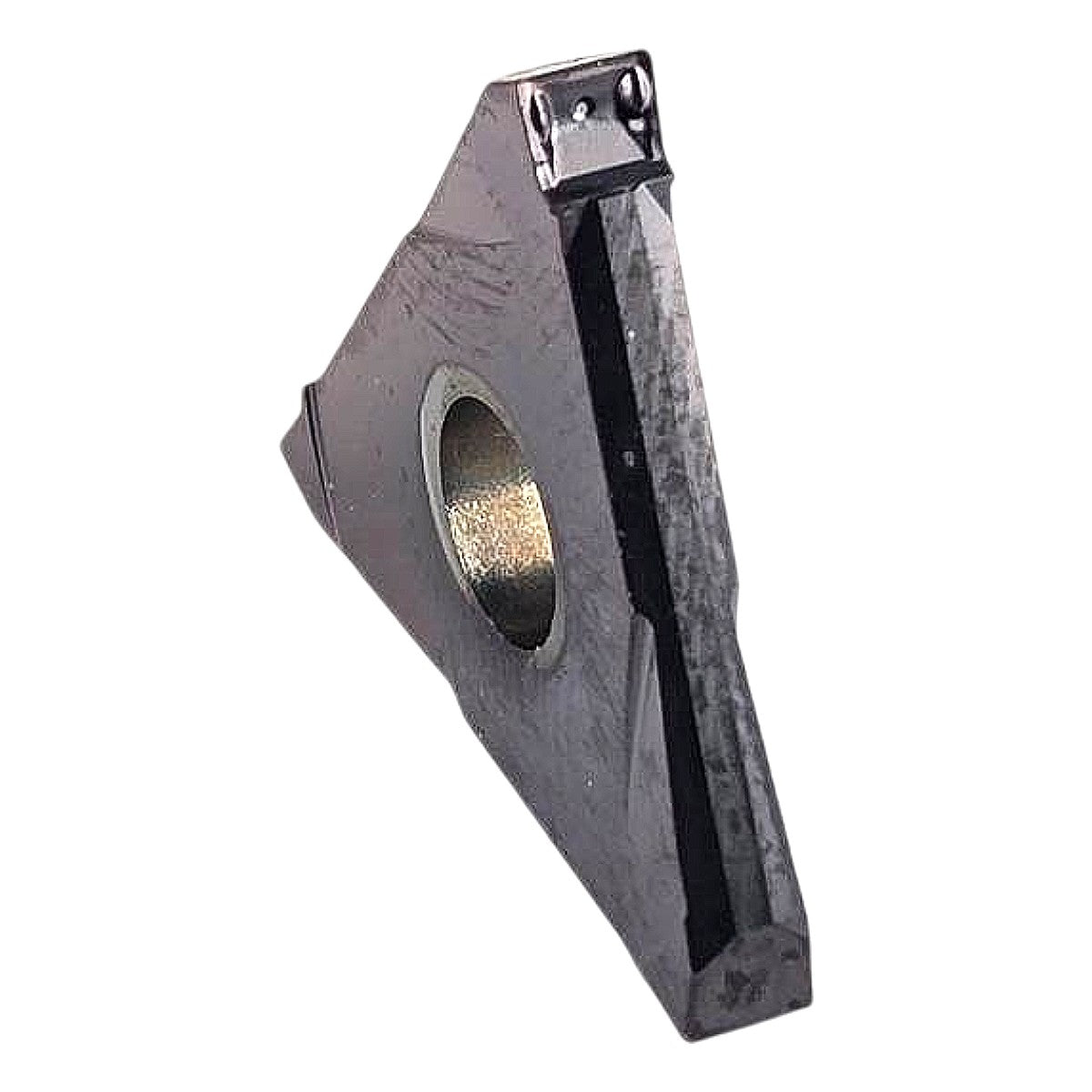

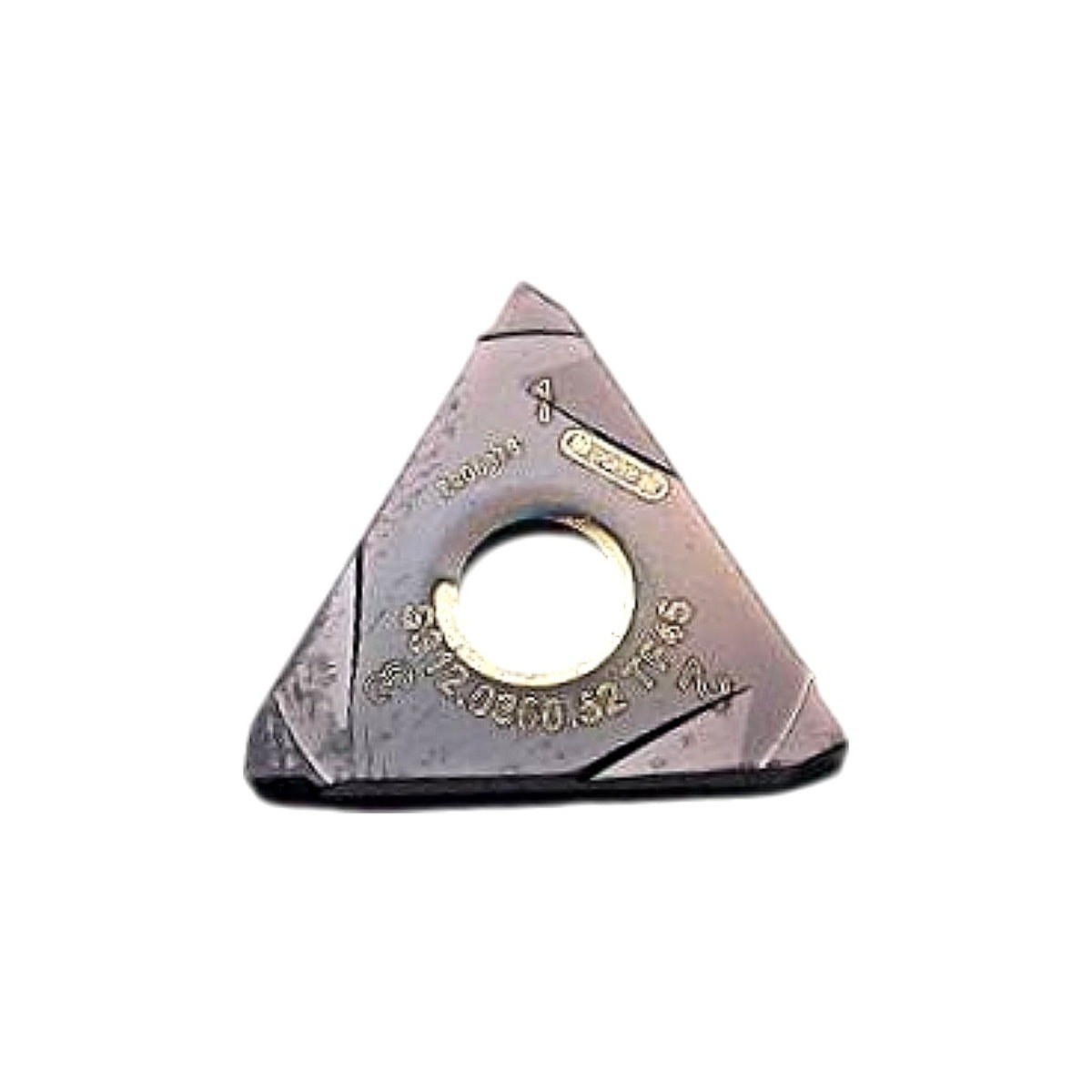

Horn S312.0300.52 TF45 System 312 Carbide Grooving Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Paul Horn GmbH S312.0300.52 TF45 is a new, solid carbide triangular grooving insert belonging to Horn's System 312 platform, designed for external and internal grooving, copy turning, side turning, and partial-cut operations on CNC lathes. Decoded from the part number: "S312" identifies the System 312 insert family; "0300" indicates a 3.00 mm groove width; "52" encodes the geometry/chipbreaker variant; and "TF45" is Horn's PVD-coated submicron carbide grade offering high hot hardness and wear resistance suited to moderate-to-high cutting speeds on steel, stainless, and difficult-to-machine alloys. The triangular insert body features three usable cutting edges, a central through-hole for screw clamping, and precision-ground flanks for accurate, repeatable seating in compatible Horn System 312 toolholders. TF45's PVD TiAlN-based coating delivers low friction and oxidation resistance, extending tool life in dry or minimum-quantity lubrication (MQL) machining environments.
Product Specifications
| Brand | Paul Horn GmbH (Horn) |
| Part Number (MPN) | S312.0300.52 TF45 |
| Insert System | Horn System 312 |
| Insert Shape | Triangular (3 cutting edges) |
| Groove Width | 3.00 mm |
| Geometry / Chipbreaker | 52 |
| Carbide Grade | TF45 |
| Coating | PVD TiAlN |
| Substrate | Submicron solid carbide |
| Applications | Grooving, copy turning, side turning, partial-cut |
| Compatible Toolholder System | Horn System 312 toolholders |
| Mounting | Central screw clamp (through-hole) |
| Condition | New |
