Hougen 12624 3/4in x 1in Depth TiN HSS Rotabroach Annular Cutter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

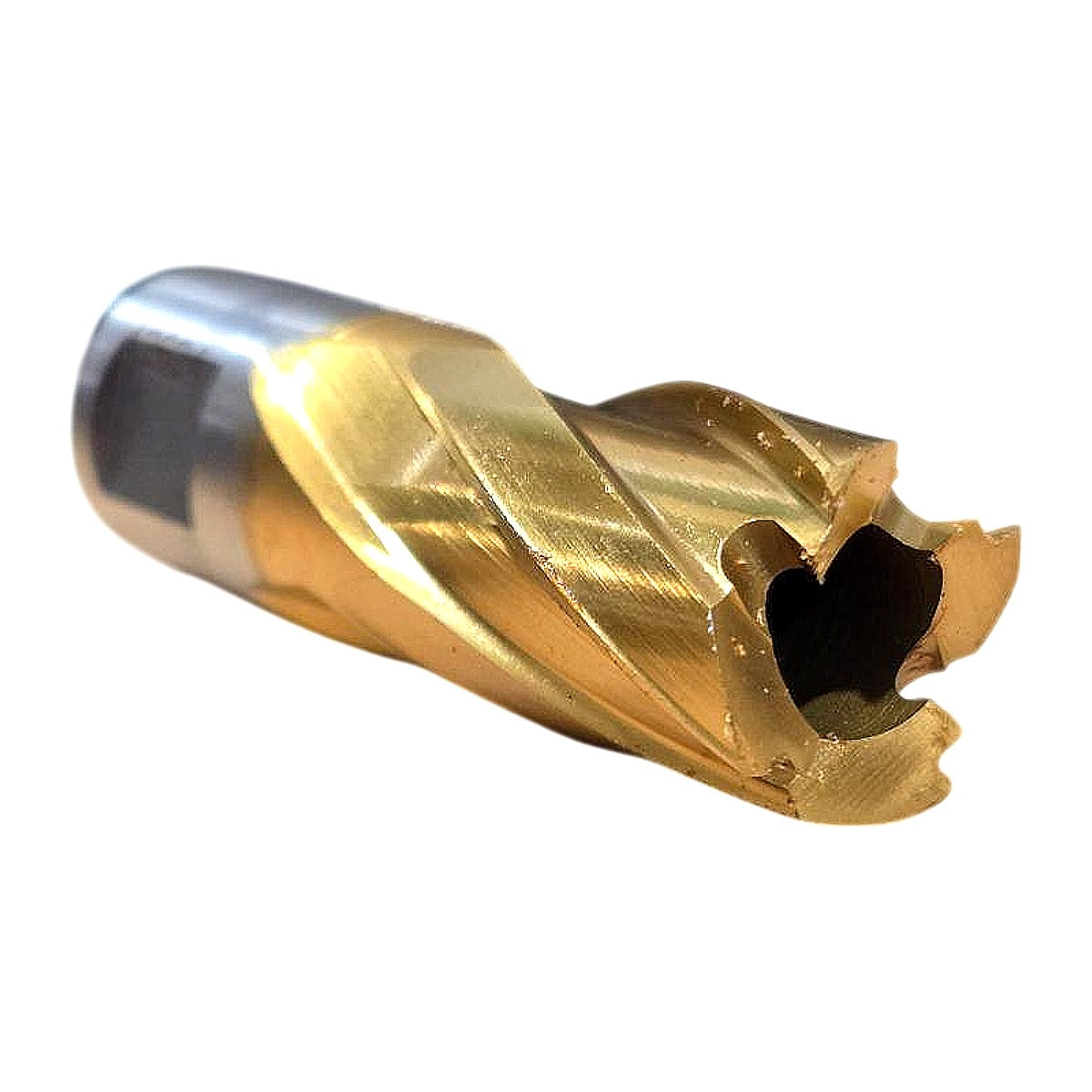

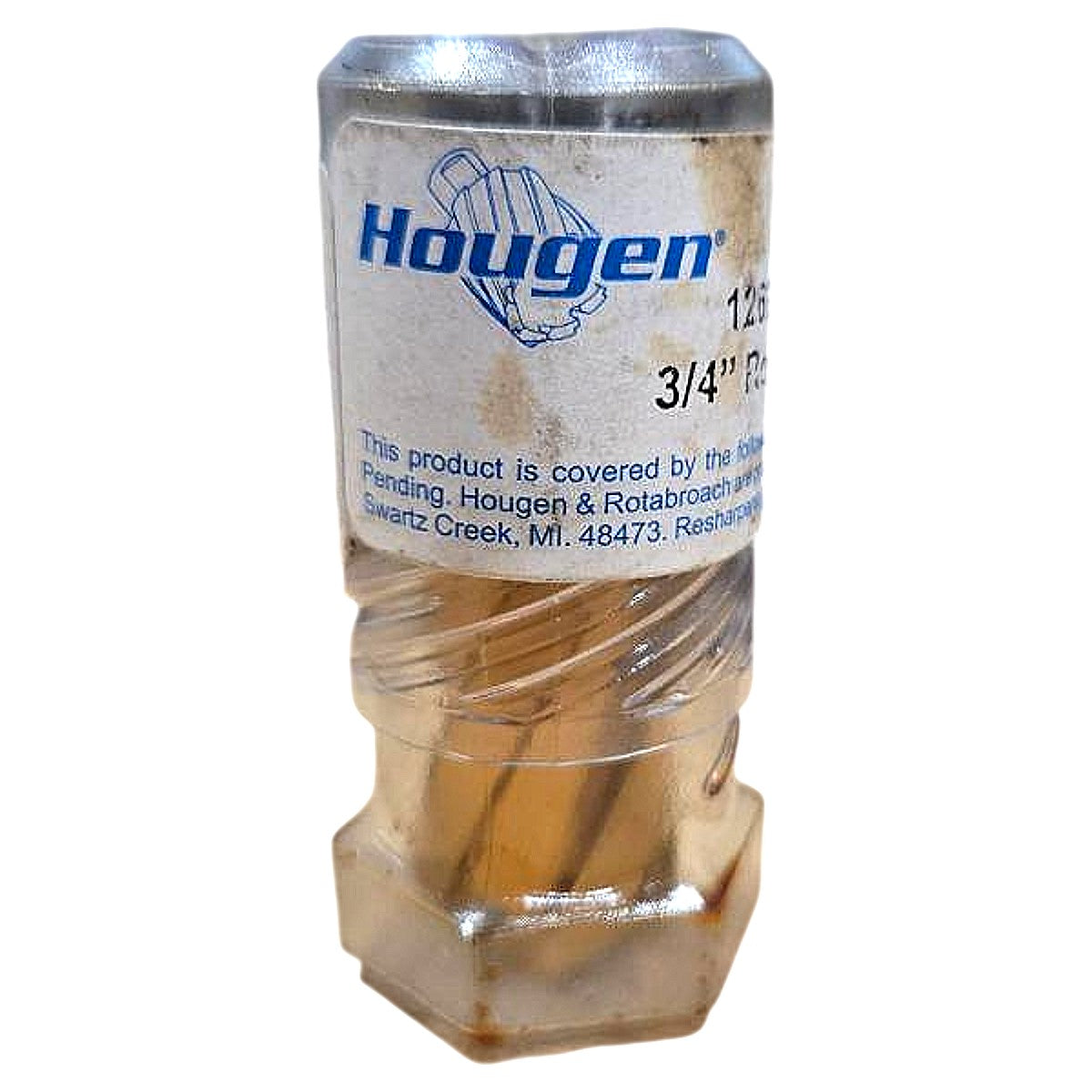

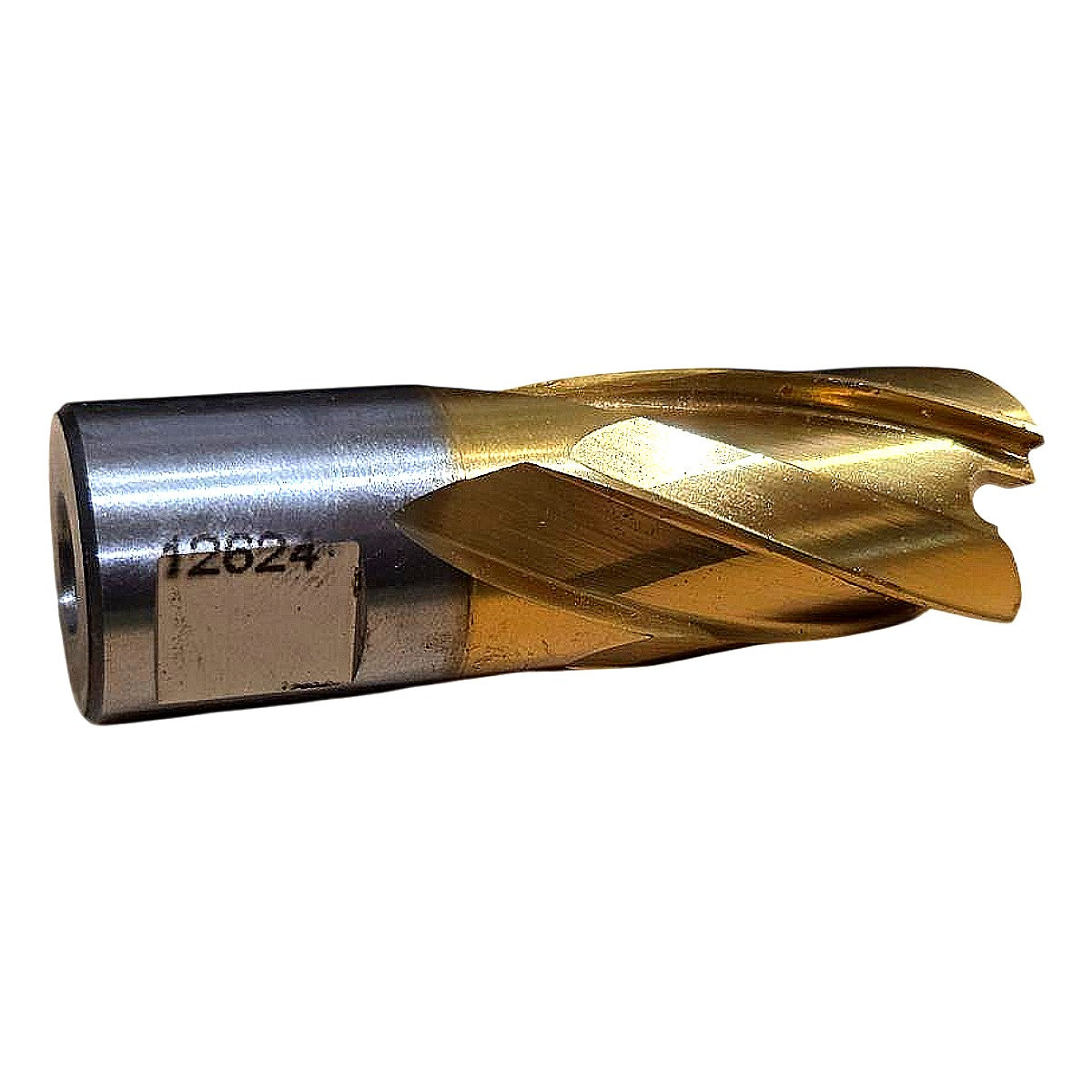

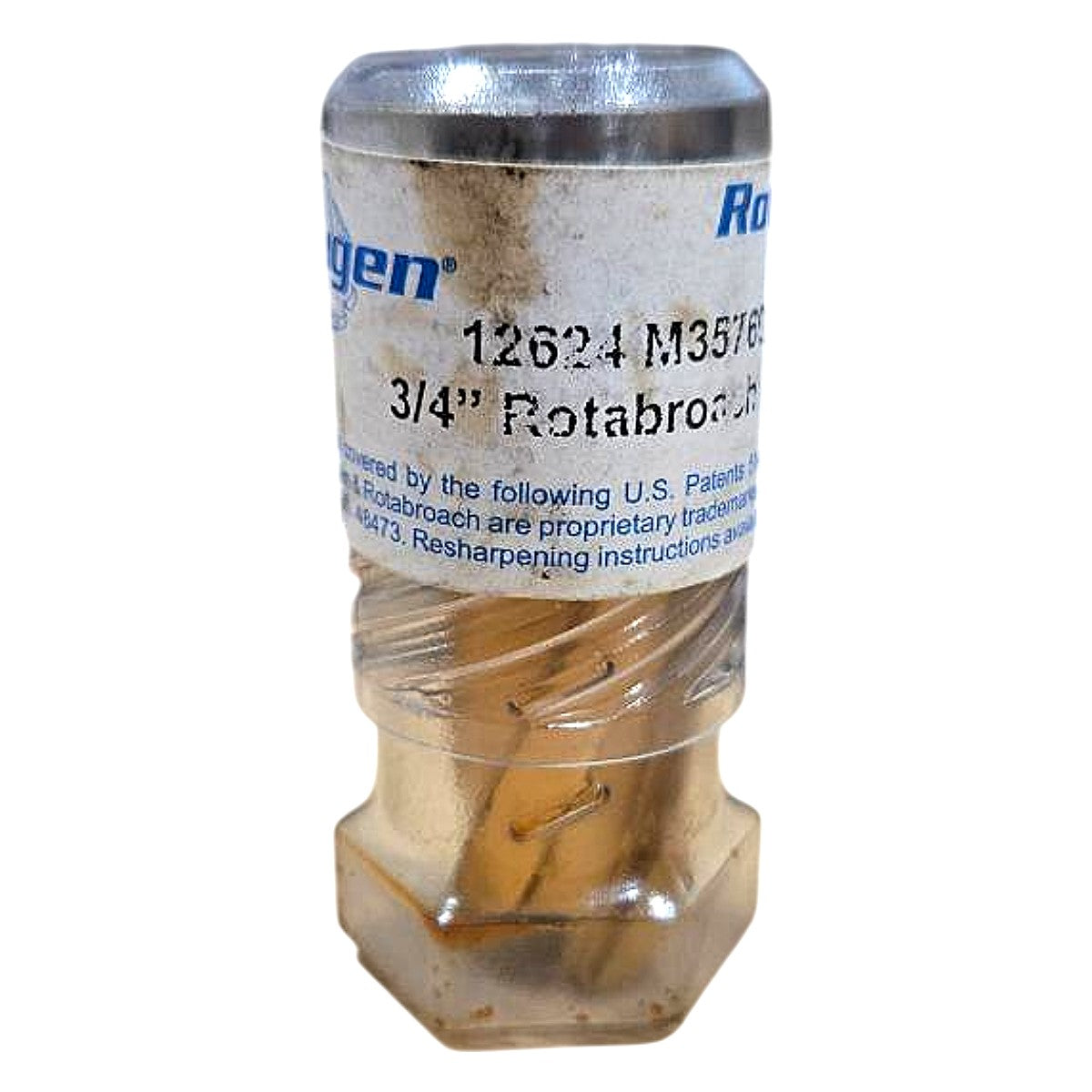

The Hougen 12624 is a new 3/4 in. (19.05 mm) diameter Rotabroach annular cutter with a 1 in. depth of cut, manufactured from M-2 high-speed steel and finished with a TiN (Titanium Nitride) coating that increases surface hardness and extends tool life compared to uncoated HSS. The Rotabroach multi-flute helical design cuts only an annular ring rather than a solid slug, dramatically reducing the horsepower required versus conventional twist drills and producing a clean, burr-minimized hole in steel, mild steel, and structural steel. This cutter uses the industry-standard 3/4 in. Weldon-style shank with a cross-hole for the spring-loaded pilot pin and is compatible with Hougen magnetic drill presses (HMD series) and any magnetic base drill or drill press accepting a 3/4 in. Rotabroach/universal shank. Label on shank confirms part number 12624 and "3/4 in. Rotabroach" designation; the secondary code M357690-4907 visible on the label is Hougen's internal lot/revision identifier.
Product Specifications
| Brand | Hougen |
| Part Number (MPN) | 12624 |
| Secondary Code | M357690-4907 |
| Cutting Diameter | 3/4 in (19.05 mm) |
| Depth of Cut | 1 in (25.4 mm) |
| Shank Type | 3/4 in Weldon (Rotabroach universal) |
| Shank Diameter | 3/4 in |
| Material / Grade | M-2 High-Speed Steel (HSS) |
| Coating | TiN (Titanium Nitride) |
| Cutter Style | Rotabroach annular (multi-flute helical) |
| Number of Flutes | 4 |
| Pilot Pin | Spring-loaded pilot pin, cross-hole in shank |
| Compatible Machines | Hougen HMD series mag drills, 3/4 in shank mag drills |
| Applicable Materials | Steel, mild steel, structural steel |
| Condition | New |
