HPU 253134 2-Button 4-Wire 20ft Magnetic Mount Pendant Remote Control

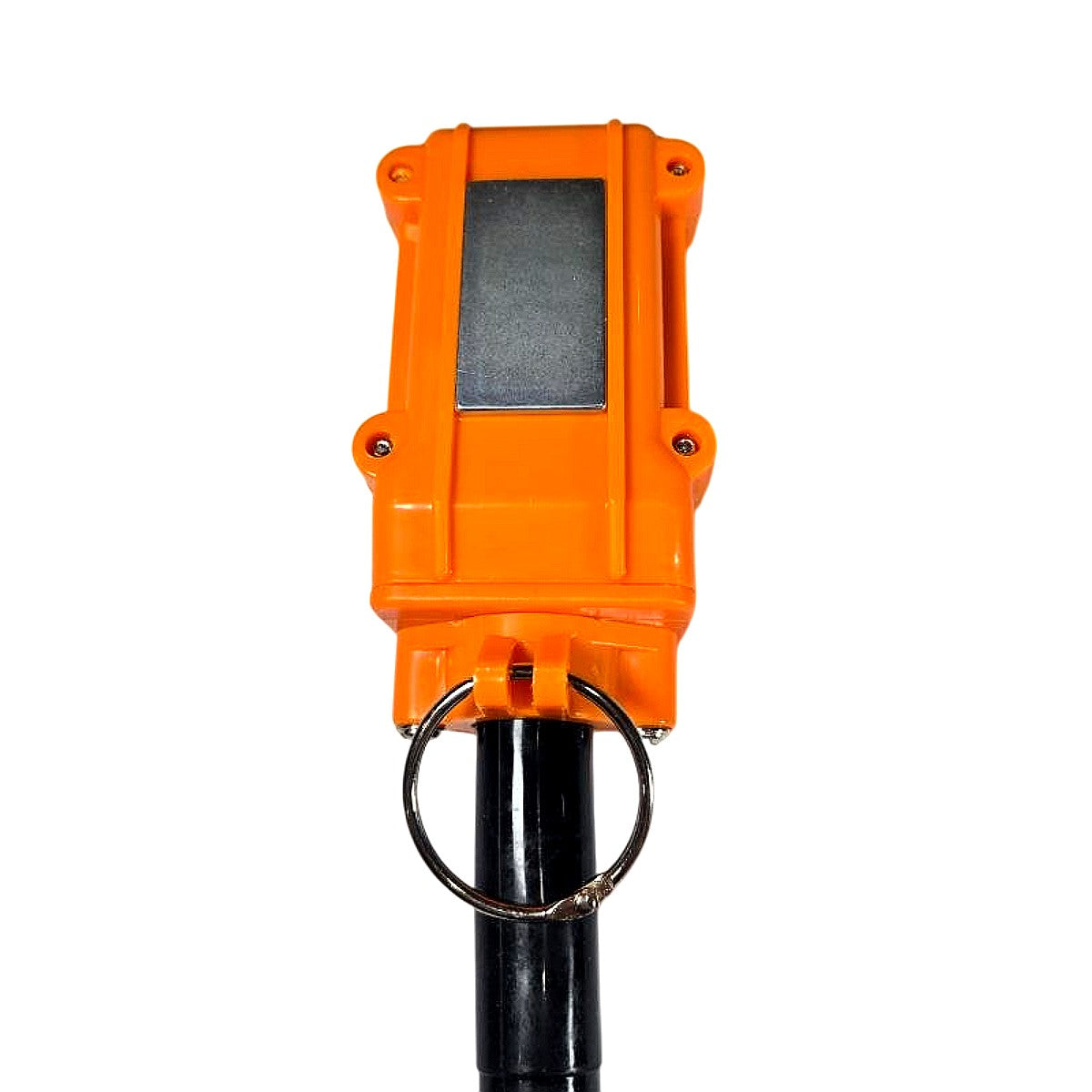

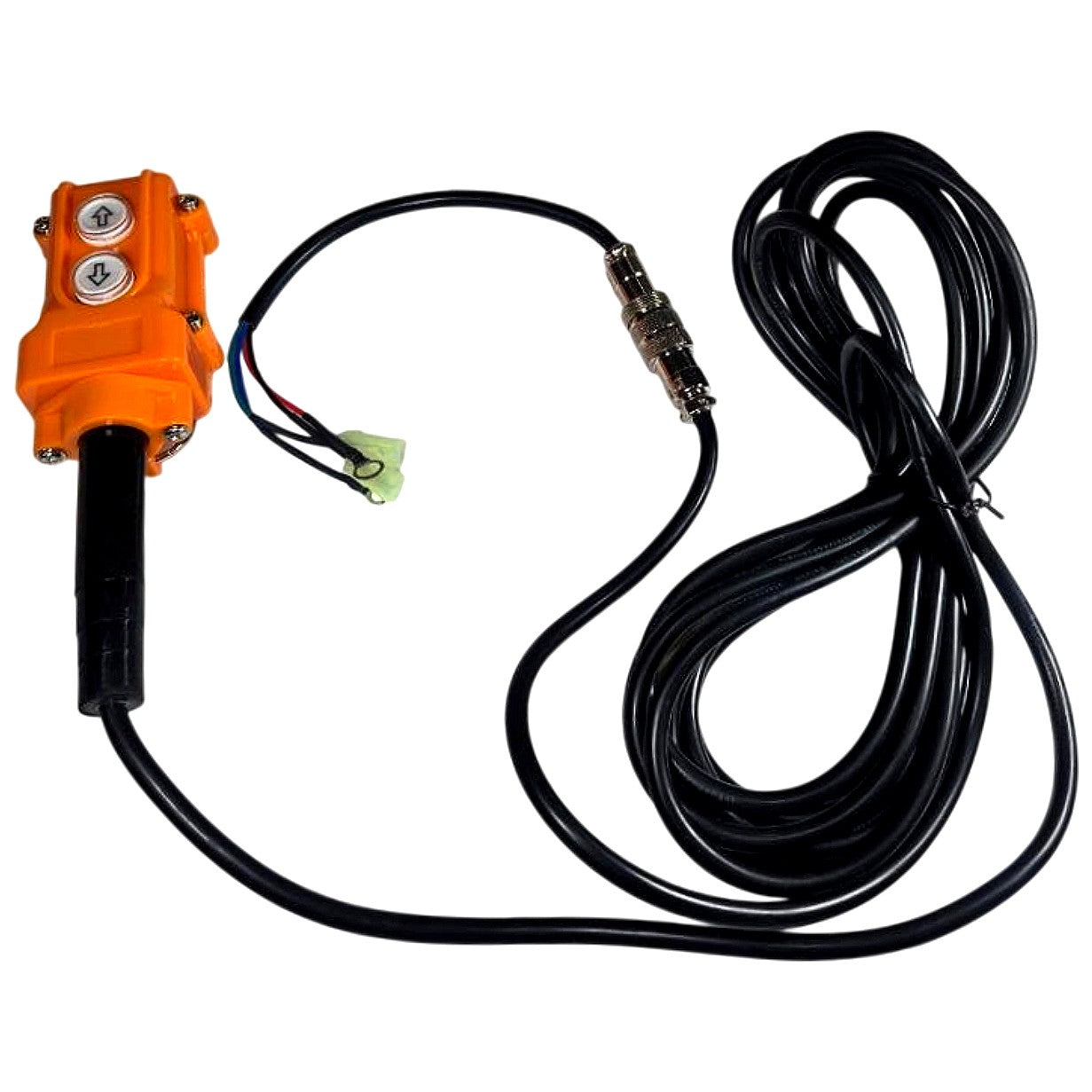

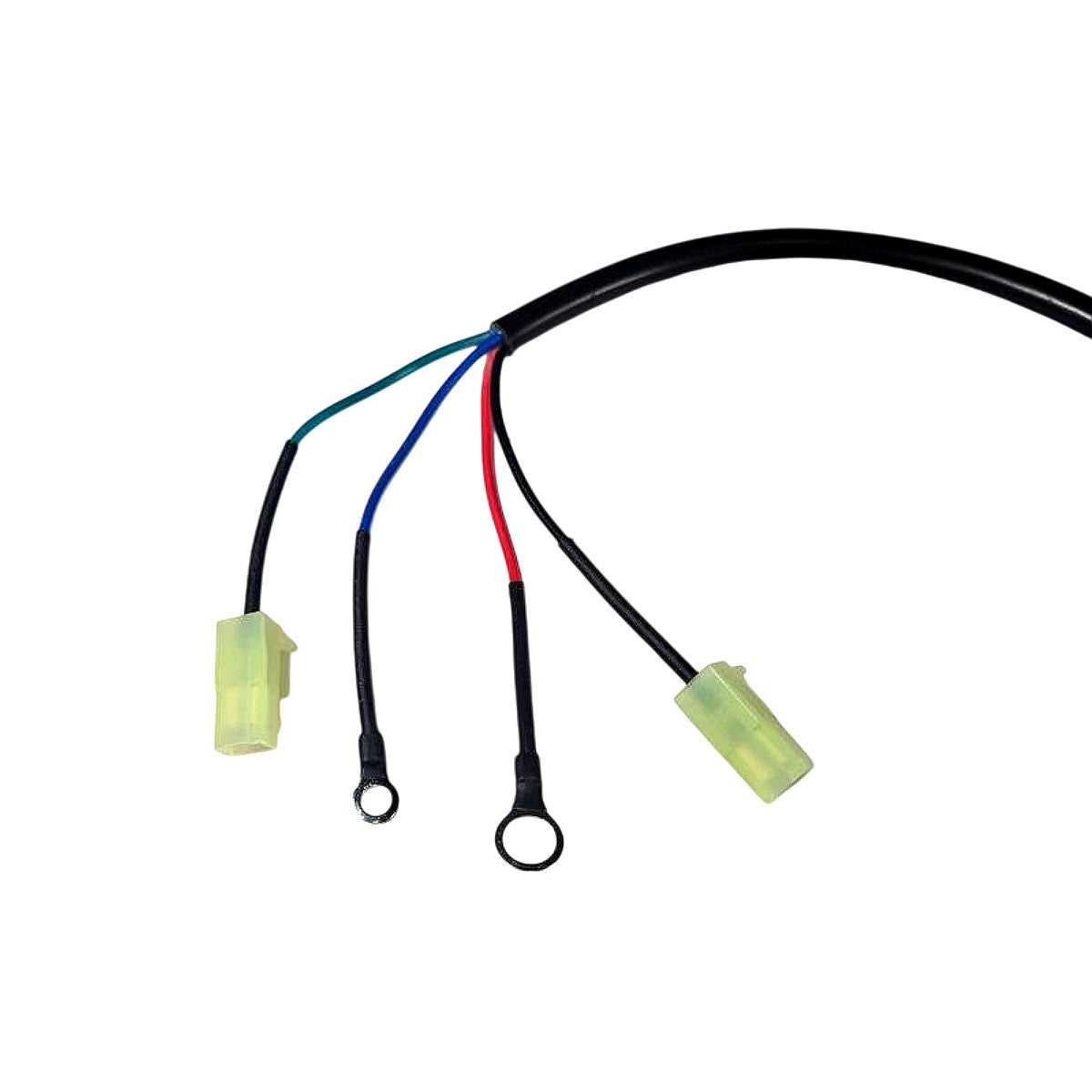

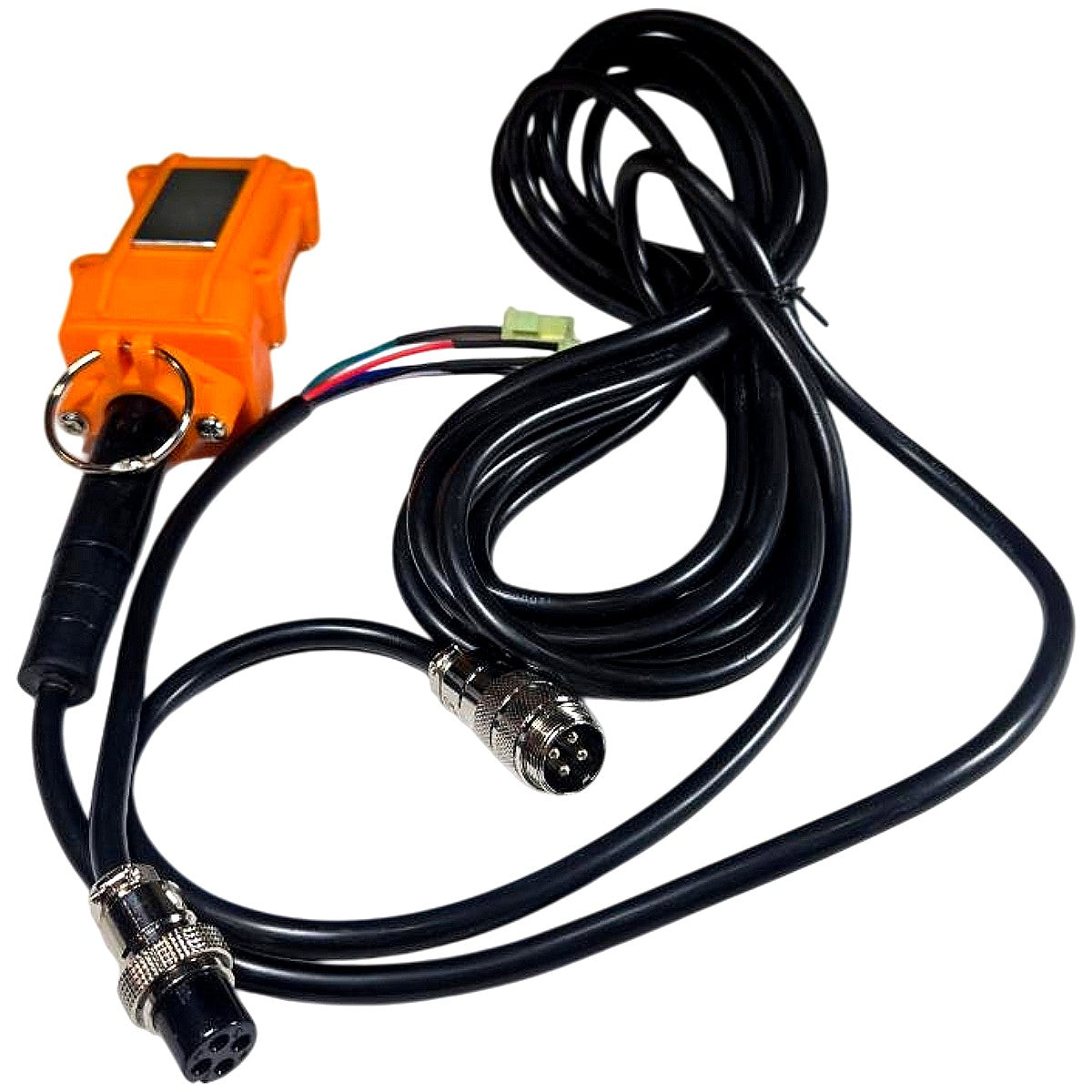

The HPU 253134 is a new 2-button wired pendant remote control designed for hydraulic power unit (HPU) applications, featuring up and down directional pushbuttons in a high-visibility orange overmolded housing with an integrated ergonomic handle grip. The unit uses a 4-wire configuration terminated with a mix of ring-terminal ground leads and Yazaki-style quick-disconnect connectors at the control end, and a 5-pin aviation-style (GX16) circular connector — both male and female — at the cable end for inline connection to the HPU control circuit. A magnetic mount integrated into the back face of the pendant housing allows the unit to be secured hands-free to any ferrous surface when not in use, and a metal hanging ring is attached at the base of the grip for lanyard or hook storage. The cable is 20 ft of heavy-duty black jacketed multiconductor wire, providing adequate reach for safe operator distance from the equipment during actuation.

Product Specifications
