Hubbell BR20C1GRY 20A 125V NEMA 5-20R 1/2 Controlled Duplex Receptacle Gray PK8
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

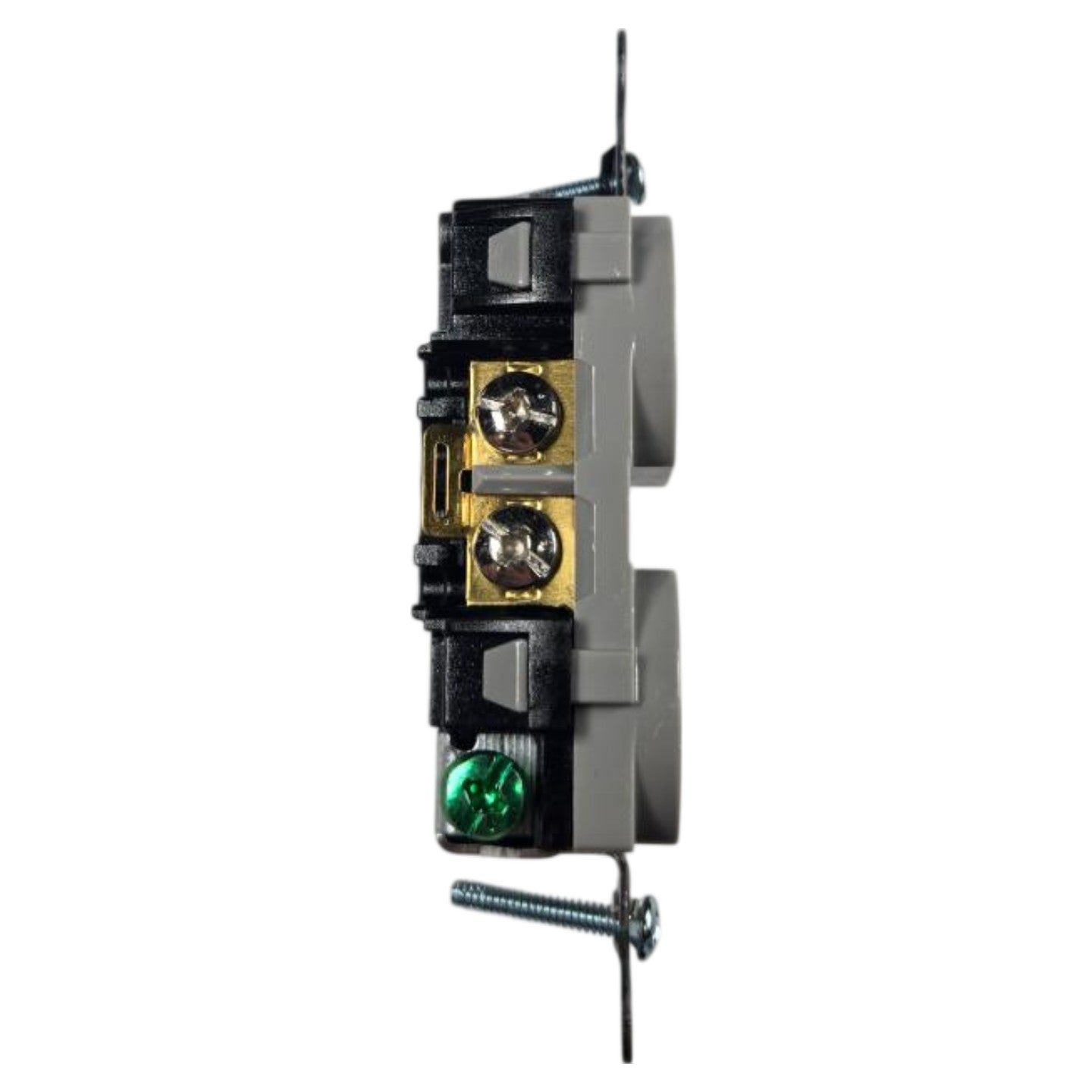

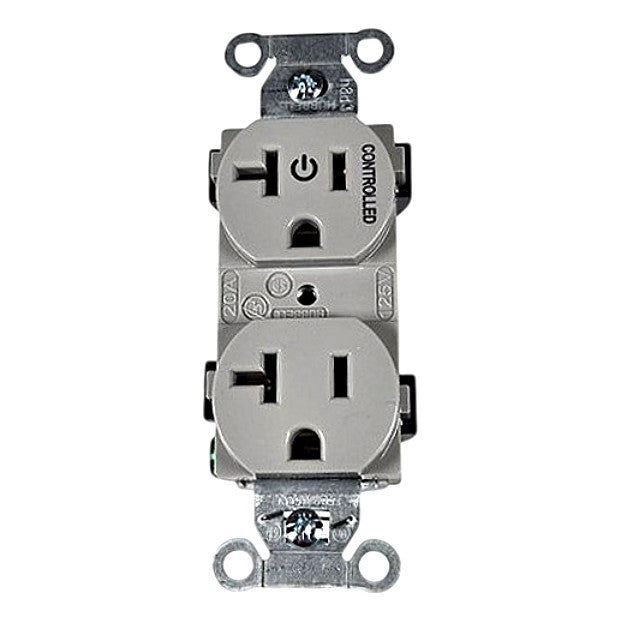

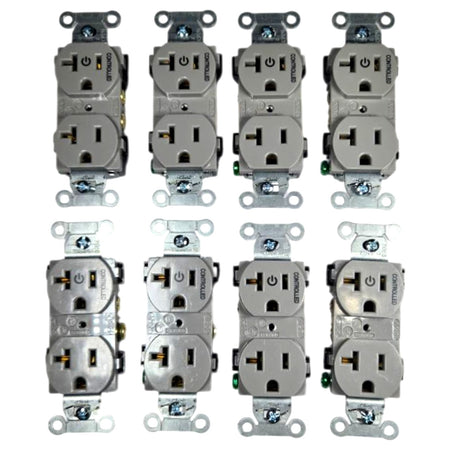

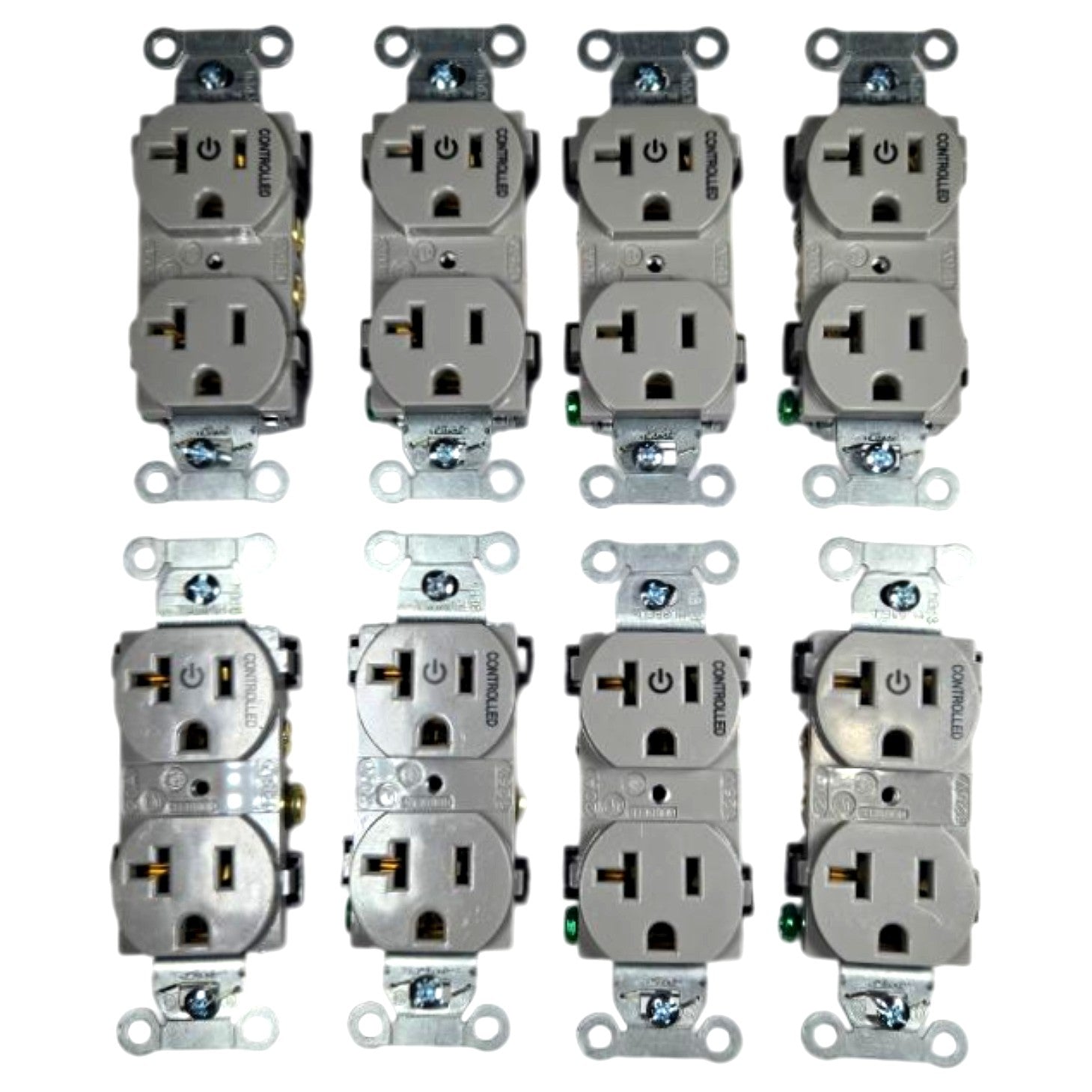

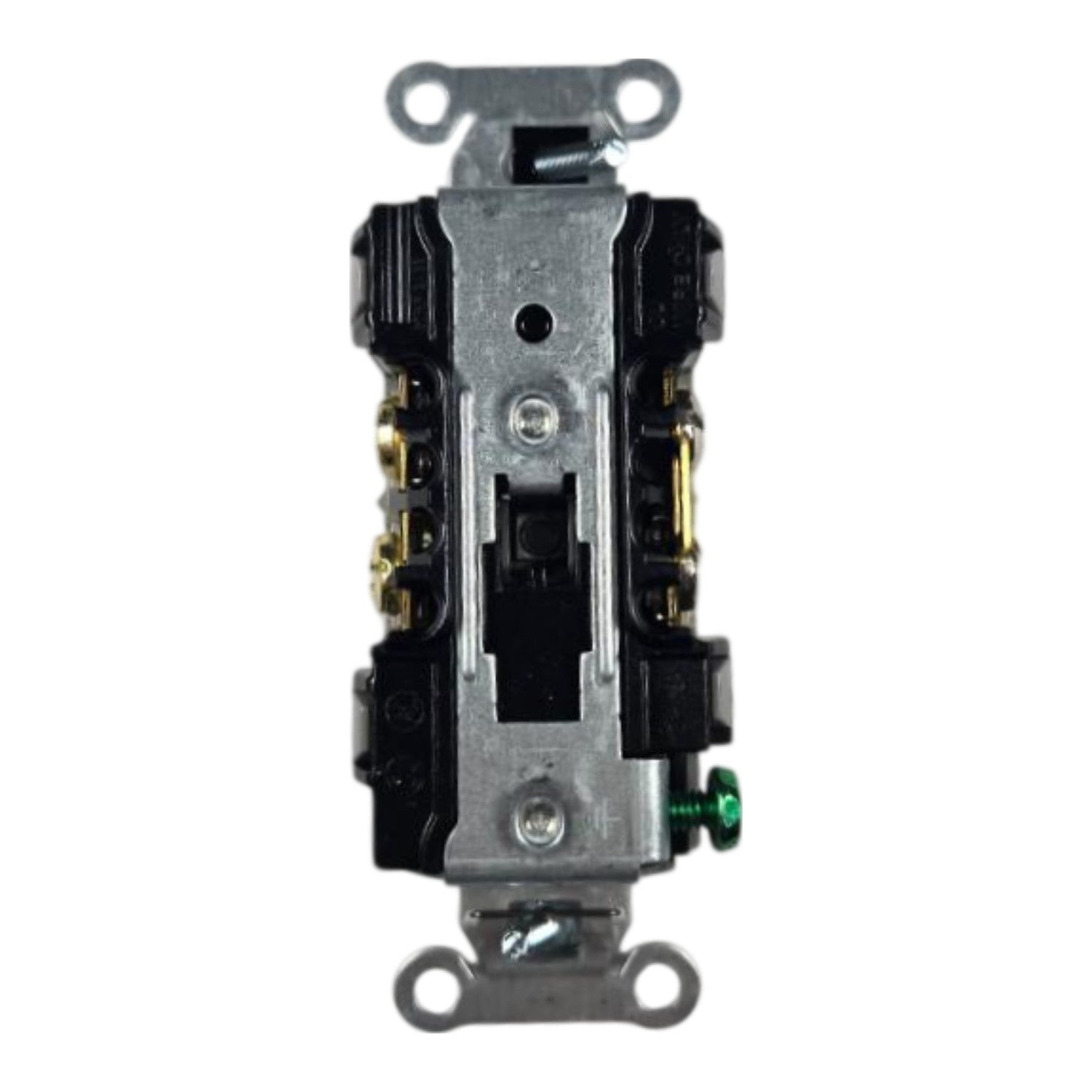

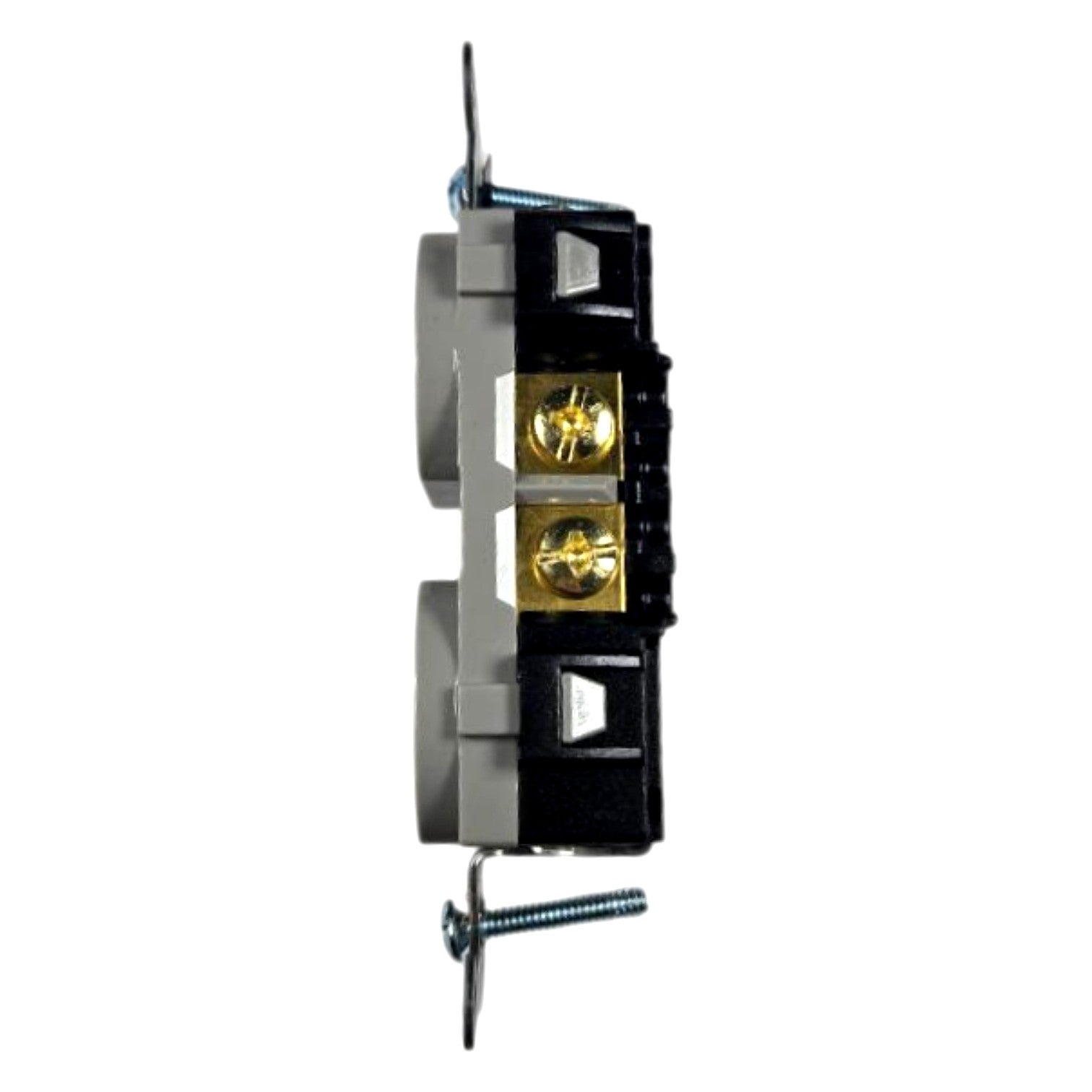

The Hubbell BR20C1GRY is a new commercial-grade half-controlled duplex receptacle rated 20A, 125V, NEMA 5-20R, manufactured by Hubbell Wiring Device-Kellems (Shelton, CT). The top outlet is switch-controlled — identified by a power symbol and "CONTROLLED" legend molded into the gray thermoplastic face — while the bottom outlet remains always-hot, satisfying ASHRAE 90.1 energy-management requirements common in commercial office build-outs, institutional facilities, and lighting-control applications. The device features a steel mounting strap with self-grounding ears, a green grounding screw, back-wired and side-wired screw terminal connections, and accepts #12 and #14 AWG Cu conductors; UL Listed (File E2234) and compliant with Federal Specification W-C-596G. This listing is for a lot of 8 units, all new-in-box, with the catalog number BR20C1GRY confirmed directly from the box label and face markings visible in the product photos.
Product Specifications
| Brand | Hubbell Wiring Device-Kellems |
| MPN | BR20C1GRY |
| Current Rating | 20A |
| Voltage Rating | 125V |
| NEMA Configuration | 5-20R |
| Control Type | 1/2 Controlled (top switched, bottom always-hot) |
| Outlet Type | Duplex Receptacle |
| Grade | Commercial |
| Color | Gray |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Grounding | Self-grounding strap, green grounding screw |
| Wiring Method | Back-wired and side-wired screw terminals |
| Wire Range | #12 AWG, #14 AWG Cu |
| UL Listing | UL Listed, File E2234 |
| Federal Specification | W-C-596G |
| Mounting | Standard single-gang wall box |
| Quantity | 8 units (lot) |
| Condition | New |
