Hubbell BR20C1GRY 20A 125V NEMA 5-20R Half-Controlled Duplex Receptacle 10PK
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

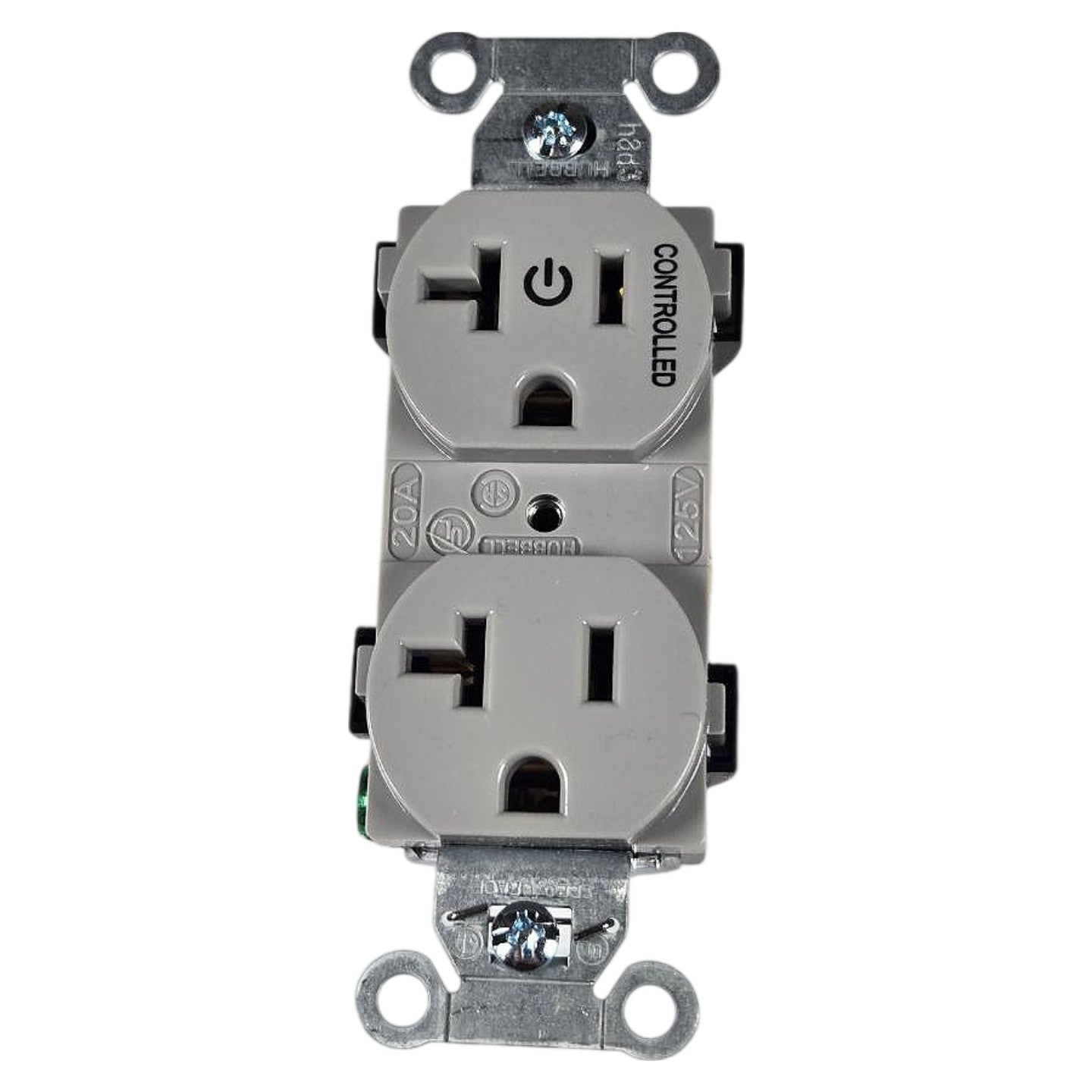

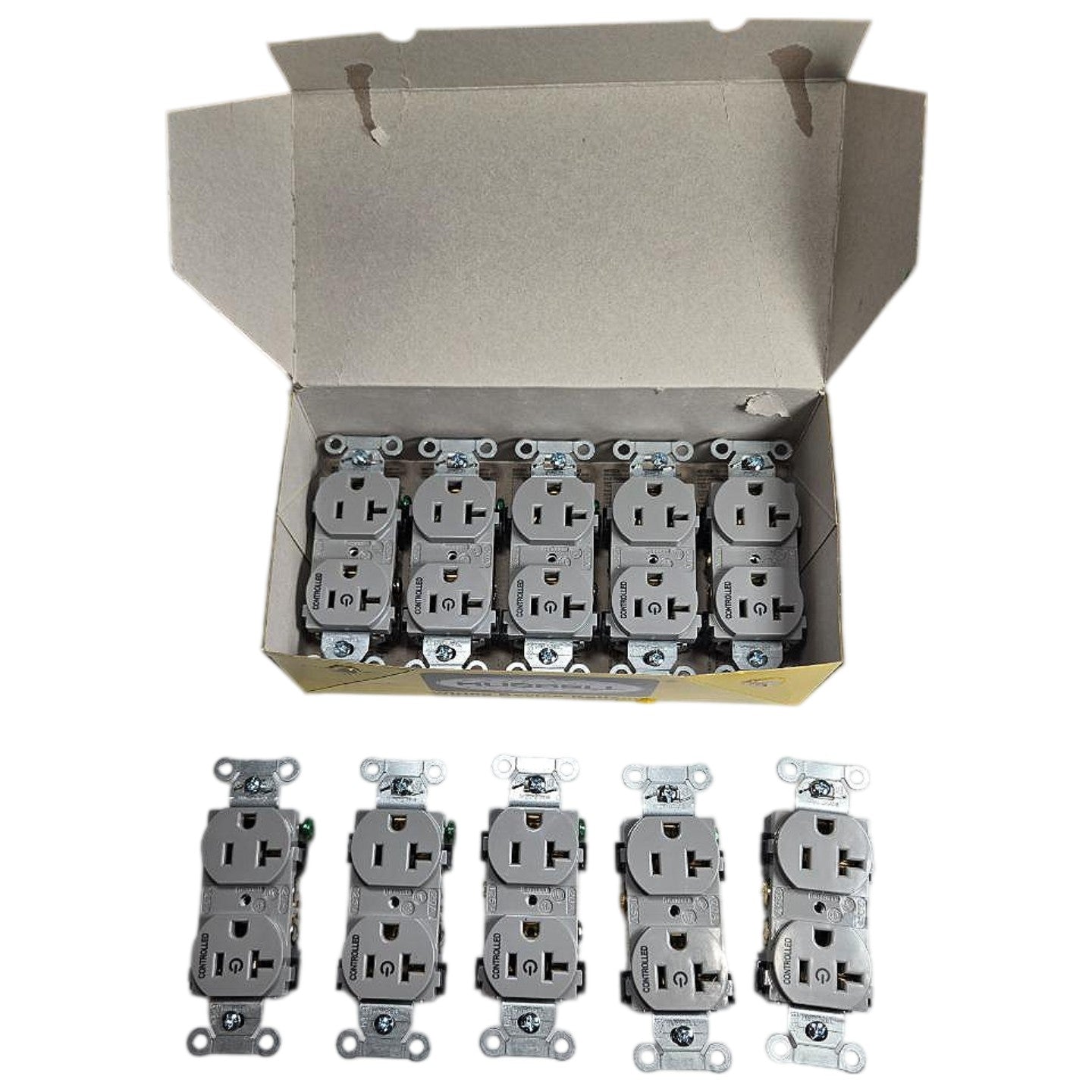

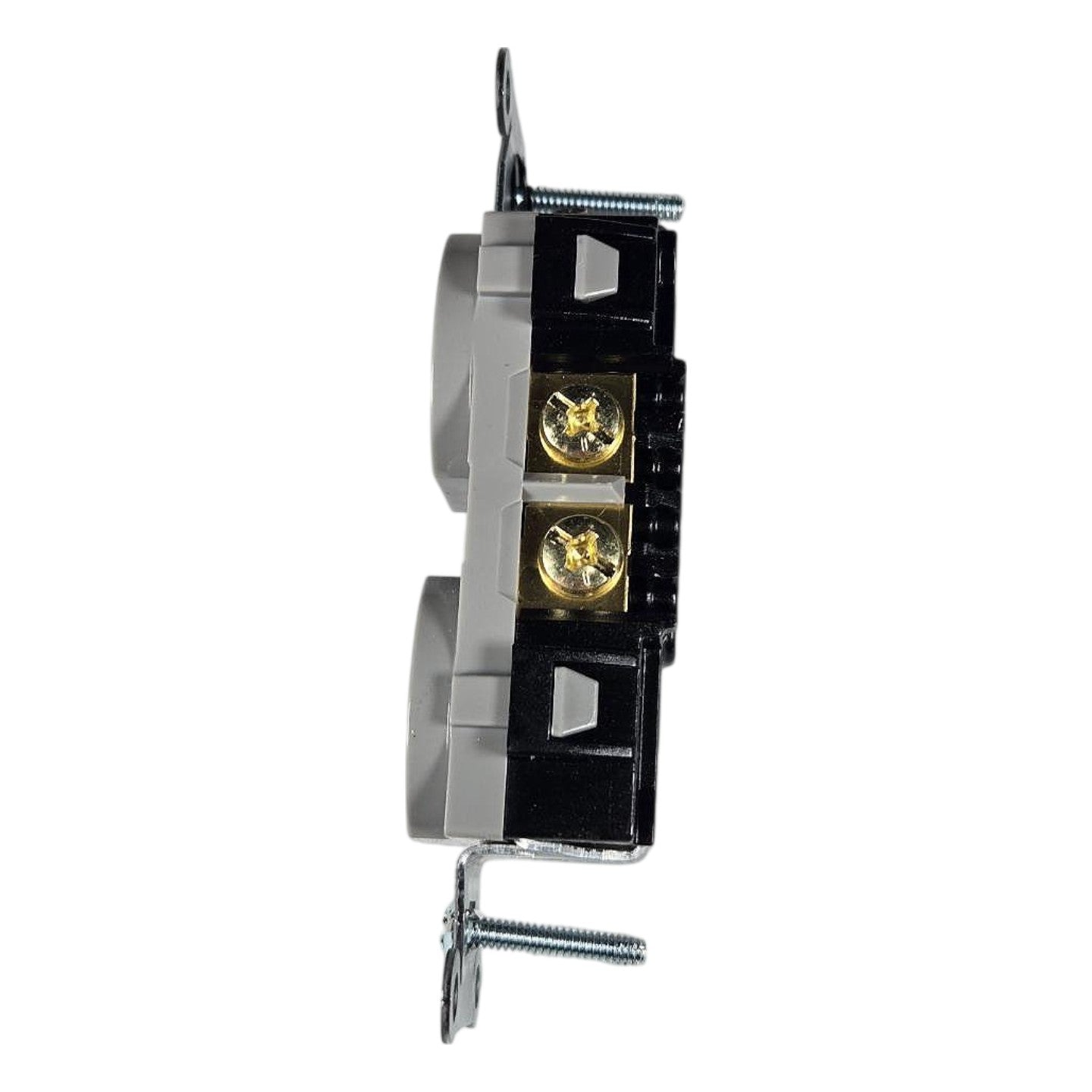

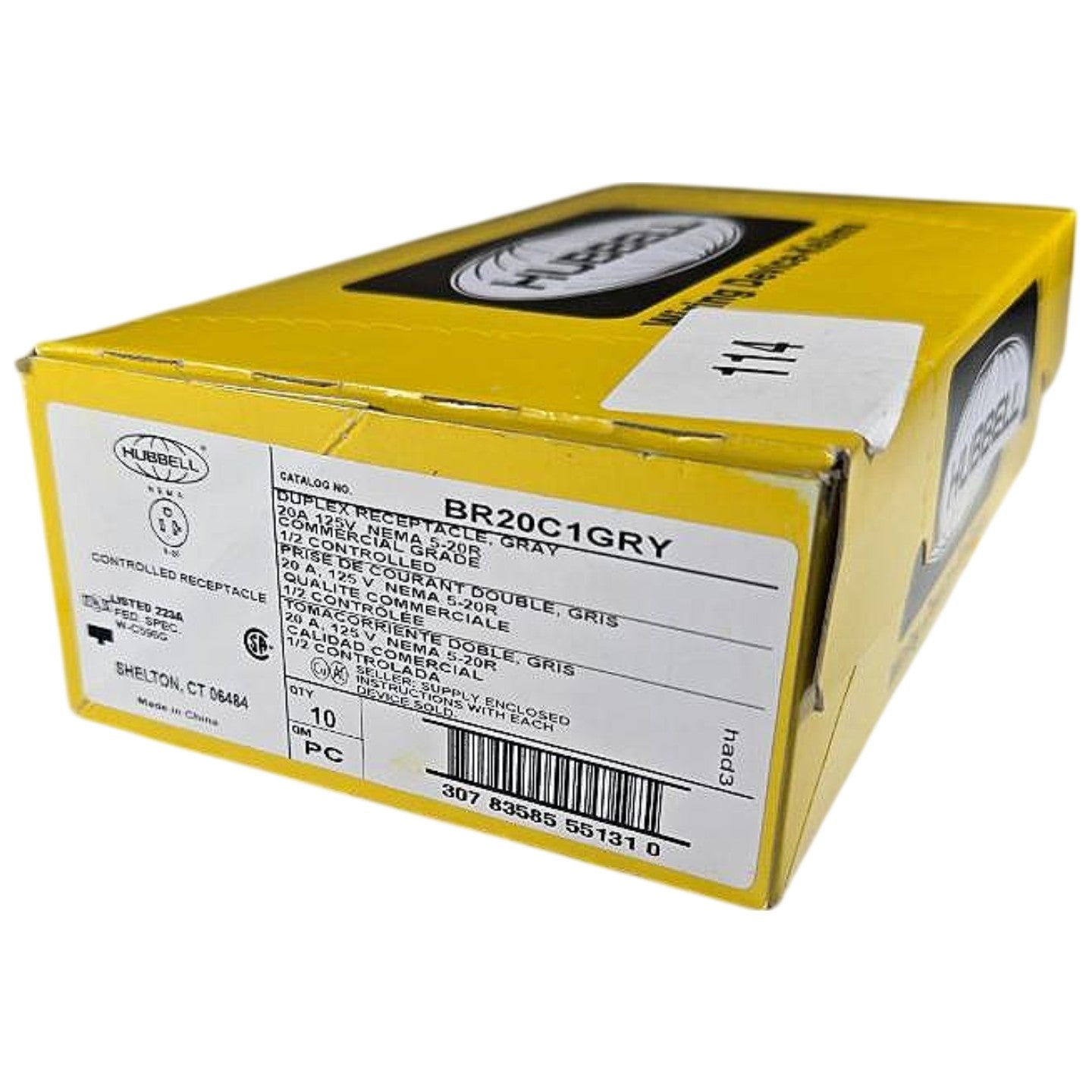

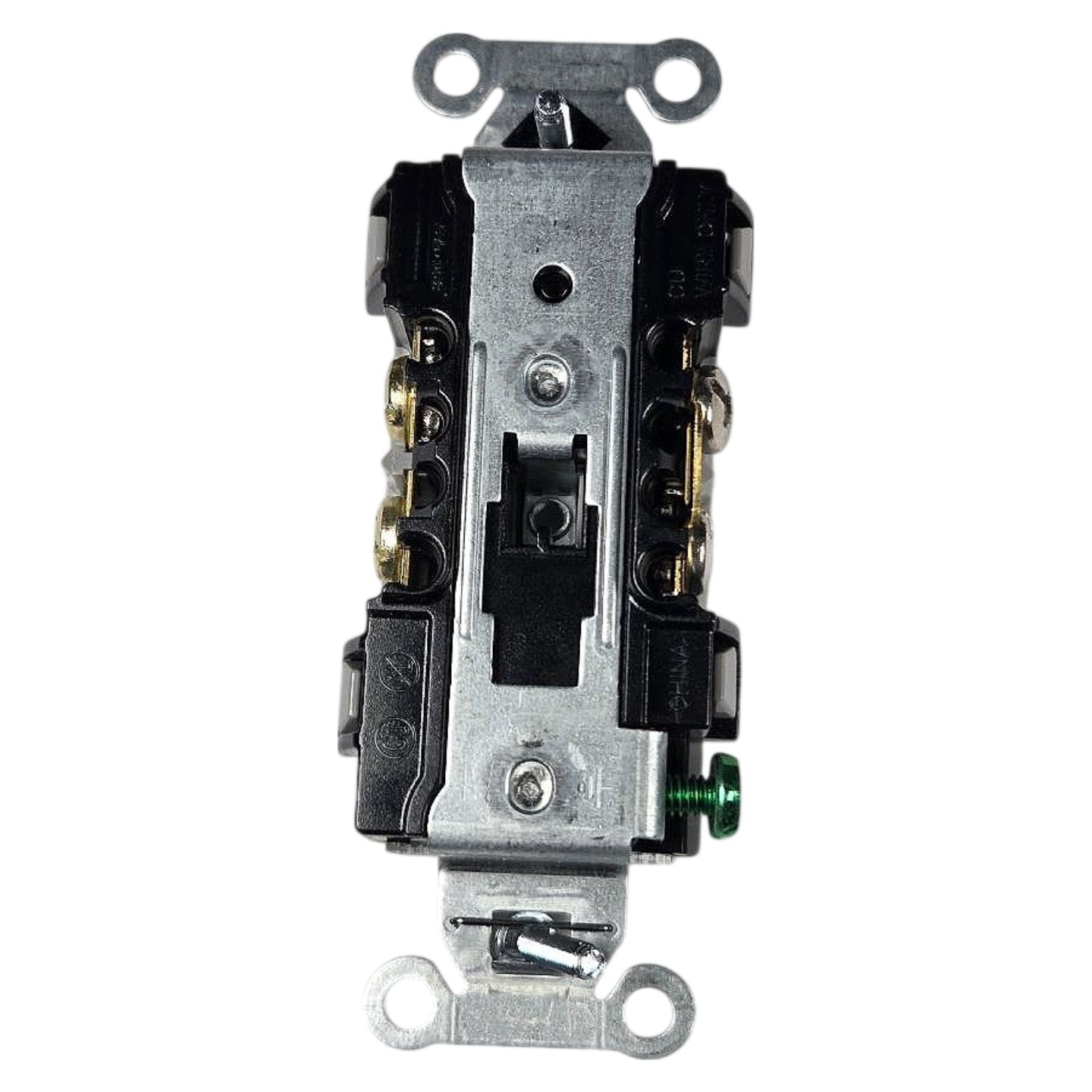

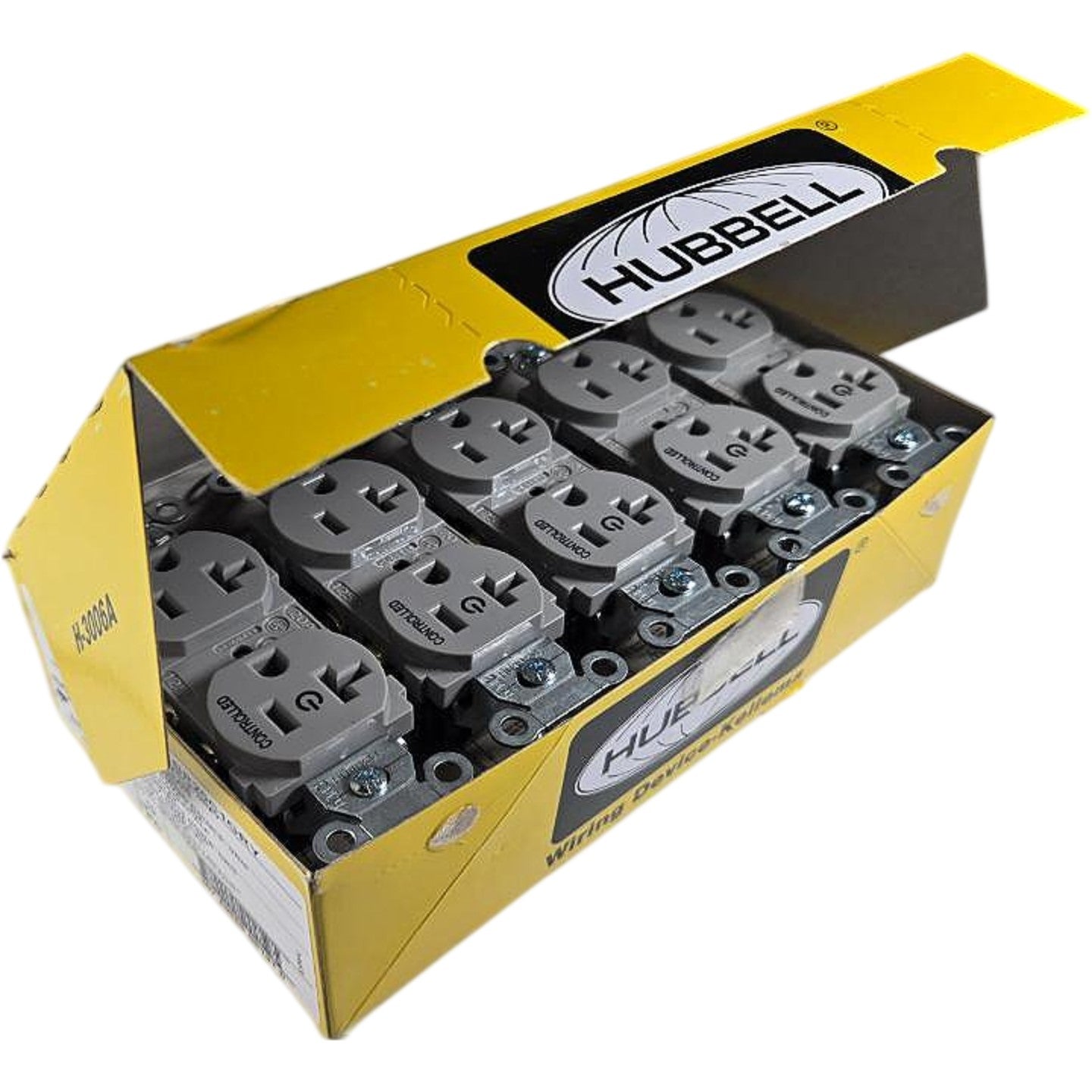

The Hubbell BR20C1GRY is a commercial-grade duplex receptacle rated 20A, 125V, NEMA 5-20R configuration, sold new in a factory box of 10. This is a half-controlled (1/2 controlled) device: the top outlet is switch-controlled (marked with a power symbol and 'CONTROLLED' legend on the face) while the bottom outlet remains always-hot — a configuration commonly specified in commercial and institutional construction for energy management systems, office workstations, and lighting control applications per ASHRAE 90.1 requirements. The device features a commercial-grade thermoplastic body in gray, back-wired and side-wired screw terminal connections visible on the rear, a steel mounting strap with self-grounding ears, and a green grounding screw; wire range accommodates #12 and #14 AWG Cu conductors. UL Listed (File E2234), meets Federal Spec W-C-596G, and is manufactured by Hubbell Wiring Device-Kellems, Shelton, CT — the catalog number and all ratings are confirmed directly from the box label visible in the photos.
Product Specifications
| Manufacturer | Hubbell Wiring Device-Kellems |
| Catalog Number | BR20C1GRY |
| Quantity per Box | 10 PC |
| Amperage | 20A |
| Voltage | 125V |
| NEMA Configuration | 5-20R |
| Outlet Type | Duplex Receptacle |
| Control Type | 1/2 Controlled (top outlet switched, bottom always-hot) |
| Grade | Commercial Grade |
| Color | Gray |
| Wiring Method | Back-wired and side-wired screw terminals |
| Grounding | Self-grounding strap, green grounding screw |
| Wire Range | #12 AWG, #14 AWG Cu |
| UL Listing | UL Listed, File E2234 |
| Federal Specification | W-C-596G |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Mounting | Standard single-gang wall box |
| Country of Origin | China |
| Condition | New |
