Hubbell CS6369 50A 125/250V 3-Pole 4-Wire Locking Receptacle
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

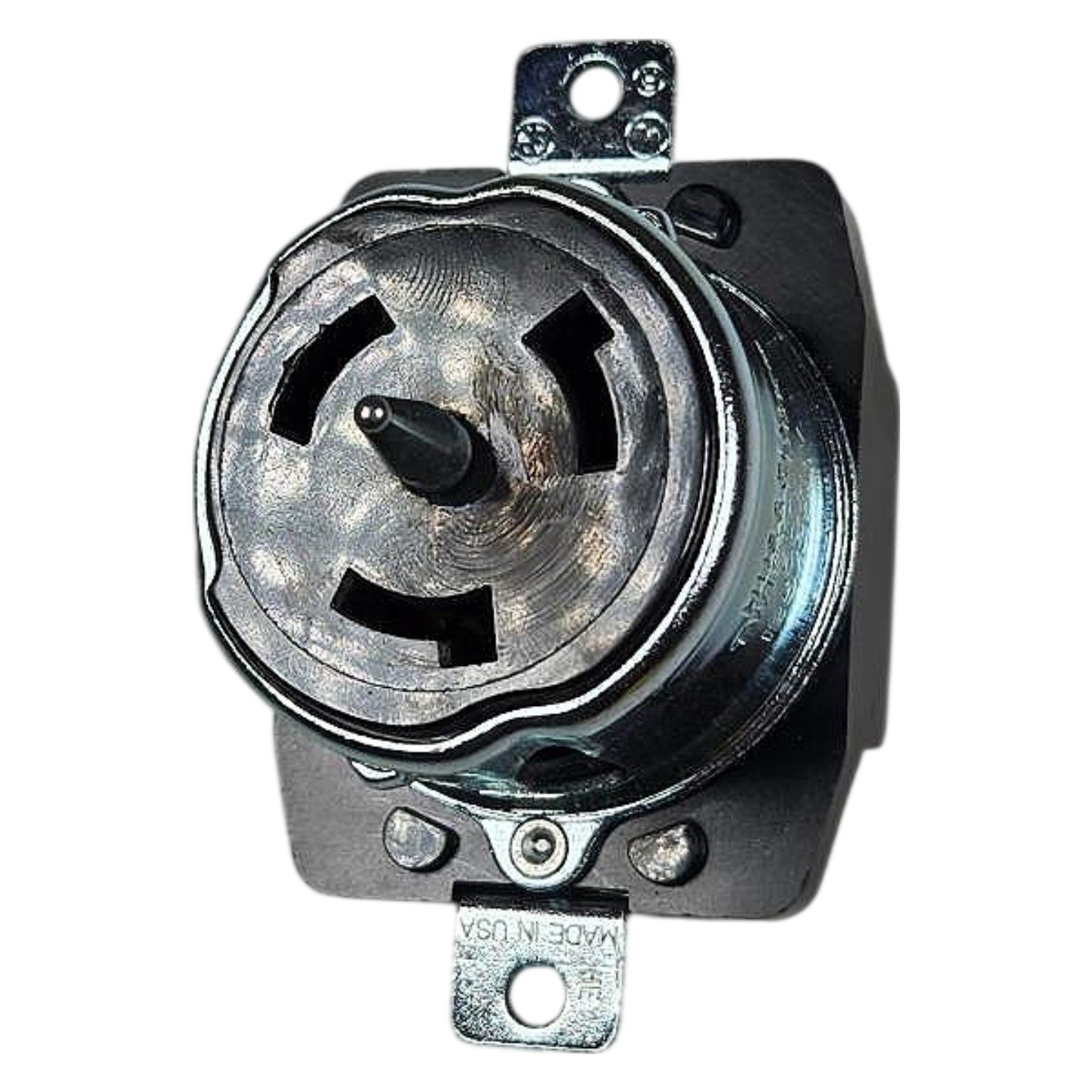

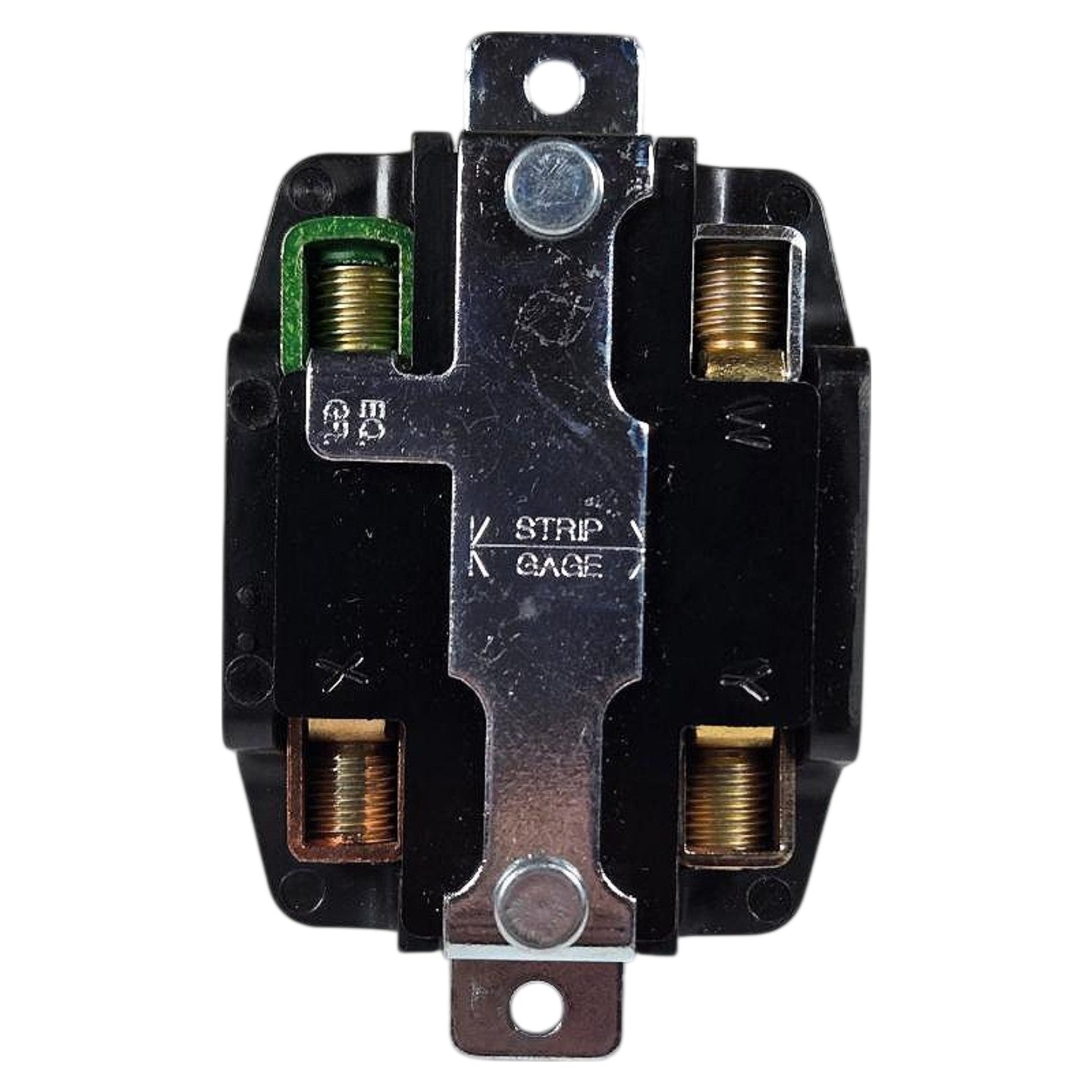

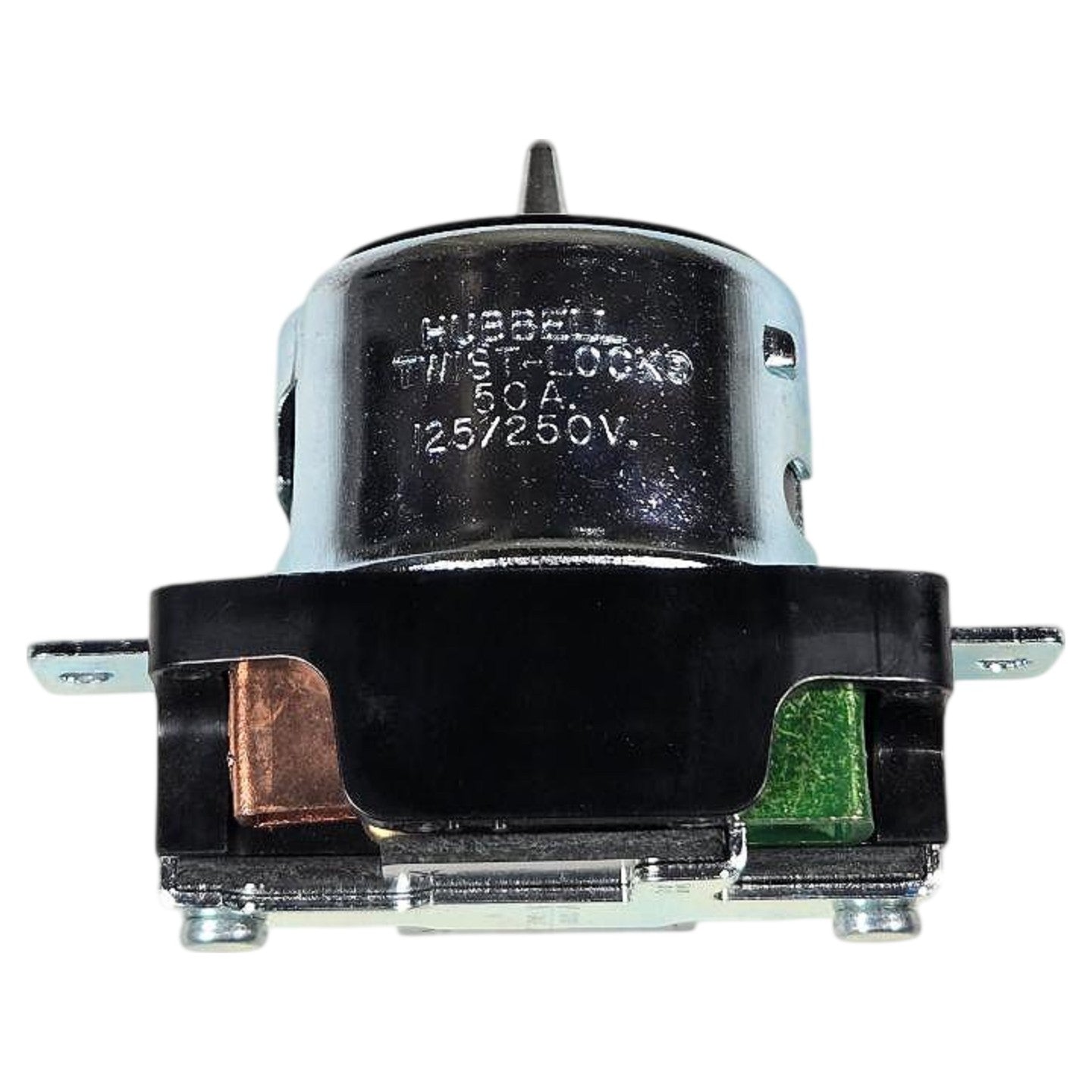

The Hubbell CS6369 is a new, Made-in-USA Twist-Lock® locking receptacle rated 50A at 125/250V AC, configured as 3-pole, 4-wire grounding (2 hots, 1 neutral, 1 ground). It carries a non-NEMA CS designation under Hubbell's California Standard (CS) series, which differs from the NEMA L14-50R despite similar electrical ratings — the CS6369 uses a distinct blade geometry and is not interchangeable with NEMA L14-50 plugs. The receptacle features a black thermoplastic body with a chrome-finish locking ring, four screw-terminal wire connections (10 AWG to 4 AWG copper conductors only, 75°C rated), a strip gauge molded into the back, and mounting ears for standard single-gang box installation. UL Listed as Weather Resistant (UL 498 Category 223A), it is suited for portable generator connections, industrial equipment hookups, and outdoor service applications where a secure, pull-resistant locking connection is required.
Product Specifications
| Manufacturer | Hubbell Wiring Device-Kellems |
| Catalog Number | CS6369 |
| Device Type | Locking Receptacle |
| Series | Twist-Lock CS (California Standard) |
| NEMA Configuration | Non-NEMA (CS Series) |
| Current Rating | 50A |
| Voltage Rating | 125/250V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wiring Configuration | 2-Pole + Neutral + Ground |
| Grounding | Yes, equipment grounding conductor required |
| Body Color | Black |
| Body Material | Thermoplastic |
| Terminal Type | Screw terminal |
| Wire Range | 10 AWG to 4 AWG, copper only |
| Conductor Temperature Rating | 75°C |
| UL Listing | UL Listed, Category 223A |
| Weather Resistance | Weather Resistant |
| Country of Origin | USA |
| Mounting Style | Single-gang flush mount w/ mounting ears |
| Conductor Type Requirement | Copper conductors only |
| Condition | New |
