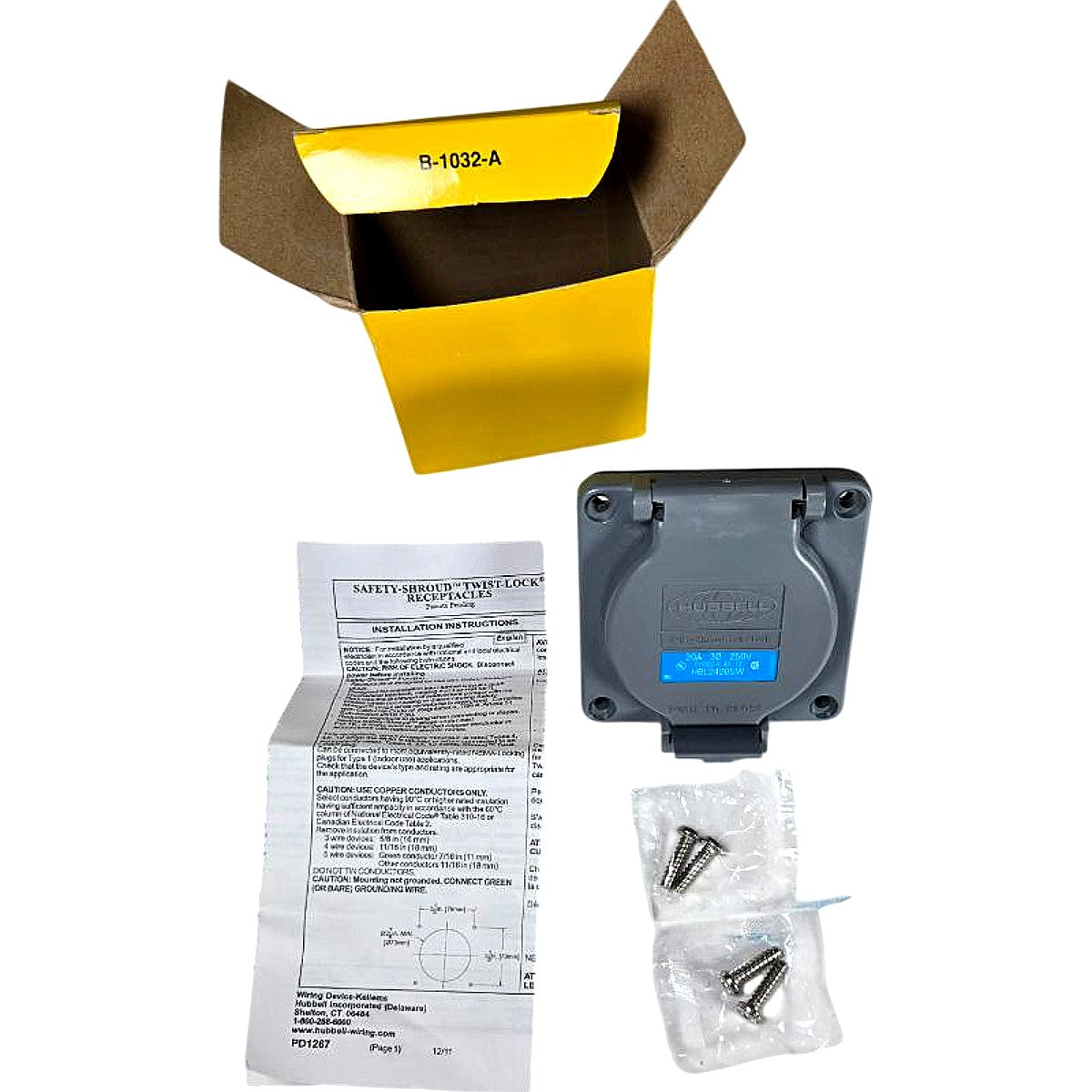

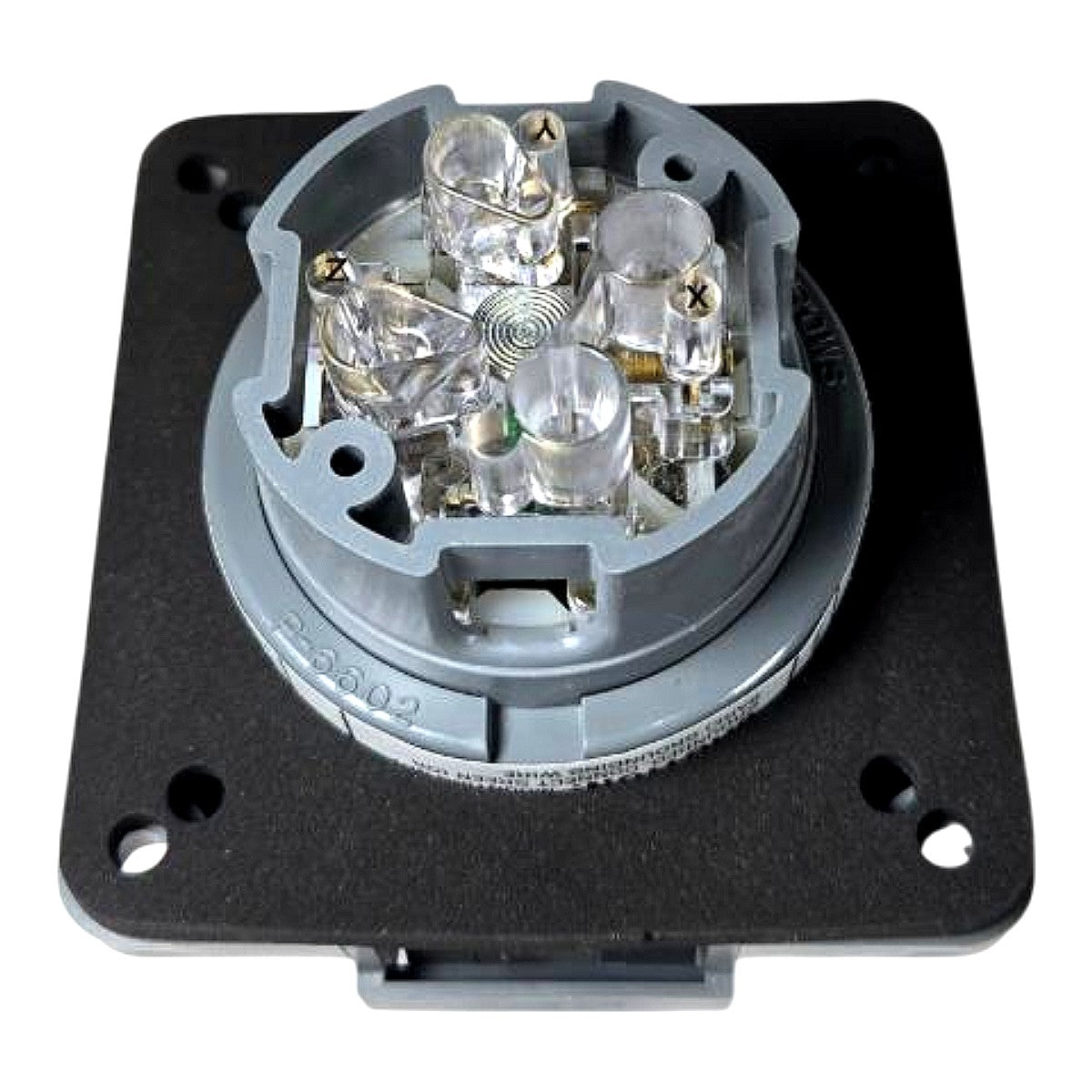

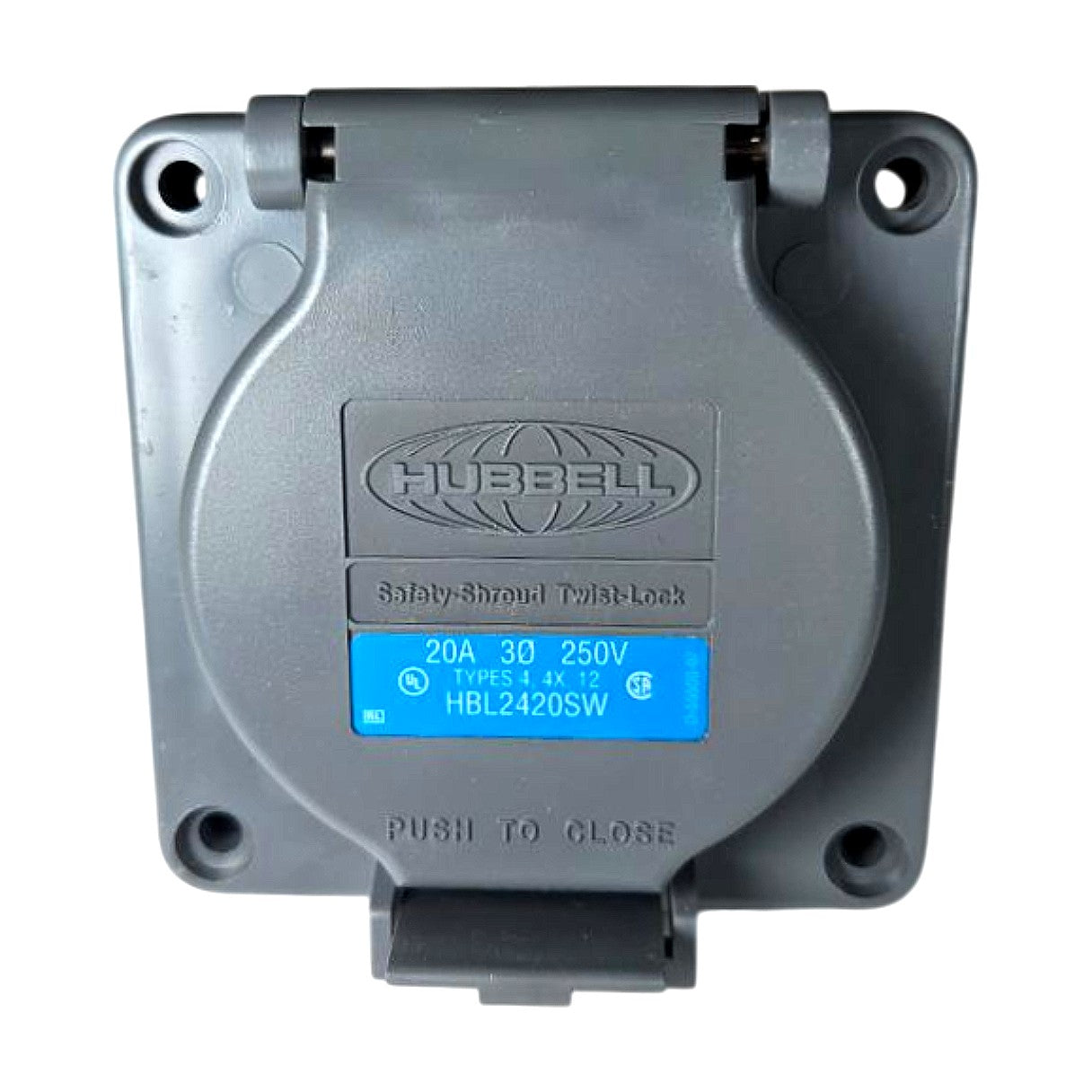

The Hubbell HBL2420SW is a new, factory-sealed Safety-Shroud Twist-Lock panel-mount receptacle rated 20A, 250V, 3-phase (3Ø), configured as 3-pole 4-wire grounding (3P4W) and conforming to NEMA configuration L15-20R. The watertight Safety-Shroud cover with push-to-close latch provides environmental sealing rated Type 4, 4X, and 12, making this receptacle suitable for indoor and outdoor industrial installations exposed to hose-directed water, dust, and corrosion. The rear-entry wiring terminations accept copper conductors only and are clearly labeled X, Y, Z, and G, with screw-type terminals visible in the photos; the unit is UL Listed (File 223A) and CSA certified, and is assembled in the USA at Hubbell's Shelton, CT facility. Compatible mating plugs include the Hubbell HBL2420P and equivalent L15-20P twist-lock plugs. Mounting hardware (four screws) and installation instruction sheet PD1267 are included.
Product Specifications
| Brand | Hubbell |
| Catalog Number / MPN | HBL2420SW |
| Product Series | HBL Safety-Shroud Twist-Lock |
| Amperage Rating | 20A |
| Voltage Rating | 250V AC |
| Phase | 3-Phase (3Ø) |
| NEMA Configuration | L15-20R |
| Number of Poles | 3 |
| Number of Wires | 4 (3P + Ground) |
| Wiring Type | Grounding |
| Enclosure / Rating Type | Type 4, 4X, 12 |
| Cover Style | Watertight Safety-Shroud, push-to-close latch |
| Mounting Style | Panel / Flush Mount |
| Conductor Material | Copper only |
| Termination Type | Screw terminal |
| Color | Gray |
| Certifications | UL Listed (223A), CSA |
| Country of Assembly | USA |
| Compatible Plug | HBL2420P, L15-20P |
| Condition | New |
