Hubbell HBLDS30NK 30A 600VAC 3-Phase Non-Fusible Disconnect Switch
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

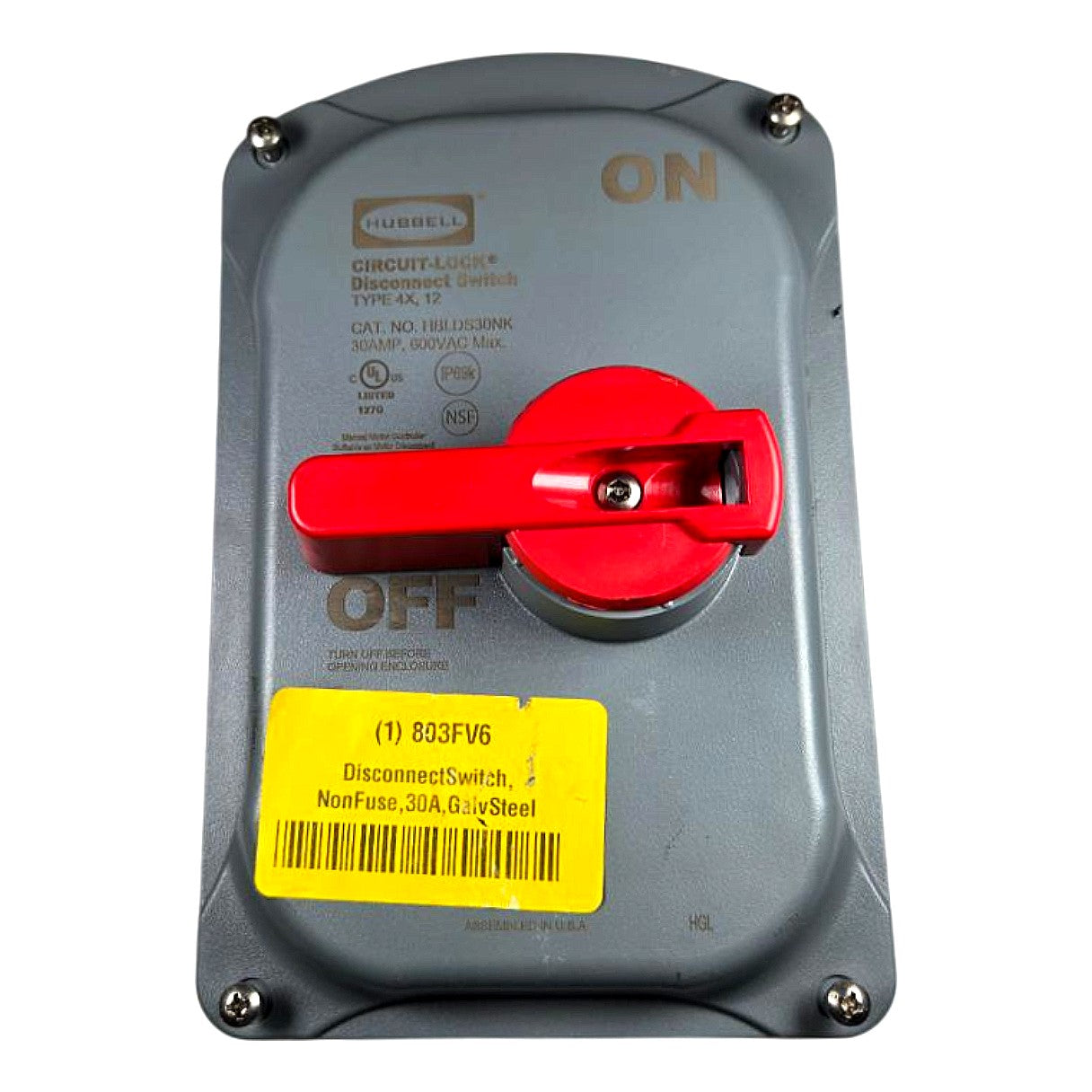

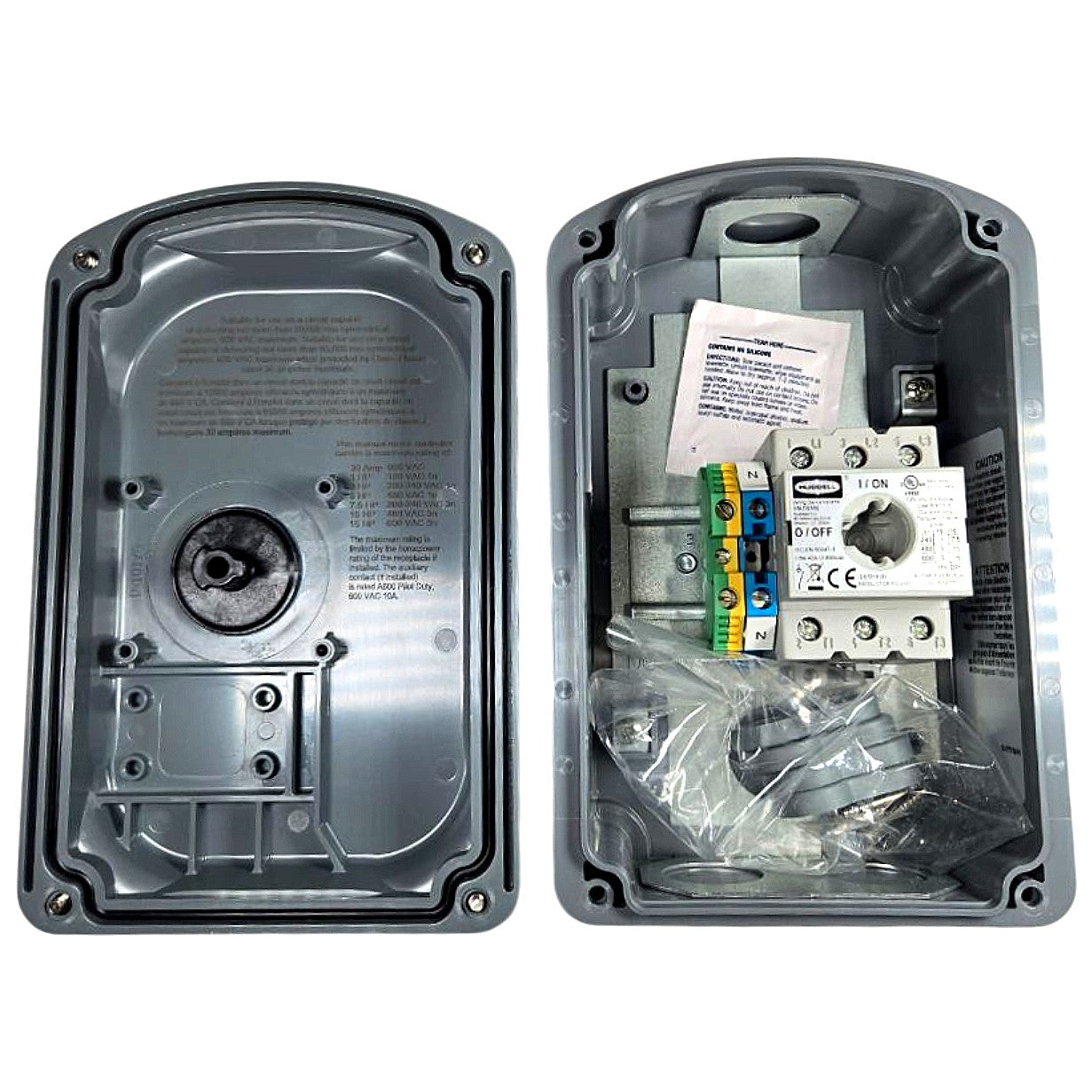

The Hubbell HBLDS30NK is a new Circuit-Lock® non-fusible disconnect switch rated 30A at 600VAC maximum, designed for three-phase motor disconnect applications per the label-visible NEC and UL 1270 listing. The galvanized steel enclosure is rated NEMA Type 4X and Type 12, providing corrosion resistance and protection against windblown dust, rain, splashing water, and hosedown — confirmed by the IP69k marking visible in the photos — making it suitable for wash-down and outdoor industrial environments. The red rotary handle operates on a positive ON/OFF cam mechanism with a lockable-in-OFF position for LOTO compliance, and the unit also carries NSF certification as visible on the front label. Motor disconnect ratings visible on the interior label include 30 HP at 600V 3-phase, 15 HP at 480V 3-phase, 10 HP at 240V 3-phase, and 7.5 HP at 200/208V 3-phase. Assembled in the USA, this switch ships complete with the enclosure, rotary disconnect mechanism, terminal hardware, and mounting hardware as shown in the interior photos.
Product Specifications
| Brand | Hubbell |
| Catalog Number | HBLDS30NK |
| Amperage Rating | 30A |
| Voltage Rating | 600VAC Max |
| Phase | 3-Phase |
| Switch Type | Non-Fusible |
| Enclosure Type | NEMA Type 4X, Type 12 |
| IP Rating | IP69k |
| Enclosure Material | Galvanized Steel |
| Certifications | UL Listed (UL 1270), NSF, CE |
| Motor Disconnect Rating | 30 HP @ 600V 3Ph, 15 HP @ 480V 3Ph |
| Additional Motor Ratings | 10 HP @ 240V 3Ph, 7.5 HP @ 200/208V 3Ph |
| Handle Color | Red |
| Lockout/Tagout (LOTO) | Lockable in OFF position |
| Origin | Assembled in USA |
| Condition | New |
