Humphrey HPT-300 HFA2 PR-SL Motorized Ophthalmic Power Table

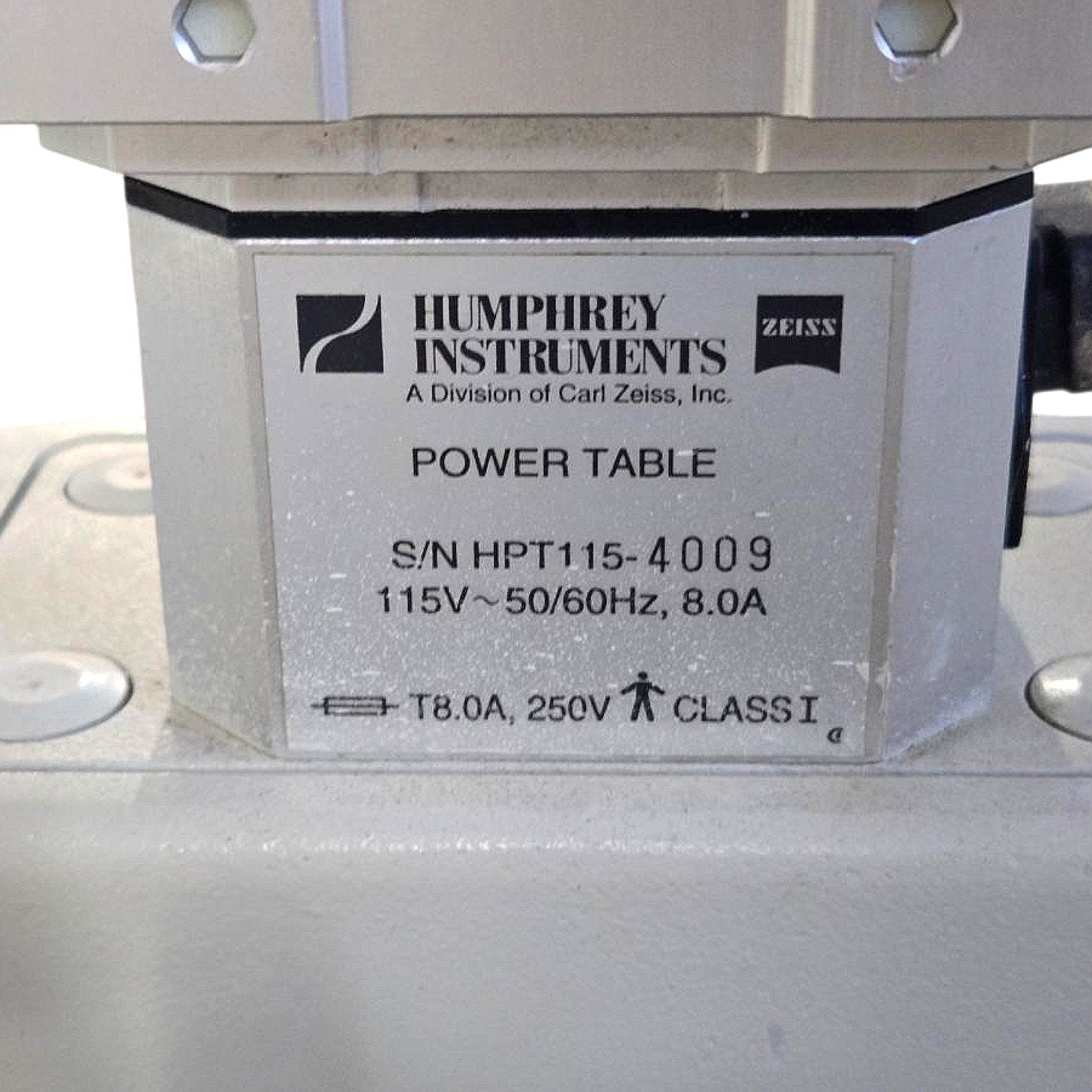

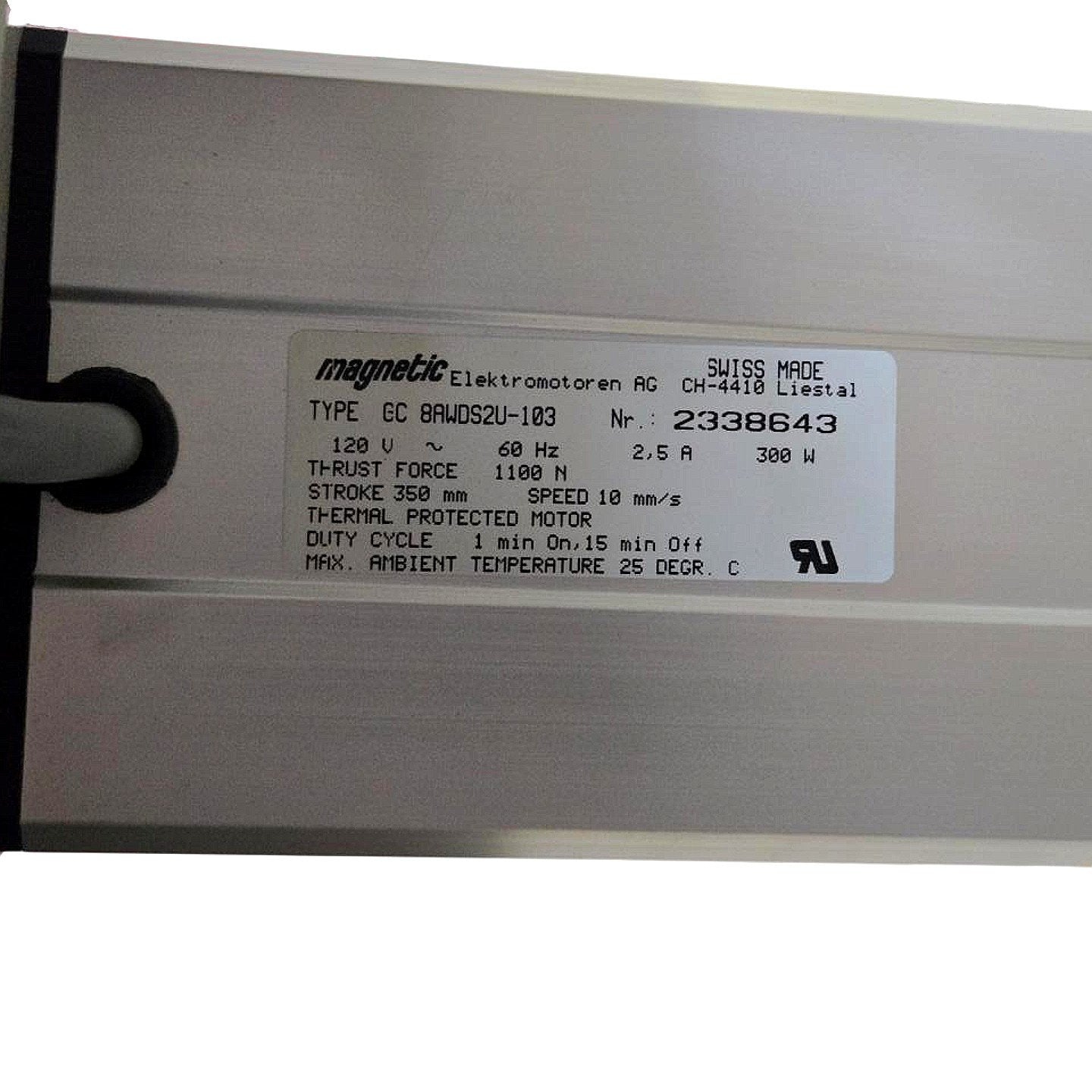

The Humphrey Instruments (a division of Carl Zeiss, Inc.) HPT-300 HFA2 PR-SL is a motorized, electrically height-adjustable single-instrument power table purpose-built to support heavy ophthalmic equipment such as the Humphrey Field Analyzer 2 (HFA2) perimeter. The table is driven by a Swiss-made Magnetic Elektromotoren AG linear actuator (Type GC 8AWDS2U-103) rated at 120V AC / 60 Hz, 2.5 A, 300 W, delivering 1,100 N (≈247 lbf) of thrust force with a 350 mm stroke at 10 mm/s travel speed; the motor is thermally protected with a duty cycle of 1 min ON / 15 min OFF and a max ambient temperature of 25°C. The table platform power supply (S/N HPT115-4009) is rated 115V ~ 50/60 Hz, 8.0 A with a T8.0A / 250V Class I fuse, and the unit rides on a four-caster Z-profile steel base that allows instrument clearance over a patient chair base. This unit is being sold for parts only and shows cosmetic wear consistent with clinical use; the integrated power strip/outlet panel, cabling, and structural components are intact and visible in photos.

Product Specifications
