Hydra-Cell A04-002-1202 D03/D04 to NEMA 182/215TC Motor Adapter Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

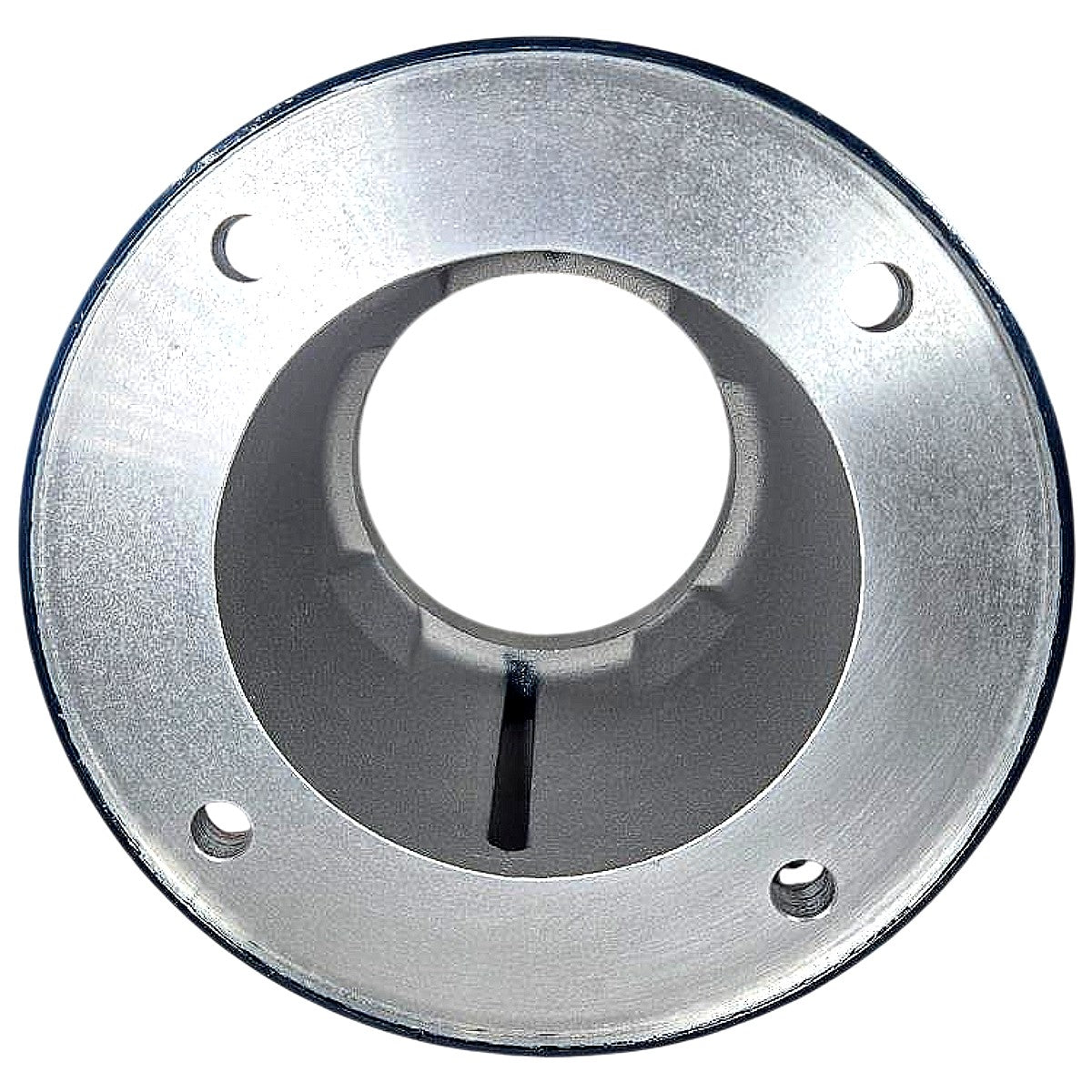

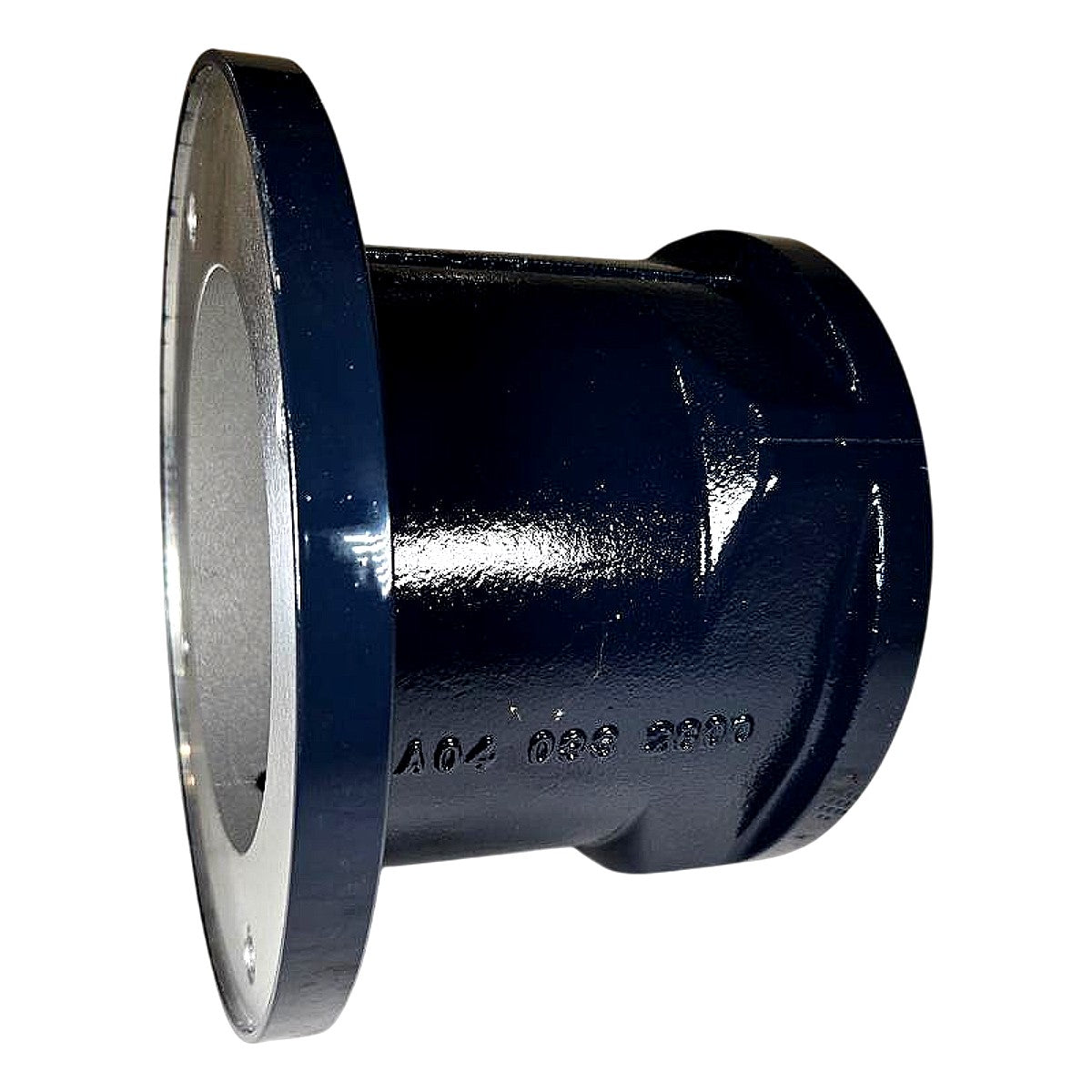

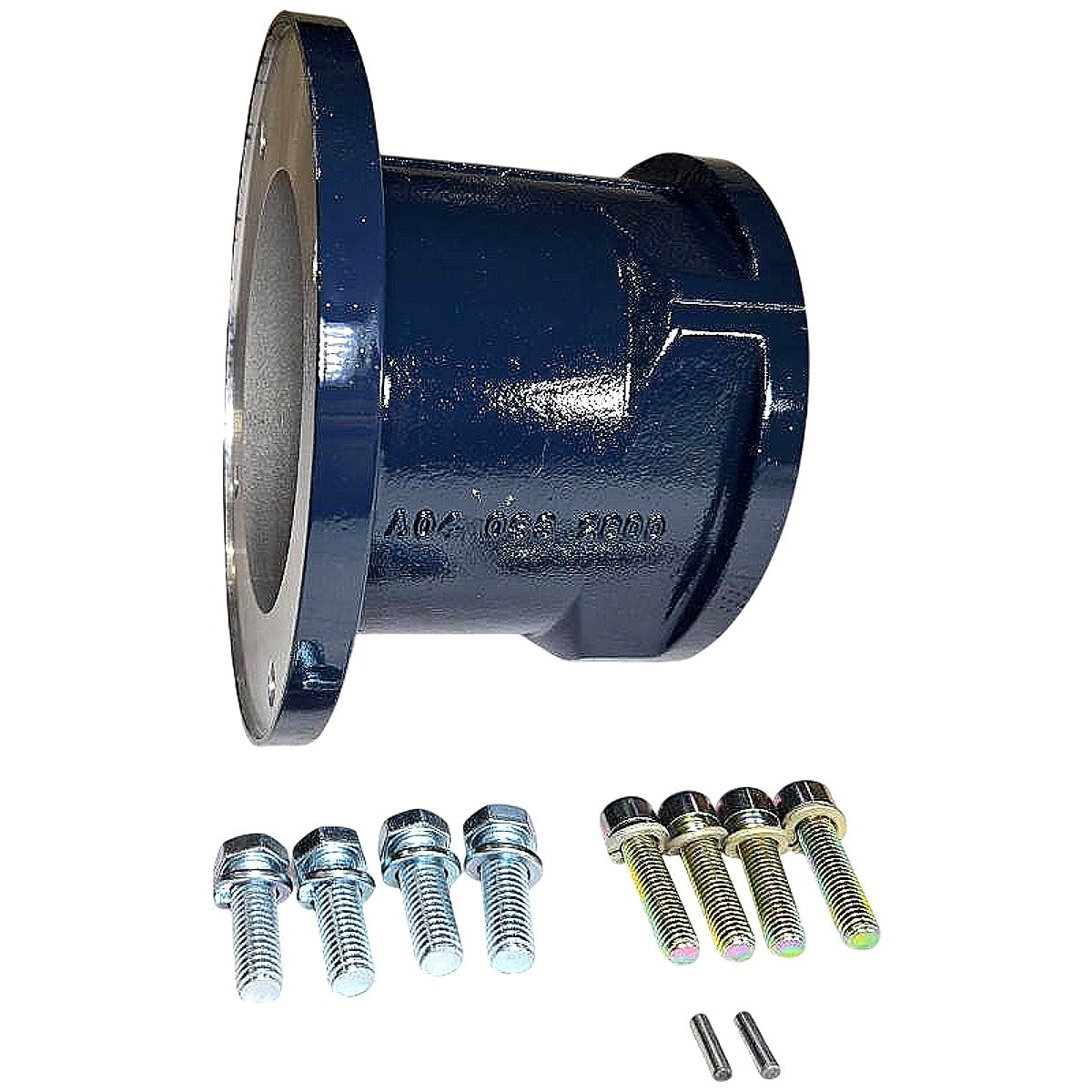

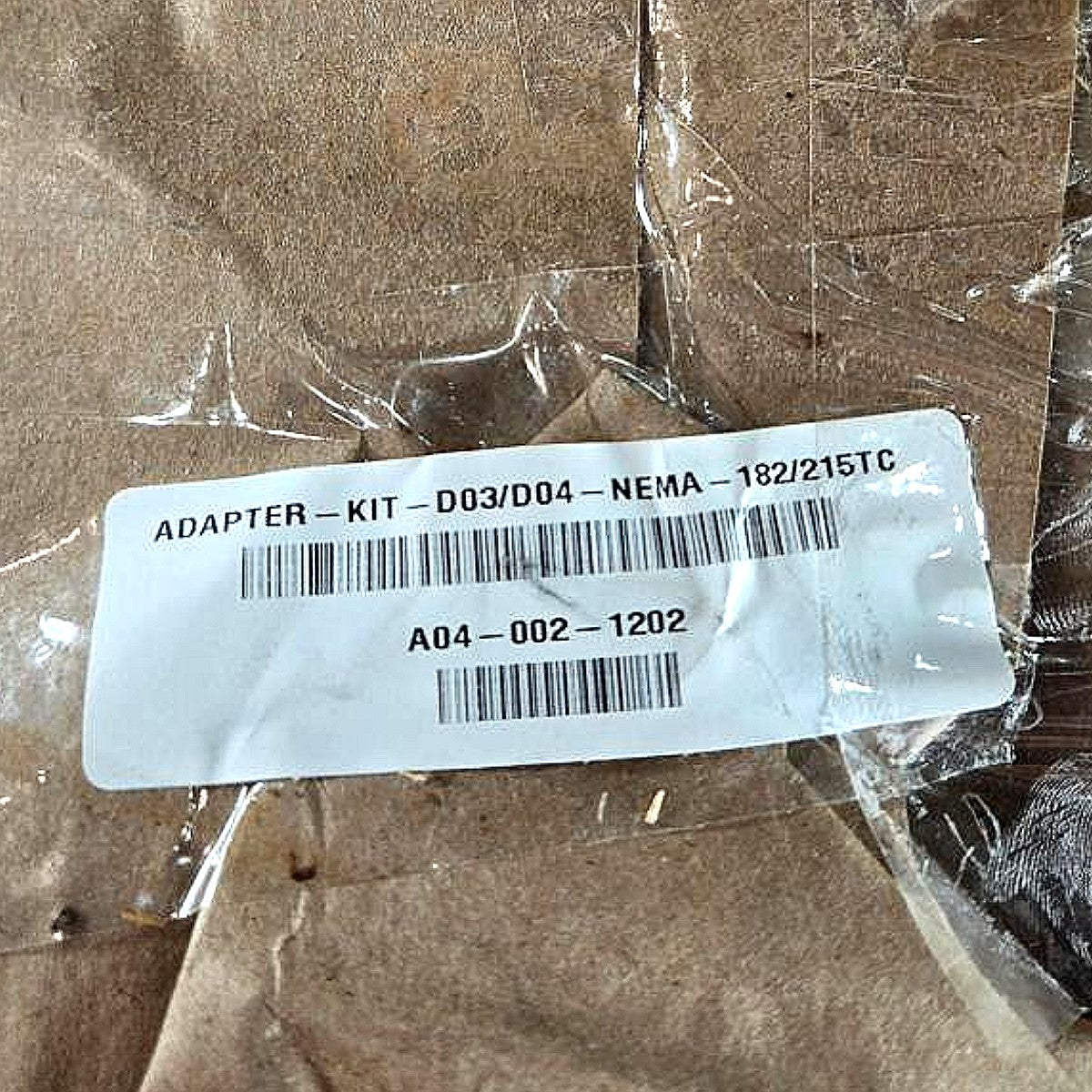

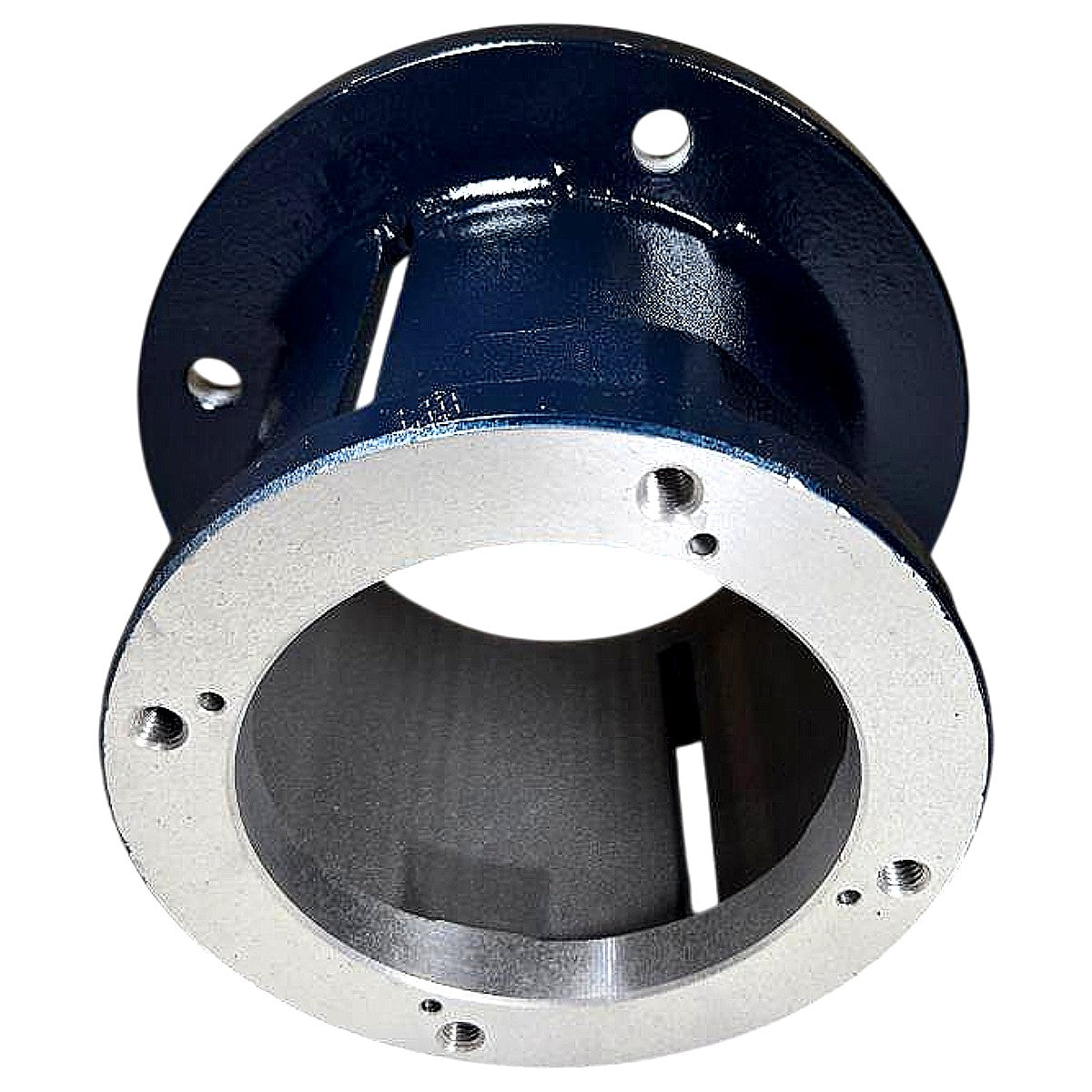

The Hydra-Cell A04-002-1202 is a new OEM motor adapter kit designed to mount Wanner Engineering Hydra-Cell D03 and D04 series diaphragm pump heads to NEMA 182TC and 215TC frame electric motors. The kit consists of a cast iron bell housing (painted in Hydra-Cell's characteristic dark navy blue) with a precision-machined aluminum face bore, a machined steel shaft coupling/hub with keyway slot, a full hardware set including flange mounting bolts (zinc-plated hex head), coupling-to-hub cap screws with washers, and two drive pins — providing all components needed for a complete motor-to-pump installation. The bell housing body is embossed with part number reference A04 086 5800 on the casting, confirming OEM Wanner/Hydra-Cell manufacture; the assembly label reads "ADAPTER-KIT-D03/D04-NEMA-182/215TC / A04-002-1202," directly confirming pump series and motor frame compatibility. This adapter is the correct factory replacement for pairing D03/D04 Hydra-Cell pumps with standard NEMA 182TC or 215TC C-face motors in chemical dosing, high-pressure wash, and fluid transfer applications.
Product Specifications
| Manufacturer | Wanner Engineering / Hydra-Cell |
| Part Number (MPN) | A04-002-1202 |
| Compatible Pump Series | Hydra-Cell D03, D04 |
| Compatible Motor Frame | NEMA 182TC, 215TC |
| Motor Frame Type | C-Face (TC) |
| Housing Material | Cast iron, navy blue enamel paint |
| Bore/Hub Material | Machined aluminum face, steel hub |
| Hub Feature | Keyway slot |
| Casting Reference No. | A04 086 5800 |
| Kit Contents | Bell housing, coupling hub, hex bolts, cap screws, drive pins |
| Condition | New (OEM) |
