Ingersoll 05869746 PNCQ0804ZNTN J IN2005 Pentagon Carbide Milling Insert
Regular price
$100.69
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

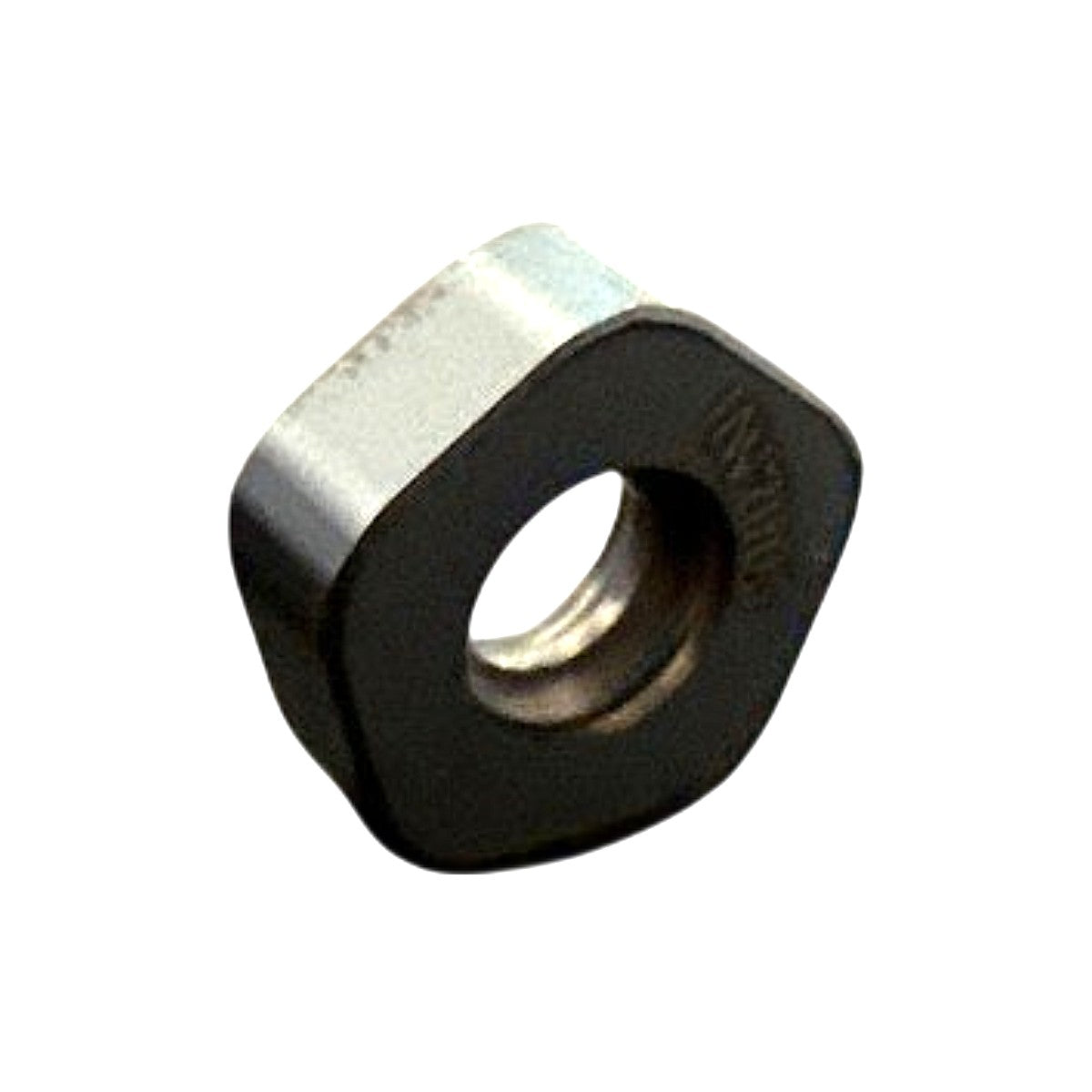

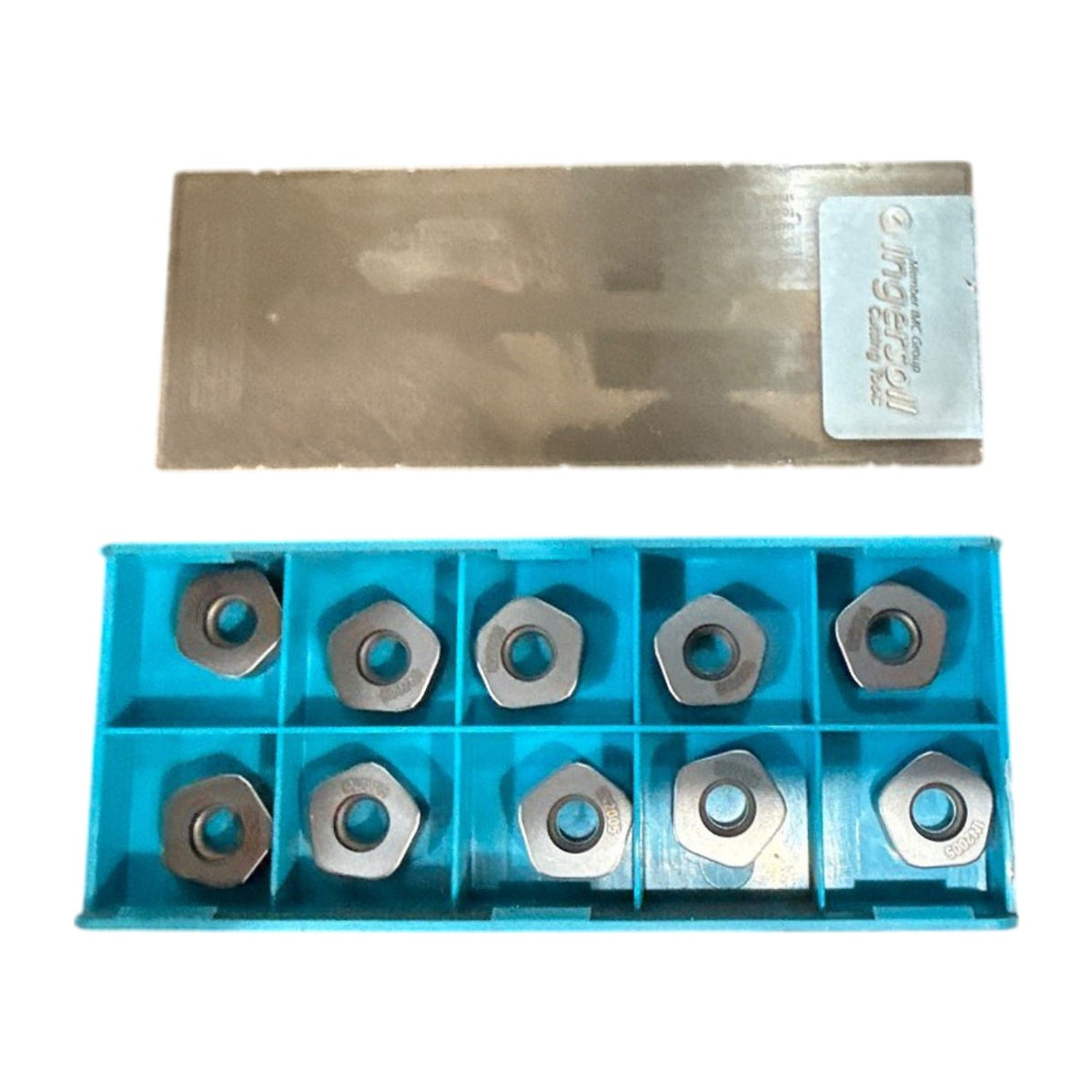

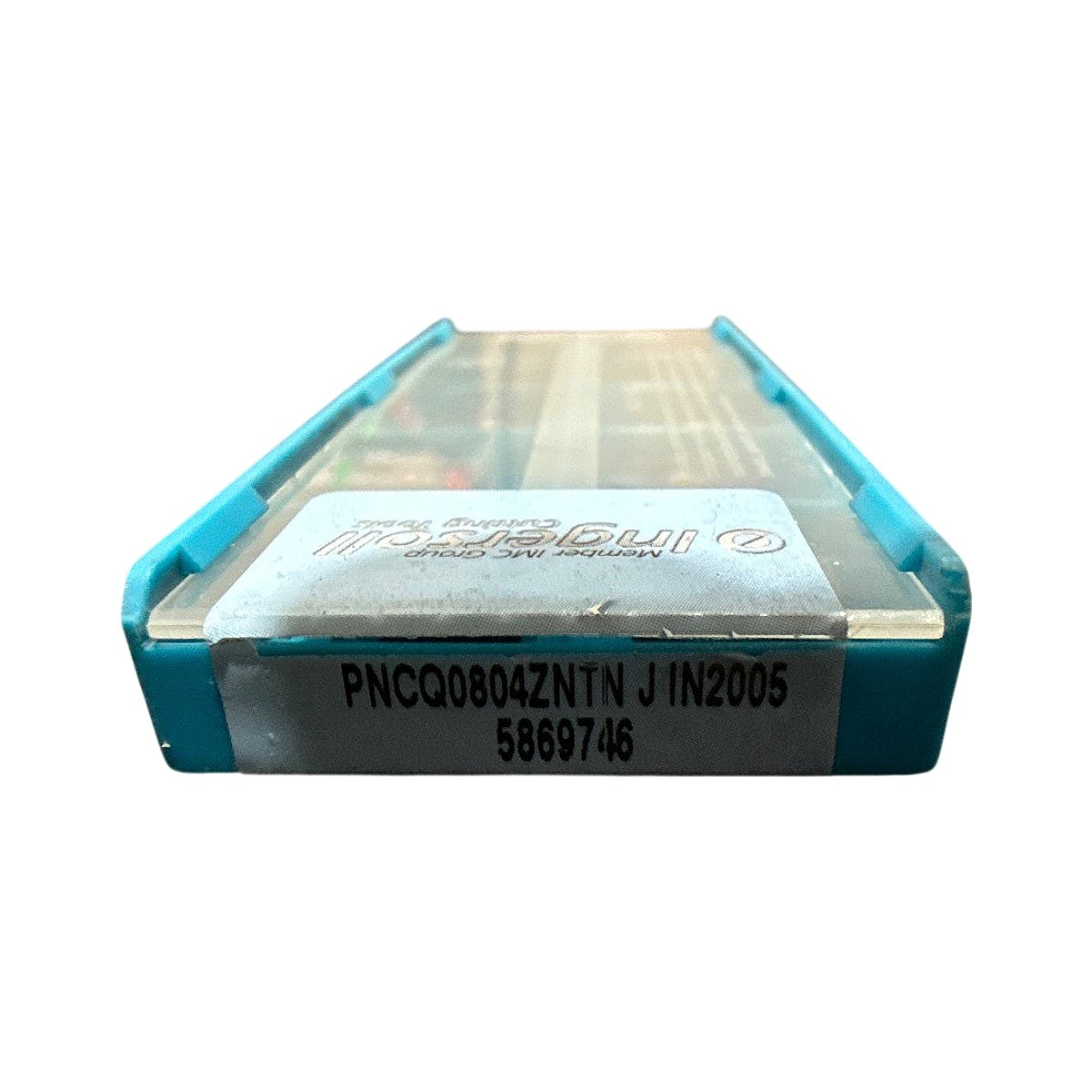

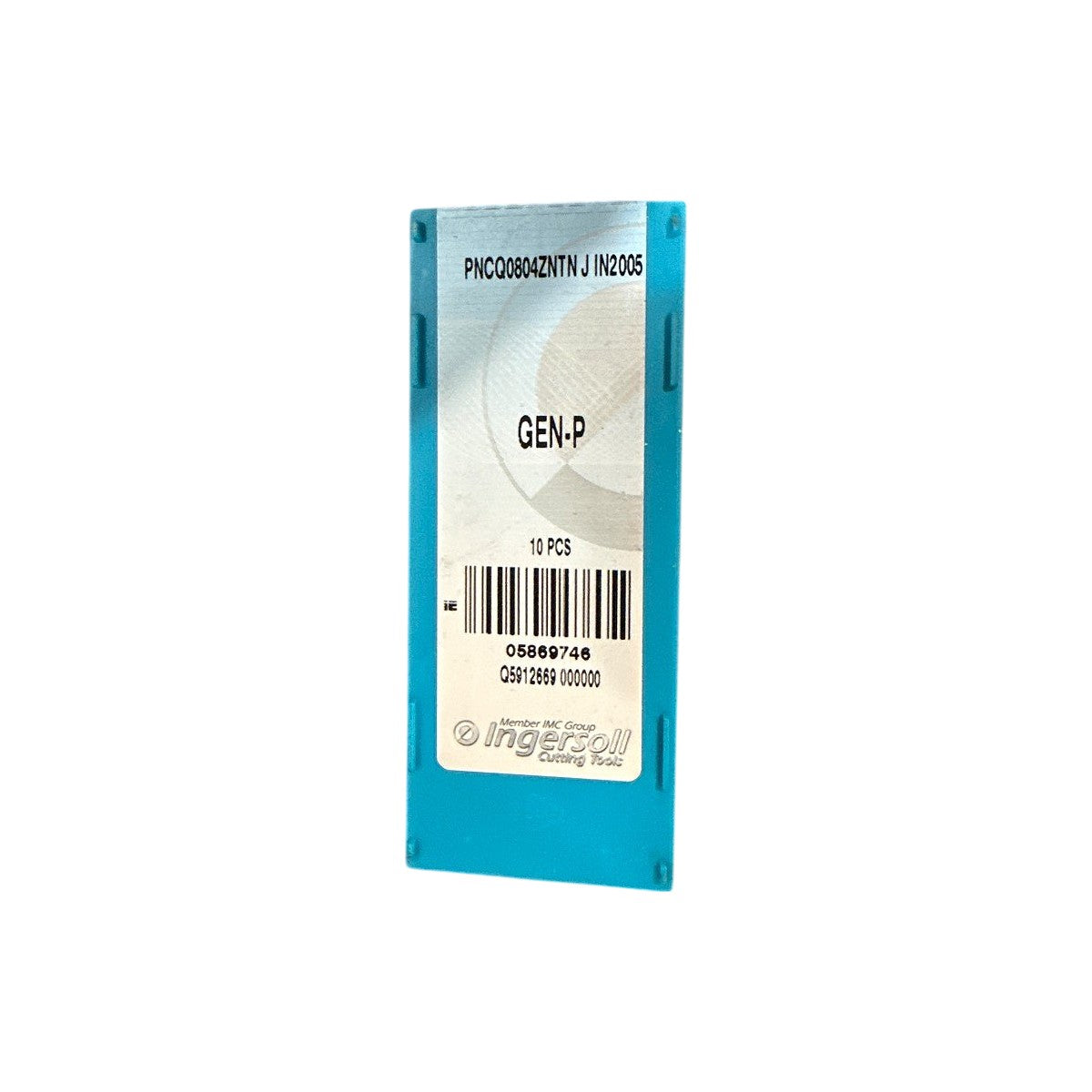

This is a new pack of 10 Ingersoll Cutting Tools PNCQ0804ZNTN J milling inserts in grade IN2005, item number 5869746. The pentagon-shaped carbide inserts have a center mounting hole, and the PNCQ designation indicates a 0° clearance angle (N). The pack is labeled GEN-P, which marks the steel (ISO P) application, and IN2005 is Ingersoll's PVD-coated carbide milling grade. Inserts are supplied in the original blue Ingersoll plastic box with the labeled packaging. Confirm the insert pocket and cutter body compatibility against the Ingersoll catalog before ordering.
Product Specifications
| Brand | Ingersoll Cutting Tools |
| Manufacturer Part Number | PNCQ0804ZNTN J IN2005 |
| Item Number | 5869746 |
| Alternate Part Number | 05869746 |
| Catalog Number | Q5912669 000000 |
| Grade | IN2005 |
| Series | GEN-P |
| Insert Shape | Pentagon (P) |
| Clearance Angle | 0° (N) |
| Insert Material | Carbide |
| Coating | PVD Coated |
| Cutting Edges | 5 |
| Mounting Style | Center Hole |
| Operation | Milling |
| Workpiece Material | ISO P (Steel) |
| Quantity per Pack | 10 pcs |
| Insert Size Code | 0804 |
