Ingersoll 3023067 6J2N-04R01 4" S-Max Indexable Face Milling Cutter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

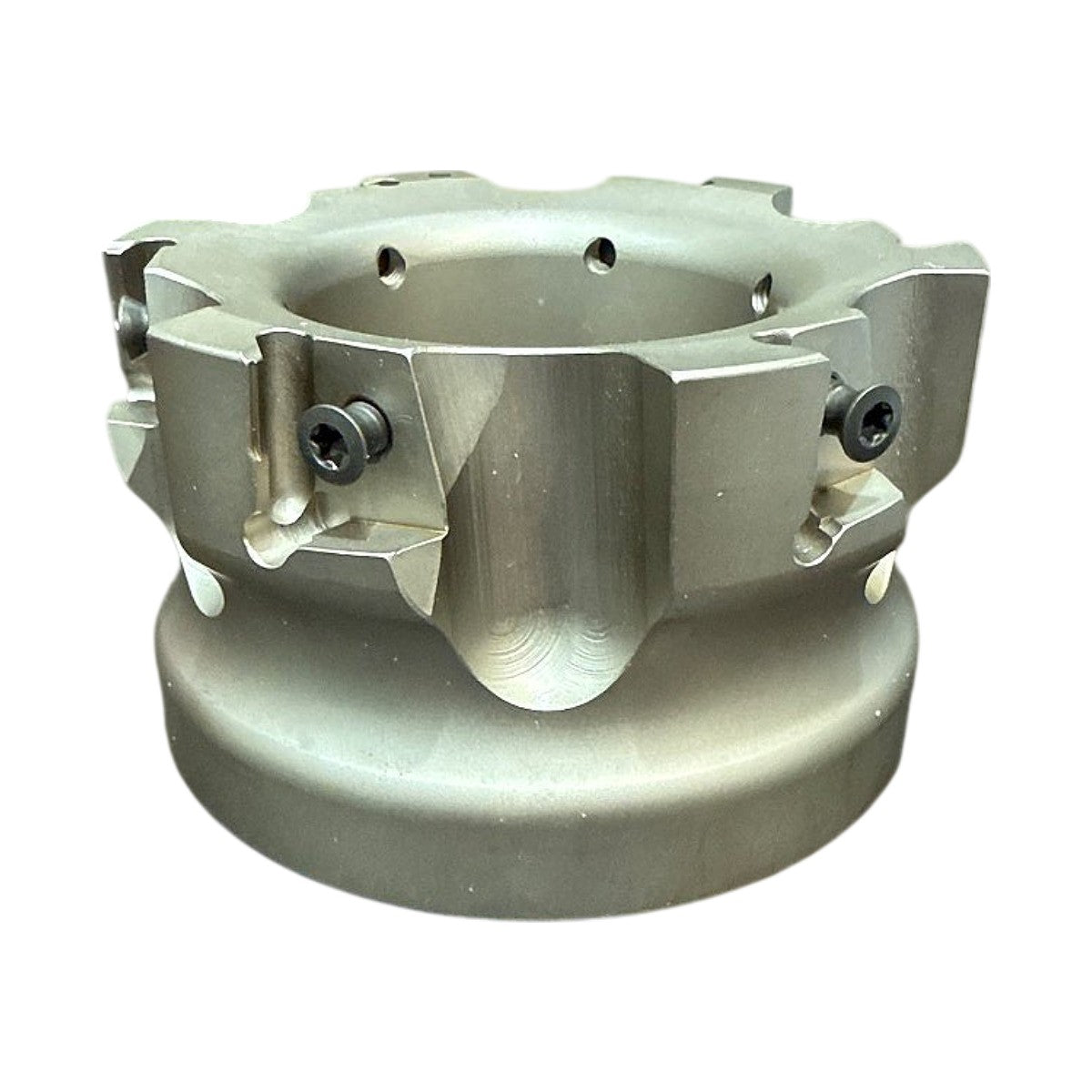

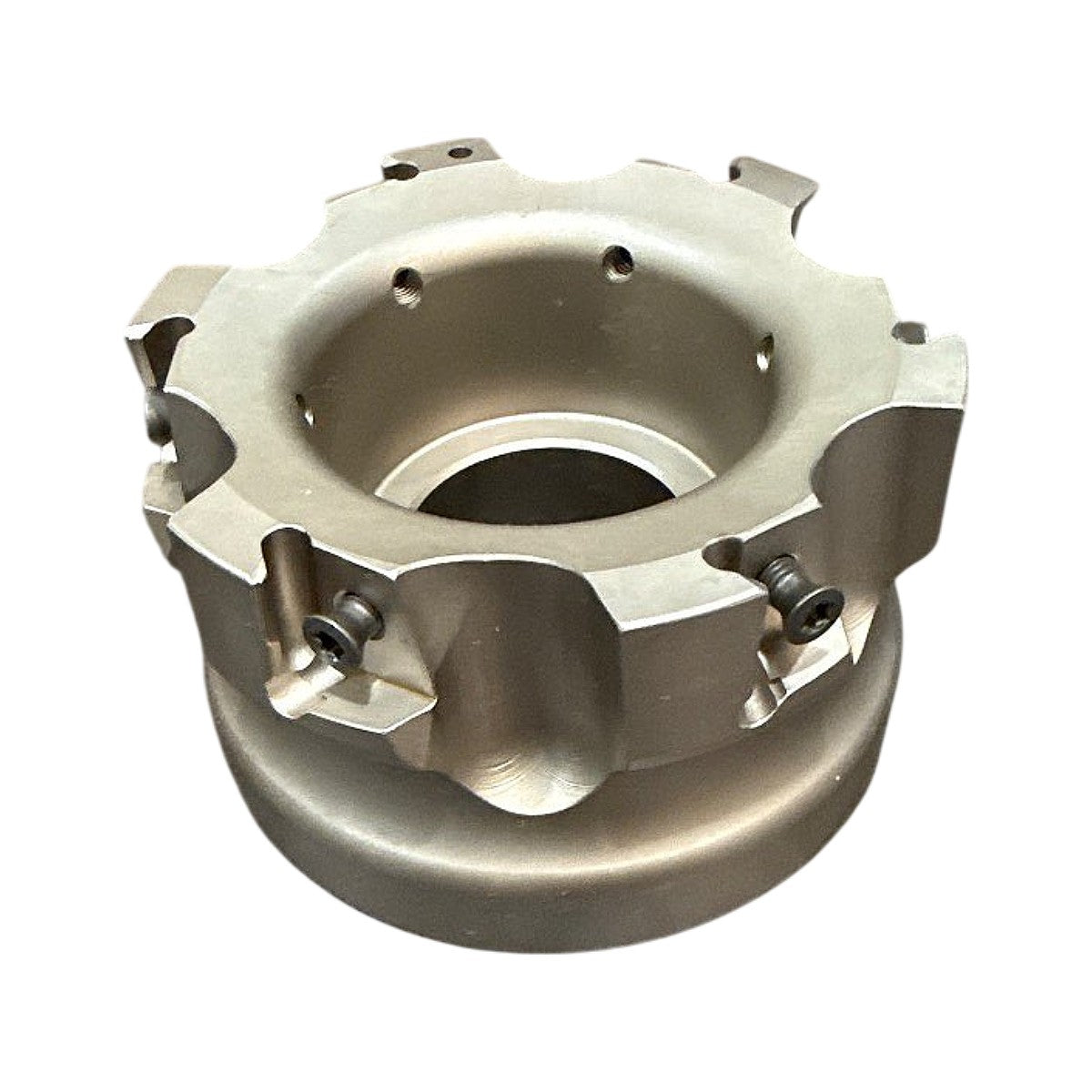

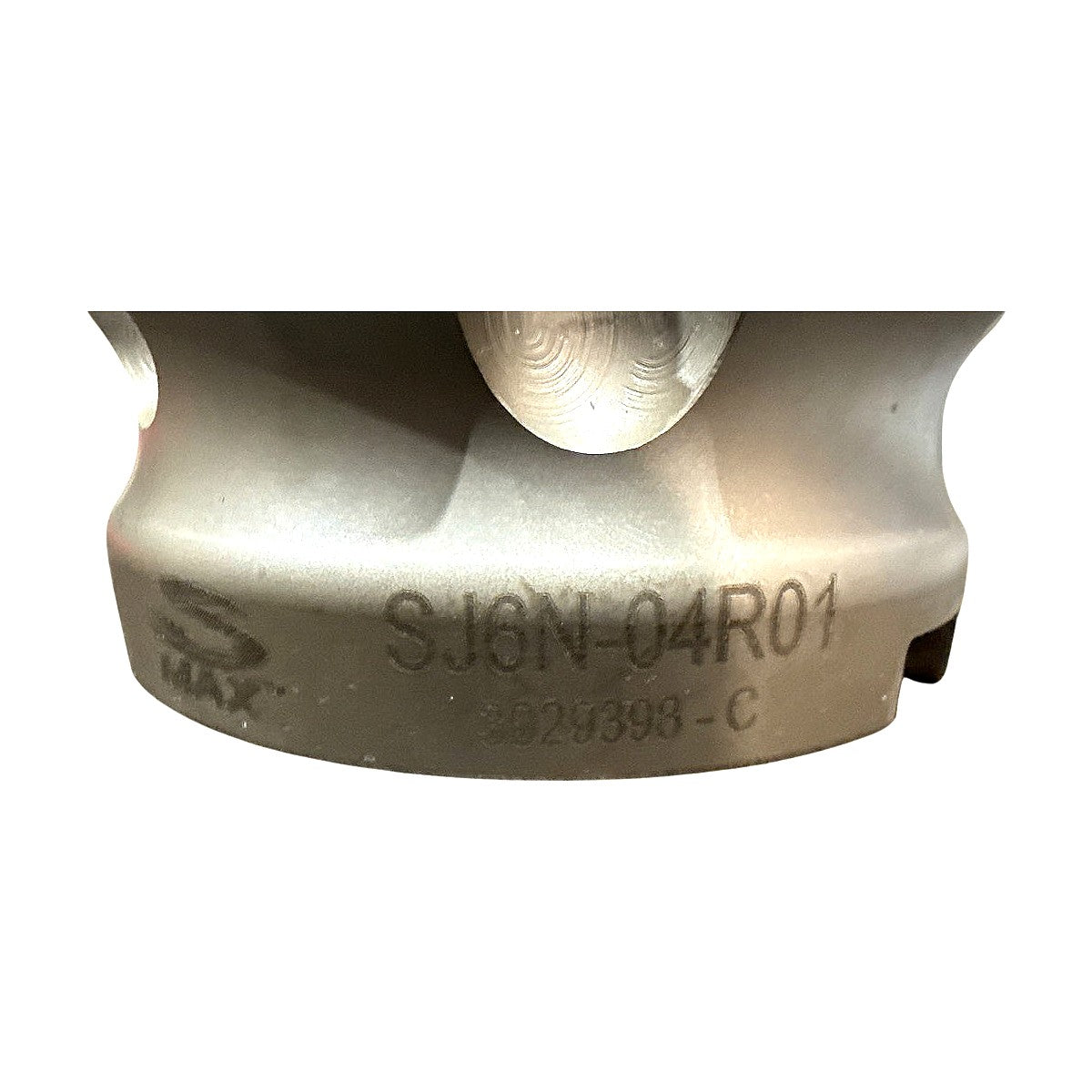

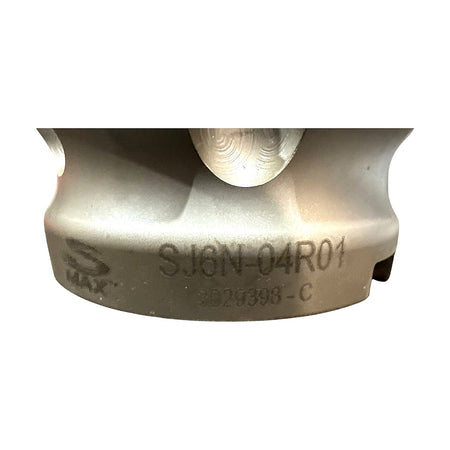

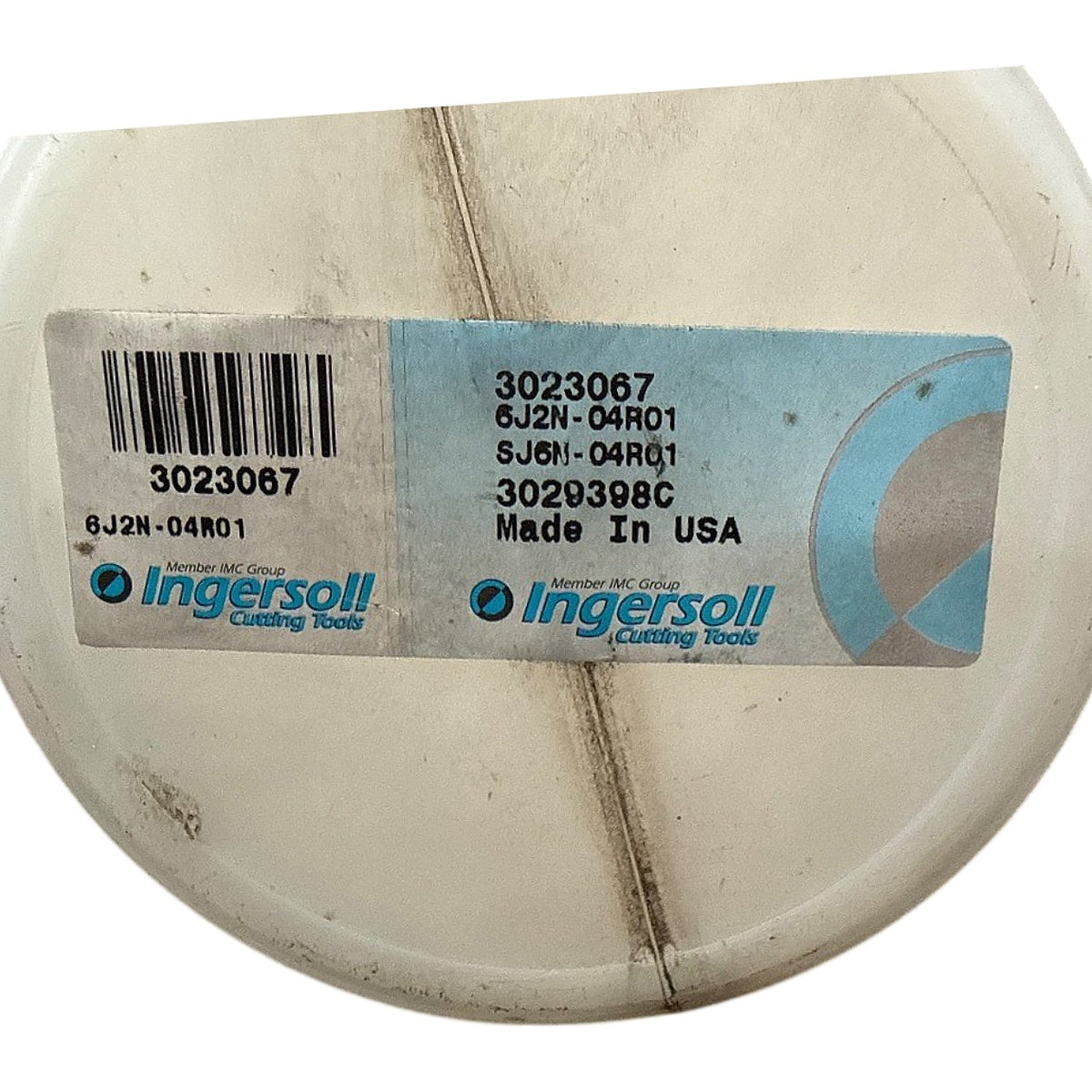

This is a new Ingersoll Cutting Tools indexable face milling cutter, catalog number 6J2N-04R01 with item number 3023067. The body is laser-marked S-Max SJ6N-04R01 and 3029398-C, and the box label confirms it was made in the USA. The steel body has multiple insert pockets, each holding an insert with a Torx-style clamp screw, and a large center bore with several internal holes around the bore wall. It is intended for face milling on CNC milling machines and machining centers. The cutter is supplied without inserts described in the listing, so confirm the compatible insert style from Ingersoll documentation for this model before ordering.
Product Specifications
| Brand | Ingersoll Cutting Tools |
| MPN | 3023067 |
| Alternate Part Number | 6J2N-04R01 |
| Body Marking | SJ6N-04R01 |
| Item Number | 3029398C |
| Series | S-Max |
| Country of Origin | USA |
| Cutter Type | Indexable Face Mill |
| Operation | Face Milling |
| Insert Clamping | Torx Screw |
| Number of Inserts | 8 |
| Cutter Diameter | 4 in |
| Mounting | Shell Mill Arbor, Center Bore |
