Ingersoll 3028699 SJ6N-03R01 4" 6 Flute Indexable Face Milling Cutter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

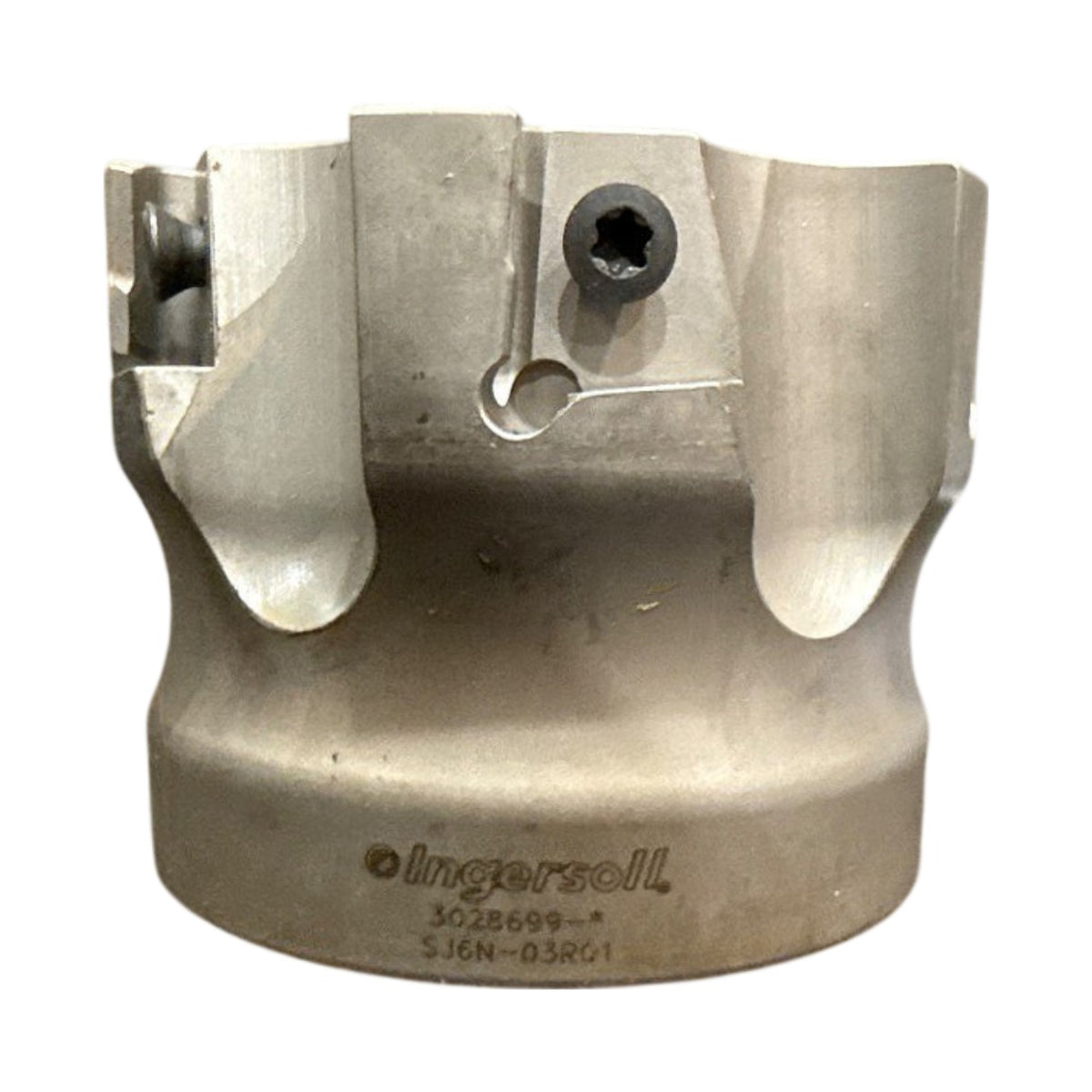

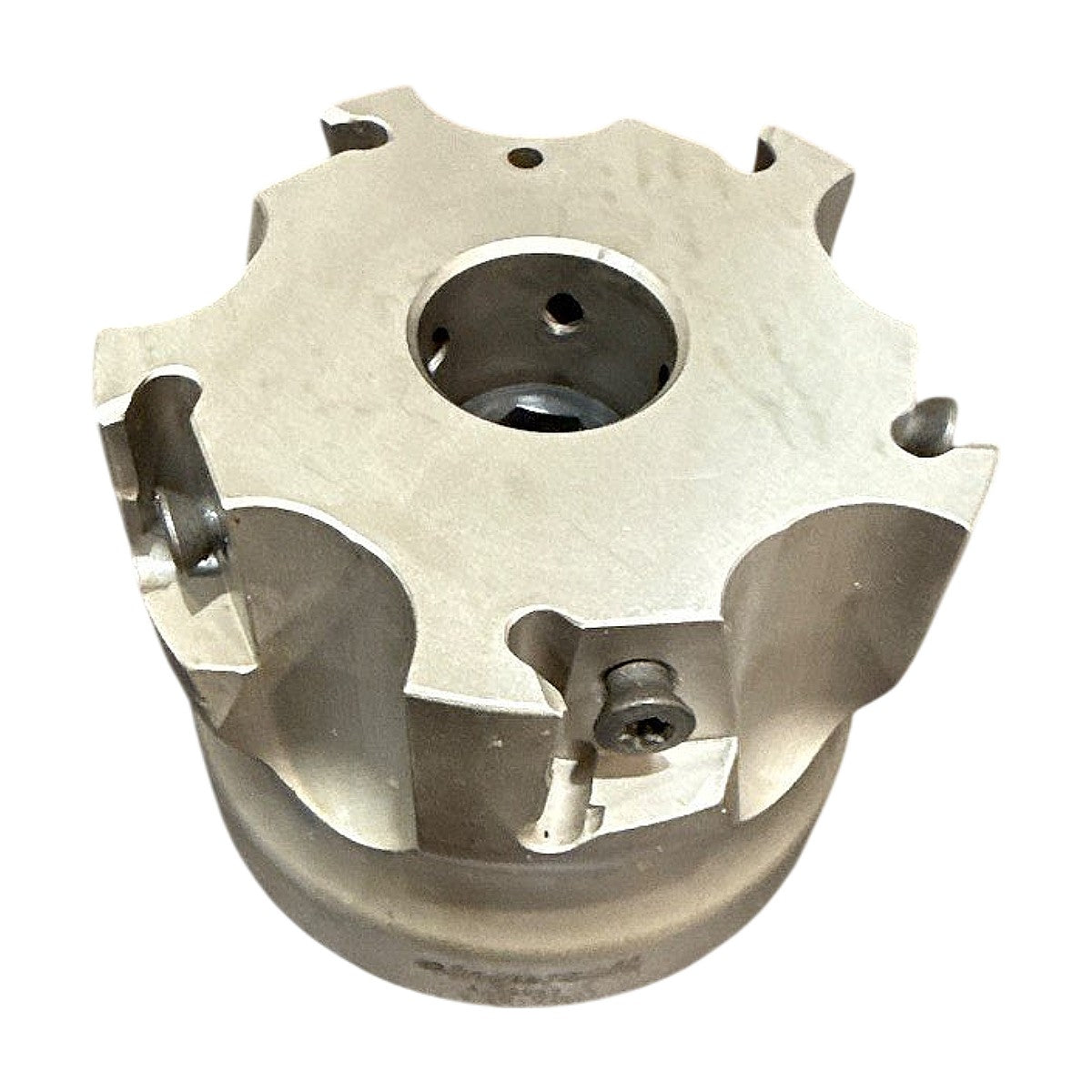

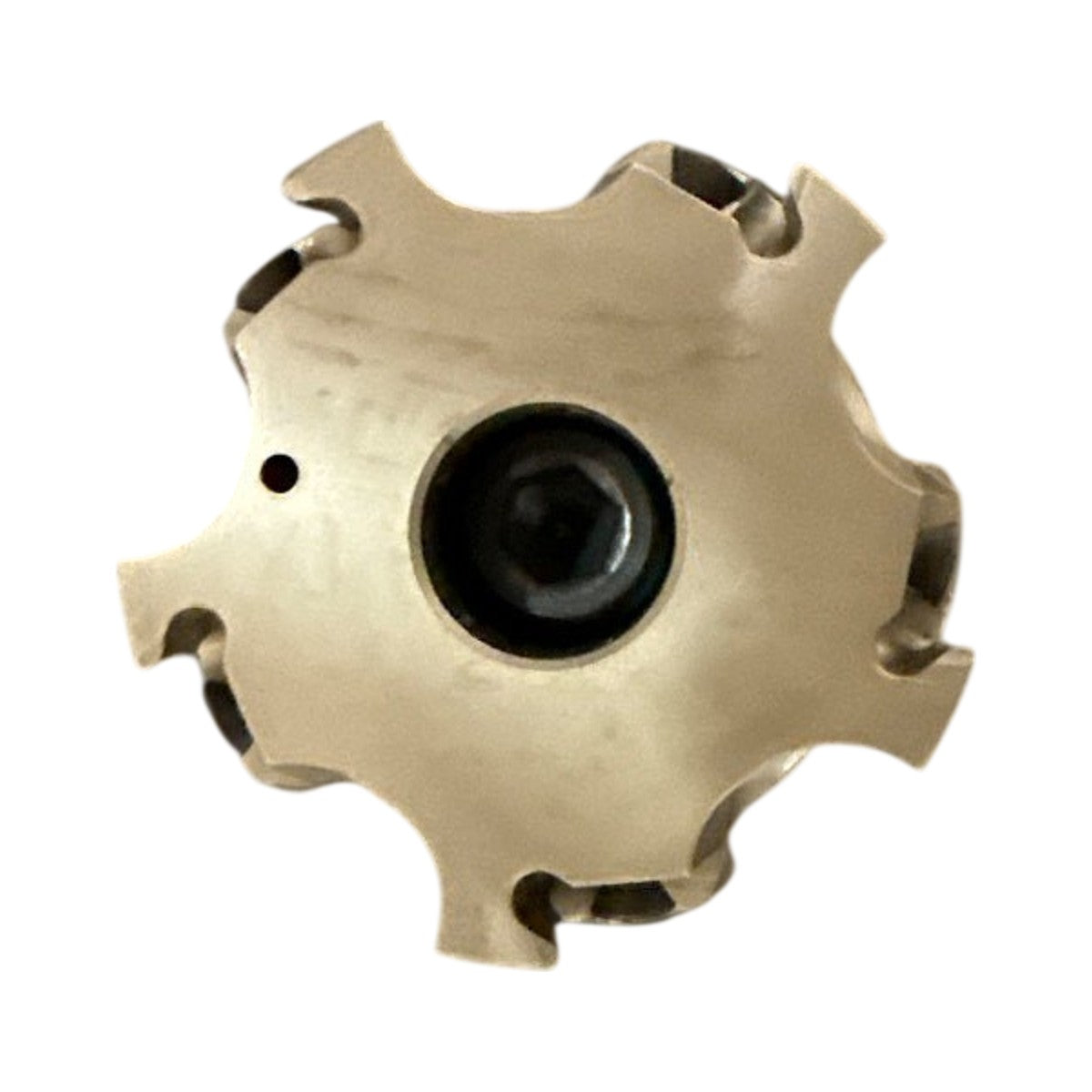

This new Ingersoll SJ6N-03R01 indexable face milling cutter (item number 3028699, EDP 3019625, catalog designation 6J6N-03R01) is a steel-bodied, arbor-mounted cutter with six insert pockets spaced around the periphery. Each pocket holds a replaceable carbide insert secured by a Torx-head clamp screw, and the face has a center bore with a retaining screw and a visible coolant passage. The 'R' in the designation indicates right-hand cutting. It was manufactured in the USA by Ingersoll Cutting Tools, a member of the IMC Group. It is sold new; inserts are not confirmed as included, so verify the insert style against the manufacturer's data before ordering replacements.
Product Specifications
| Brand | Ingersoll |
| Manufacturer Part Number | 3028699 |
| Model | SJ6N-03R01 |
| Alternate Part Number | 3019625 |
| Catalog Designation | 6J6N-03R01 |
| Country of Manufacture | USA |
| Number of Flutes | 6 |
| Cutter Type | Indexable Face Mill |
| Mounting Style | Shell Mill, Center Bore w/ Retaining Screw |
| Insert Clamping | Torx Screw |
| Hand of Cut | Right Hand |
| Coolant Through | Yes |
| Body Material | Steel |
| Operation | Face Milling |
| Insert Type | Indexable Carbide Inserts |
| Cutting Diameter | 4" |
