Ingersoll 46D-50100S4RC02 IN2005 1/2in 4-Flute Corner Radius Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

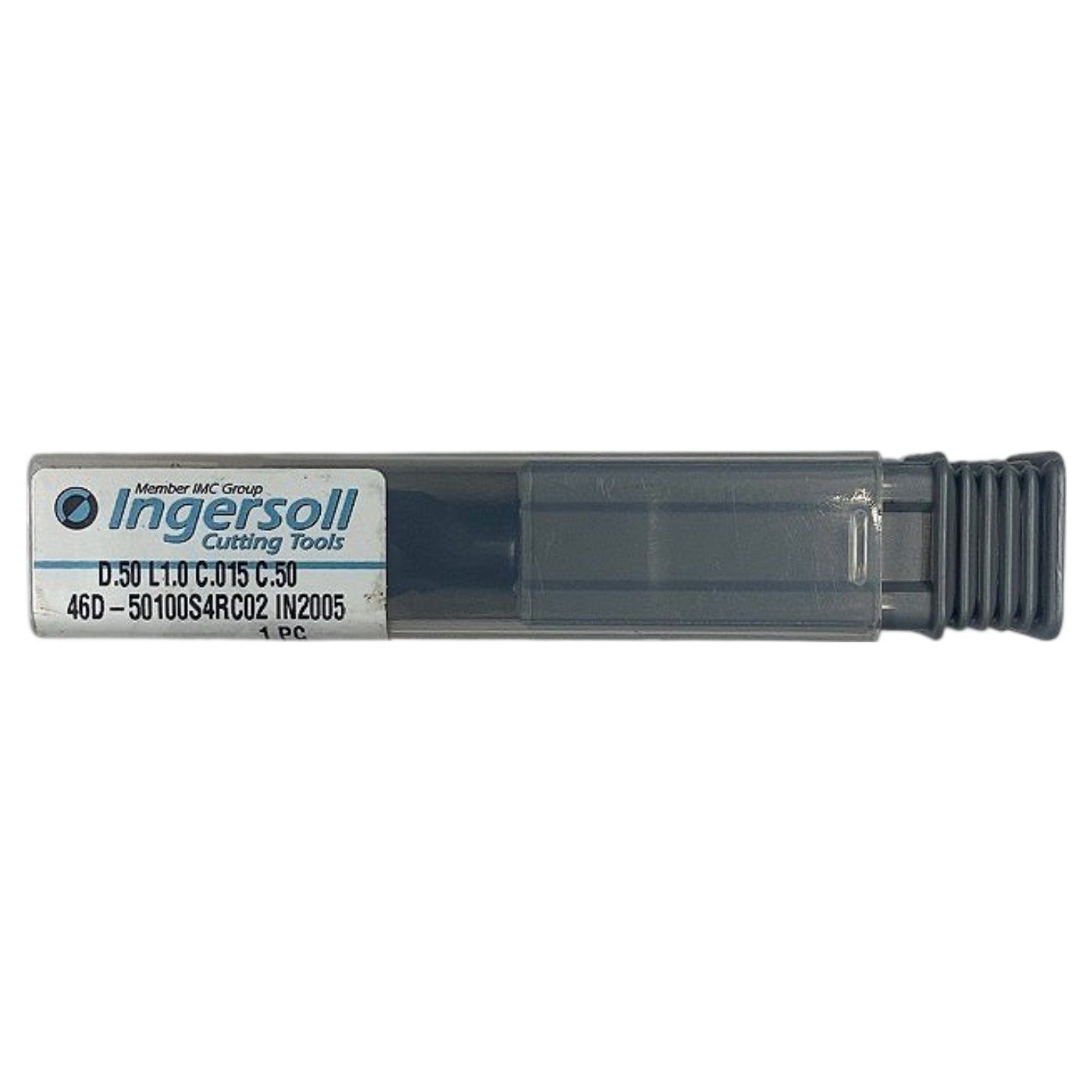

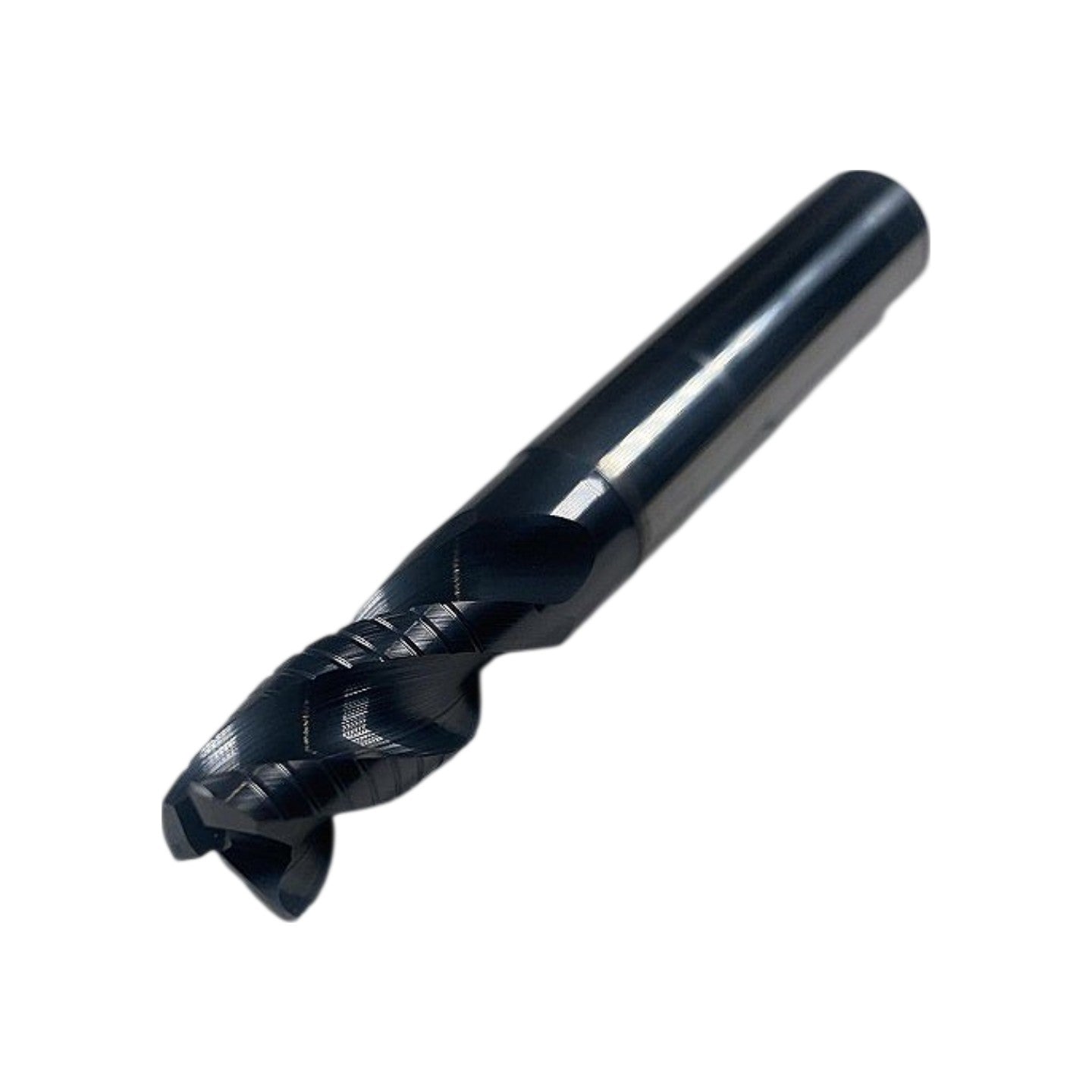

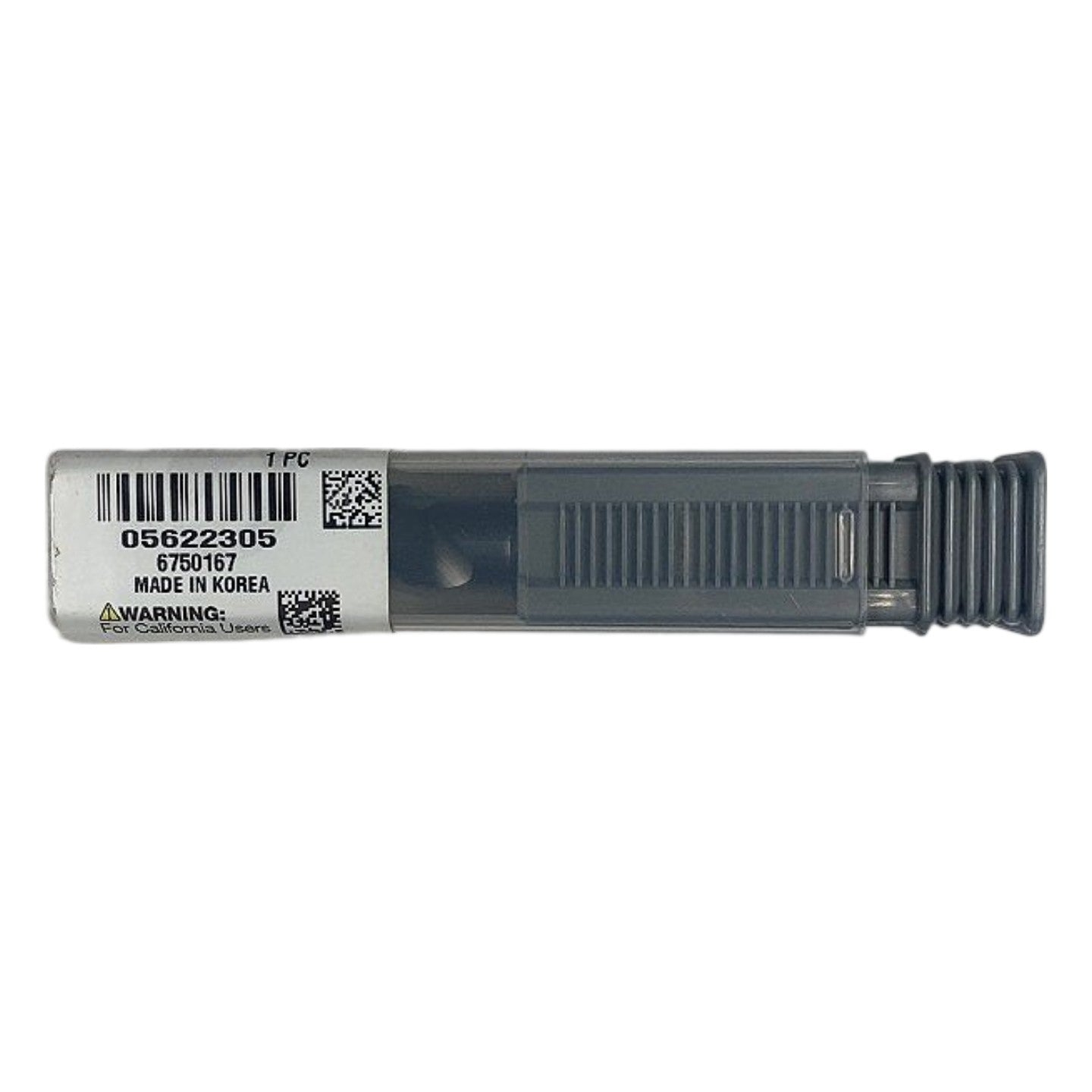

The Ingersoll 46D-50100S4RC02 is a new solid carbide corner-radius end mill from the 46D series, ground in IN2005 grade submicron carbide with an AlTiN-family dark PVD coating (visible as the deep black finish in the photos), engineered for high-performance milling of steels, stainless, and cast iron. The label decodes as: D = 0.50 in (1/2 in) cutting diameter, L = 1.0 in length of cut, C = 0.015 in corner radius, shank diameter C = 0.50 in, 4-flute geometry (S4), RC02 denoting the 0.015 in radius corner configuration. The 1/2 in straight shank is compatible with standard ER32, 1/2 in end mill holders, shrink-fit chucks, and hydraulic chucks; the 4-flute variable-helix design provides stability in slotting and peripheral milling at aggressive axial depths. Made in Korea per the label; Ingersoll part number cross-references to MSC/distributor item 05622305 / 6750167.
Product Specifications
| Brand | Ingersoll Cutting Tools |
| MPN | 46D-50100S4RC02 |
| Grade | IN2005 |
| Cutting Diameter | 0.500 in (1/2 in) |
| Shank Diameter | 0.500 in (1/2 in) |
| Length of Cut (LOC) | 1.000 in |
| Corner Radius | 0.015 in |
| Number of Flutes | 4 |
| End Type | Corner Radius |
| Material | Solid Submicron Carbide |
| Coating | PVD AlTiN-type (dark black finish) |
| Shank Type | Straight |
| Series | 46D |
| Country of Origin | Korea |
| Condition | New |
| Distributor Item # | 05622305 |
| Alt Item # | 6750167 |
