Ingersoll 6308507 A16T TWLNR-3 16mm RH Coolant-Thru Boring Bar
Regular price
$184.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

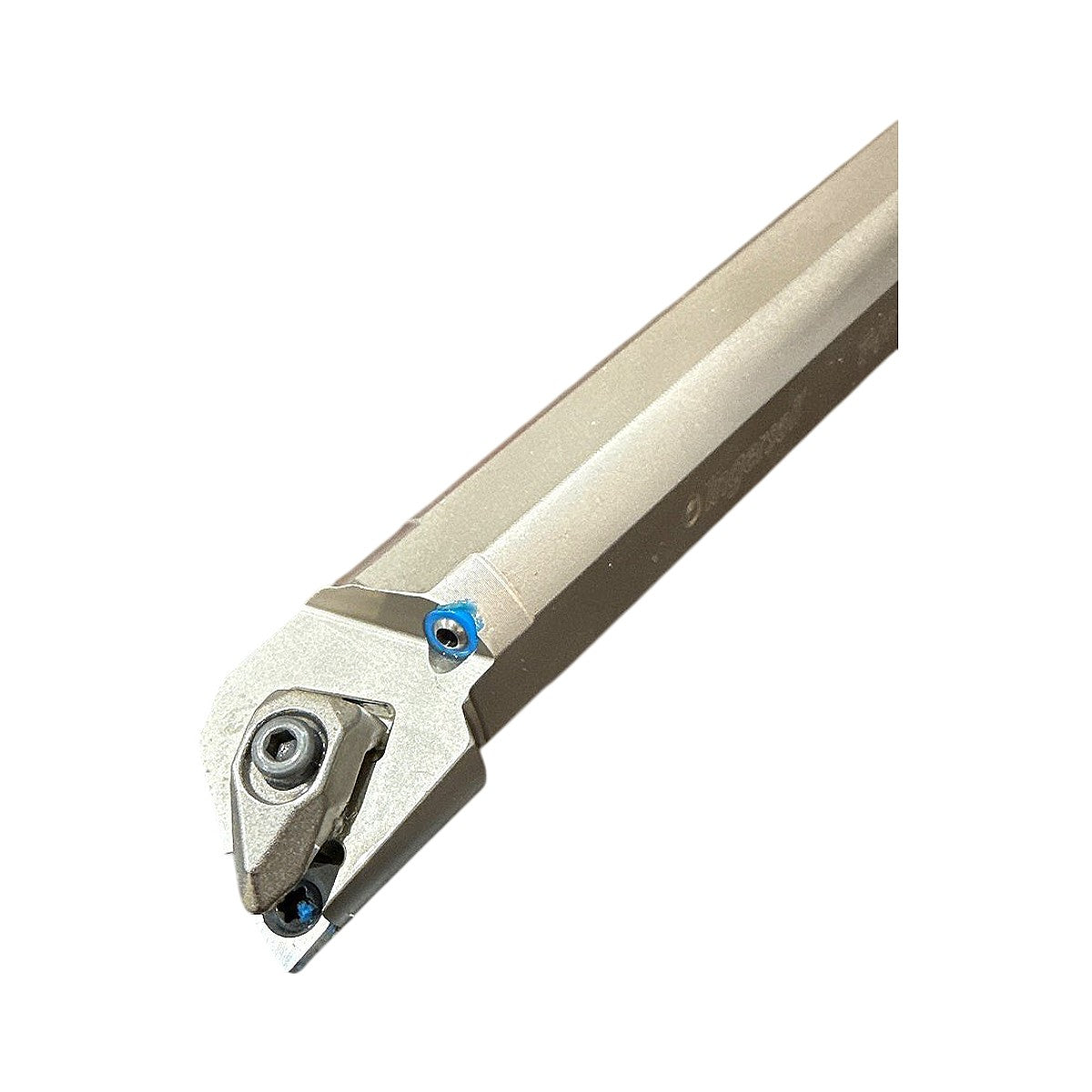

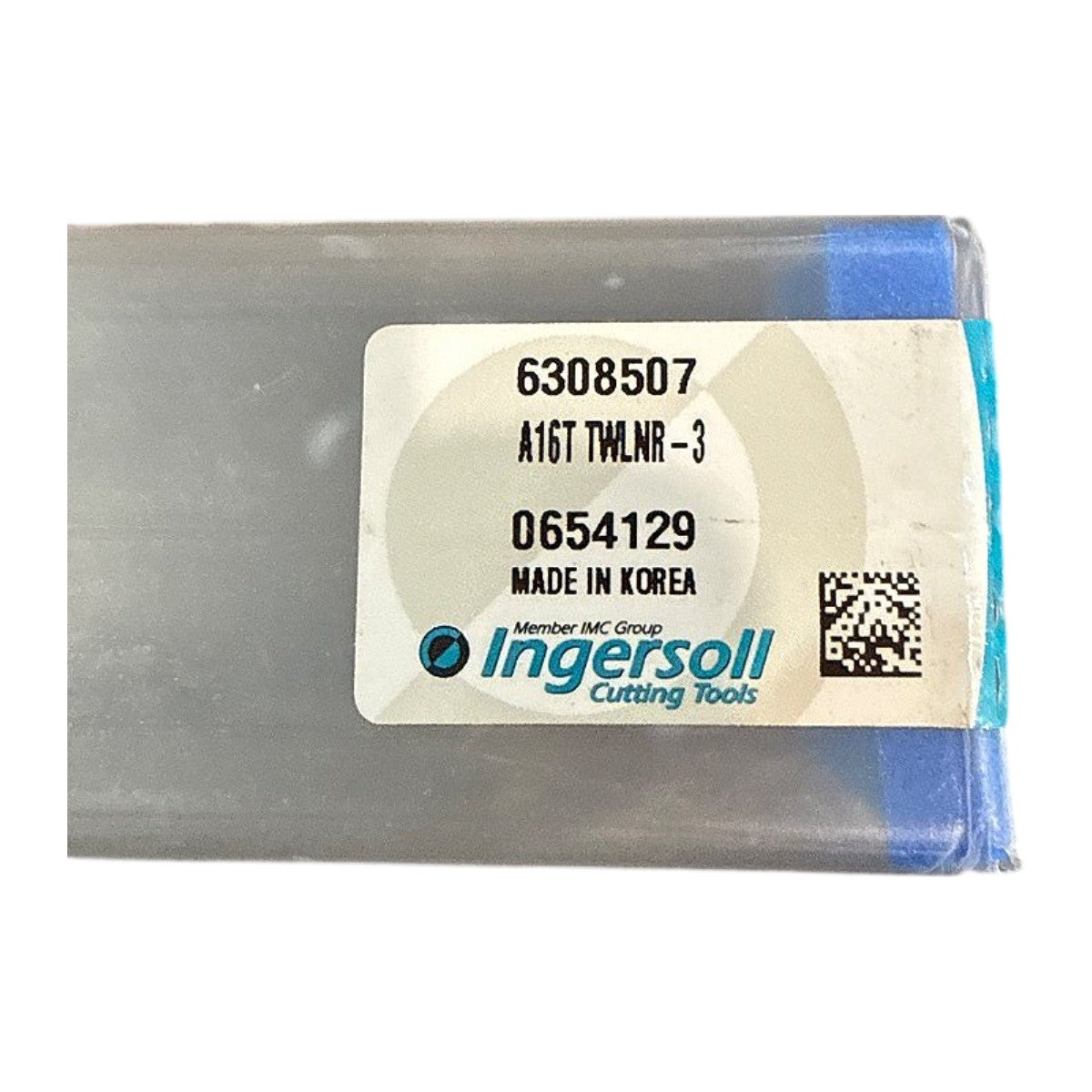

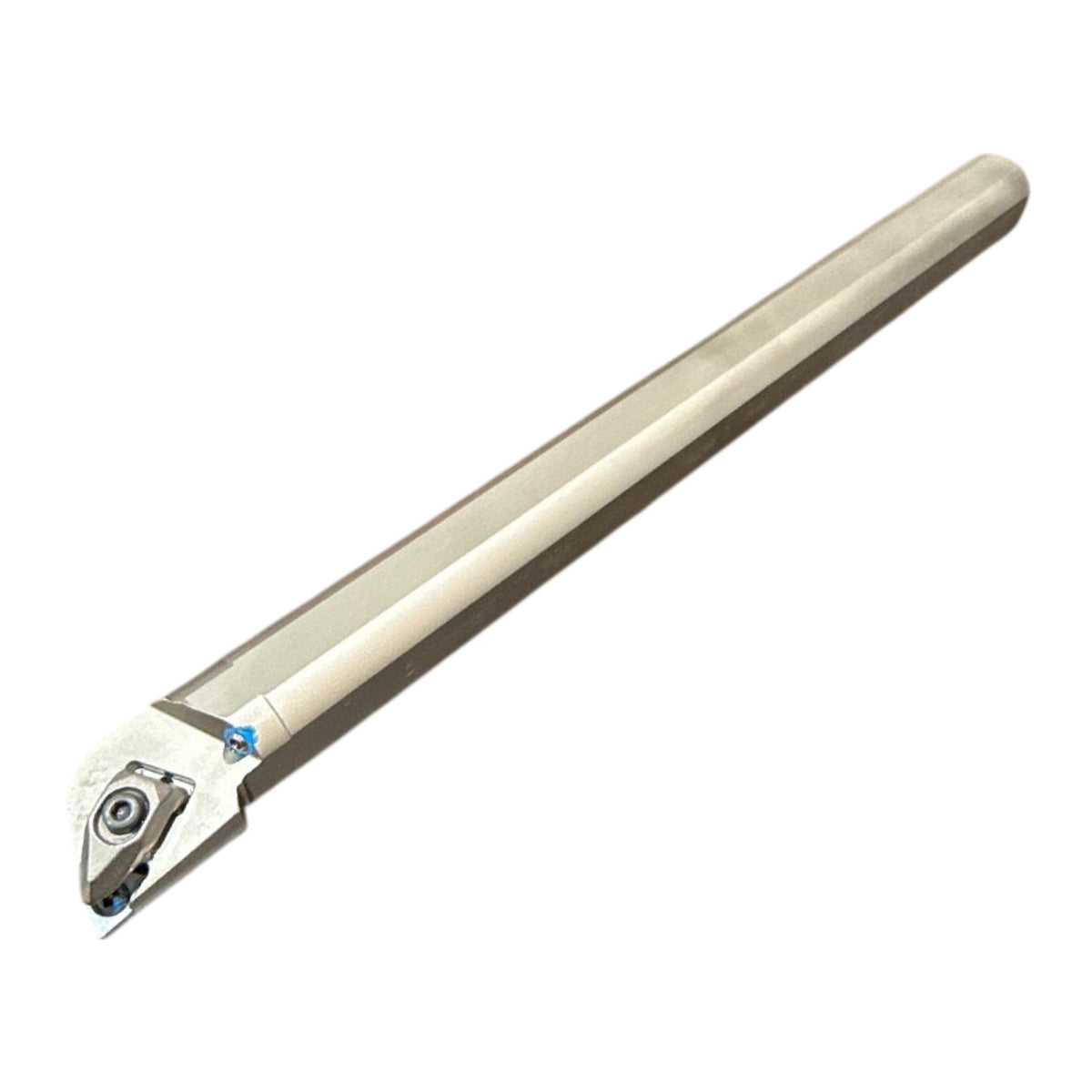

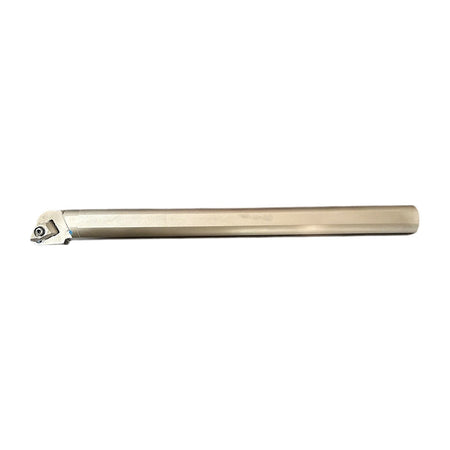

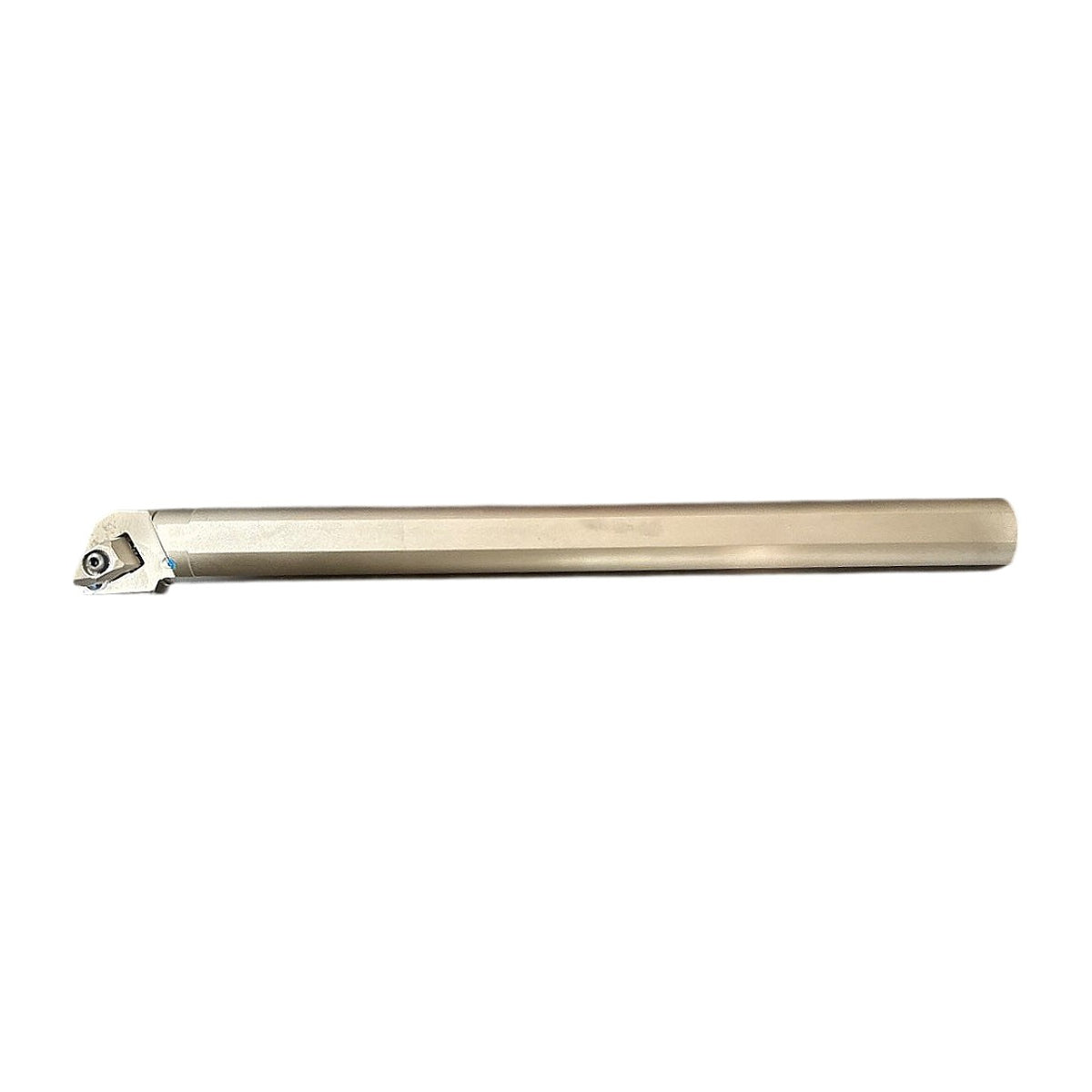

This Ingersoll Cutting Tools A16T TWLNR-3 (item 6308507) is a right-hand indexable internal boring bar with a 16 mm shank diameter and a 300 mm length, made in Korea. The designation codes a steel bar with coolant delivery (A), a trigon (W) insert pocket, a 95 degree lead angle (L), a 0 degree insert clearance (N) and right-hand cutting (R). It is intended for internal turning and boring with trigon-style inserts, with a screw-secured clamp and a cylindrical shank for clamping in a standard boring bar holder. This unit is new and still in the manufacturer's packaging.
Product Specifications
| Brand | Ingersoll Cutting Tools |
| MPN | 6308507 |
| Model | A16T TWLNR-3 |
| Alternate Item Number | 0654129 |
| Country of Origin | Korea |
| Tool Type | Indexable Boring Bar |
| Operation | Internal Turning, Boring |
| Hand of Cut | Right Hand |
| Shank Diameter | 16 mm |
| Overall Length | 300 mm |
| Shank Type | Cylindrical |
| Bar Material | Steel |
| Coolant Through | Yes |
| Lead Angle | 95 degrees |
| Insert Clearance Angle | 0 degrees (N) |
| Insert Shape | Trigon (W) |
| Insert Size Code | 3 |
