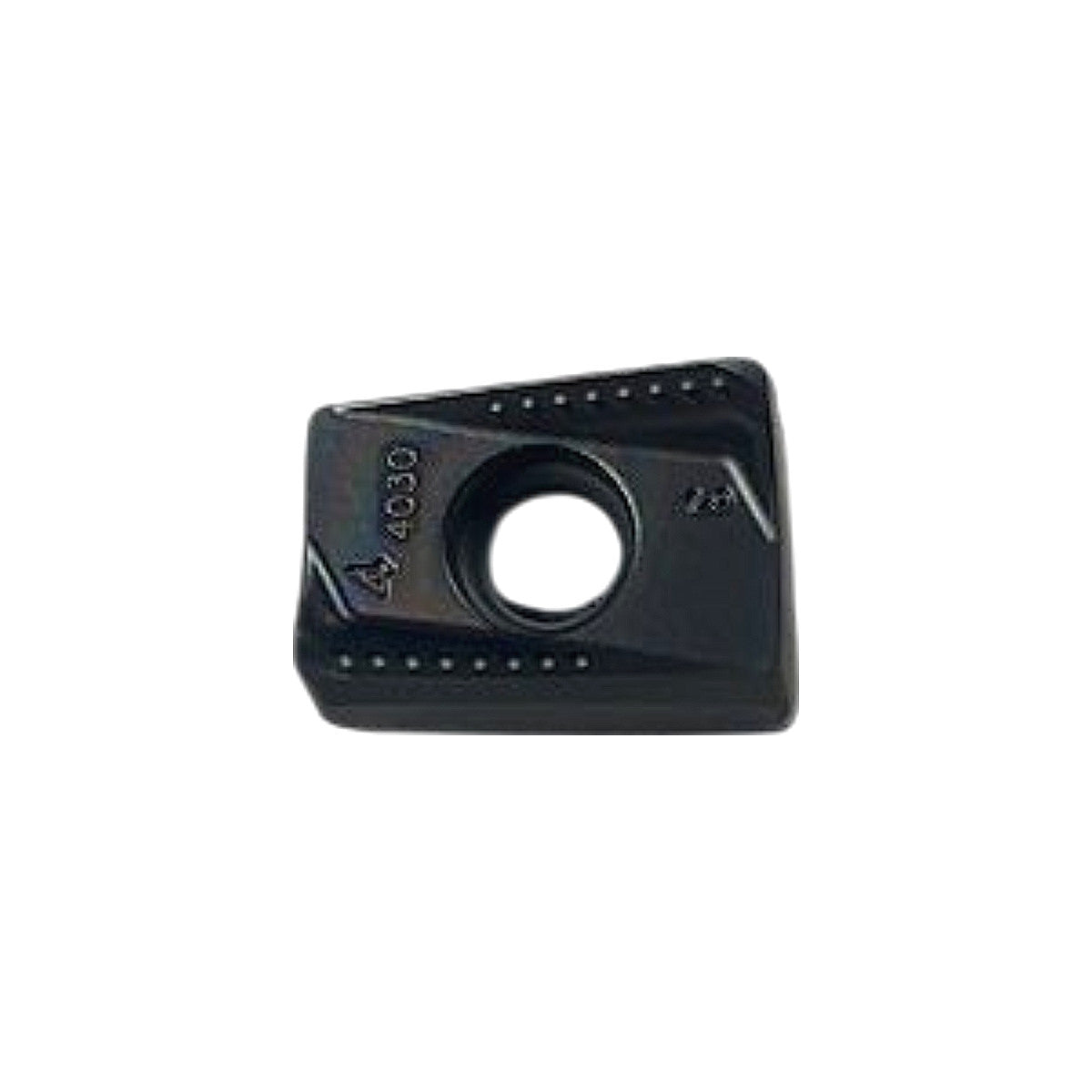

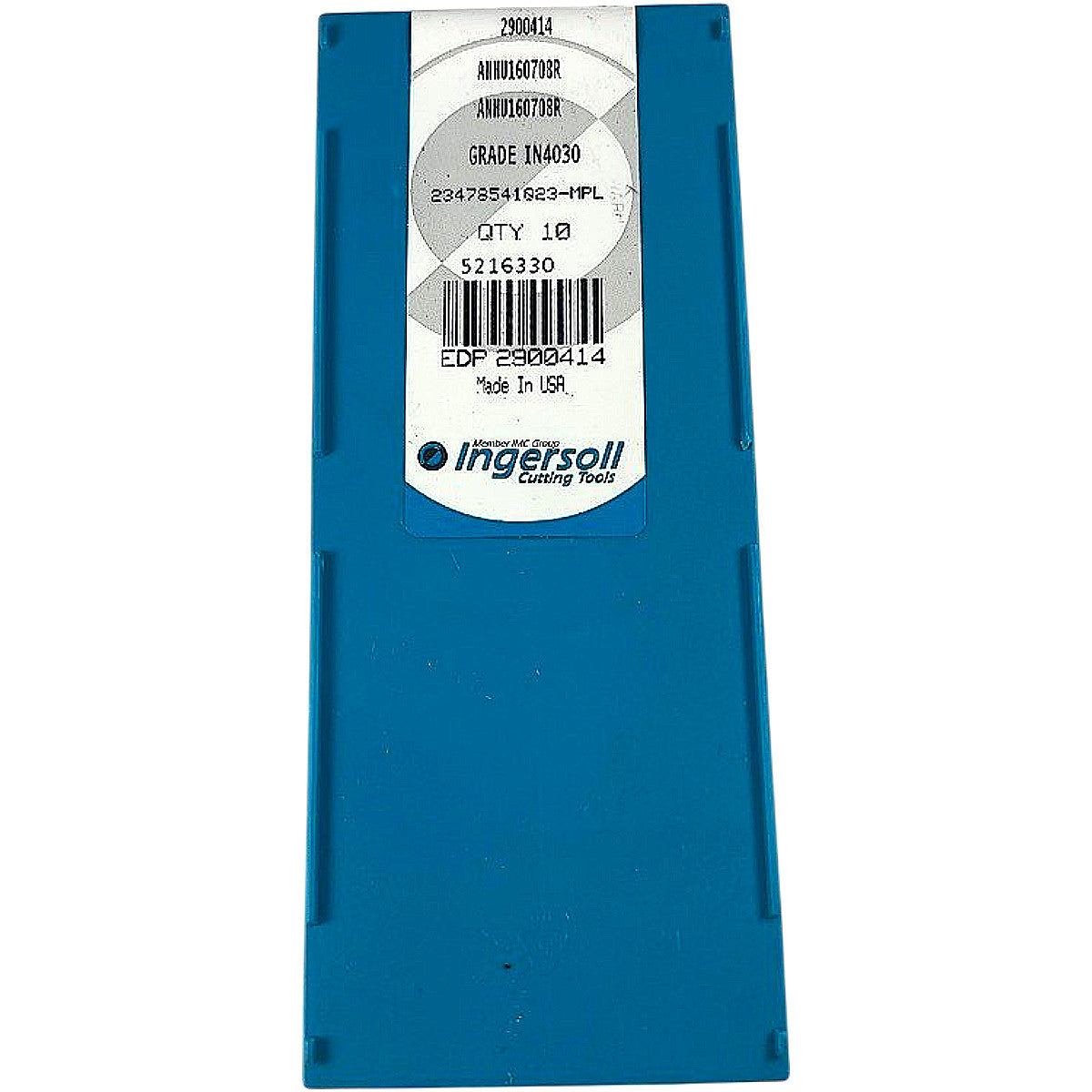

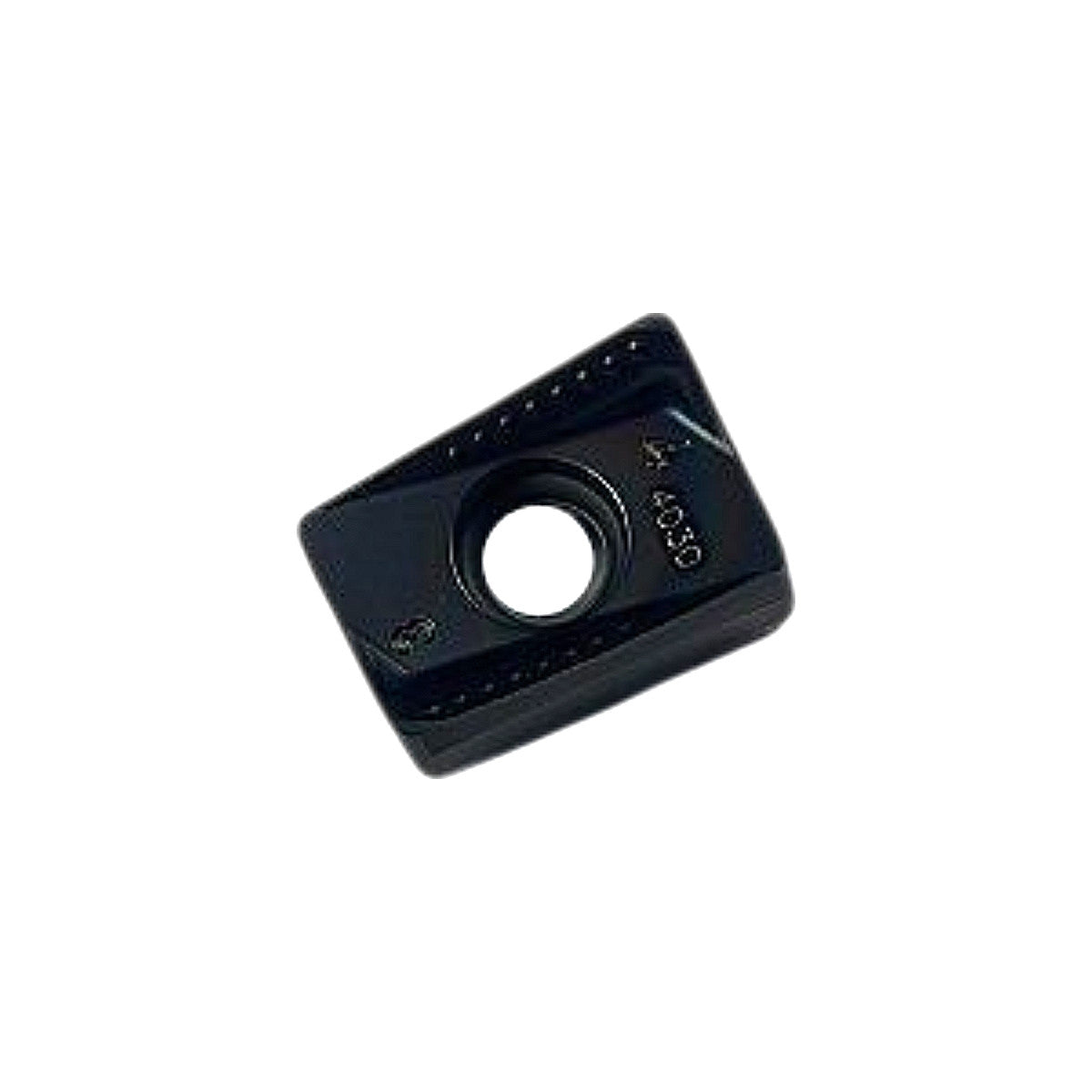

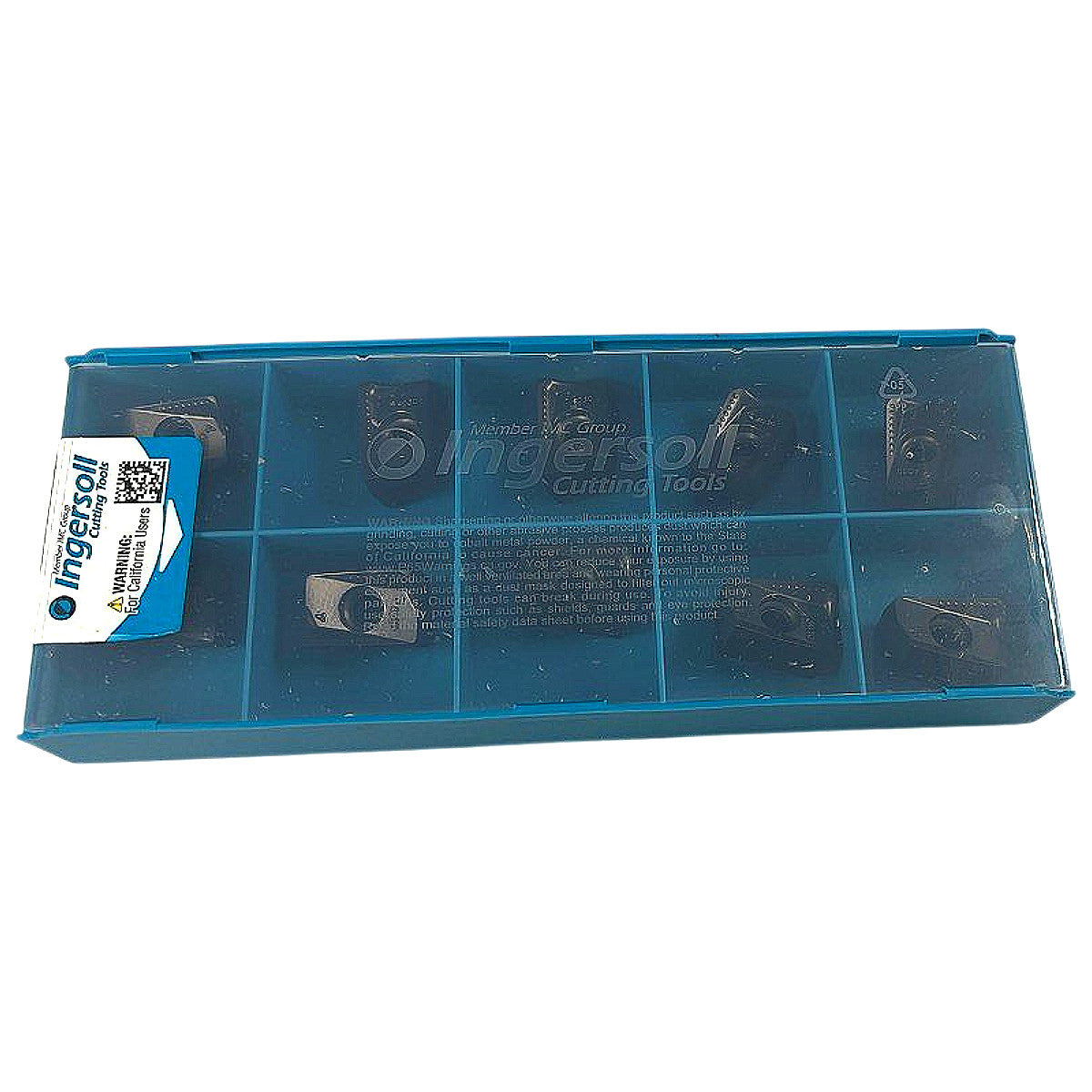

The Ingersoll ANHU160708R is a rectangular/parallelogram-style positive-rake carbide milling insert in grade IN4030, a PVD-coated (TiAlN-based, dark blue/black appearance) cemented carbide grade engineered for high-performance face and shoulder milling of steels and stainless steels across ISO P and M material groups. Decoding the MPN: A = insert shape (parallelogram/rectangular, 85° included angle), N = 0° clearance (relieved on holder), H = close tolerance (±0.013 mm on thickness), U = with hole/chipbreaker, 16 = 16 mm inscribed circle (IC), 07 = 7 mm thickness, 08 = 0.8 mm nose radius, R = right-hand cutting direction. The IN4030 grade features a tough carbide substrate with a multi-layer PVD coating providing excellent thermal stability, edge toughness, and resistance to built-up edge (BUE), making it well-suited for medium to heavy interrupted cuts. These inserts are manufactured in the USA and are sold new in the original Ingersoll factory tray of 10 pieces (EDP 2900414); compatible toolholders include Ingersoll's Hi-QuD and other face/shoulder milling platforms accepting ANHU-style inserts.
Product Specifications
| Brand | Ingersoll Cutting Tools |
| MPN | ANHU160708R |
| EDP Number | 2900414 |
| Grade | IN4030 |
| Insert Shape | Parallelogram (A), 85° included angle |
| Clearance Angle | 0° (N — relieved on toolholder) |
| Tolerance Class | H (±0.013 mm thickness) |
| Chipbreaker / Hole | U — with hole and chipbreaker |
| Inscribed Circle (IC) | 16 mm |
| Insert Thickness | 7 mm |
| Nose Radius | 0.8 mm |
| Cutting Direction | Right-hand (R) |
| Coating | PVD (TiAlN-based) |
| Substrate | Cemented carbide |
| ISO Material Groups | P, M (steel, stainless steel) |
| Application | Face milling, shoulder milling |
| Country of Origin | USA |
| Quantity per Package | 10 inserts |
