Ingersoll AOMT170564R IN2510 Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

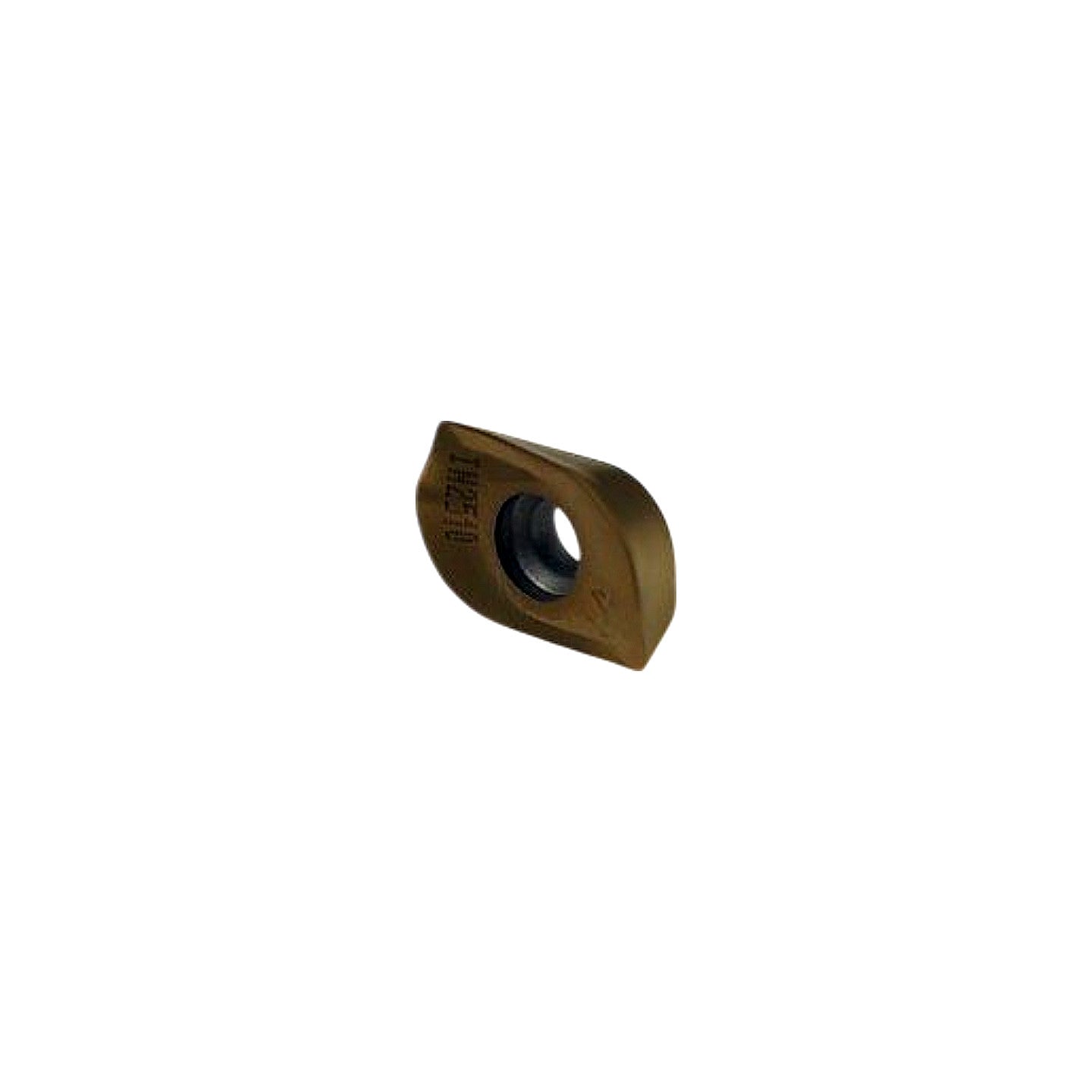

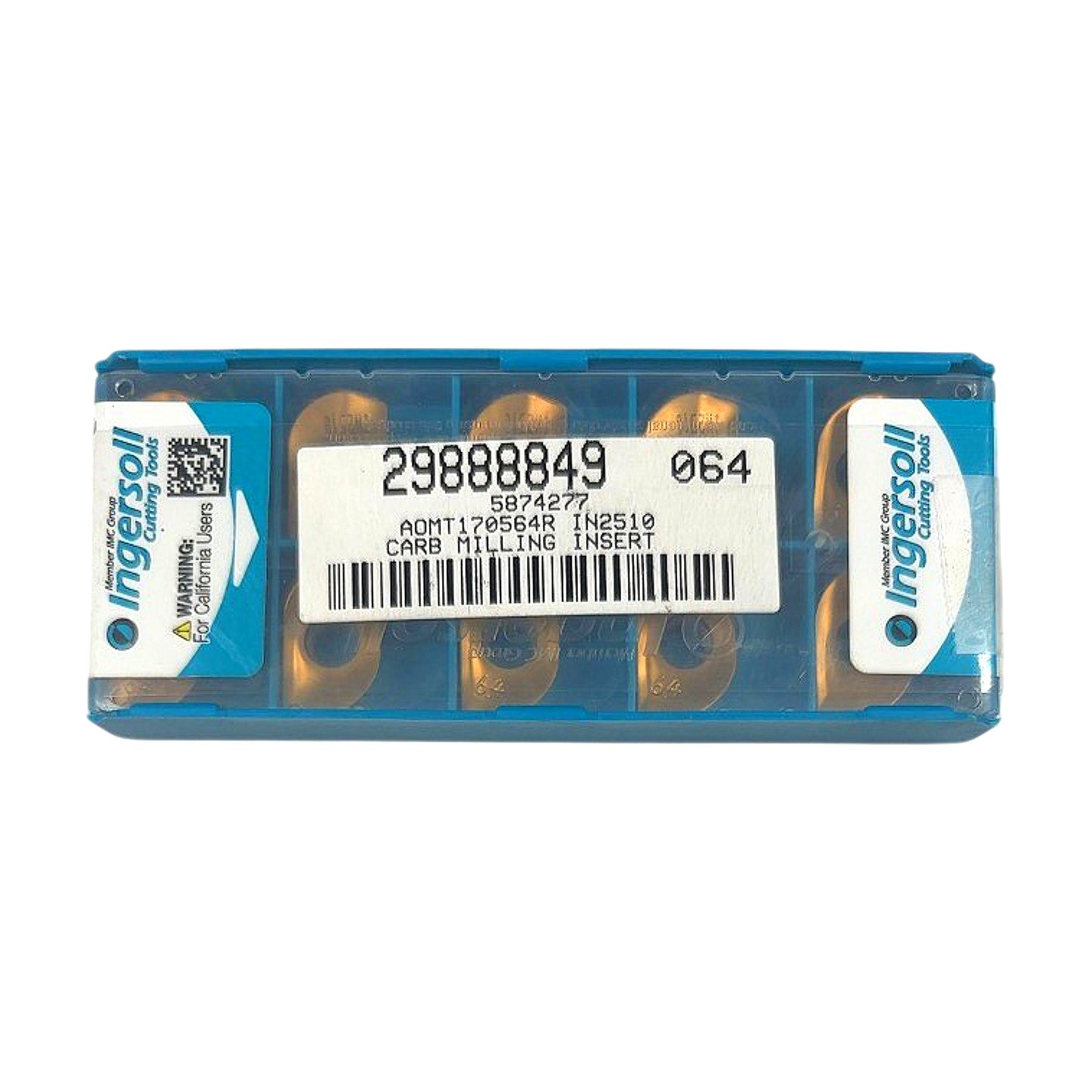

These are new Ingersoll Cutting Tools AOMT170564R carbide milling inserts in grade IN2510, a PVD-coated cemented carbide grade engineered for high-performance milling of steel, stainless steel, and cast iron. The AOMT designation indicates a double-sided octagonal-style positive milling insert with a central mounting hole, 17mm inscribed circle, 05mm thickness, 6.4mm corner radius (0.25 in), and a right-hand cutting geometry — the full part number decode confirms an ANSI/ISO positive rake, screw-on style insert. IN2510 is Ingersoll's PVD TiAlN-based coating on a fine-grain carbide substrate, targeting ISO P15–P25 and M15–M25 application ranges, delivering balanced wear resistance and toughness suited for medium to roughing milling passes. This pack contains 10 inserts manufactured in Korea, as confirmed by the factory label, and is compatible with Ingersoll face mill and shoulder mill toolholders designed for the AOMT17 insert pocket geometry.
Product Specifications
| Brand | Ingersoll Cutting Tools |
| Manufacturer Part Number | AOMT170564R IN2510 |
| Ingersoll Item Number | 5874277 |
| Insert Style | AOMT (double-sided, positive, screw-on) |
| Insert Shape | Octagonal/parallelogram milling insert |
| Inscribed Circle (IC) | 17 mm |
| Insert Thickness | 5 mm |
| Corner Radius | 6.4 mm (0.252 in) |
| Hand of Cut | Right-hand (R) |
| Grade | IN2510 |
| Substrate | Cemented carbide |
| Coating | PVD TiAlN |
| ISO Application Range | P15–P25, M15–M25 |
| Application Type | Milling |

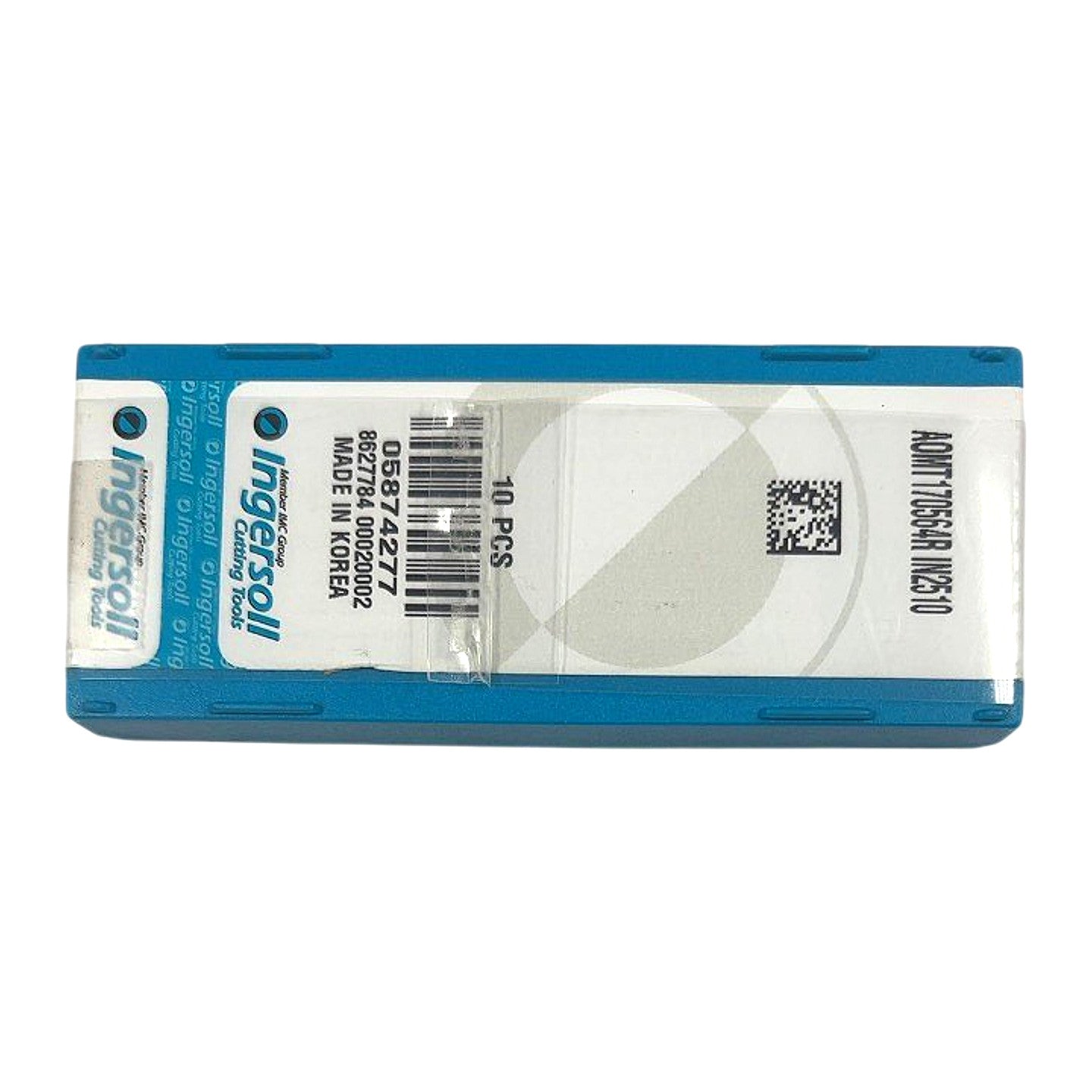

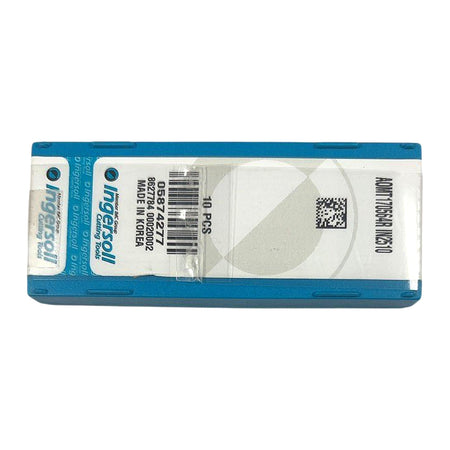

| Country of Origin | Korea |
| Quantity per Pack | 10 pcs |
| Condition | New |
