Ingersoll DGM314R001-P IN05S Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

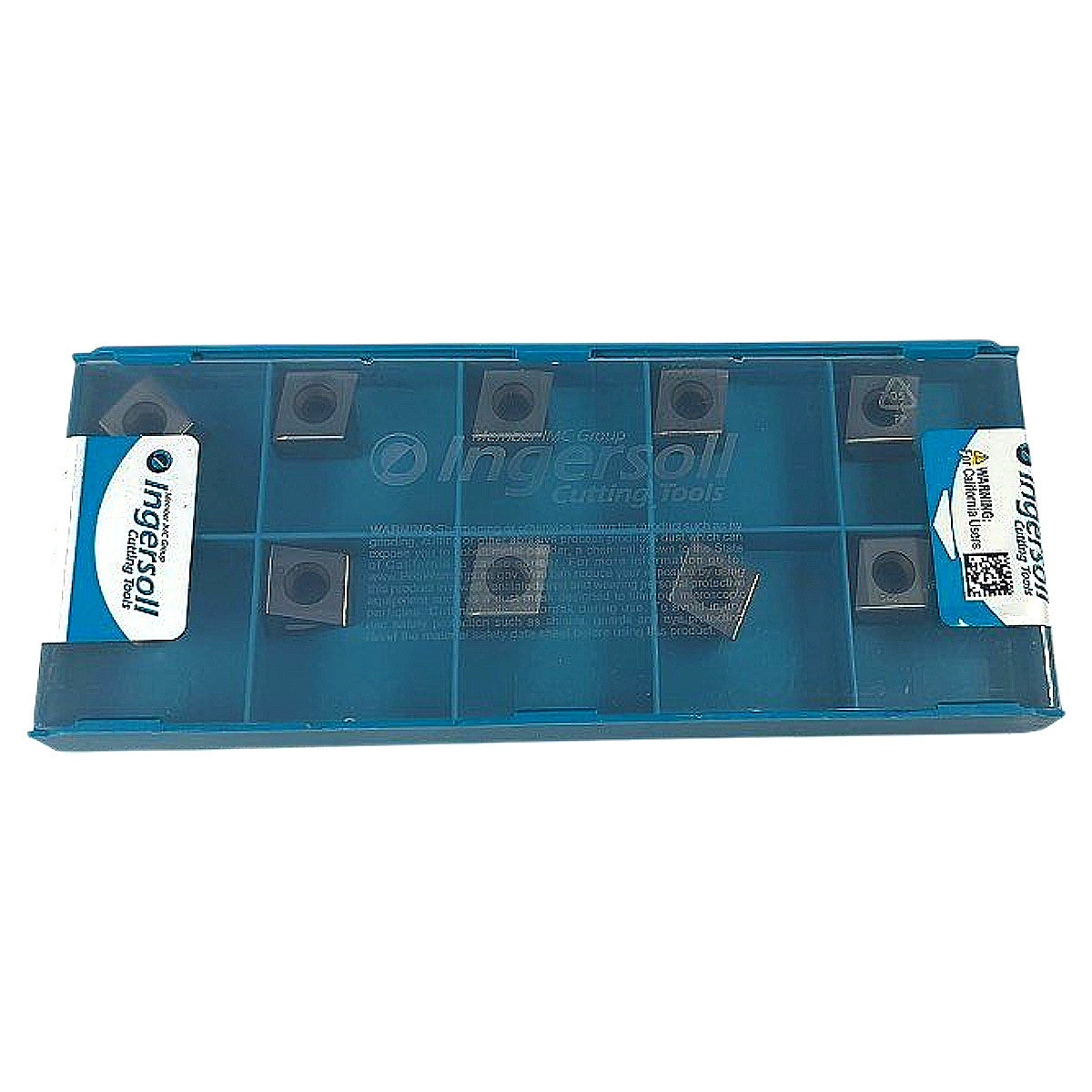

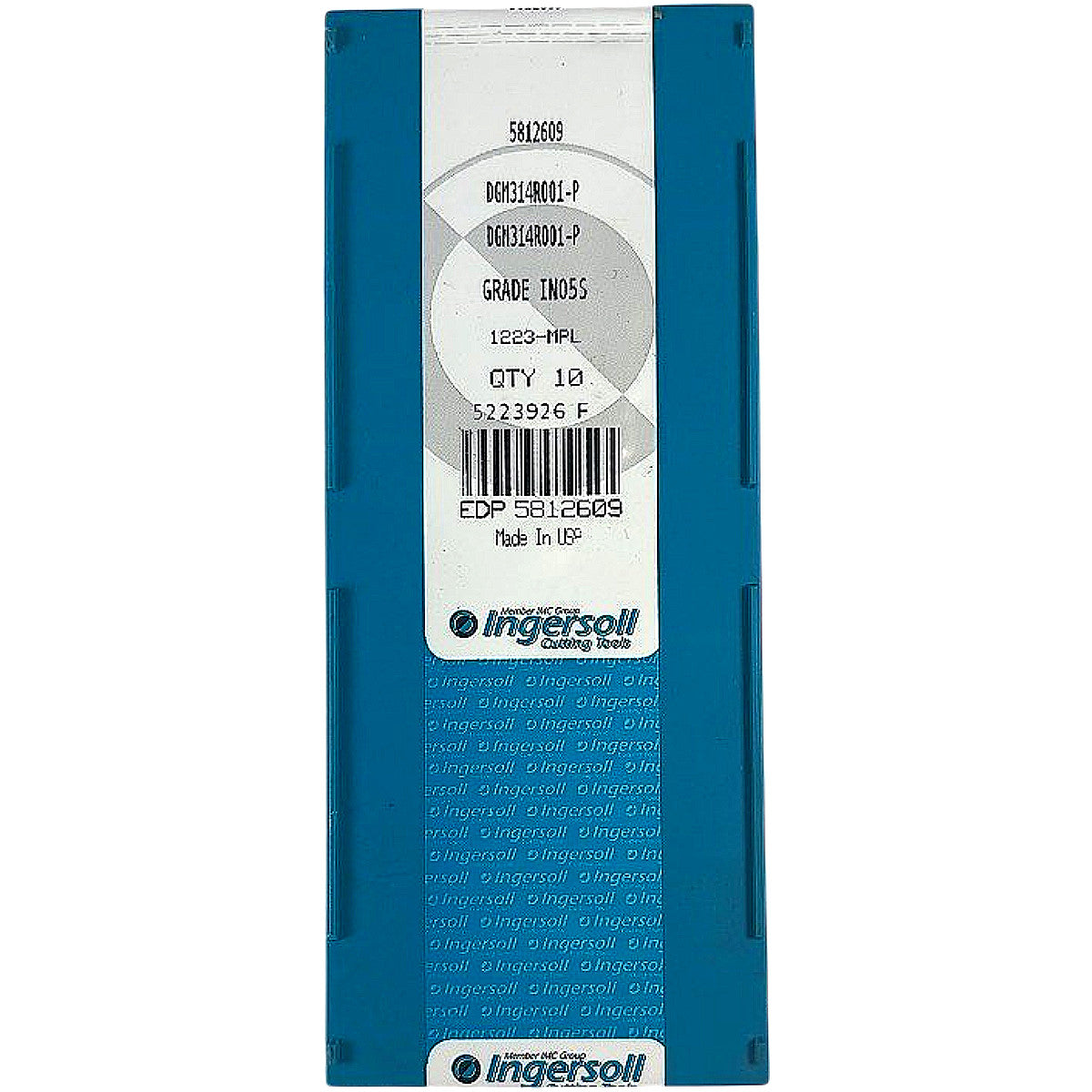

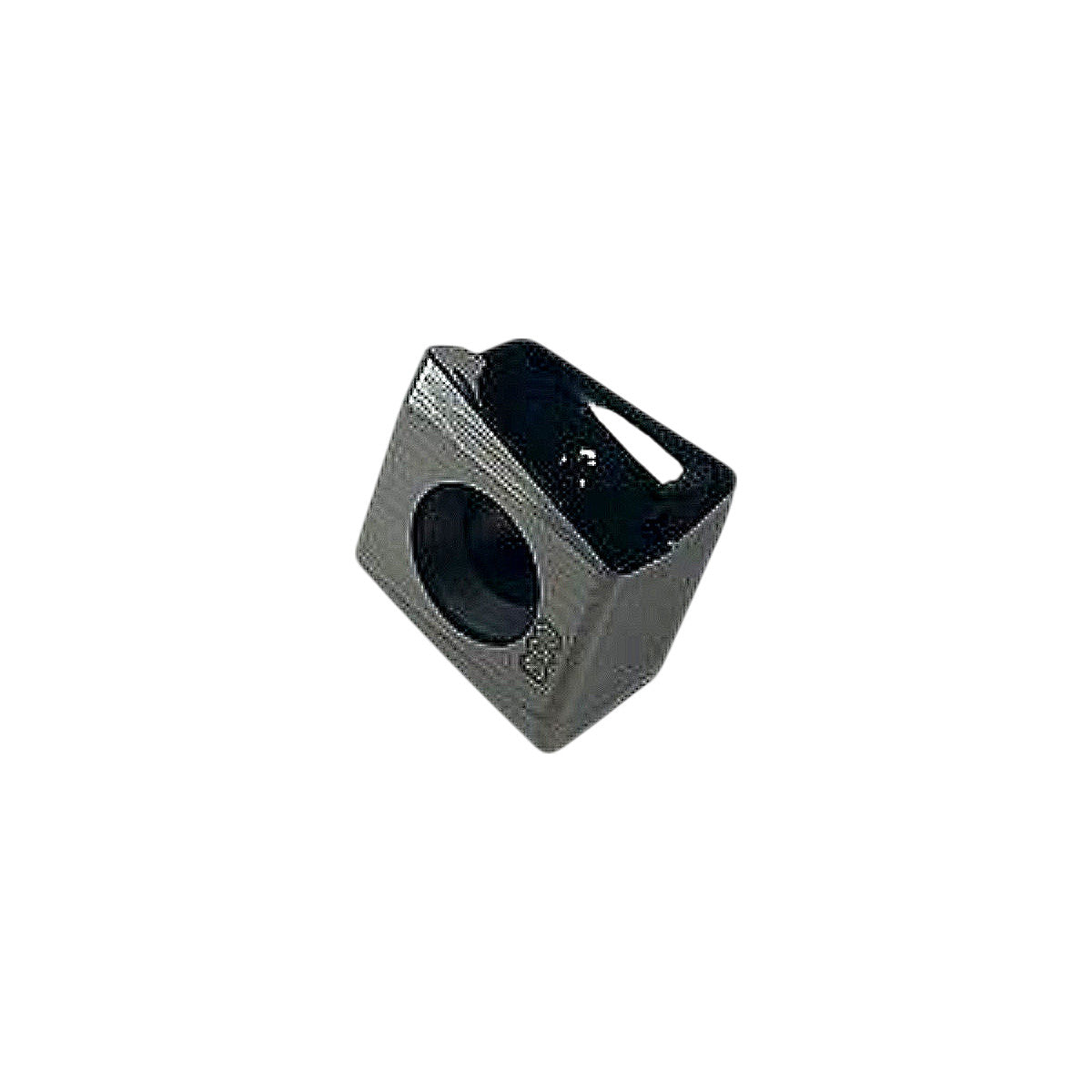

These are new Ingersoll DGM314R001-P carbide milling inserts in grade IN05S, sold in the original factory pack of 10 (EDP 5812609, lot 1223-MPL, Made in USA). The DGM314R001-P designation decodes as follows: square (S-style) insert geometry sized at approximately 3/4 in (19.05 mm) IC for use in Ingersoll's Double-Grip Milling (DGM) system, with a 0.016 in (0.4 mm) corner radius, positive rake chipbreaker geometry (-P suffix), and a central hole for screw-on mounting. Grade IN05S is Ingersoll's PVD-coated submicron carbide, engineered for high-speed finish and semi-finish milling of steels and stainless steels in ISO P and M material groups, delivering superior edge sharpness and extended tool life compared to uncoated carbide. The insert features a black PVD coating visible in the photos, double-sided usable edges consistent with the DGM platform, and is designed for compatibility with Ingersoll DGM-series milling cutters and toolholders.
Product Specifications
| Brand | Ingersoll Cutting Tools |
| MPN | DGM314R001-P |
| EDP Number | 5812609 |
| Grade | IN05S |
| Insert Shape | Square |
| Corner Radius | 0.016 in (0.4 mm) |
| Chipbreaker | P (positive rake) |
| Coating | PVD |
| ISO Material Group | P, M |
| Mounting Style | Center hole (screw-on) |
| Insert System | DGM (Double-Grip Milling) |
| Country of Origin | USA |
| Quantity | 10 per pack |
| Condition | New |
