Ingersoll DPM434R002 IN2505 CVD Carbide Milling Insert (10pc)

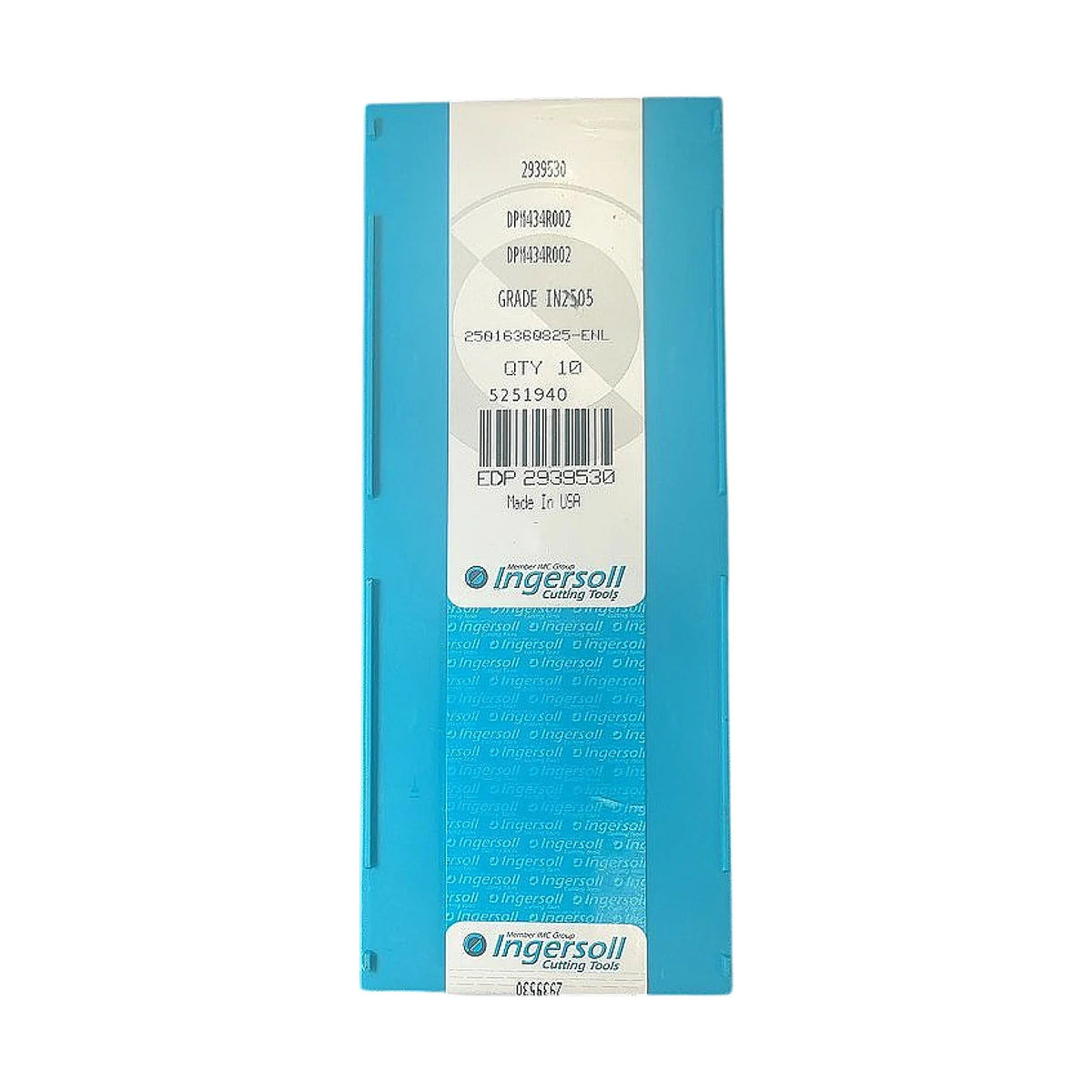

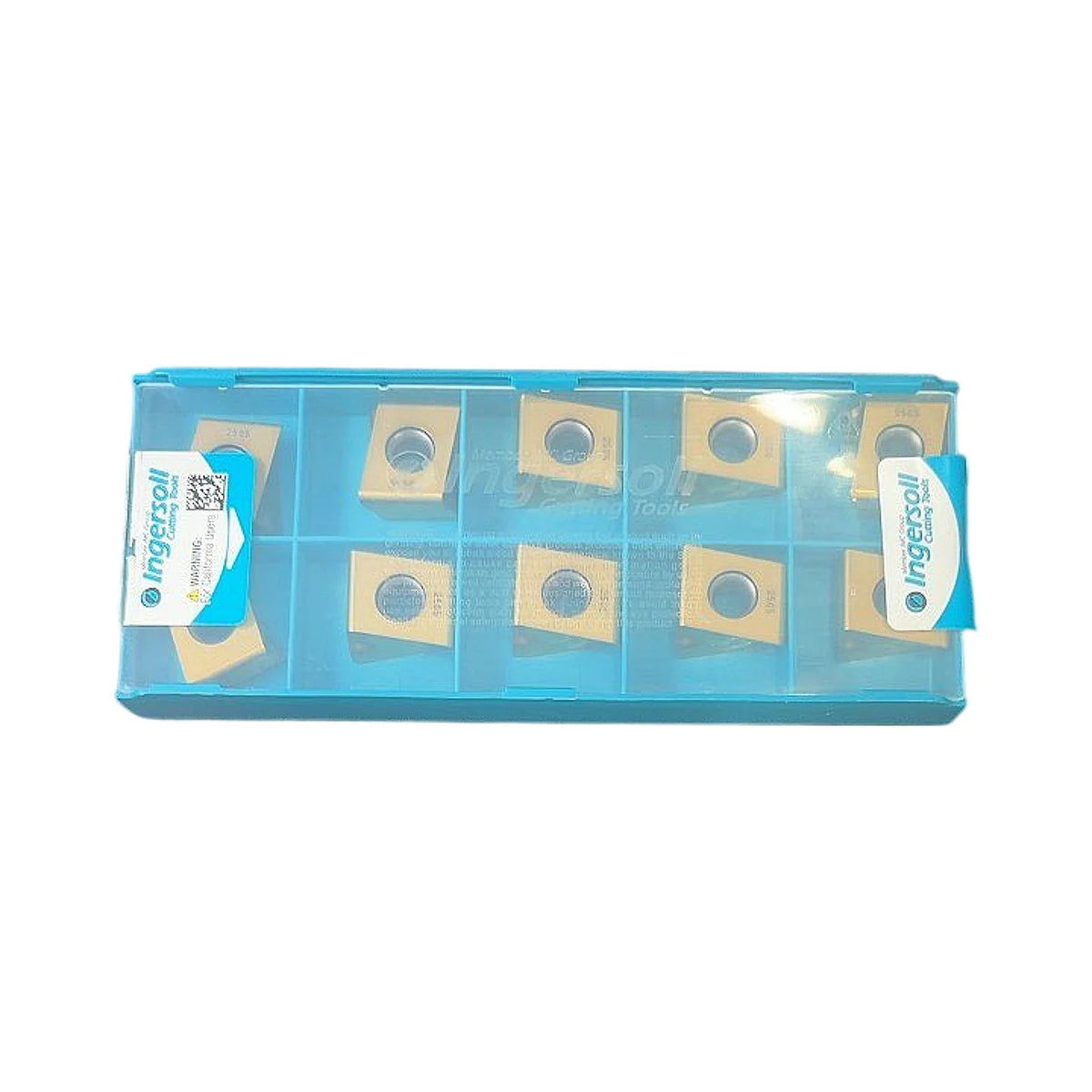

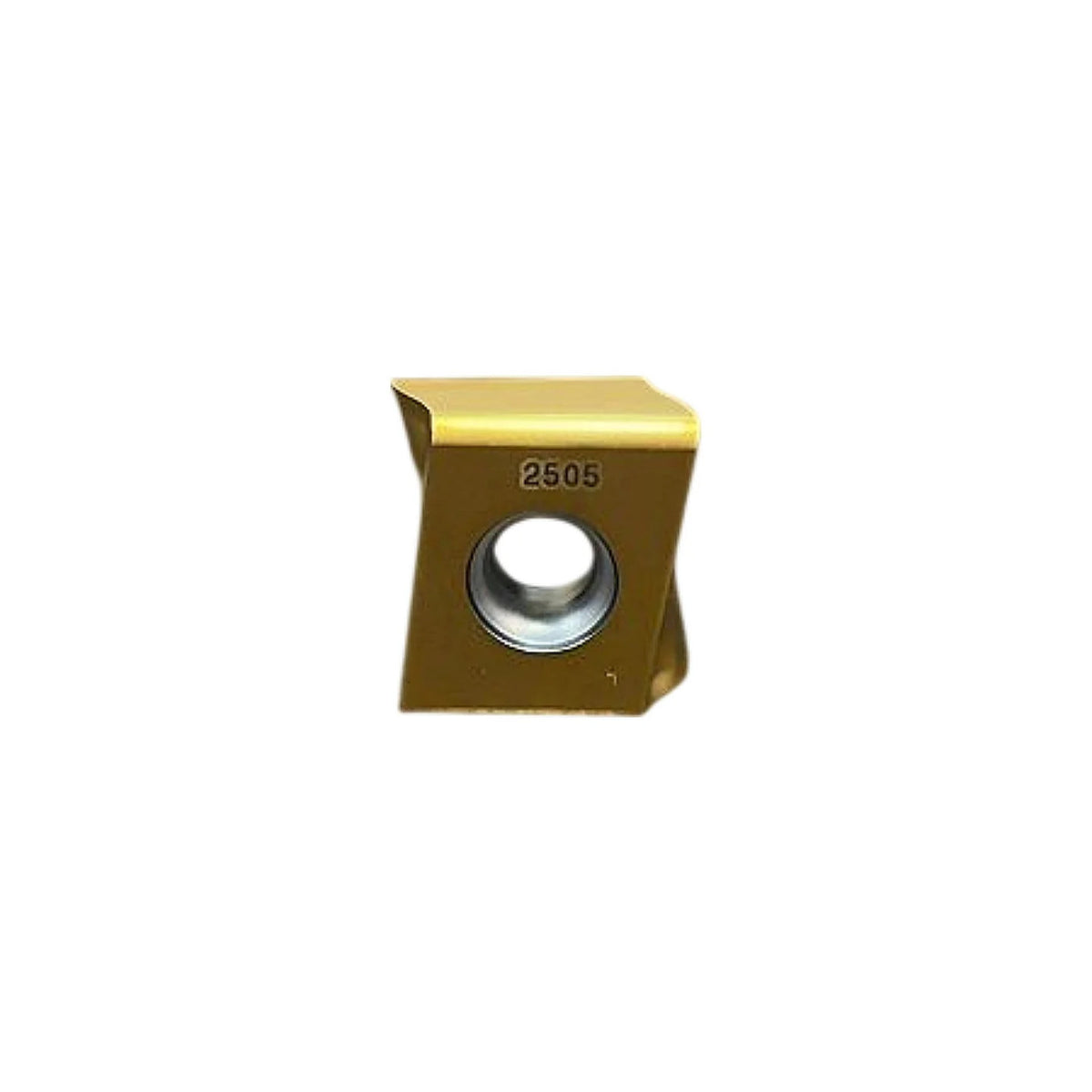

This is a new factory pack of 10 Ingersoll DPIM434R002 carbide milling inserts in grade IN2505, made in the USA (EDP 2939530). The DPIM434R002 designation identifies a positive-geometry, diamond-profile milling insert with a 0.02 in (R002) corner radius, designed for use in Ingersoll's face and shoulder milling systems. Grade IN2505 is a CVD-coated cemented carbide grade — the gold TiN/TiCN/Al2O3 multilayer coating visible on the inserts is characteristic of IN2505, which is optimized for steel and cast iron milling at medium-to-high cutting speeds with good wear resistance and thermal stability. The insert features a central mounting hole and a positive chipbreaker geometry with concave side walls visible in the macro photo, promoting chip evacuation and reduced cutting forces in face milling applications. Product Specifications Brand Ingersoll MPN DPIM434R002 IN2505 CVD Carbide Insert Material Carbide Insert Type Milling Insert Part Number (MPN) DPIM434R002 EDP Number 2939530 Grade IN2505 Coating CVD multilayer (TiCN/Al2O3/TiN) Insert Shape Diamond (parallelogram), positive milling Corner Radius 0.02 in (R002) Application Face & shoulder milling, steel & cast iron Country of Origin USA Quantity per Pack 10 Mounting Central hole (screw-on)
