Ingersoll Q0460092N7R01 1.813in 2xD Indexable Insert Drill

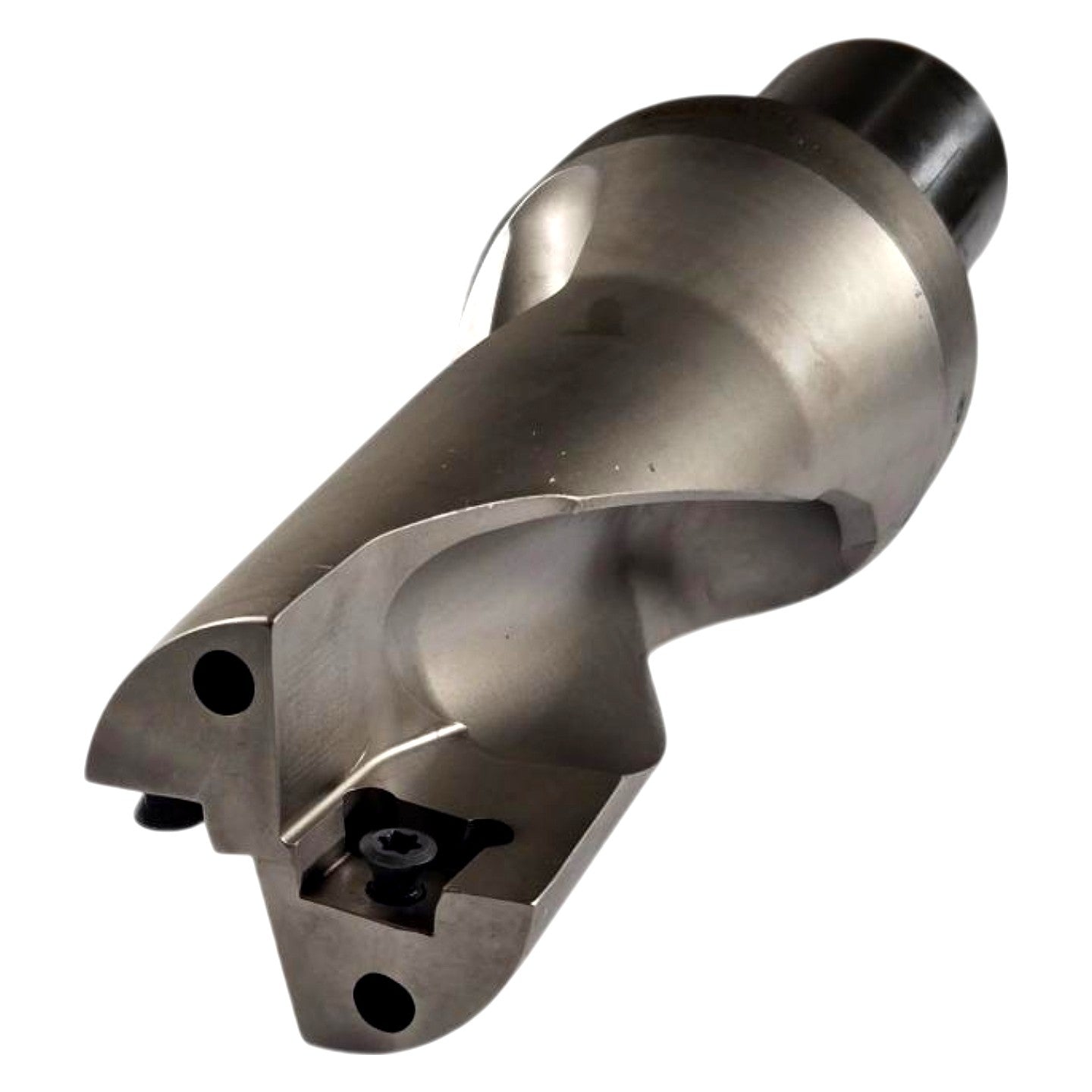

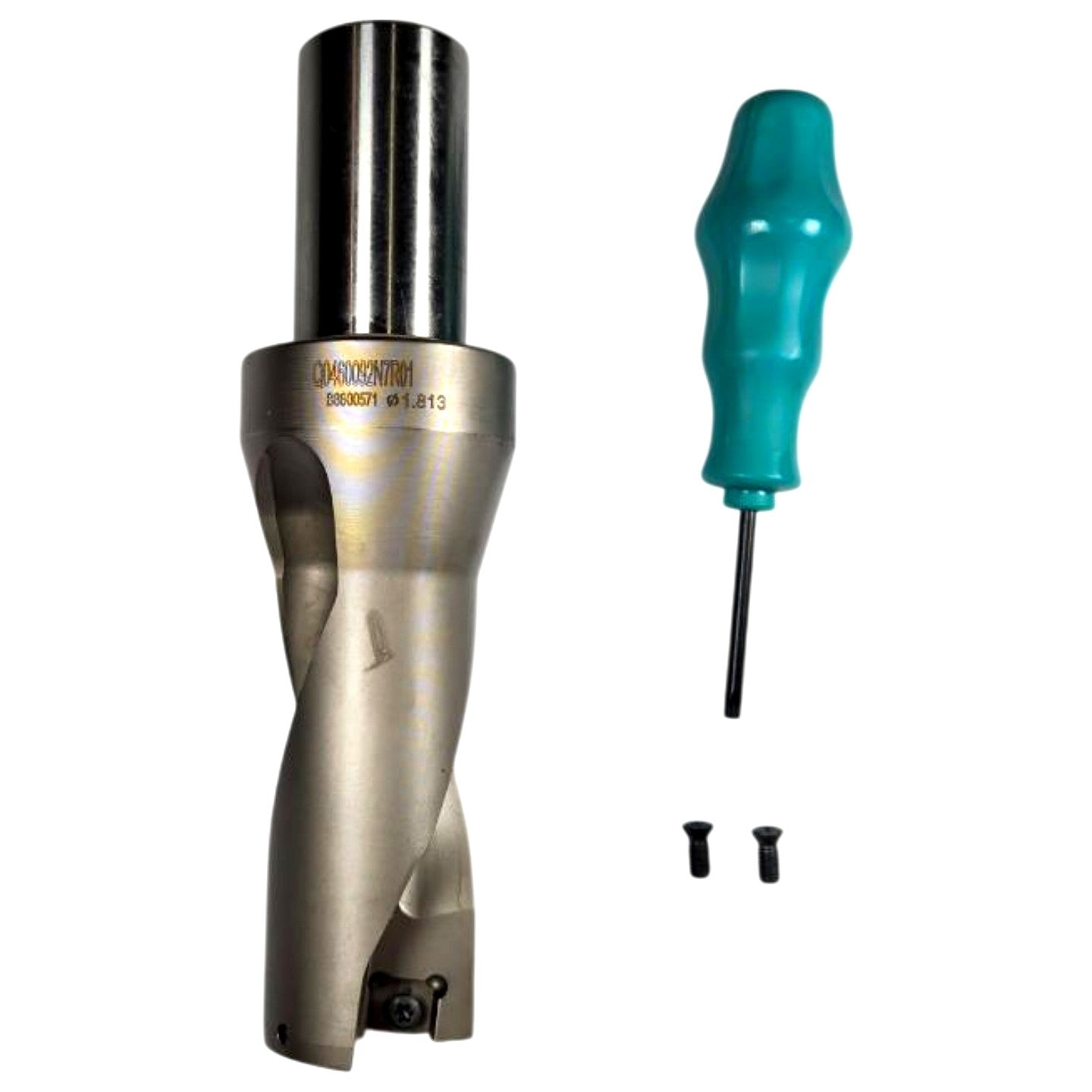

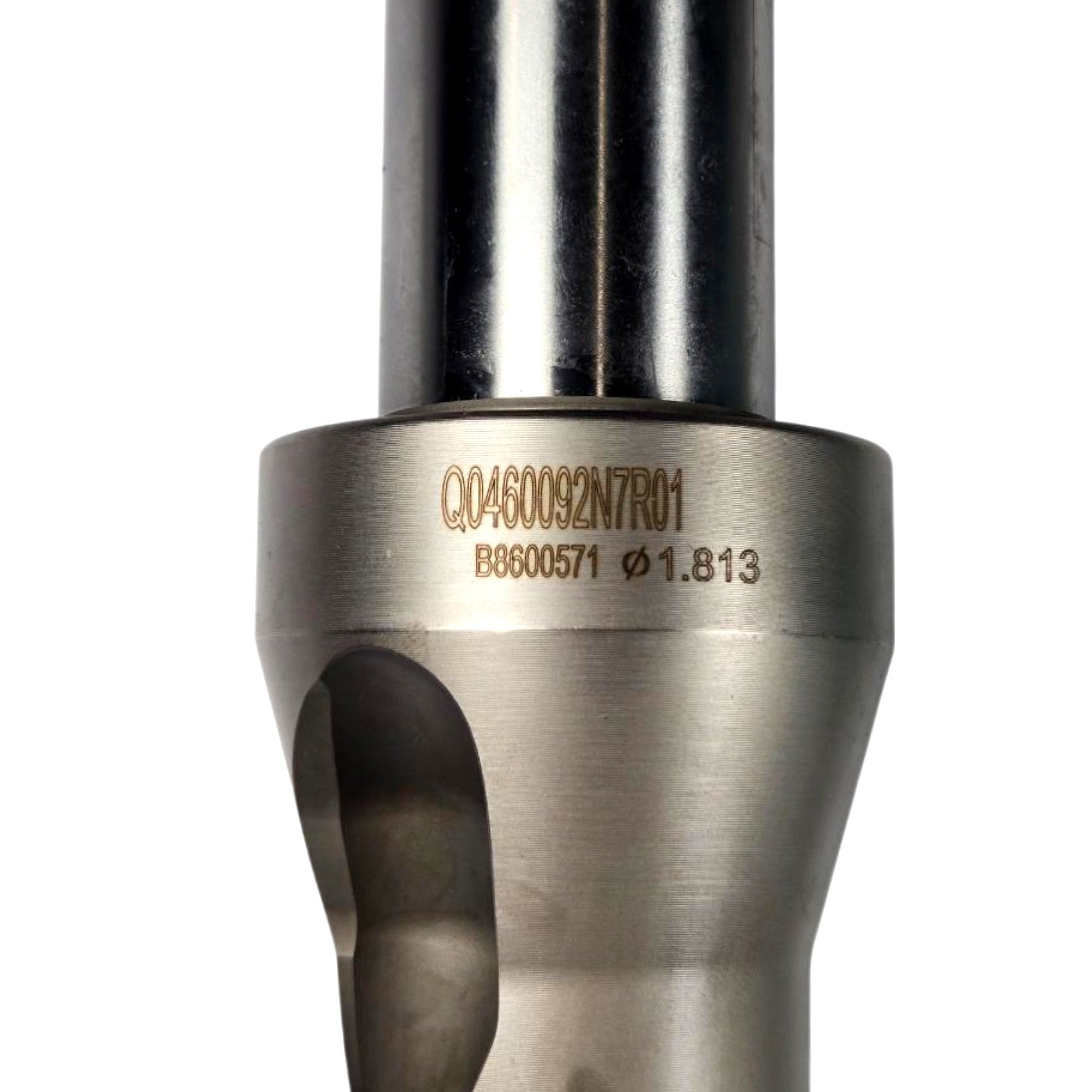

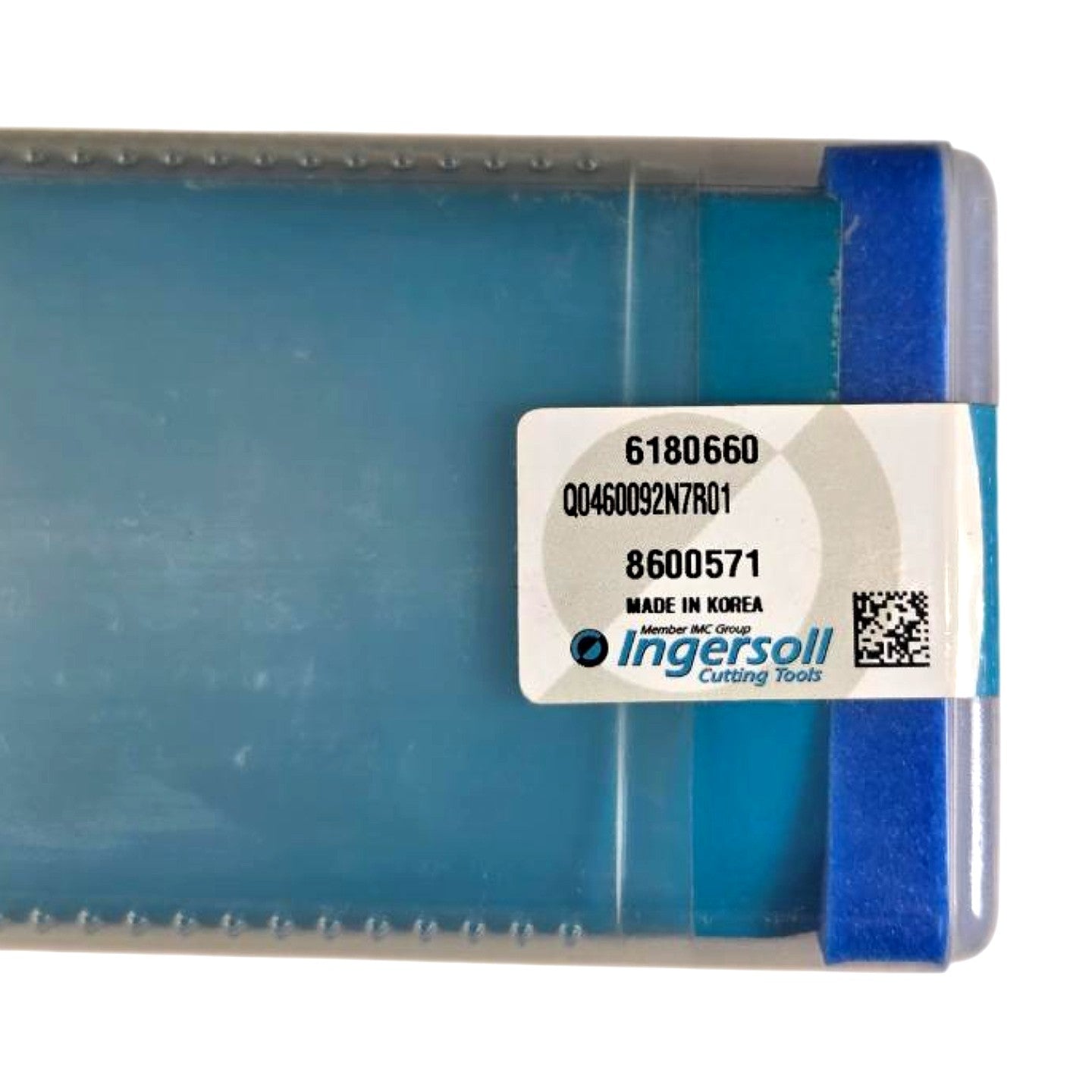

The Ingersoll Q0460092N7R01 is a new, 2xD (2× diameter) indexable insert drill from Ingersoll Cutting Tools (IMC Group), manufactured in Korea and designed for through-coolant, high-productivity hole-making on CNC machining centers. The part number decodes as follows: Q = Q-Drill series (Ingersoll's indexable spade-style drill platform), 04 = insert pocket size code, 60 = nominal diameter in tenths of millimeters (46.0 mm ≈ 1.813 in, confirmed by the engraved "Ø1.813" on the body and the label), 092 = flute length/depth-of-cut code indicating 2xD cutting depth, N7 = right-hand cut with 7° insert seating geometry, R = right-hand helix/coolant configuration, 01 = design variant. The drill body features two indexable insert pockets at the tip — one inner (center) and one outer — accepting Ingersoll Q-series trigon or round-style carbide inserts, secured by Torx-head screws; the body is made from alloy steel with precision-ground helical flutes and through-coolant holes visible at the tip. Included in the kit are the drill body, two spare insert-clamping screws, and a teal-handled Torx insert wrench. This tool is sized for a straight shank (visible in photos) and is suited for applications in steel, cast iron, stainless steel, and aluminum in production drilling environments.

Product Specifications
