Ingersoll Q0635191N8R01 Indexable Insert Drill Body 3.5xD Straight Shank
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

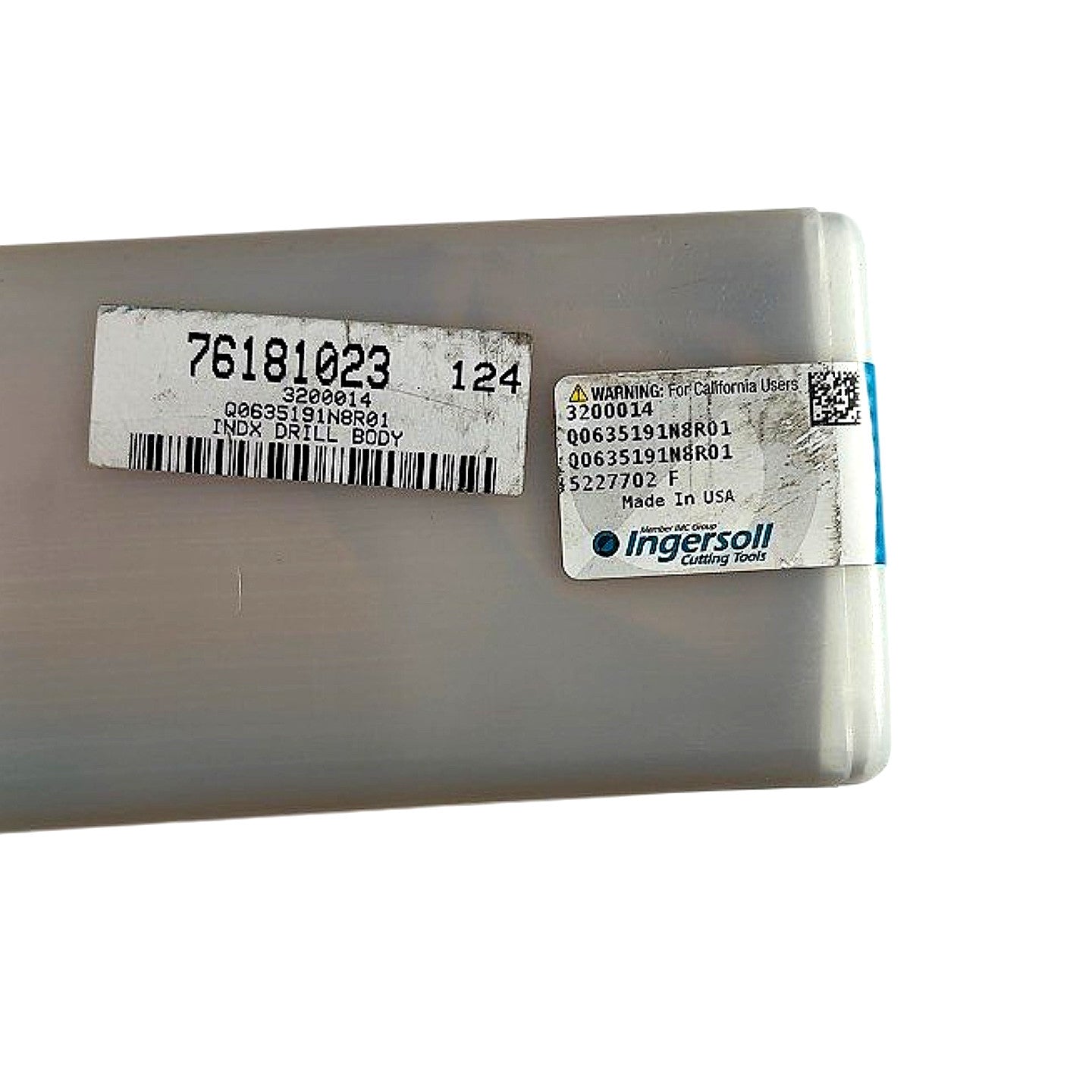

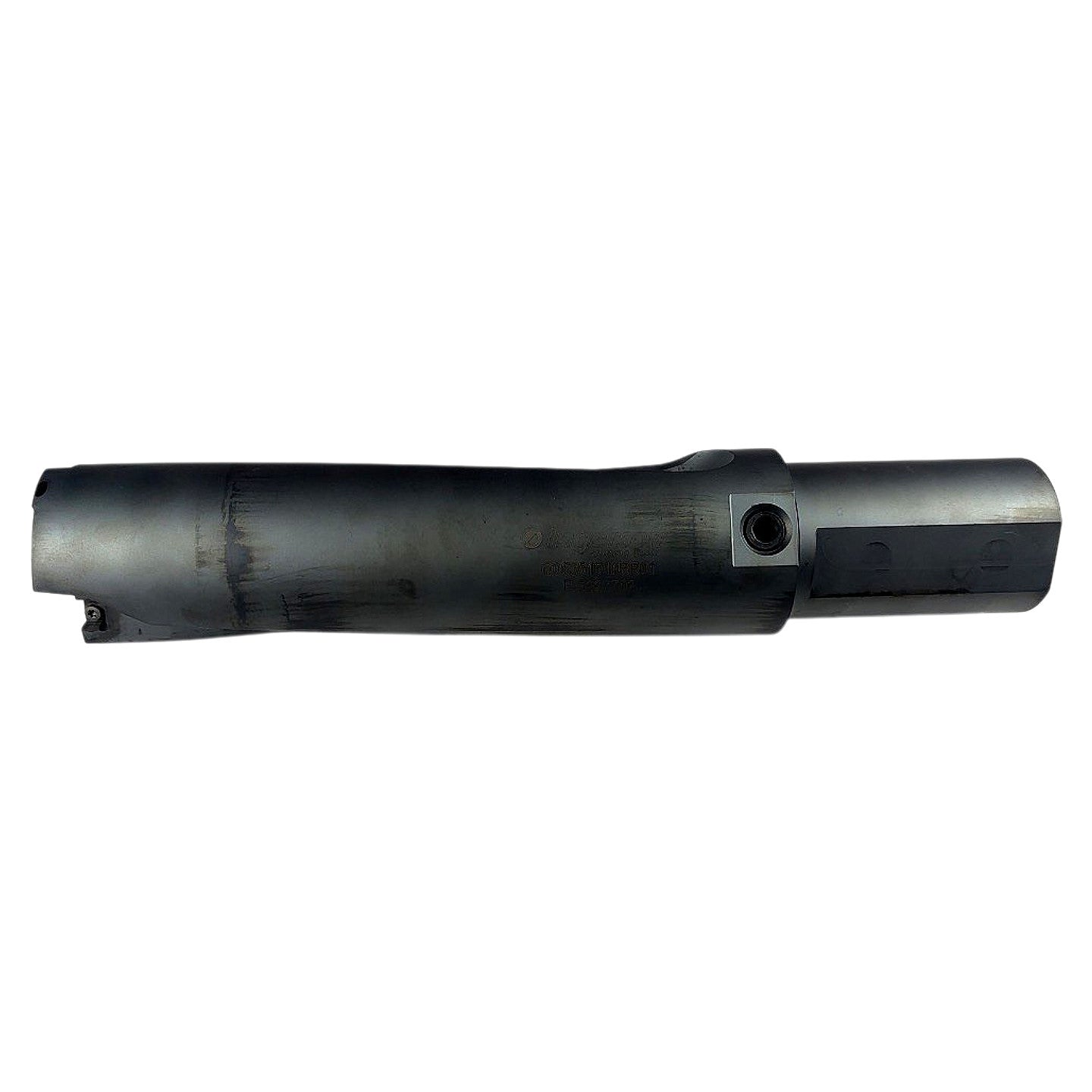

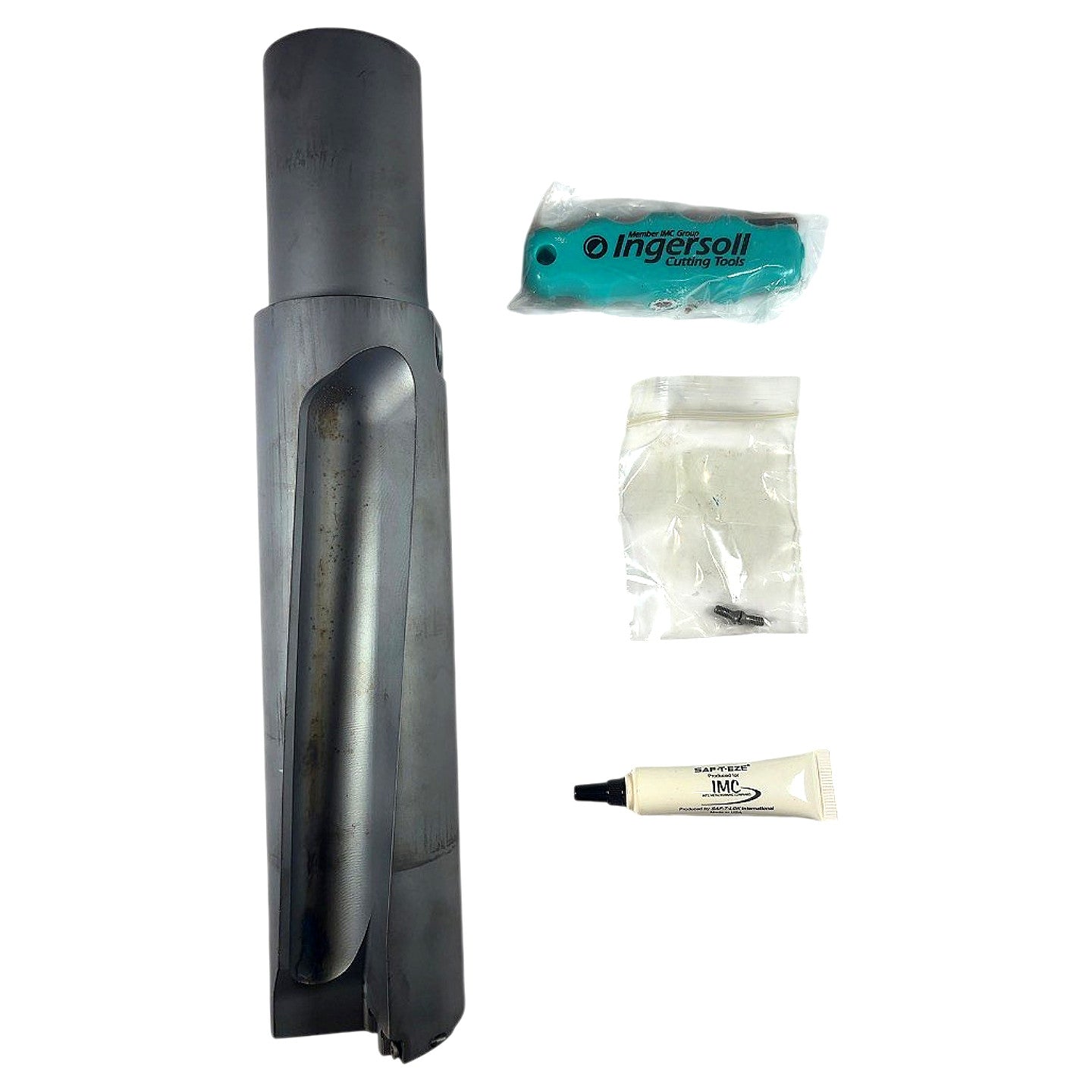

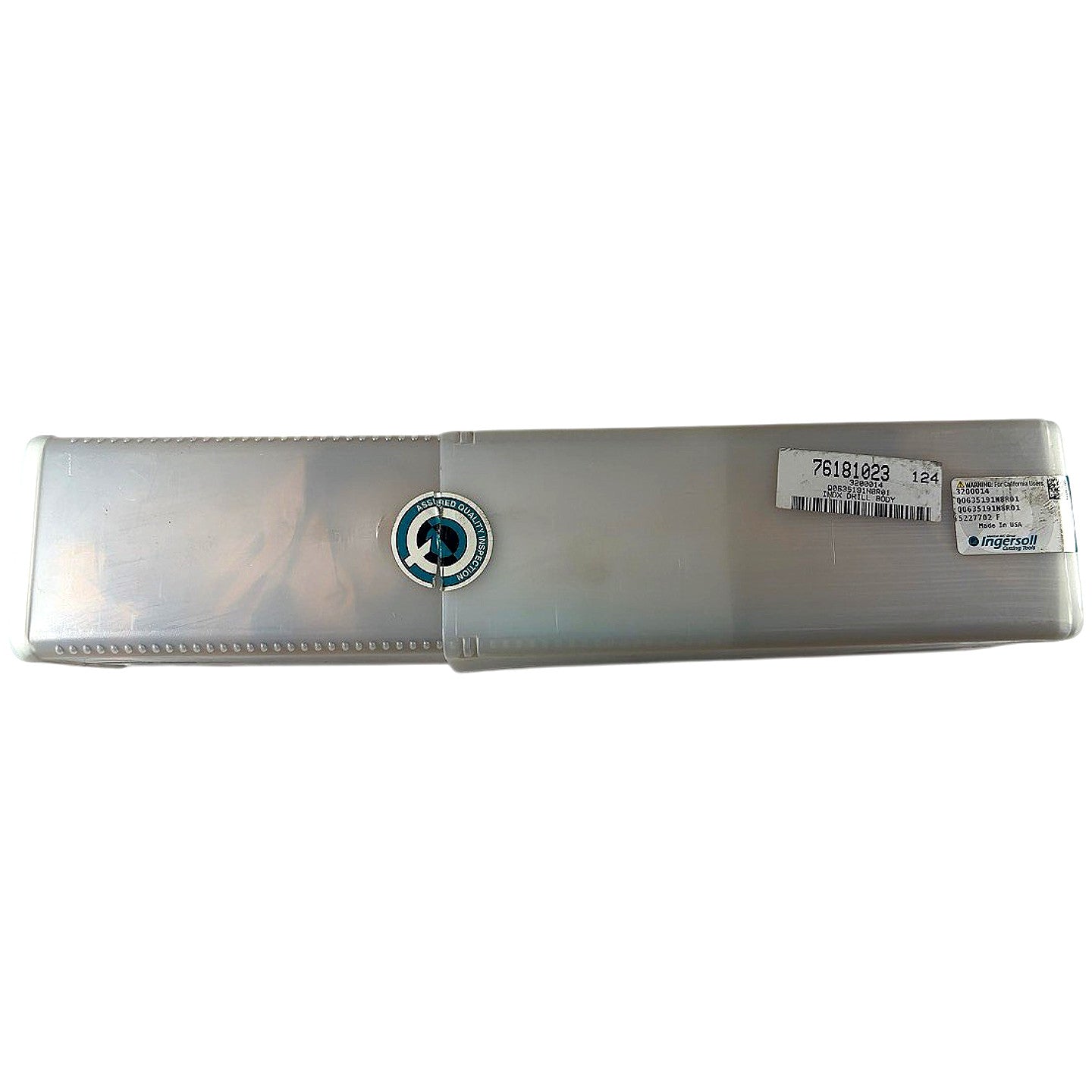

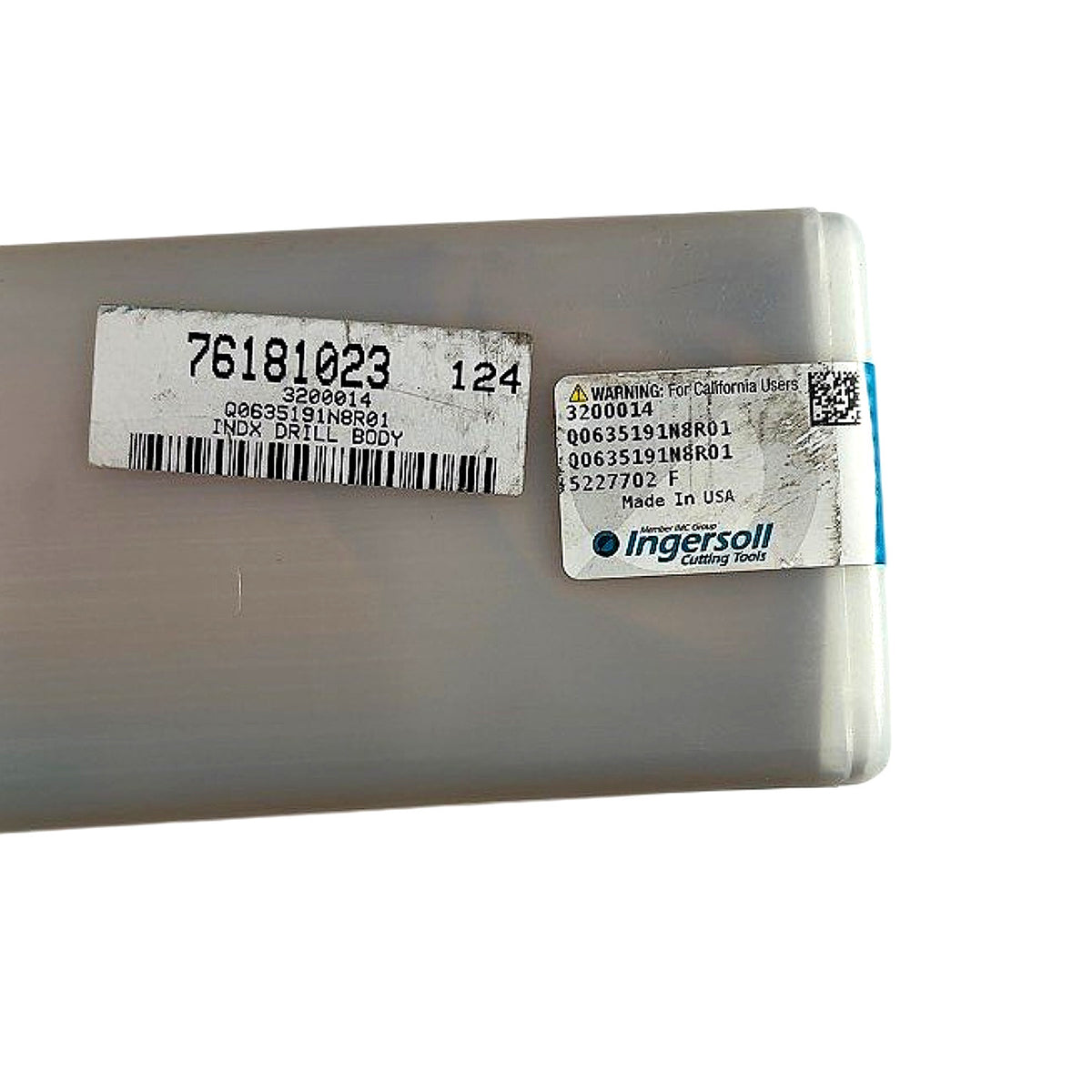

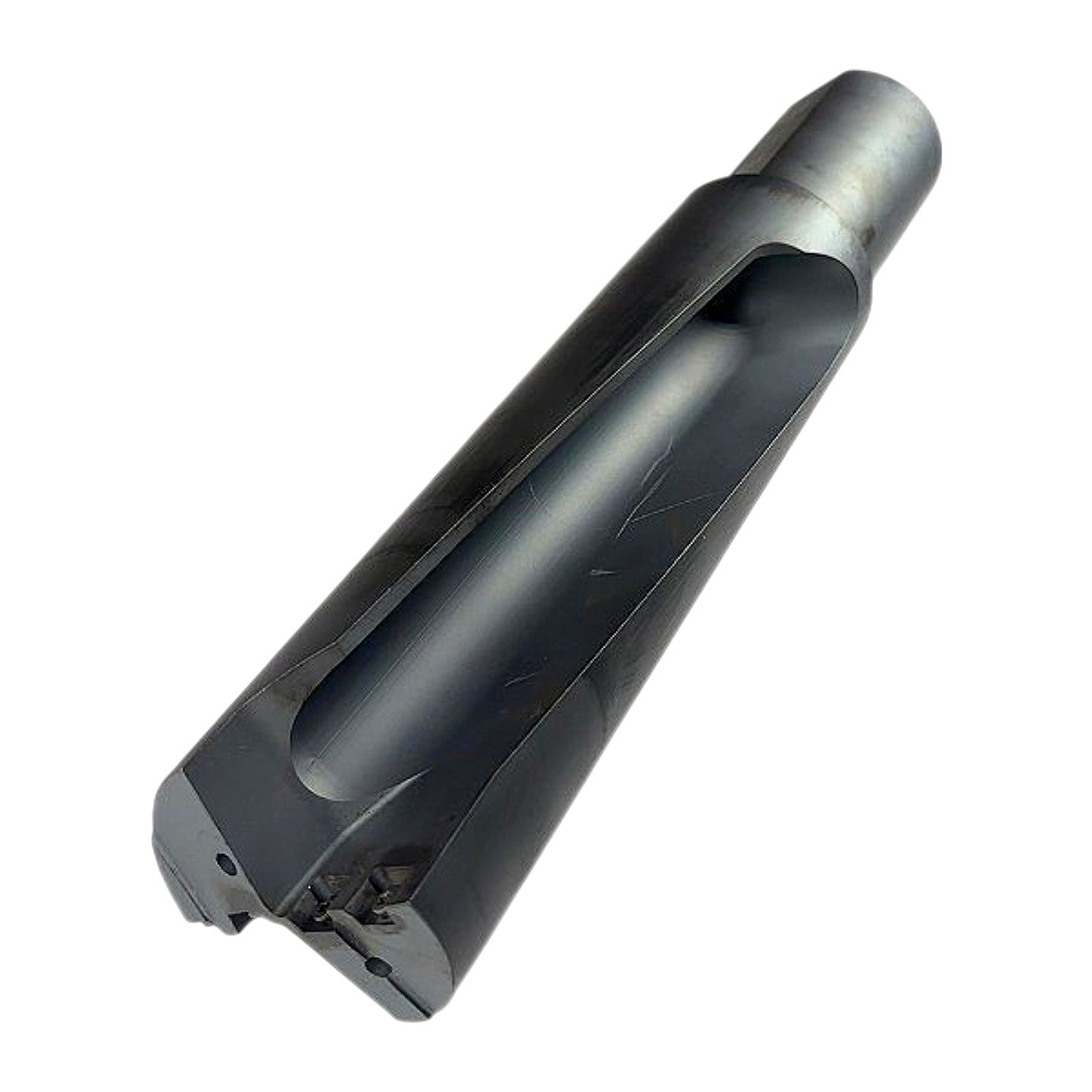

This is a new Ingersoll Cutting Tools Q0635191N8R01 indexable insert drill body (labeled "INDX DRILL BODY" on the factory label), part of Ingersoll's GEN2 or equivalent replaceable-insert drill platform, manufactured in the USA as a member of the IMC Group. The MPN decodes as follows: Q = indexable drill body series; 0635 = nominal diameter of approximately 63.5 mm (2.500 in); 19 = flute/body length designator indicating approximately 3xD depth-of-cut capability; 1N = straight (cylindrical) shank; 8R01 = right-hand cut, insert pocket revision 01. The body features two insert pockets — one inner (center) and one outer (periphery) — designed for standard Ingersoll replaceable carbide inserts specific to this drill series, with through-coolant capability visible at the tip. Typical applications include large-diameter holemaking in steel, cast iron, and stainless on machining centers and CNC lathes with sufficient spindle power; the body ships new in the original Ingersoll clamshell case with clamp screws and SAP-T-EZE assembly lubricant included.
Product Specifications
| Brand | Ingersoll Cutting Tools |
| MPN | Q0635191N8R01 |
| Product Line | Indexable Insert Drill Body (INDX DRILL BODY) |
| Nominal Drill Diameter | 63.5 mm (2.500 in) |
| Shank Type | Straight (Cylindrical) Shank |
| Cut Direction | Right-Hand (R) |
| Number of Insert Pockets | 2 (1 inner, 1 outer) |
| Coolant | Through-Coolant |
| Country of Origin | USA |
| Condition | New |
| Included Accessories | Clamp screws, SAP-T-EZE lubricant |
