Ingersoll Rand 22235105 PEF720NI000 EMC Filter PC Board Nirvana Drive

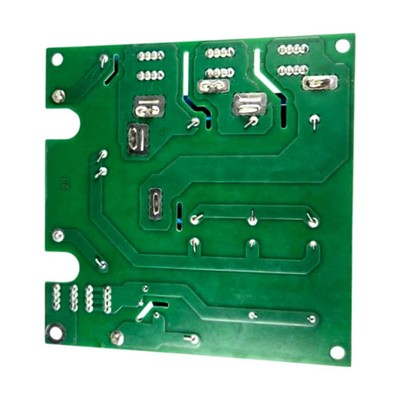

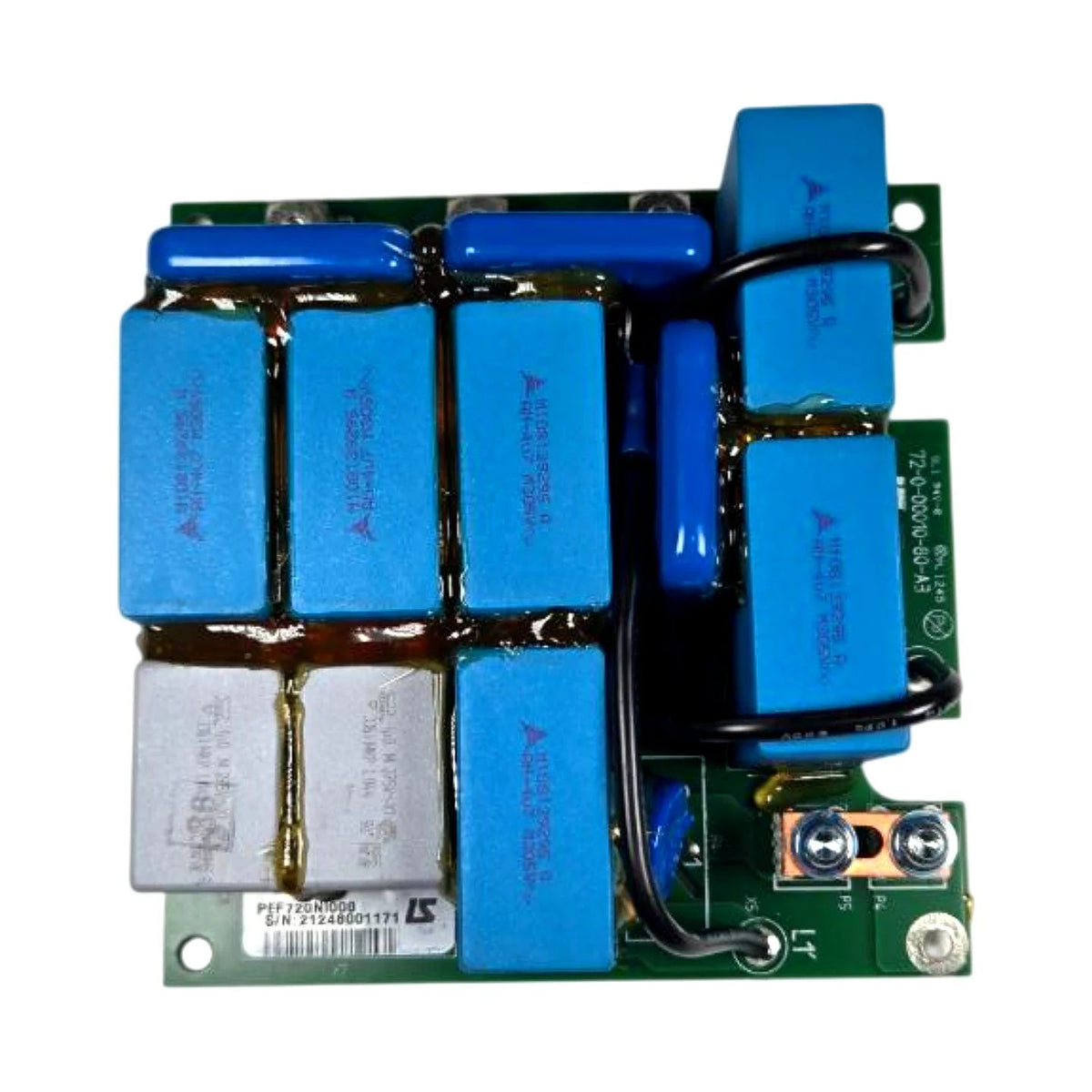

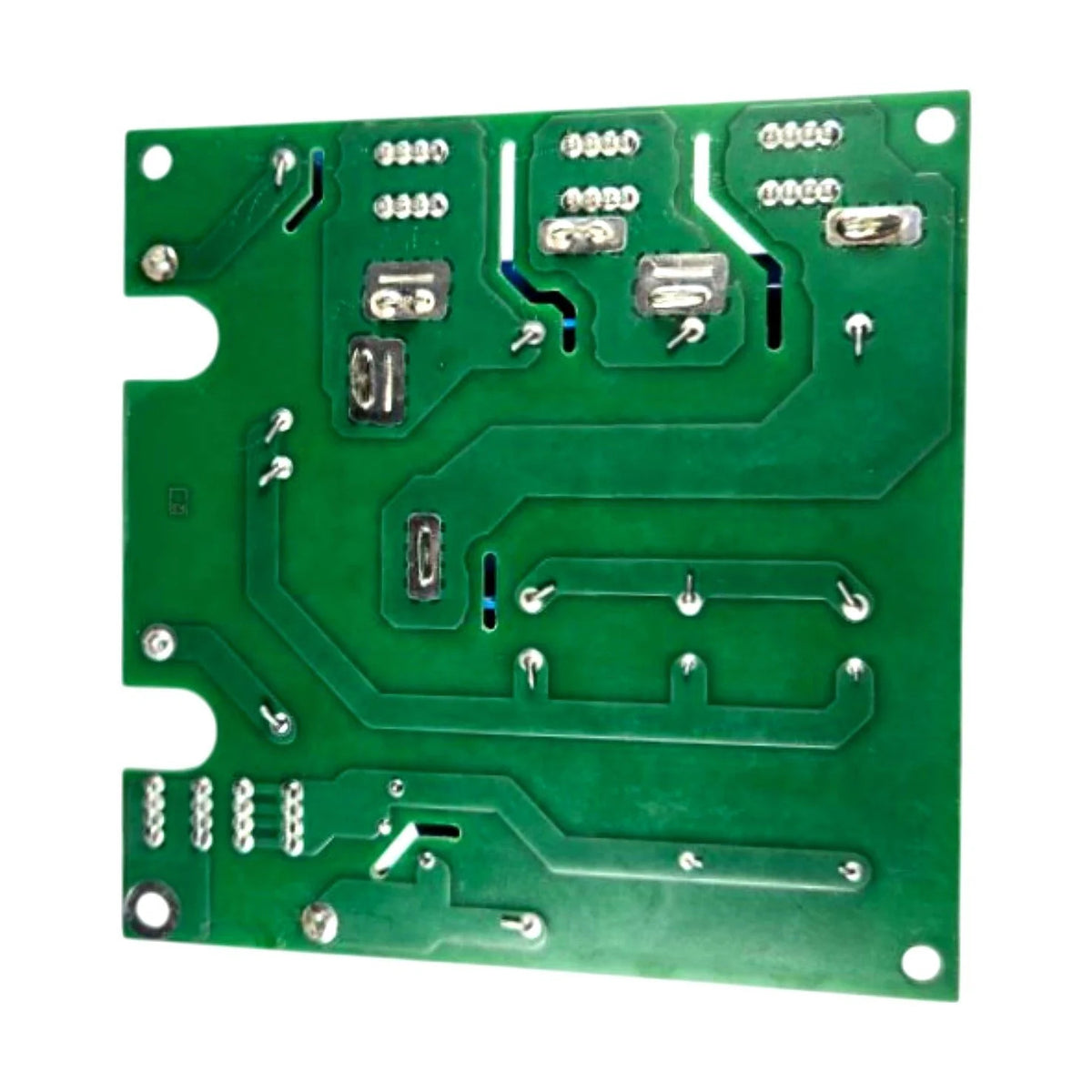

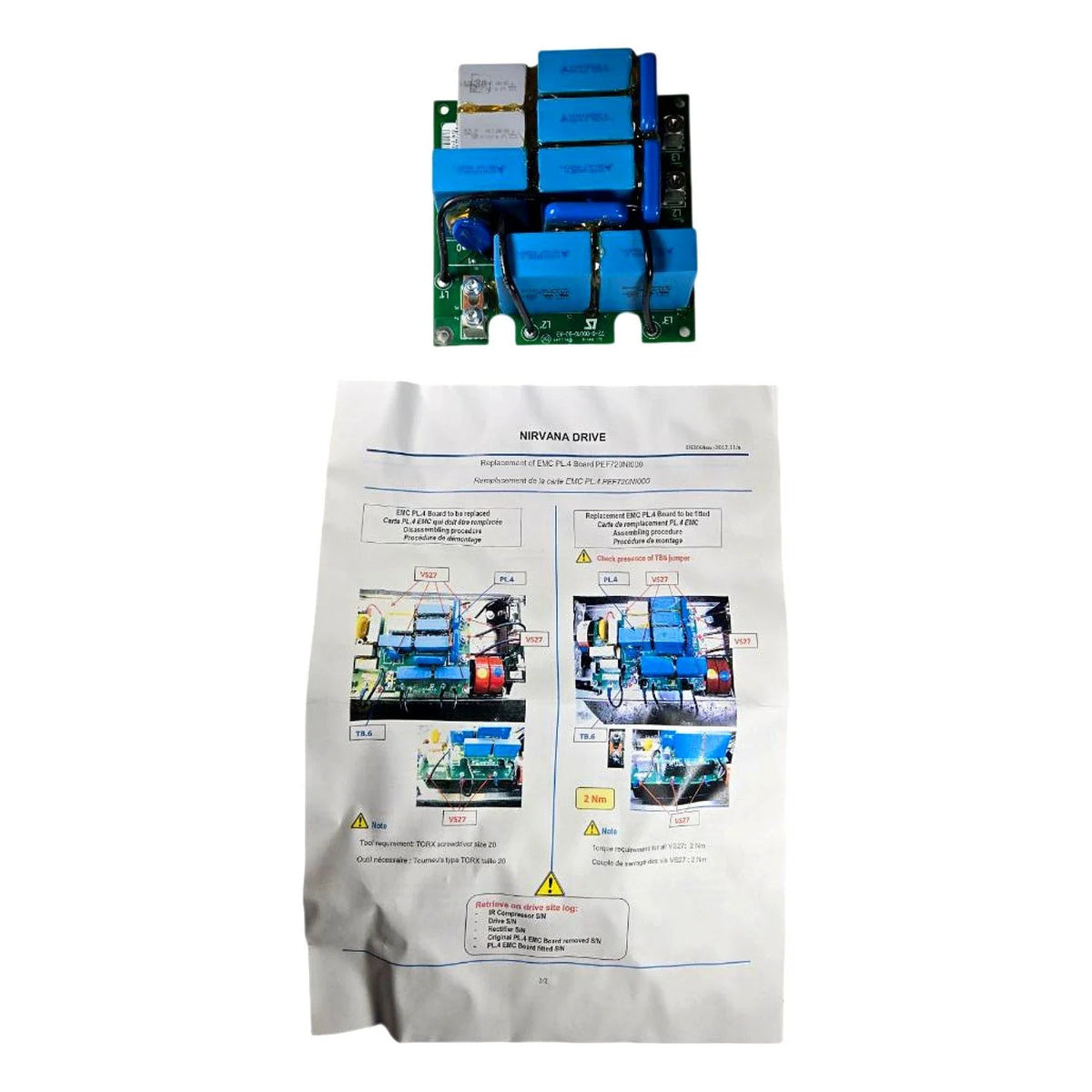

The Ingersoll Rand 22235105 is a new OEM EMC (Electromagnetic Compatibility) filter PC board, board part number PEF720NI000, assembly reference 72-0-00010-60-A3, designed as a direct replacement component for Ingersoll Rand Nirvana variable-speed drive air compressors. The board is populated with multiple large blue film capacitors (X and Y class) and inductors forming a multi-stage EMC/RFI line filter network, suppressing conducted emissions on the AC power input of the variable-frequency drive to meet CE/EMC regulatory requirements. Ingersoll Rand OEM part number 22235105 corresponds directly to the board label PEF720NI000, and the box label confirms quantity of one board per kit; the included instruction sheet (document REF506xx-2013.11x) details the replacement procedure for the EMC PL.4 board position within the Nirvana drive, requiring a Torx T20 screwdriver and 2 Nm torque on connector VS27. This board is sold new-in-box and is a direct-fit, OEM-equivalent replacement for the EMC filter stage in Ingersoll Rand Nirvana series variable-speed rotary screw air compressors.

Product Specifications
