Ingersoll Rand 54410931 1/4 in NPT 110V Electronic Auto Drain Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

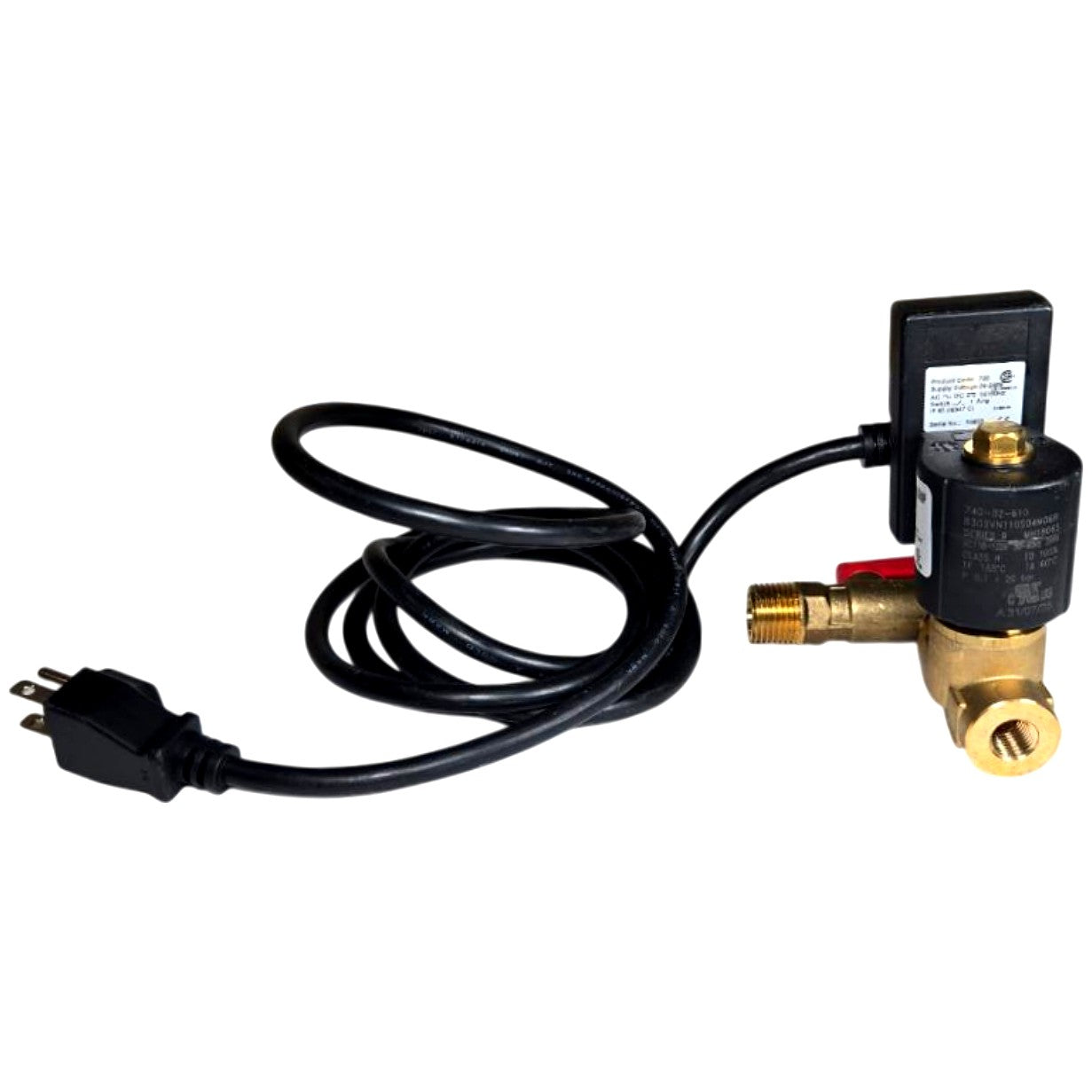

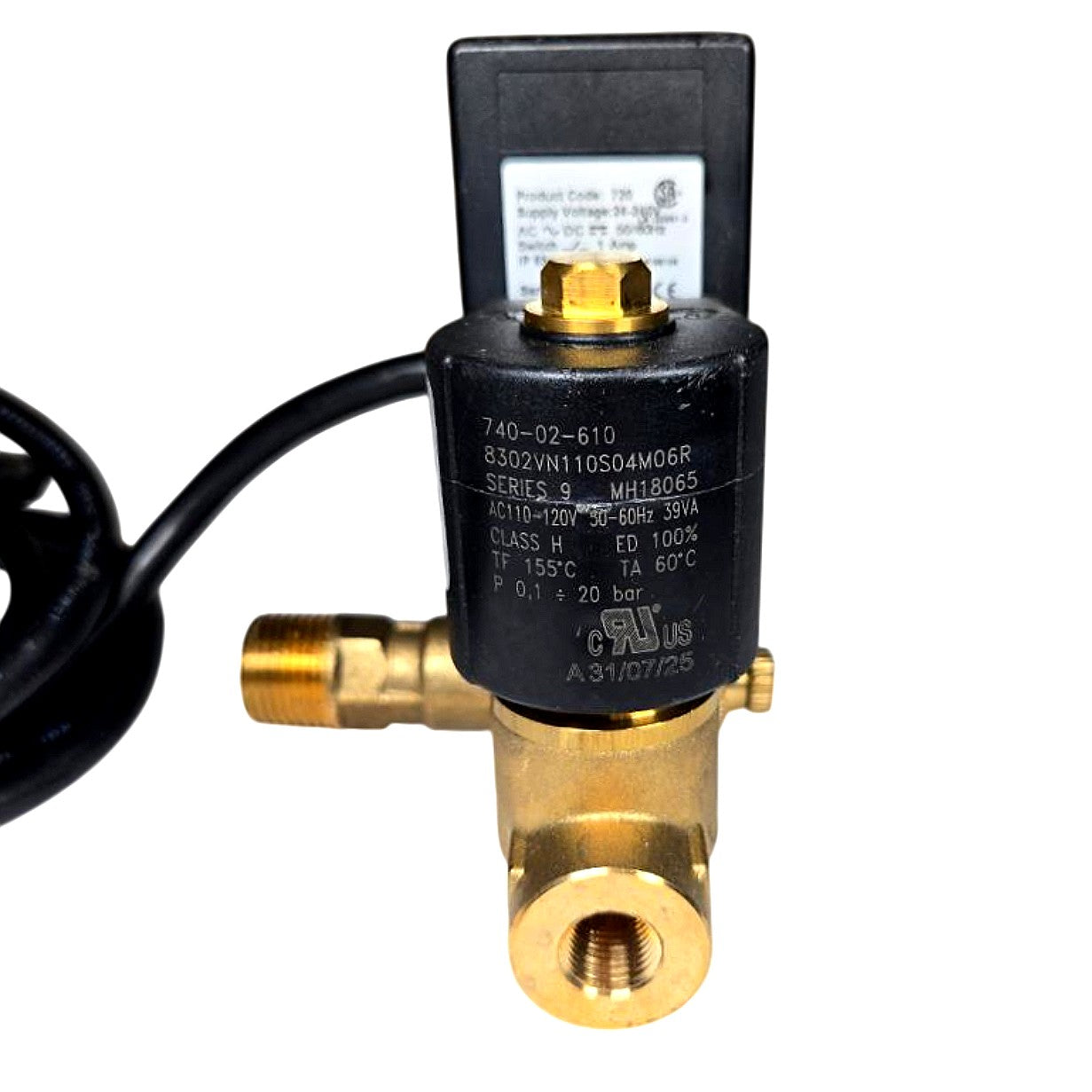

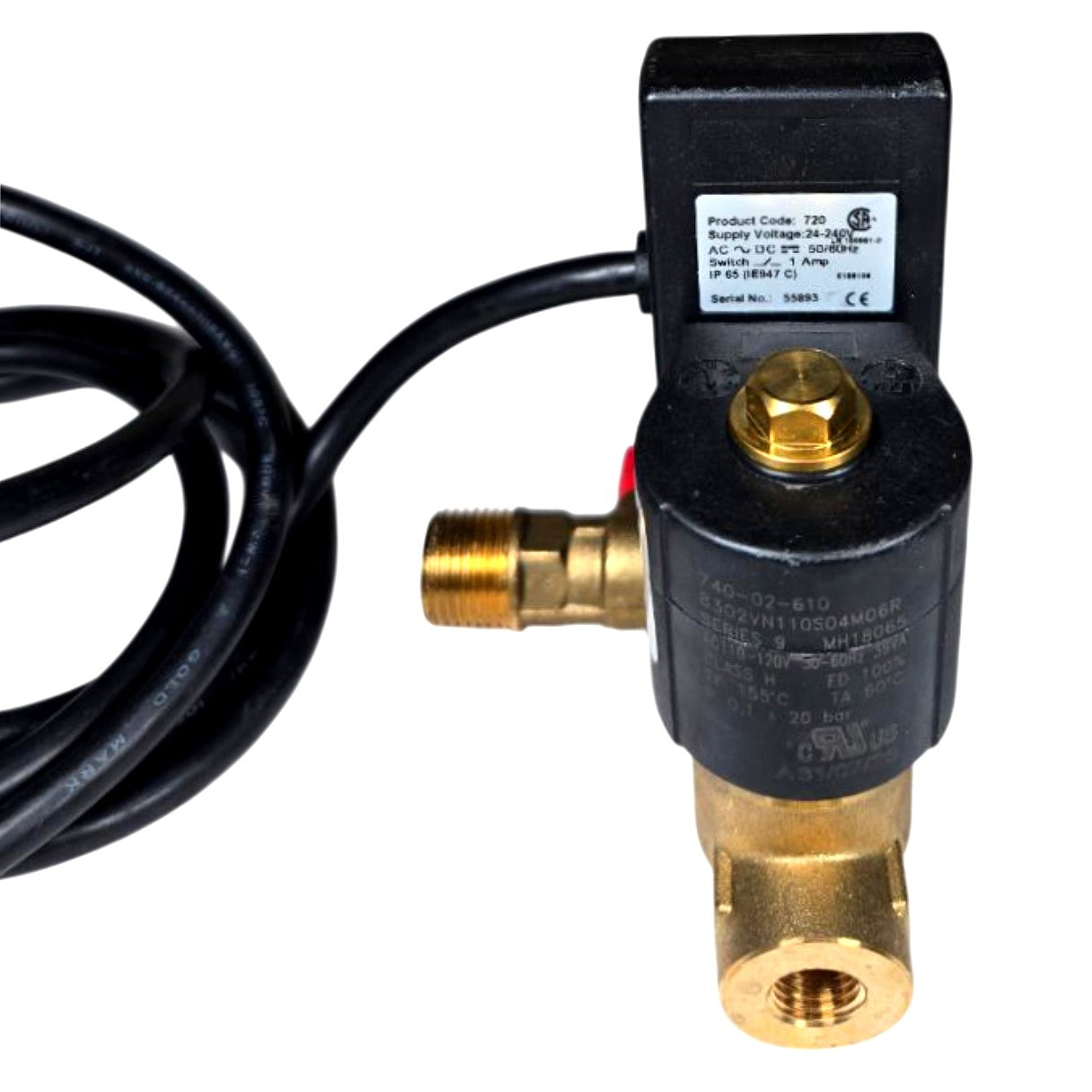

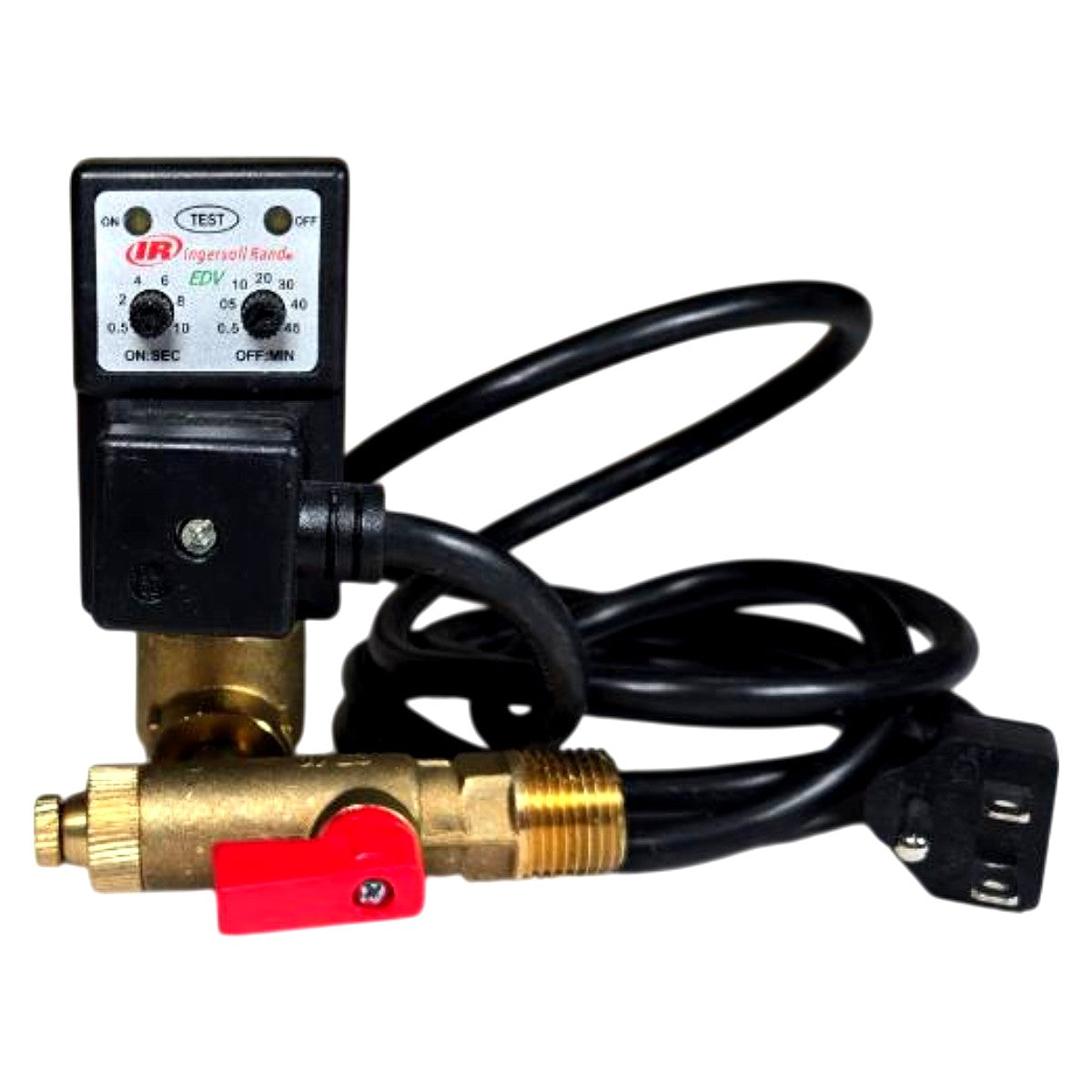

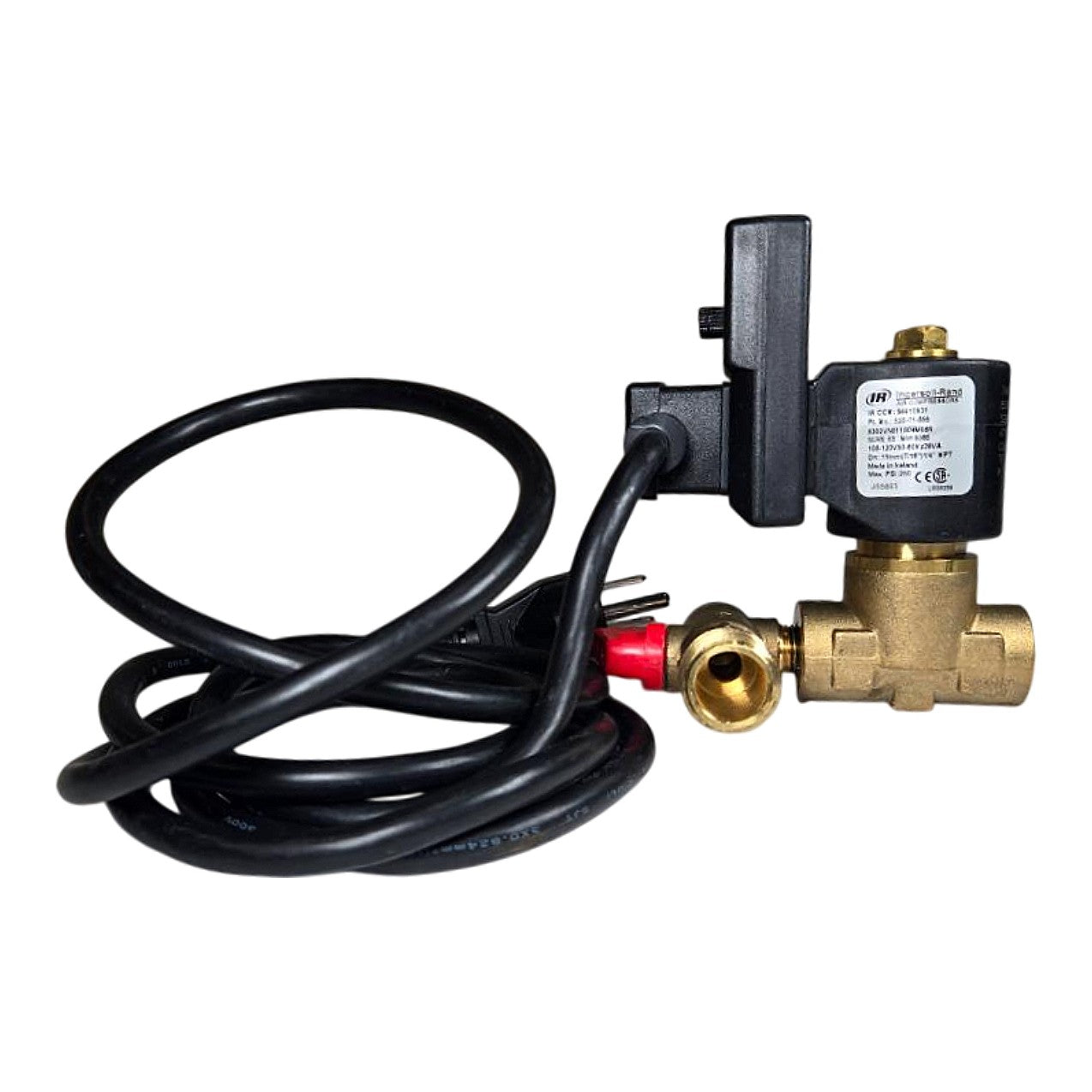

The Ingersoll Rand 54410931 is a new electronic auto drain valve (EDV) designed for automatic timed condensate discharge from compressed air receivers, filters, dryers, and separators. The solenoid coil body is stamped 8302VN110S04M06R, Series 9, MH18065, and is rated AC 110–120V, 50–60 Hz, 39VA, Class H insulation, ED 100% duty cycle with a TF of 155°C and TA of 60°C; operating pressure range is 0.1–20 bar (1.5–290 psi). The brass valve body incorporates a 1/4 in NPT main port and a side bleed/bypass port, with a manual red test lever for on-demand condensate purge without interrupting system pressure. The integrated EDV timer module (visible in photo 4) provides adjustable ON time in seconds and OFF time in minutes, with LED status indicators and a TEST pushbutton, and the unit ships with a standard 120V NEMA 5-15P power plug pre-wired. This valve is a direct OEM replacement part cross-referenced under Ingersoll Rand part number 54410931 and 520-01-055, CSA/UL listed for use on industrial air compressor systems.
Product Specifications
| Brand | Ingersoll Rand |
| Part Number | 54410931 |
| Cross-Reference Part # | 520-01-055 |
| Solenoid Model Code | 8302VN110S04M06R |
| Series | Series 9 |
| Port Size | 1/4 in NPT |
| Supply Voltage | AC 110-120V |
| Frequency | 50-60 Hz |
| Power Consumption | 39 VA |
| Duty Cycle | ED 100% |
| Insulation Class | Class H |
| Max Coil Temp (TF) | 155°C |
| Max Ambient Temp (TA) | 60°C |
| Operating Pressure Range | 0.1–20 bar (1.5–290 psi) |
| Valve Body Material | Brass |
| Timer ON Time Range | 0.5–10 sec (adjustable) |
| Timer OFF Time Range | 0.5–45 min (adjustable) |
| Power Plug | NEMA 5-15P, 120V |
| Certifications | CSA, UL, CE |
| Condition | New |
