Ingersoll Rand FA110IH 65 SCFM 250 PSI Compressed Air Inline Filter

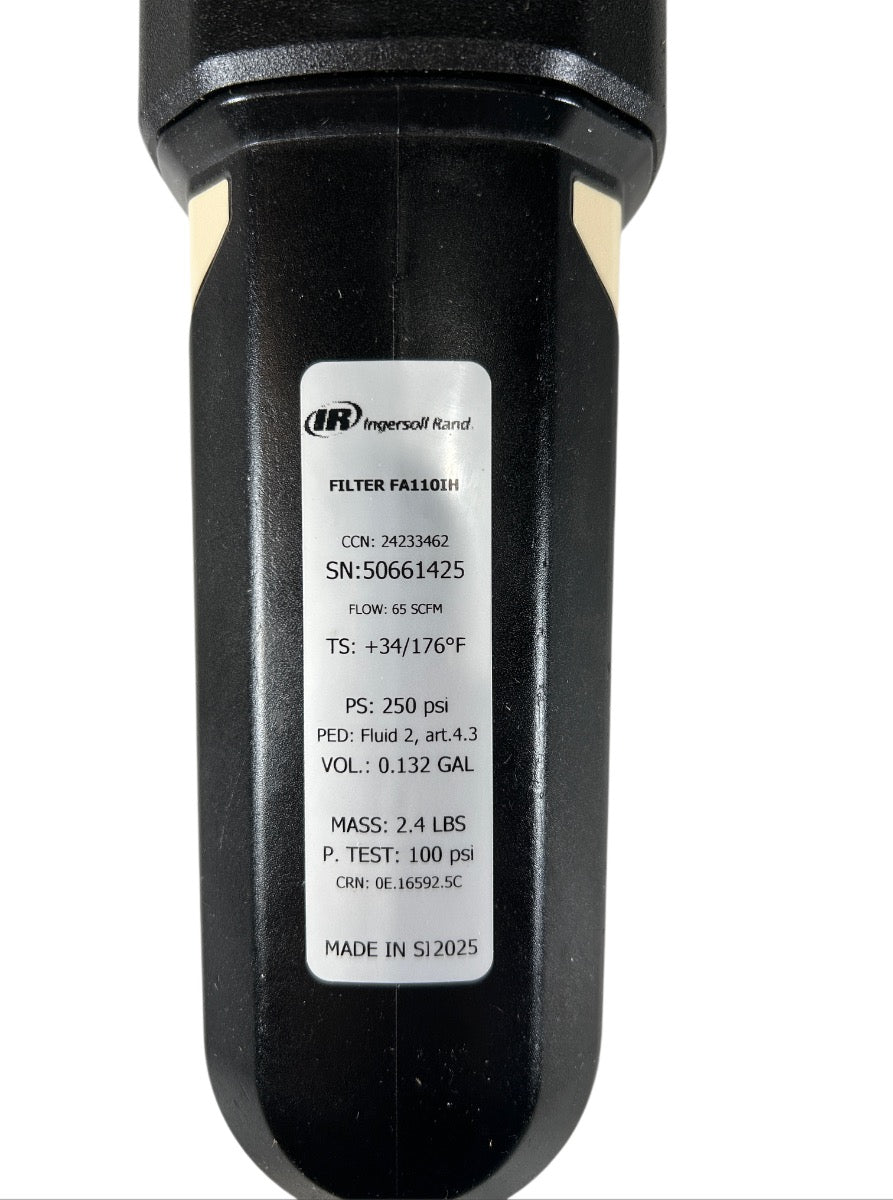

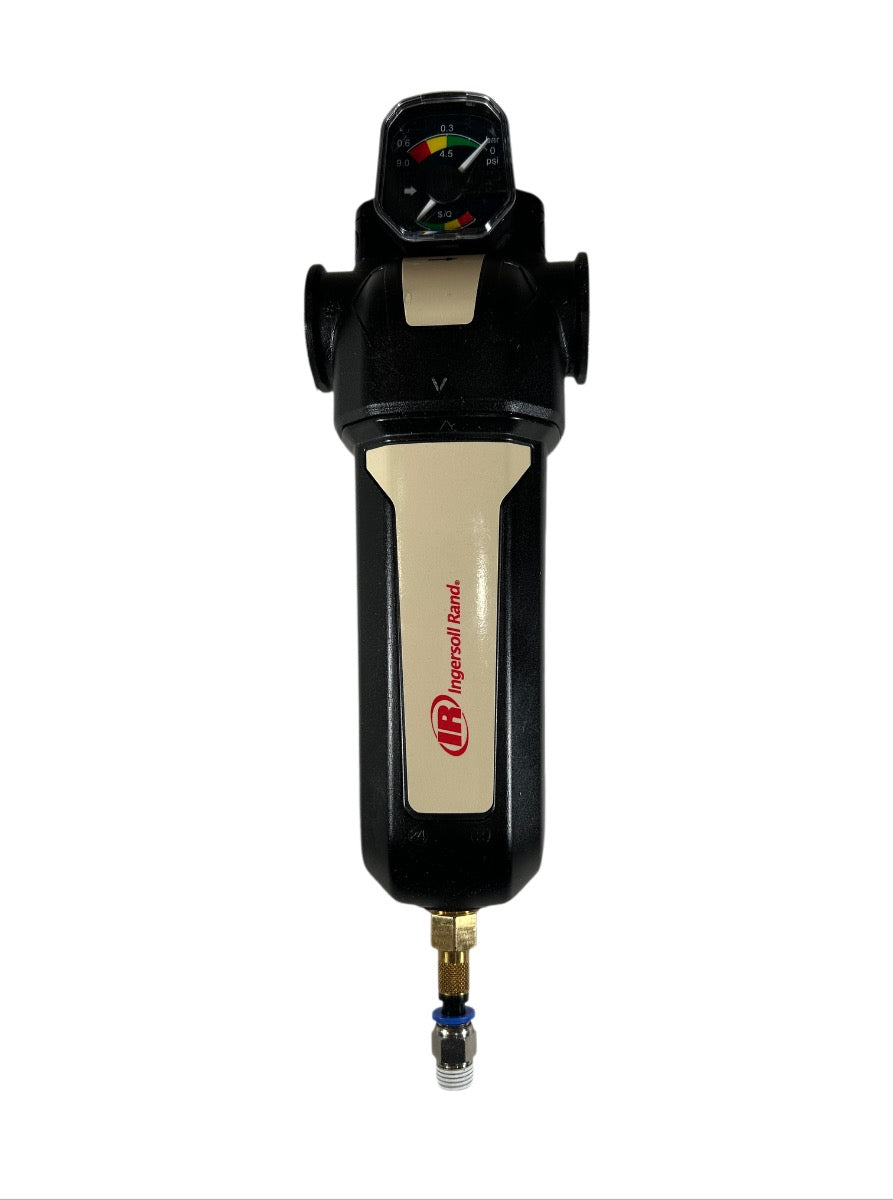

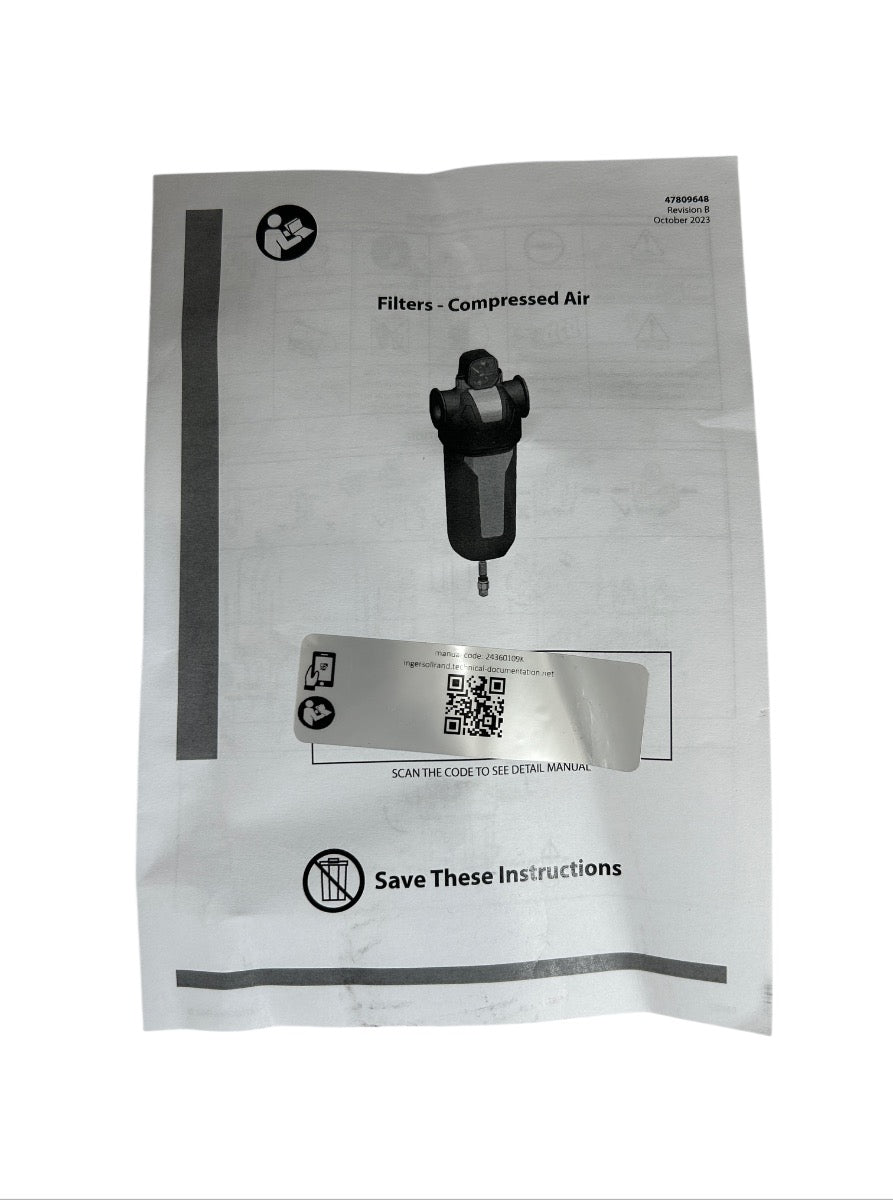

The Ingersoll Rand FA110IH is a new compressed air inline filter rated for 65 SCFM flow at up to 250 PSI maximum working pressure, with an operating temperature range of +34°F to +176°F and an internal volume of 0.132 gallons. The unit weighs 2.4 lbs and features an integrated differential pressure indicator gauge (visible on top of the head) with a color-coded dial reading in both bar and PSI, allowing visual monitoring of filter element condition and element change intervals. The FA110IH is part of Ingersoll Rand's FA-series modular compressed air filtration line, designed for installation in compressed air treatment systems downstream of compressors to remove contaminants; the 'IH' suffix denotes the inclusion of the differential pressure indicator with the housing. The unit carries CCN 24233462, CRN 0E.16592.5C for Canadian pressure vessel registration, and complies with PED Fluid 2 Article 4.3; it is fitted with an automatic drain at the bowl bottom and ships with the original Ingersoll Rand instruction sheet (document 47809648, Revision B, October 2023).

Product Specifications
