Interapid 74.111370 0-0.060in 0.0005in Horizontal Dial Test Indicator
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

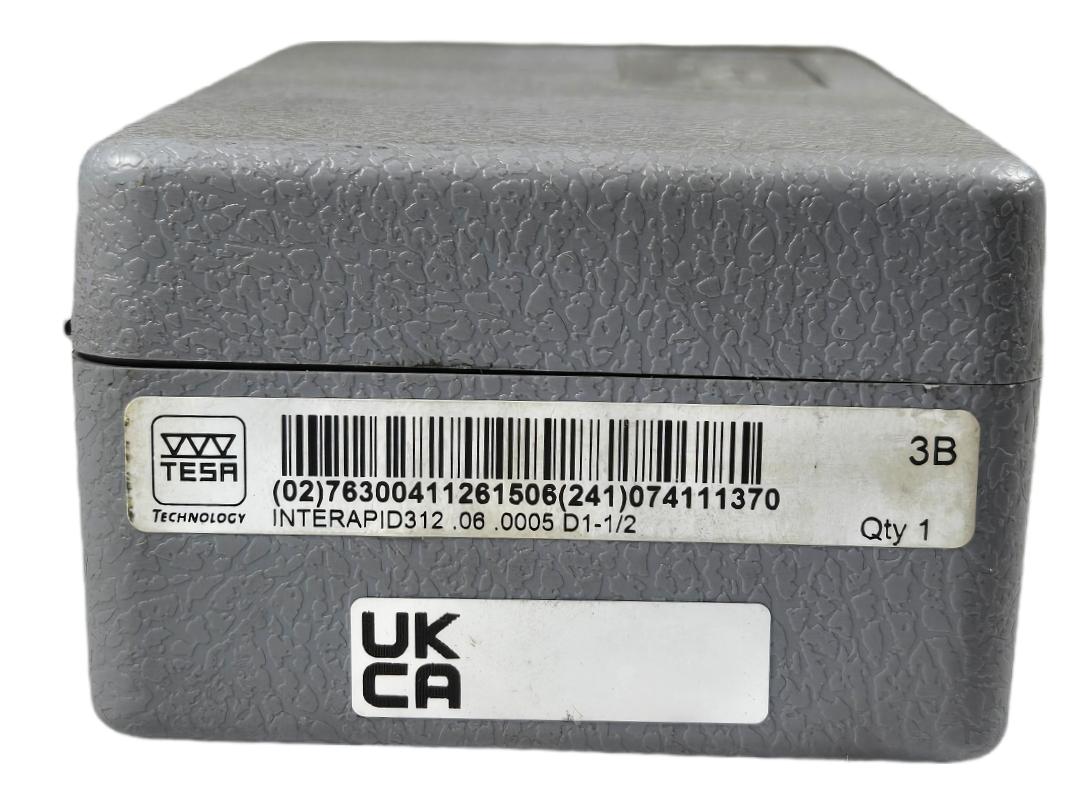

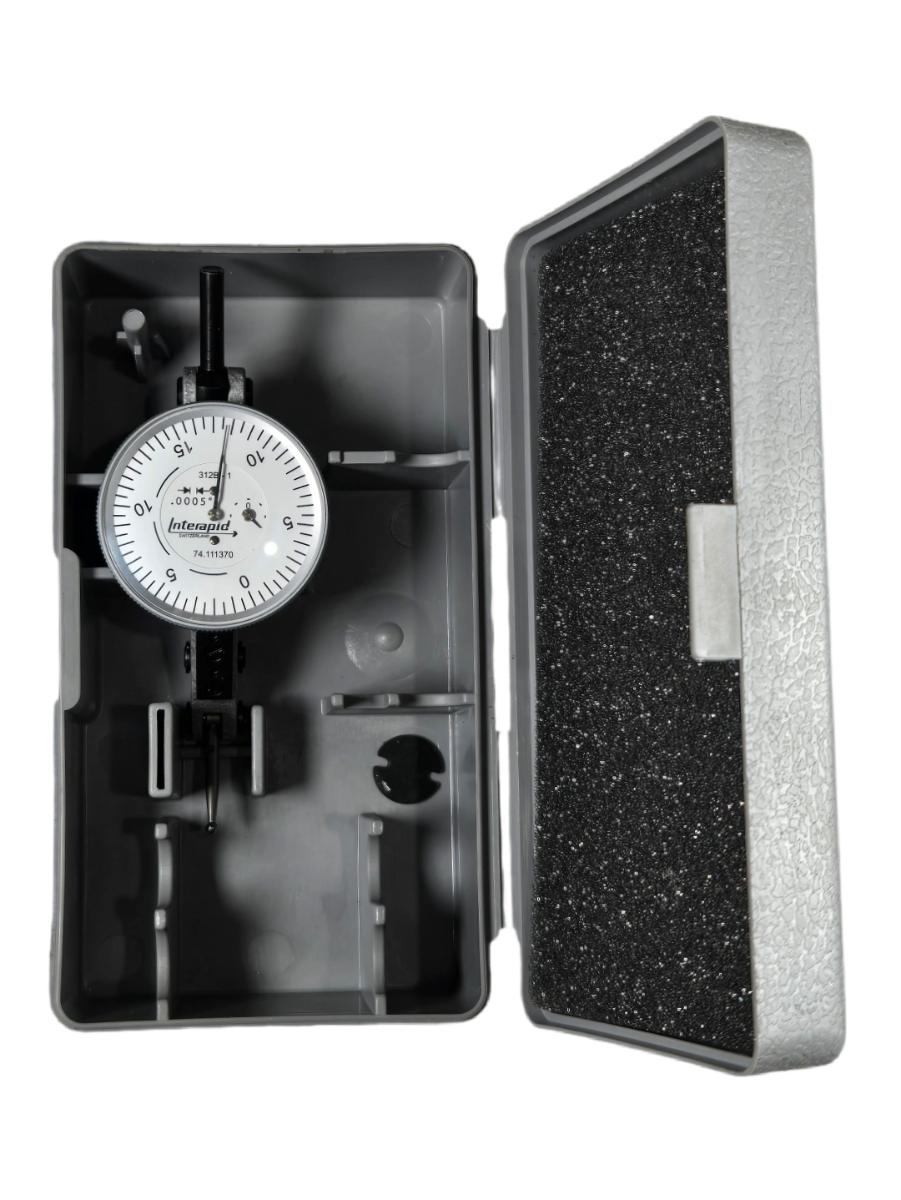

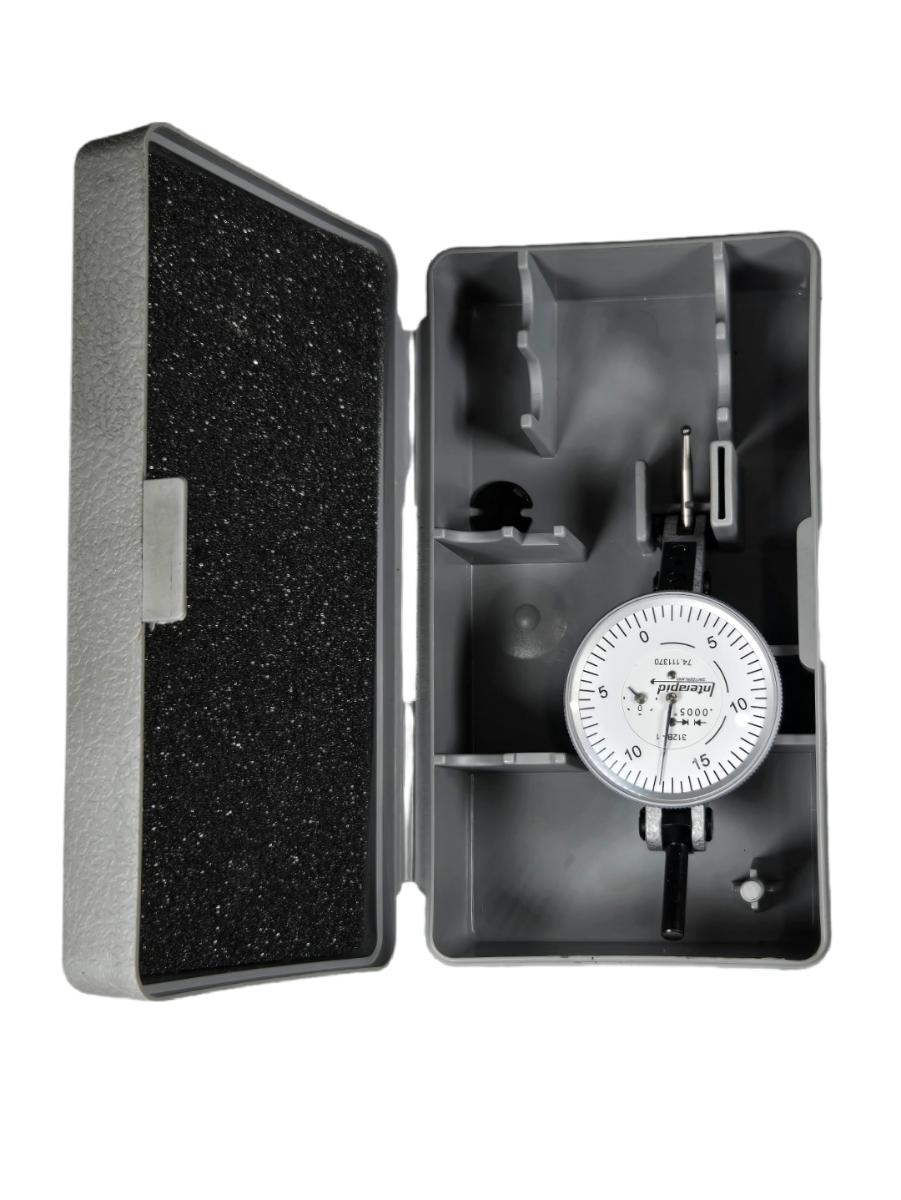

The Interapid 74.111370 is a new, Swiss-made horizontal dial test indicator manufactured by TESA Technology under the Interapid brand, model 312B-1, with a measuring range of 0–0.060 in and a graduation of 0.0005 in per division. The indicator features a balanced 0-15-0 dial face with a 1-1/2 in (38 mm) dial diameter, a dovetail-mount horizontal contact point arm, and a vertical stem for standard indicator holder clamping. Designed for high-precision runout, alignment, and surface measurement tasks on surface plates, machine tool setups, and inspection fixtures, this indicator is traceable to Swiss metrology standards and arrives in the original TESA plastic carrying case with spare contact points. The part number suffix 74.111370 corresponds to TESA's catalog identifier for the inch-reading 312B-1 horizontal model with 0.0005 in graduation and 1-1/2 in dial, as confirmed by the box label reading 'INTERAPID312 .06 .0005 D1-1/2'.
Product Specifications
| Brand | Interapid (TESA Technology) |
| Model | 312B-1 |
| MPN | 74.111370 |
| Measuring Range | 0 to 0.060 in |
| Graduation | 0.0005 in |
| Dial Diameter | 1-1/2 in (38 mm) |
| Dial Reading | Balanced, 0-15-0 |
| Indicator Type | Horizontal (lever-type) dial test indicator |
| Stem Orientation | Vertical stem |
| Contact Point Mount | Dovetail arm, horizontal |
| Country of Origin | Switzerland |
| Units | Inch |
| Condition | New |
| Includes | Indicator, spare contact points, plastic carrying case |
