Interstate 63324156 ER32 3/32–3/4in 18-Piece ER Collet Set
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

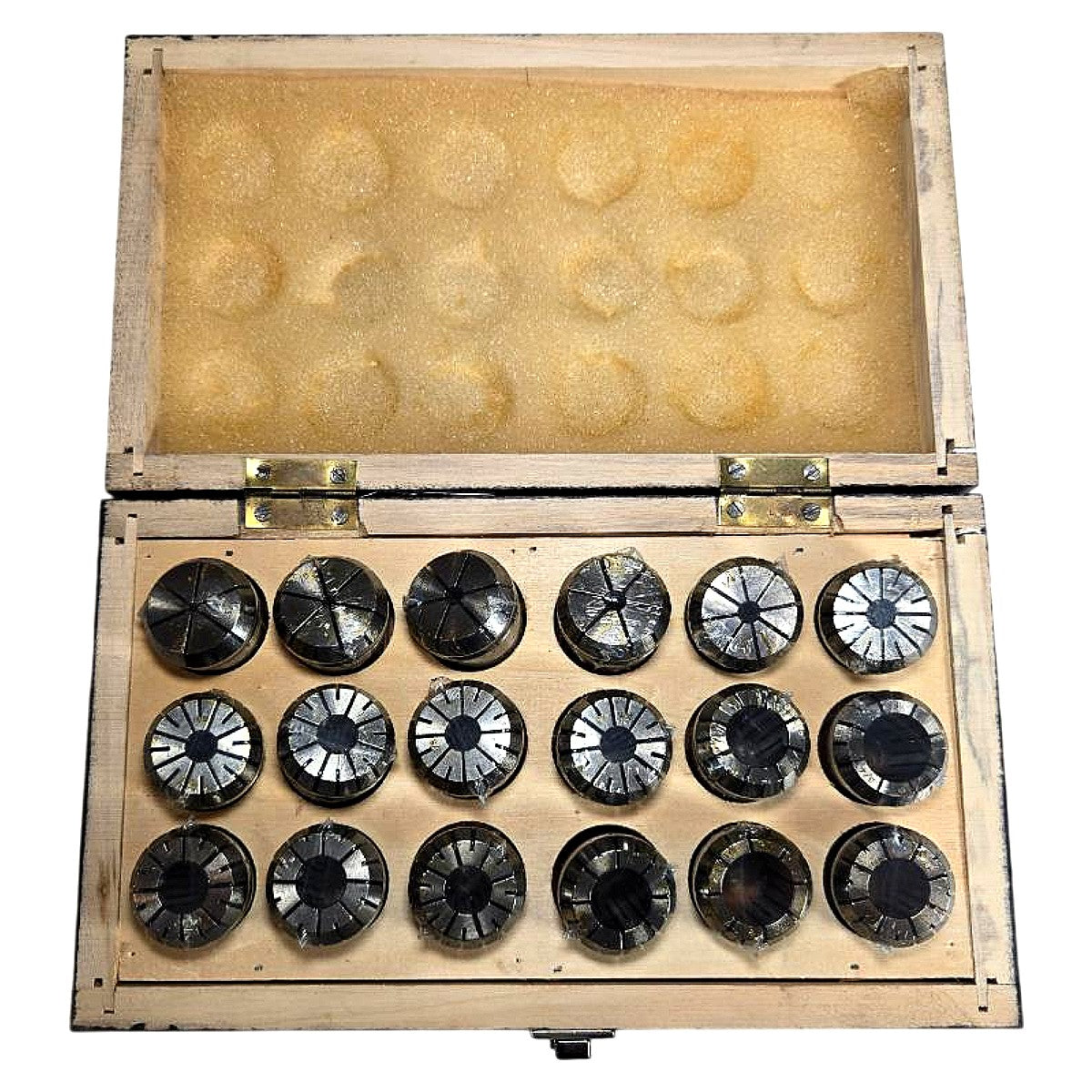

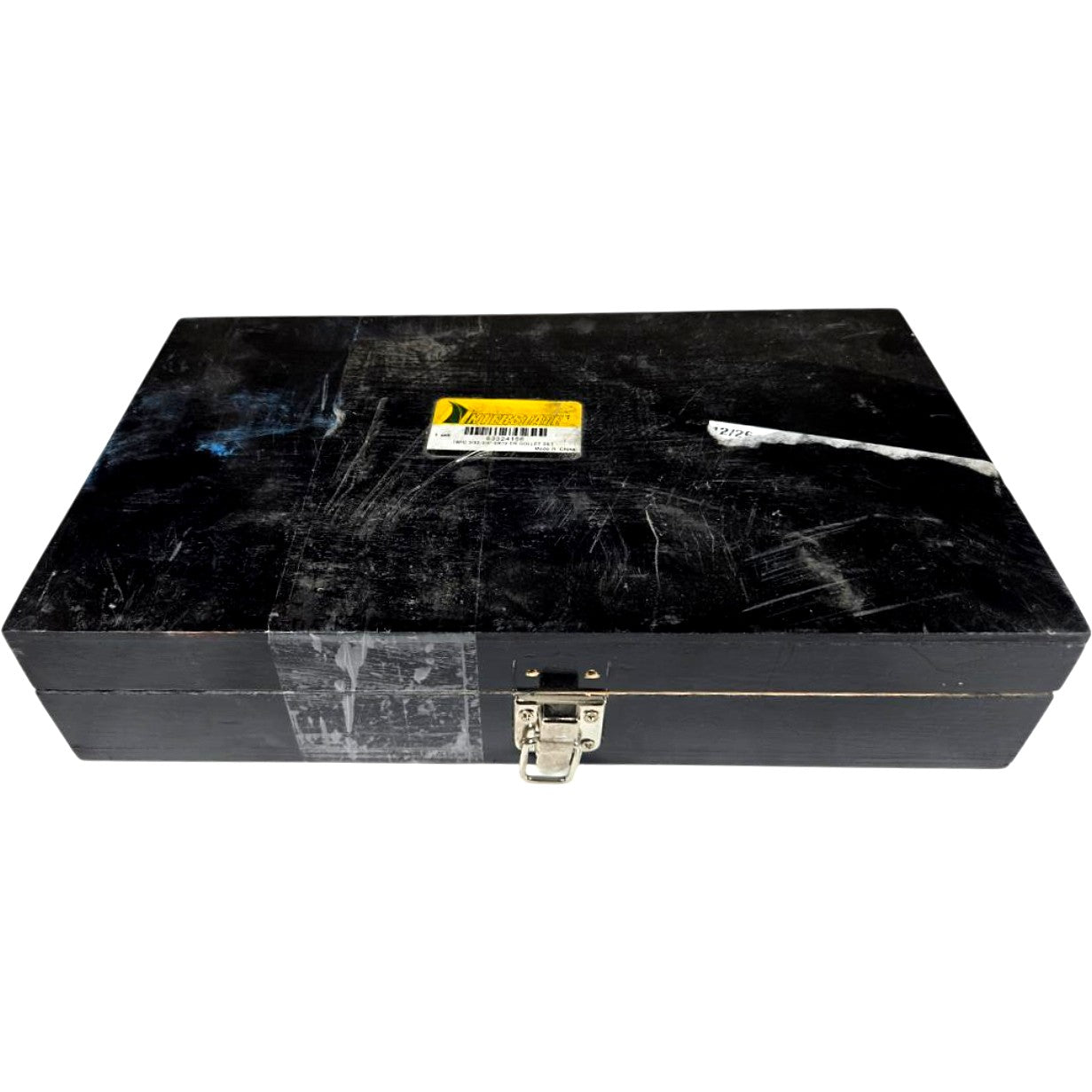

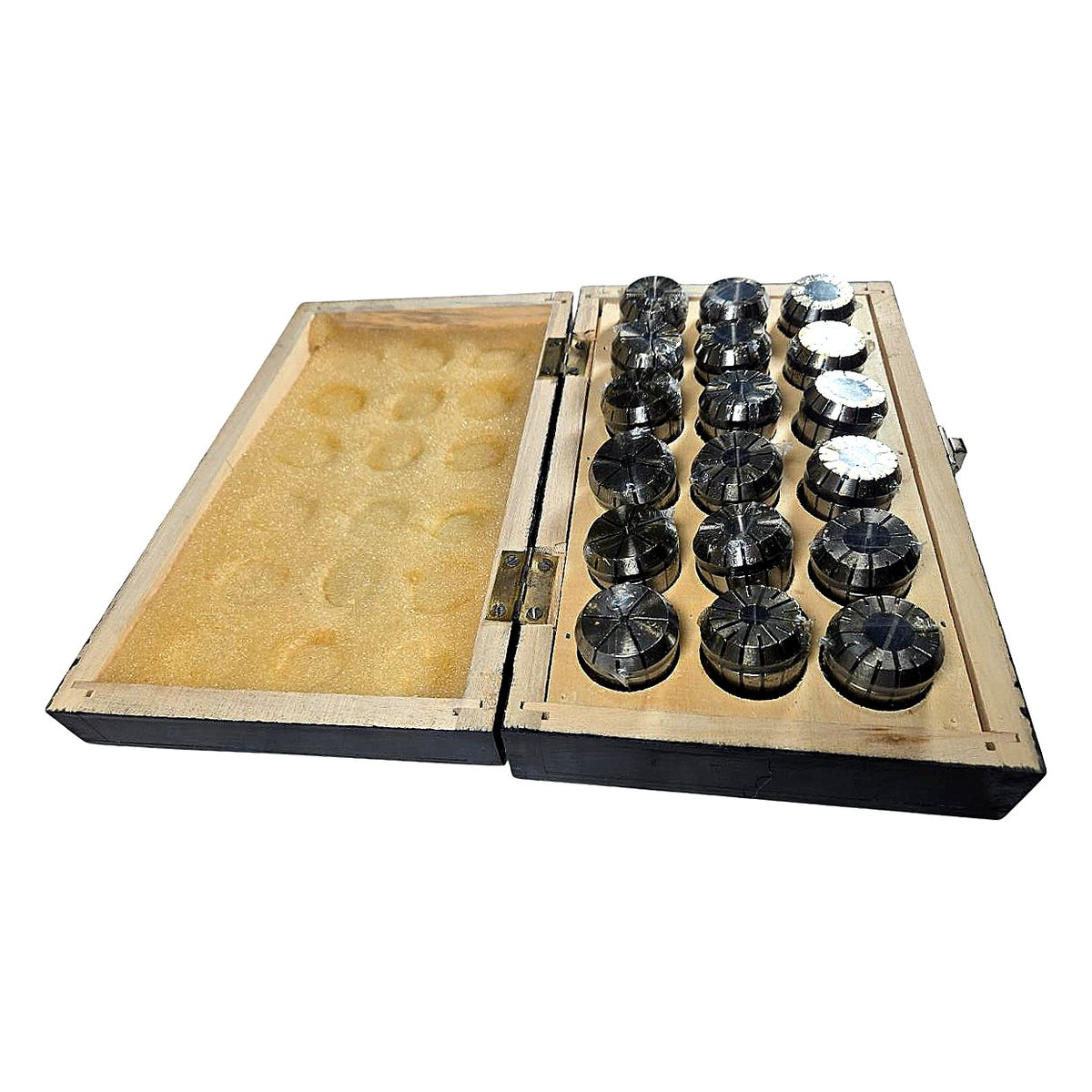

This Interstate (P/N 63324156) 18-piece ER32 collet set covers the full inch fractional range from 3/32 in to 3/4 in in 1/16 in increments, stored in a black-painted wood box with foam-padded lid to protect collet faces during storage and transport. Each ER32 spring collet conforms to the DIN 6499 / ISO 15488 standard with a 32 mm body diameter and 8° included taper angle, providing a clamping range of 1 mm per collet and a nominal runout of ≤0.0002 in (5 µm) TIR at rated accuracy. The collets are manufactured from through-hardened alloy tool steel with a black-oxide finish and are compatible with any ER32-standard collet chuck — including milling machine spindles, CNC machining centers, lathes with ER32 chucks, and tapping heads. Condition is new — other (original retail packaging may be absent or opened, box shows shelf wear); collets retain their original protective film on several pieces as visible in photos. Increments included: 3/32, 1/8, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4 in, plus two additional metric-range collets as typical for this set configuration.
Product Specifications
| Brand | Interstate |
| MPN | 63324156 |
| Collet System | ER32 |
| Number of Pieces | 18 |
| Clamping Range (Min) | 3/32 in (2.38 mm) |
| Clamping Range (Max) | 3/4 in (19.05 mm) |
| Collet Body Diameter | 32 mm |
| Taper Angle | 8° included (per DIN 6499/ISO 15488) |
| Standard | DIN 6499 / ISO 15488 |
| TIR Runout | ≤0.0002 in (5 µm) |
| Material | Through-hardened alloy tool steel |
| Finish | Black oxide |
| Storage Case | Wood box w/ foam-padded lid |
| Country of Origin | China |
| Increment (Inch) | 1/16 in steps, 3/32 to 3/4 in |
