Interstate CAT50 606 Aluminum CAT50 Tool Holder Tightening Fixture
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

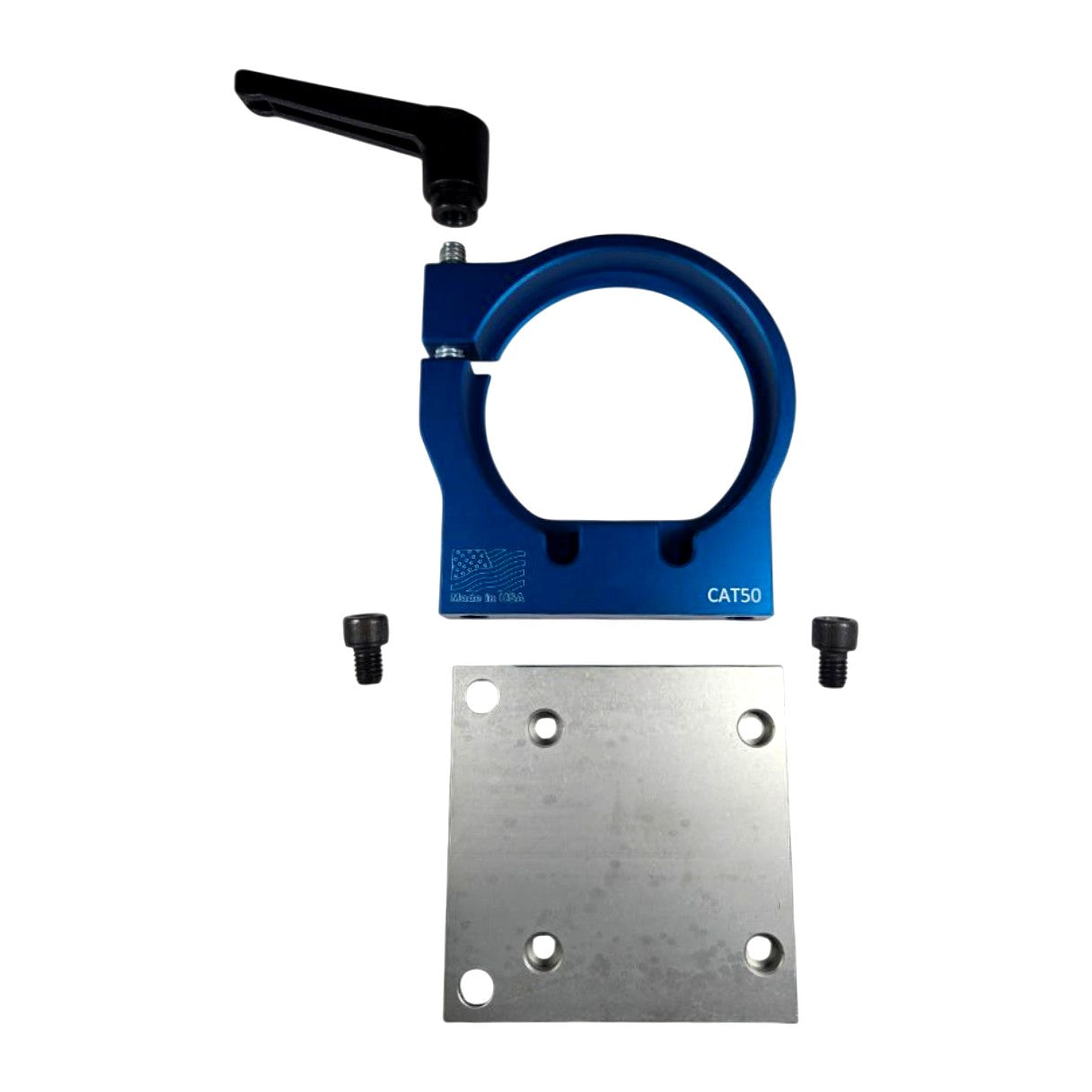

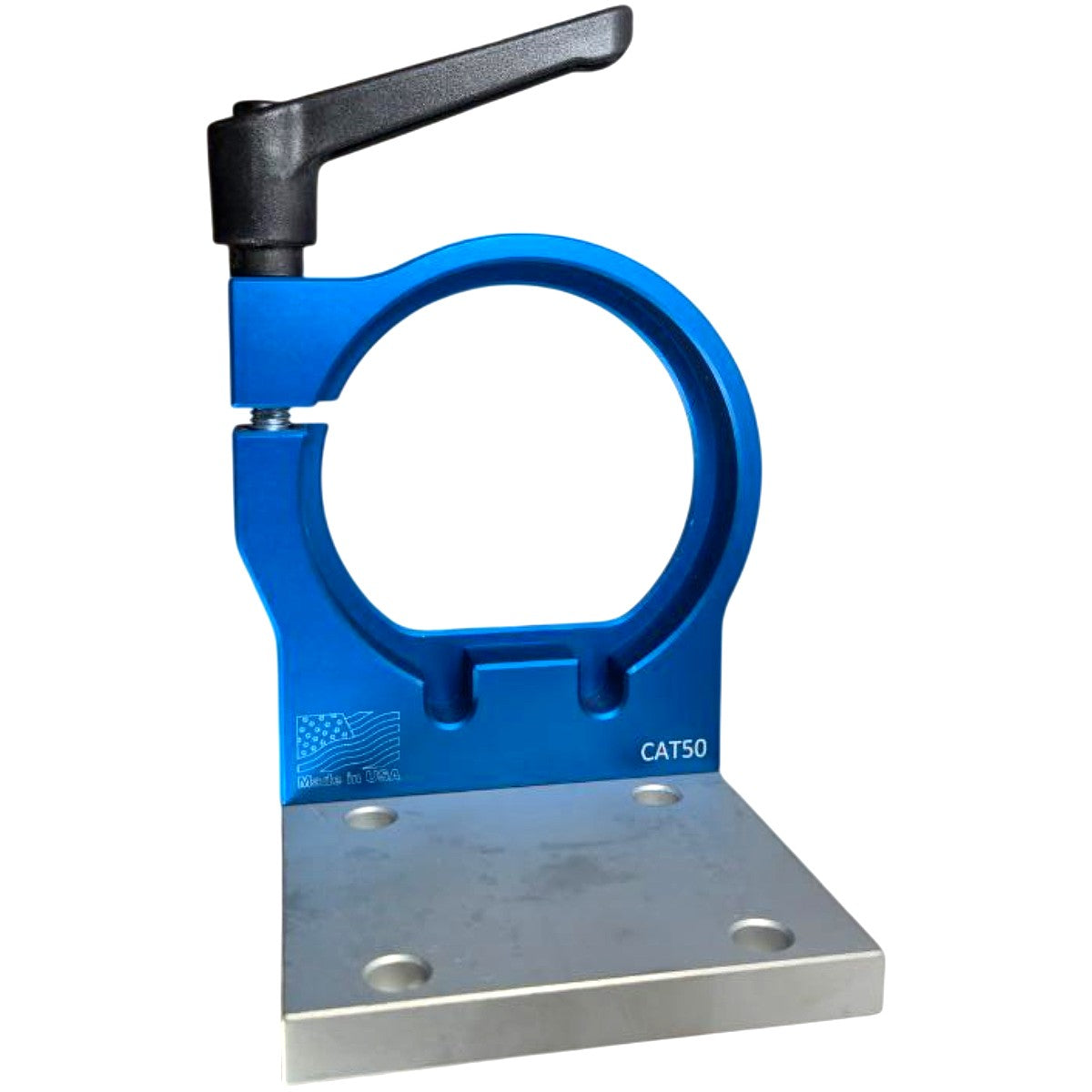

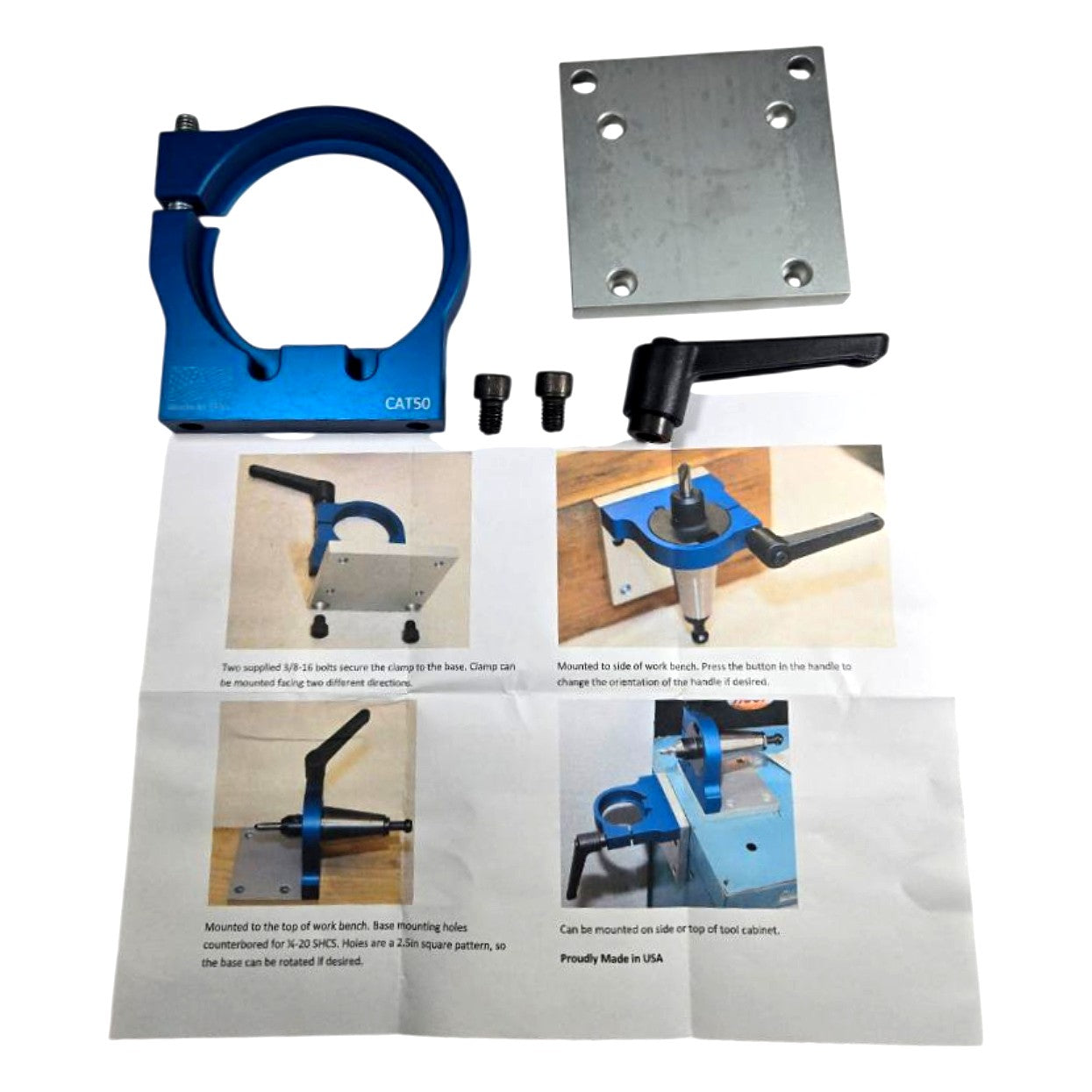

The Interstate CAT50 606 is a new, Made-in-USA aluminum tool holder holding/tightening fixture designed to securely clamp CAT50 taper shank tool holders for insert changes, presetting, and assembly operations. The anodized aluminum clamp ring is split with a cam-action lever handle that locks and releases the tool holder without tools, and the clamp body mounts to a steel base plate (4 in × 4 in, 4-hole pattern on a 2.5 in square bolt circle, counterbored for ¼-20 SHCS) that can be bolted to a workbench top, workbench side, or tool cabinet surface. Two 3/8-16 SHCS fasten the clamp body to the base in two rotational positions (90° apart), and the lever handle itself features a push-button repositioning mechanism for additional orientation flexibility. The fixture accepts CAT50 (V-flange, 7/24 taper) tool holders and holds them rigidly while the retention knob or insert is torqued, preventing spindle and drawbar damage.
Product Specifications
| Brand | Interstate |
| Part Number (MPN) | 606 / CAT50 |
| Compatible Taper | CAT50 (V-Flange, 7/24 taper) |
| Clamp Body Material | Aluminum (anodized blue) |
| Base Plate Material | Steel |
| Base Plate Size | 4 in x 4 in (approx.) |
| Mounting Hole Pattern | 2.5 in square bolt circle, 4 holes |
| Base Mounting Fastener | 1/4-20 SHCS (counterbored) |
| Clamp-to-Base Fastener | 3/8-16 SHCS x2 (included) |
| Number of Mounting Positions | 2 (clamp to base orientation) |
| Locking Mechanism | Cam-action lever handle, repositionable |
| Mount Locations | Bench top, bench side, tool cabinet |
| Country of Origin | USA |
| Condition | New |
