Interstate TNMG432 TCM55 Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

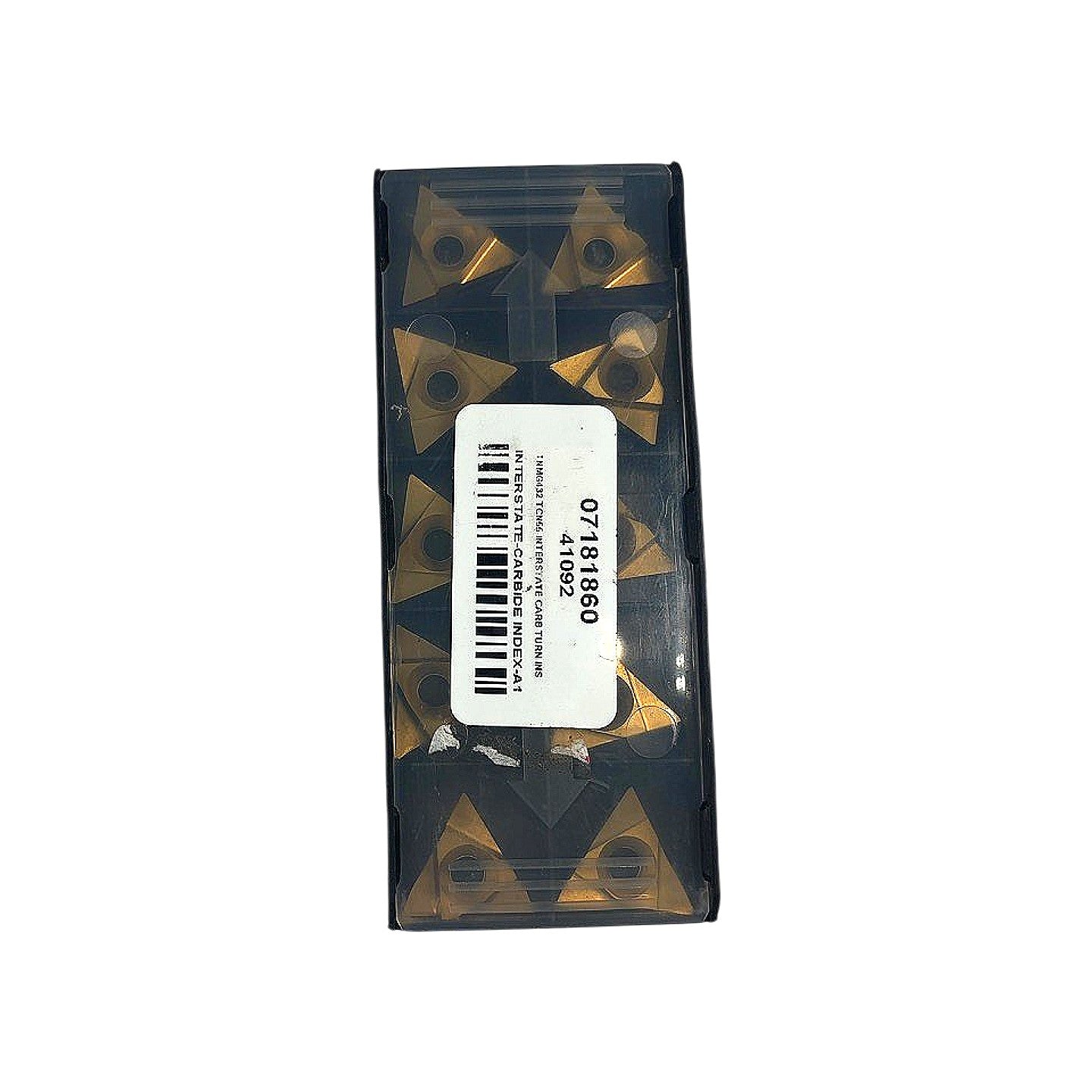

These are new Interstate Carbide TNMG432 indexable turning inserts in grade TCM55, sold as a factory pack of 10. The TNMG designation decodes as: T = triangular (60° included angle), N = 0° clearance (relieved on holder), M = M-tolerance class, G = with hole and chip groove (single-sided chipbreaker). The 432 suffix specifies a 1/2 in (12.7 mm) inscribed circle, 3/16 in (4.76 mm) thickness, and a 1/32 in (0.794 mm) nose radius. The gold-bronze PVD TiN-based coating visible on the inserts is consistent with Interstate's TCM55 grade, a coated carbide grade suited for general-purpose turning of steels and alloys at moderate cutting parameters. These inserts are compatible with standard TNMG-style toolholders using 0° seat angle, including common MTGNR/L and similar turning tool bodies.
Product Specifications
| Brand | Interstate Carbide |
| MPN | TNMG432 TCM55 |
| Insert Shape | Triangular (T) — 60° included angle |
| ISO Designation | TNMG432 |
| Clearance Angle | 0° (N) |
| Tolerance Class | M |
| Chipbreaker | Single-sided, with hole (G) |
| Inscribed Circle (IC) | 1/2 in (12.7 mm) |
| Thickness | 3/16 in (4.76 mm) |
| Nose Radius | 1/32 in (0.794 mm) |
| Grade | TCM55 |
| Coating | PVD TiN-based (gold color) |
| Cutting Edges per Insert | 3 (single-sided) |
| Quantity | 10 per pack |
| Condition | New |
| Compatible Holder Style | TNMG 0° seat turning toolholders |
