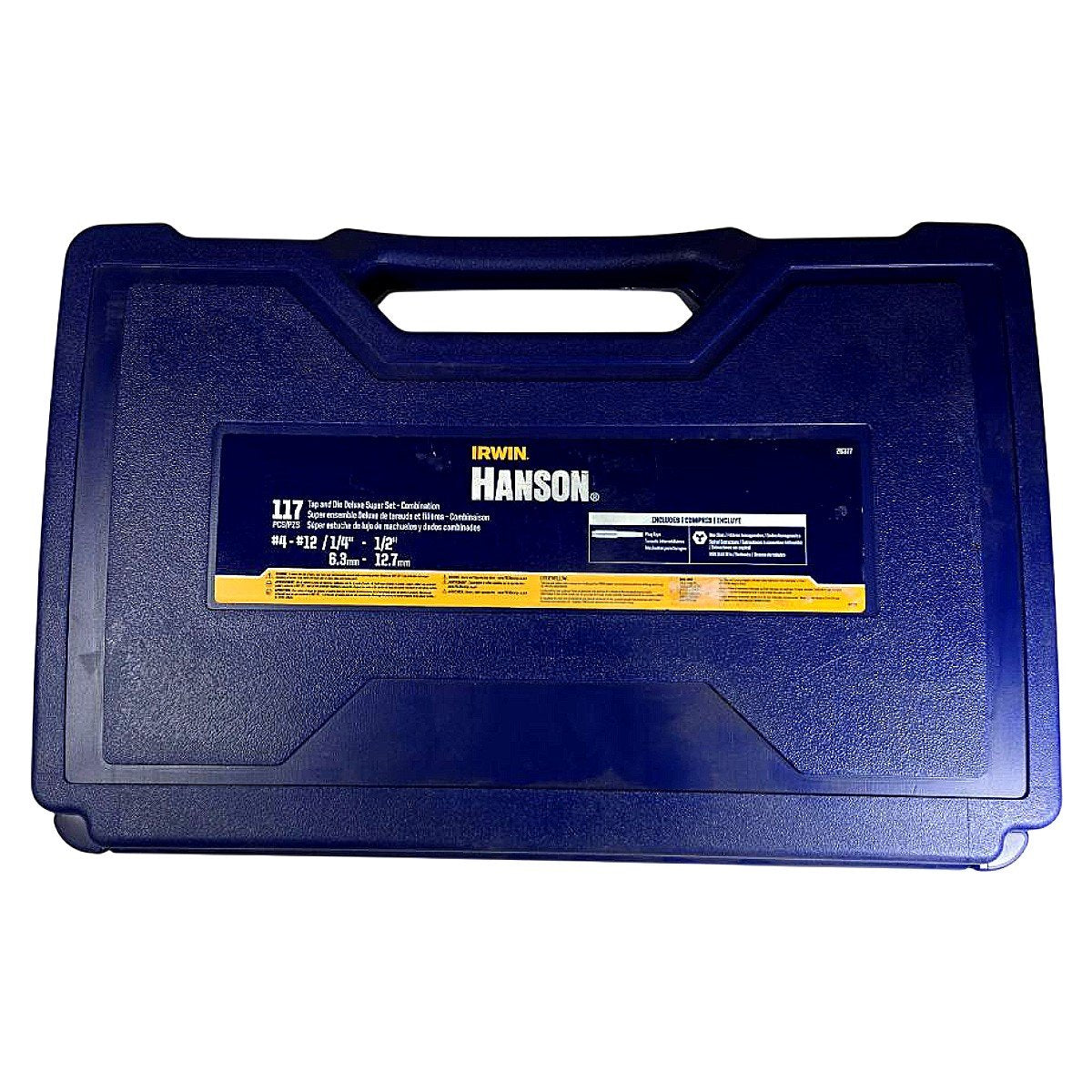

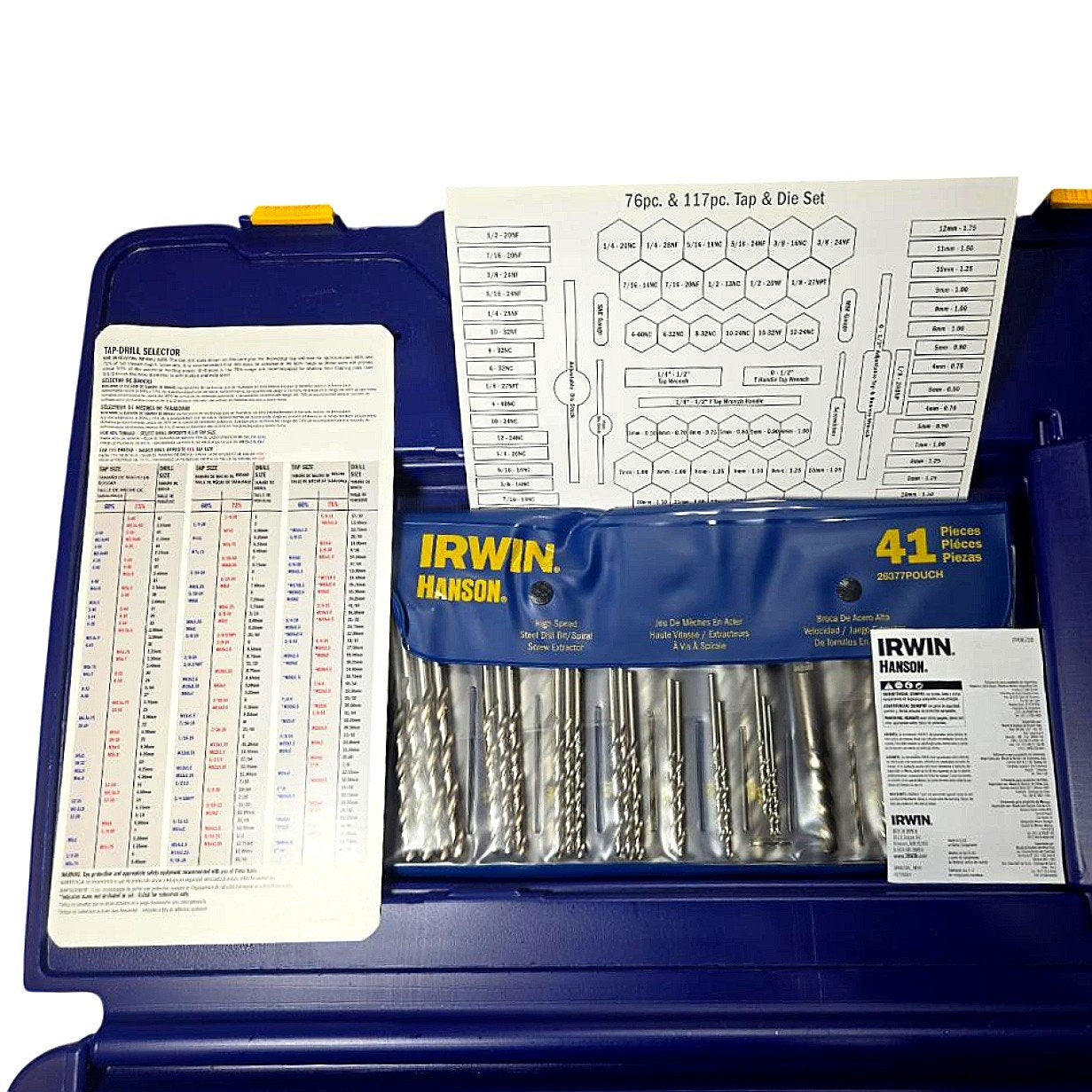

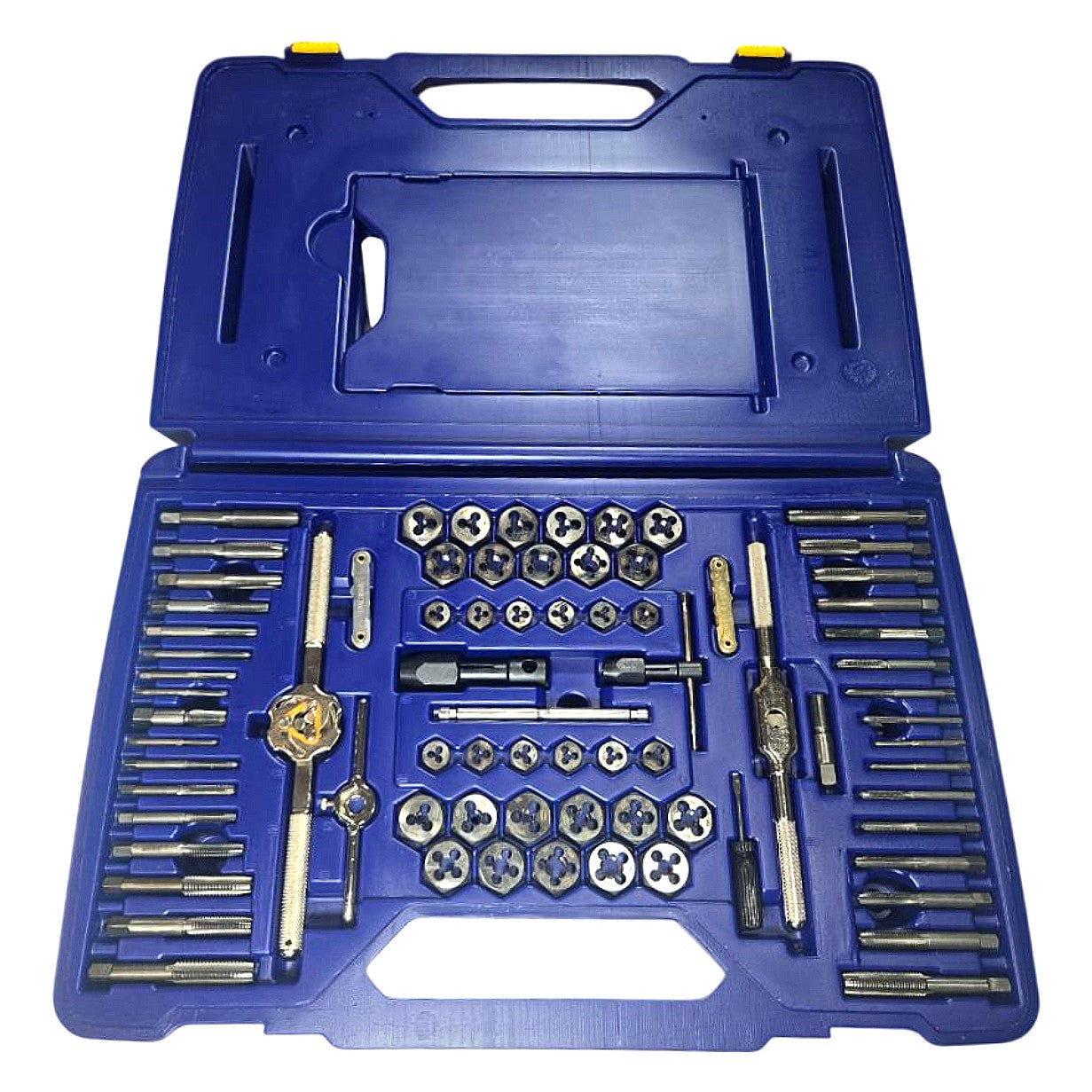

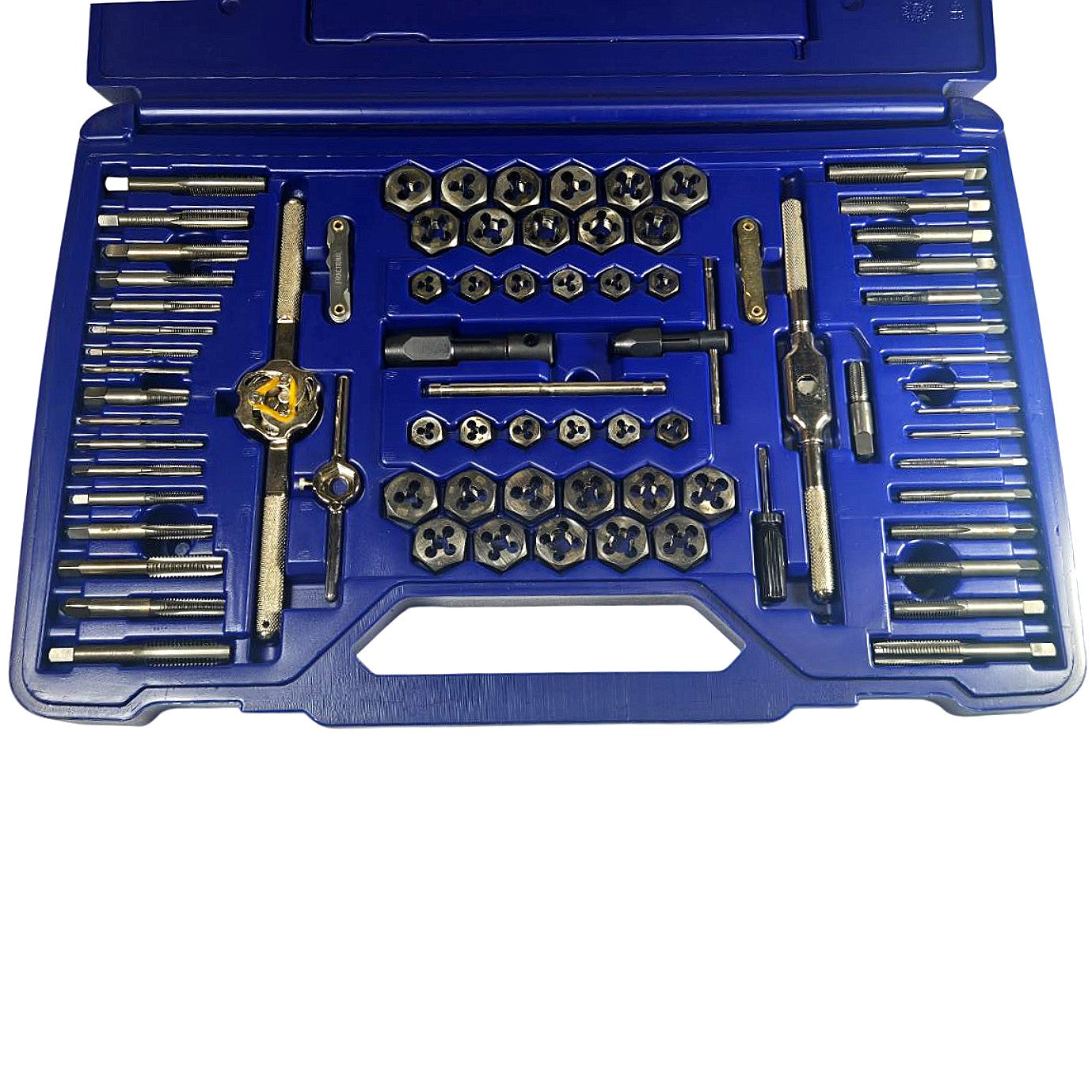

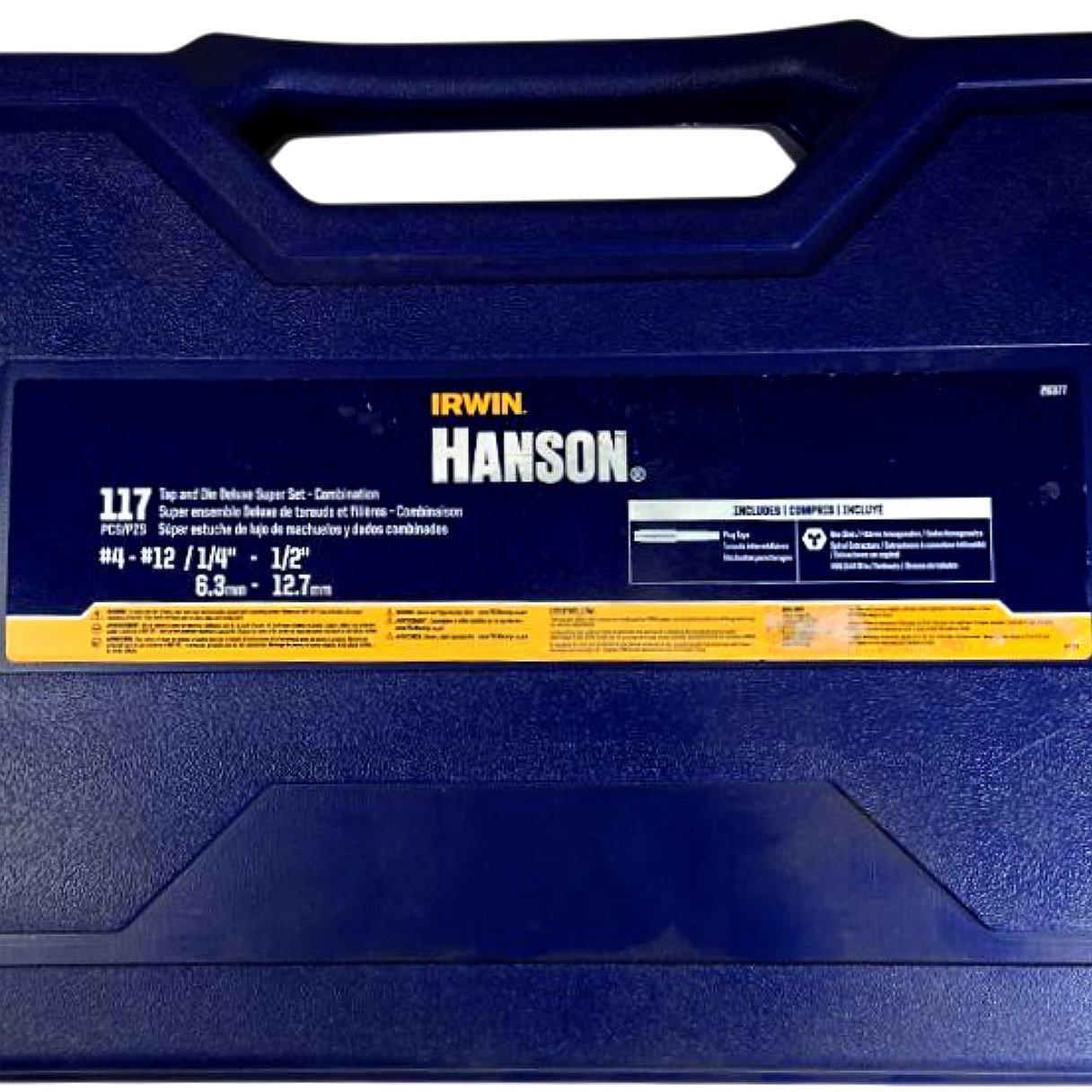

The Irwin Hanson 26377 is a new 117-piece Combination Tap & Die Deluxe Super Set covering SAE machine screw sizes #4–#12, fractional inch sizes 1/4"–1/2" (6.3–12.7 mm), and metric sizes 3–12 mm, in UNC, UNF, NPT, and metric thread standards. The taps are plug-style high-speed steel (HSS) with a titanium coating for increased hardness and wear resistance; the dies are hexagonal HSS and fit the included adjustable die stocks (one titanium 1/4"–1/2" die wrench and one 0–1/2" tap wrench with a T-handle), along with a set of drill bit/spiral screw extractors packaged in an Irwin Hanson 28377POUCH 41-piece sub-pouch included in the case. All components store in a molded blue plastic blow-molded carrying case with dual yellow latches and a built-in tap-drill selector chart for quick drill size reference. The set addresses thread cutting, thread chasing, and broken-fastener extraction in steel, aluminum, cast iron, and plastics across automotive, HVAC, plumbing, and general maintenance applications.
Product Specifications
| Brand | Irwin Hanson |
| MPN | 26377 |
| Total Pieces | 117 |
| Thread Standards | UNC, UNF, NPT, Metric |
| SAE Machine Screw Range | #4 - #12 |
| SAE Fractional Range | 1/4 in - 1/2 in |
| Metric Range | 6.3 mm - 12.7 mm (3 mm - 12 mm) |
| Tap Style | Plug |
| Material | High Speed Steel (HSS) |
| Coating | Titanium (taps & die wrenches) |
| Die Style | Hex rethreading dies |
| Included Accessories | Die stocks, tap wrenches, drill/extractor sub-set |
| Screw Extractor Sub-Set | 41-pc HSS drill bit/spiral extractor (28377POUCH) |

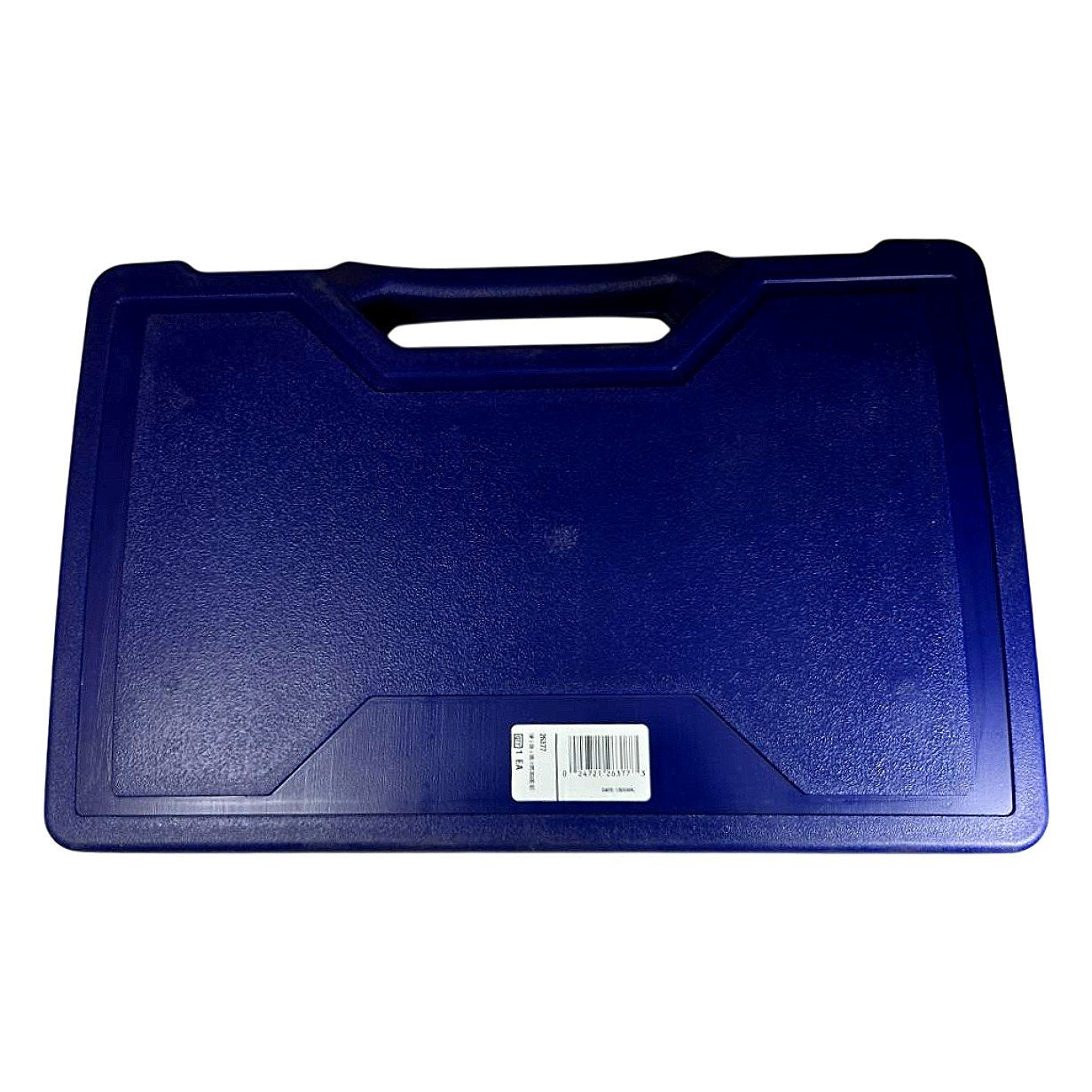

| Case Type | Blue blow-molded plastic w/ dual latches |
| Condition | New |
