Iscar 05505073 IDI 159-SG IC908 15.9mm Chamdrill Drill Tip (2 pcs)
Regular price
$67.45
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

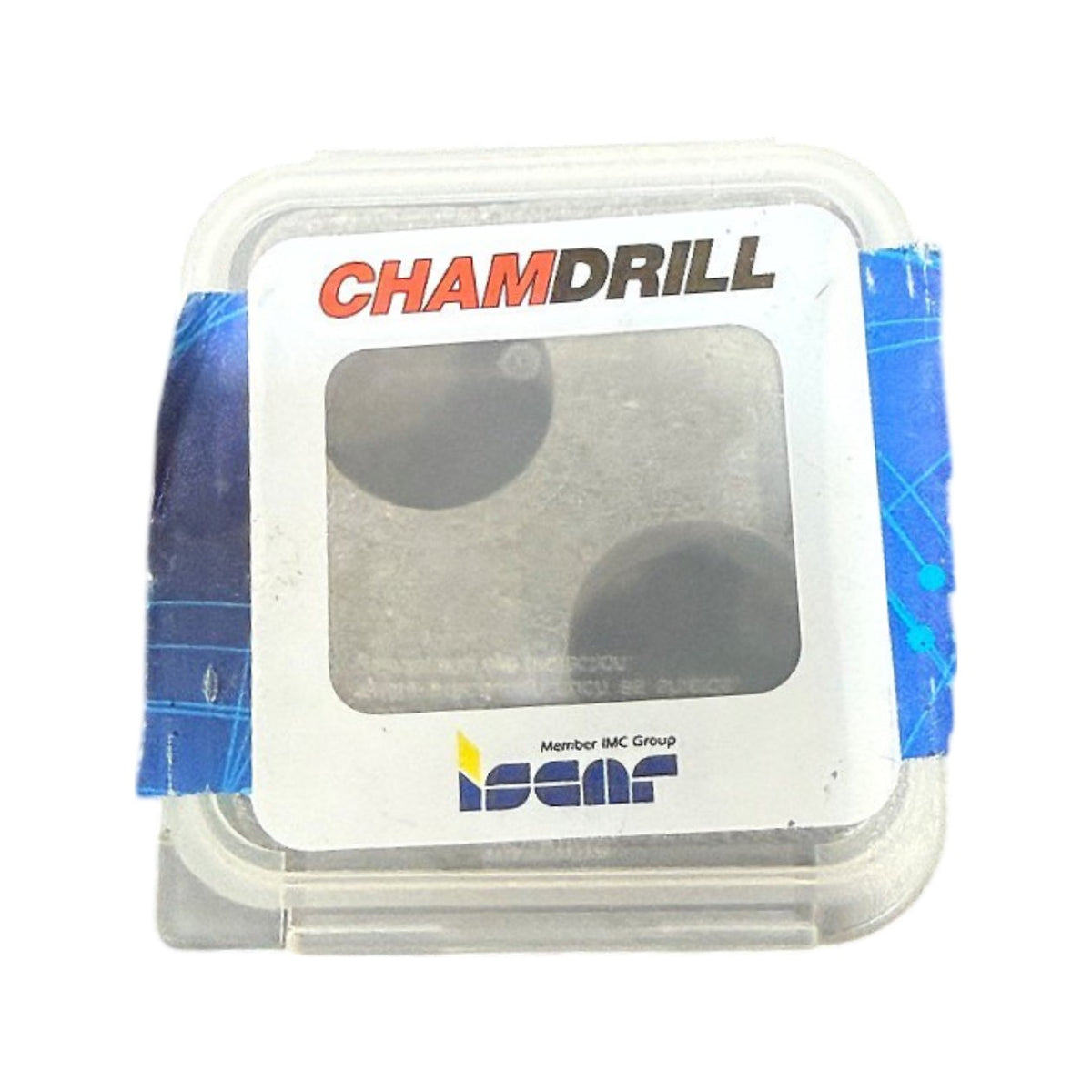

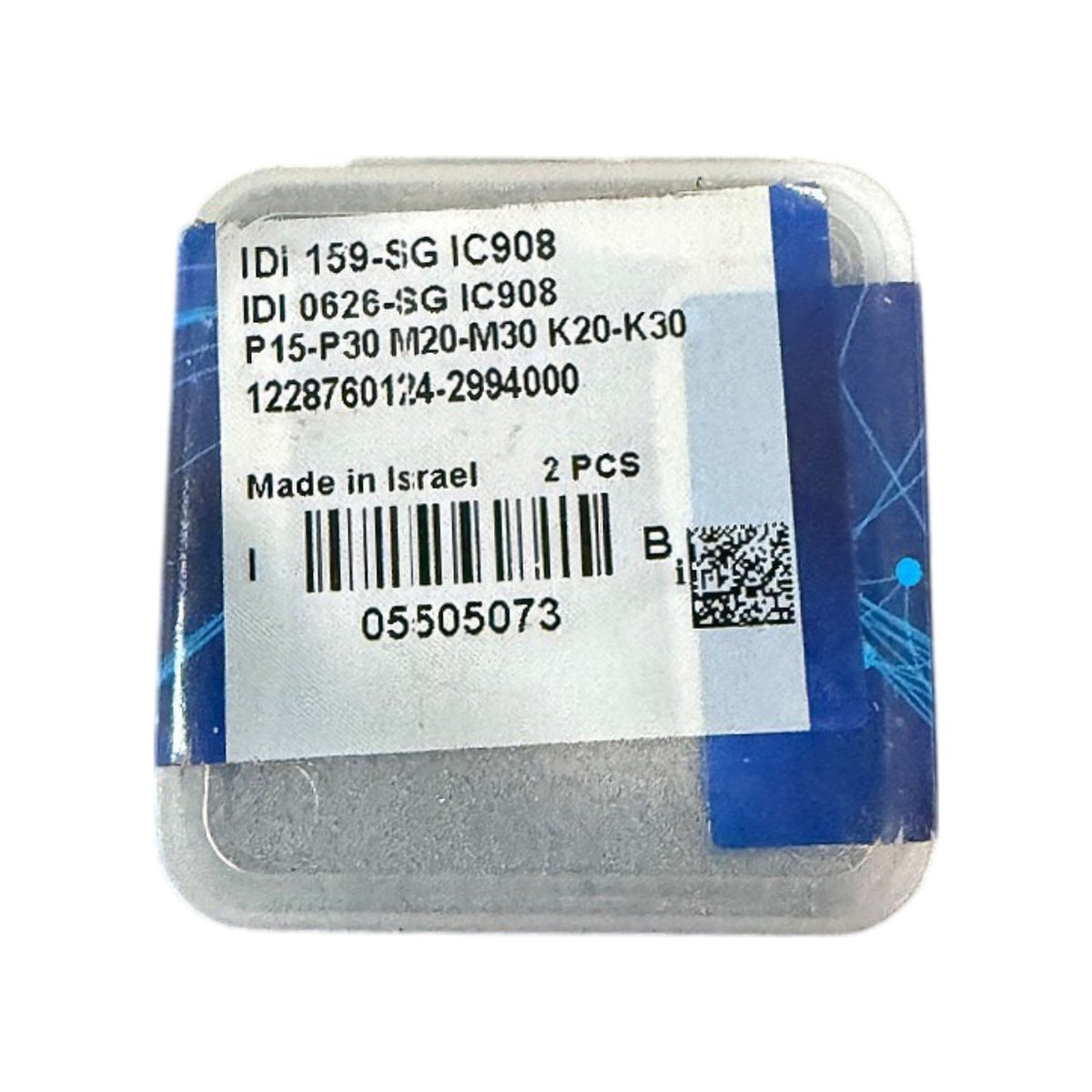

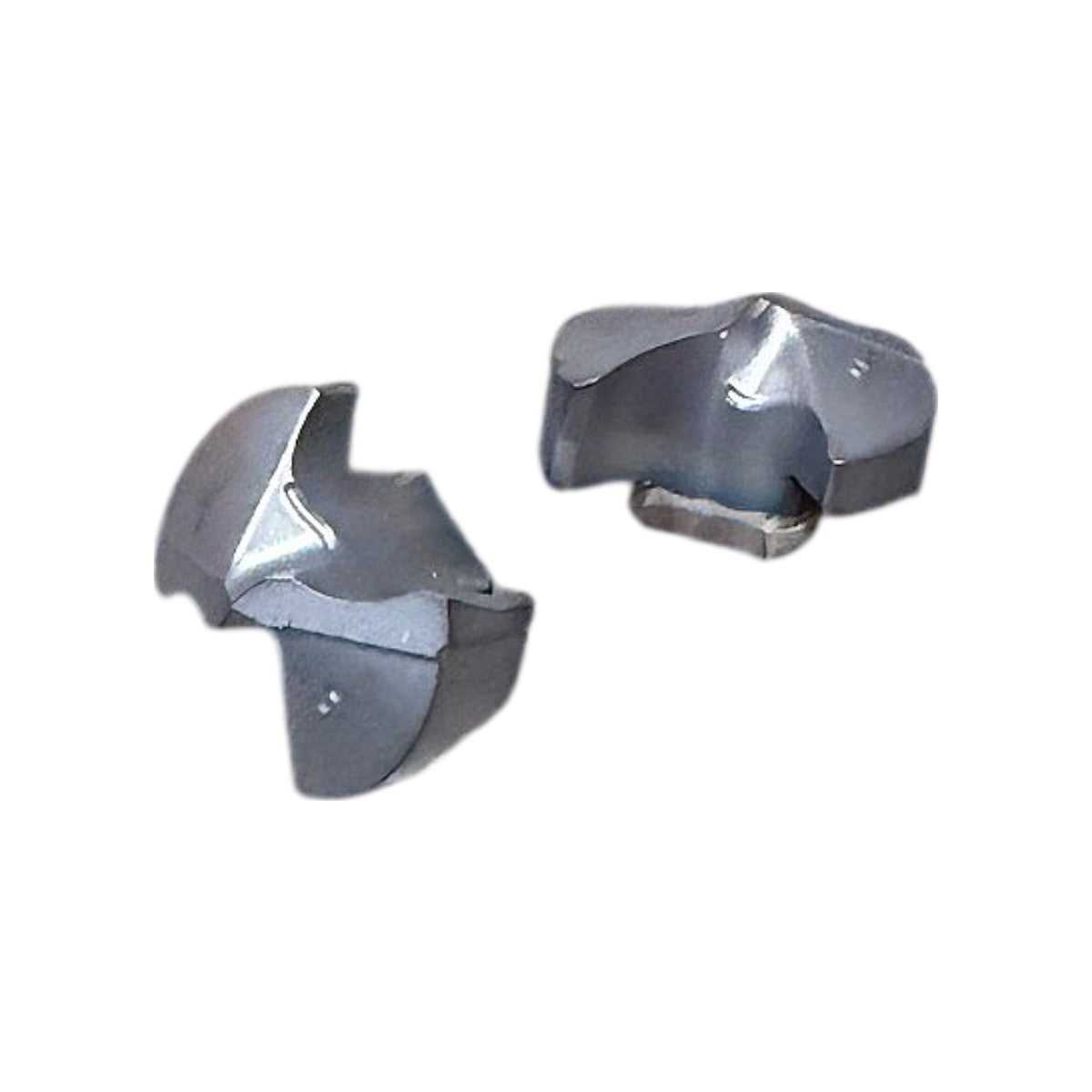

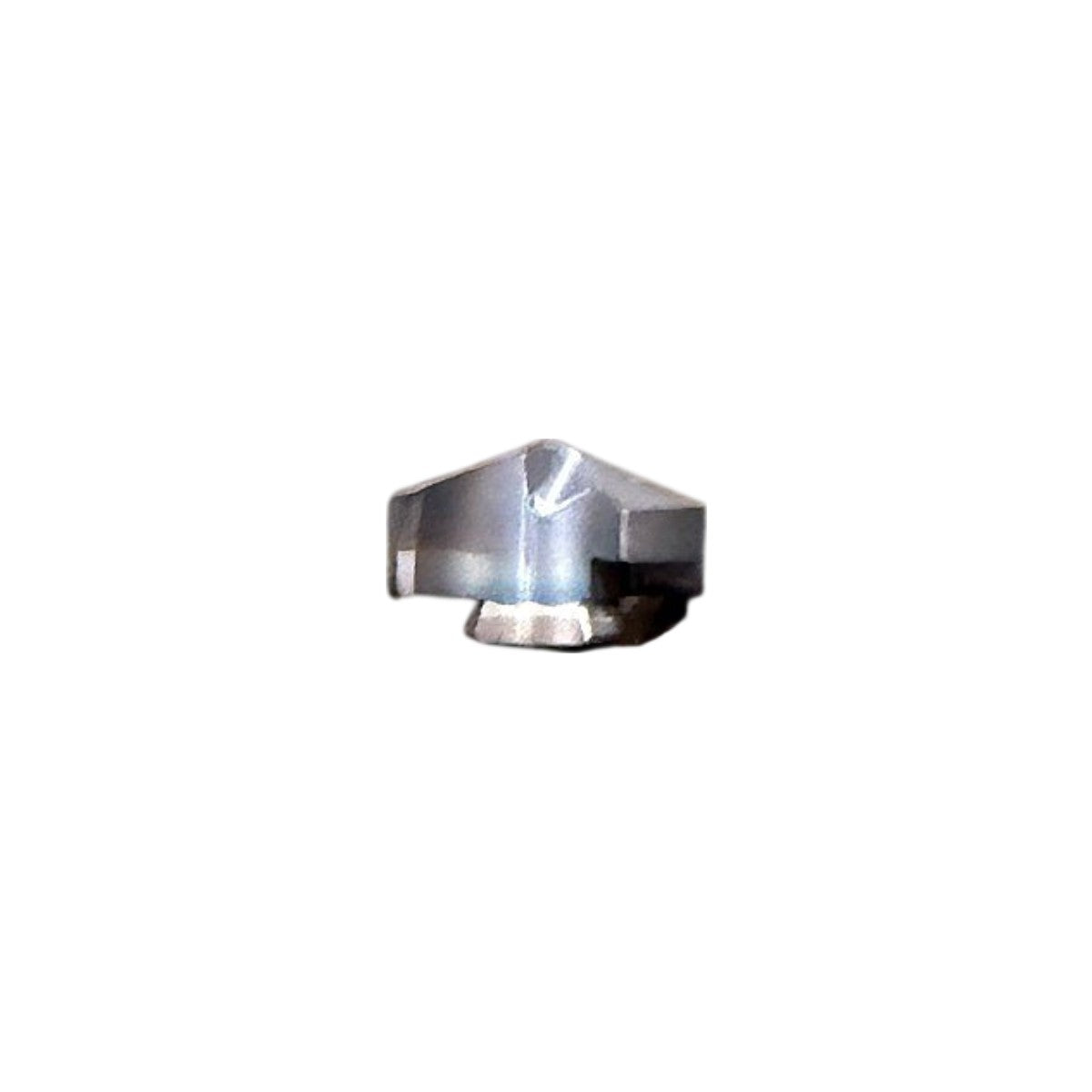

This Iscar CHAMDRILL replaceable carbide drill tip, designation IDI 159-SG in grade IC908 (item 05505073, also marked IDI 0626-SG), is sold as a pack of 2 new tips. The 15.9 mm (0.626 in) tip diameter is read from the part designation, and the SG geometry is the style marked on the package. IC908 is an Iscar submicron carbide grade with a PVD coating, and the package lists it for ISO P15-P30 steels, M20-M30 stainless steels and K20-K30 cast irons. It is intended for drilling on CHAMDRILL replaceable-tip drill bodies and was manufactured in Israel.
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number | IDI 159-SG IC908 |
| Item Number | 05505073 |
| Alternate Designation | IDI 0626-SG IC908 |
| Series | CHAMDRILL |
| Grade | IC908 |
| Cutting Diameter | 15.9 mm (0.626 in) |
| Geometry | SG |
| Material | Carbide |
| Coating | PVD Coated |
| Operation | Drilling |
| ISO Workpiece Materials | P15-P30, M20-M30, K20-K30 |
| Quantity per Pack | 2 |
| Country of Origin | Israel |
