Iscar 05568369 ICP 326 IC908 1.283mm SUMOCHAM Carbide Replaceable Drill Tip
Regular price
$127.25
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

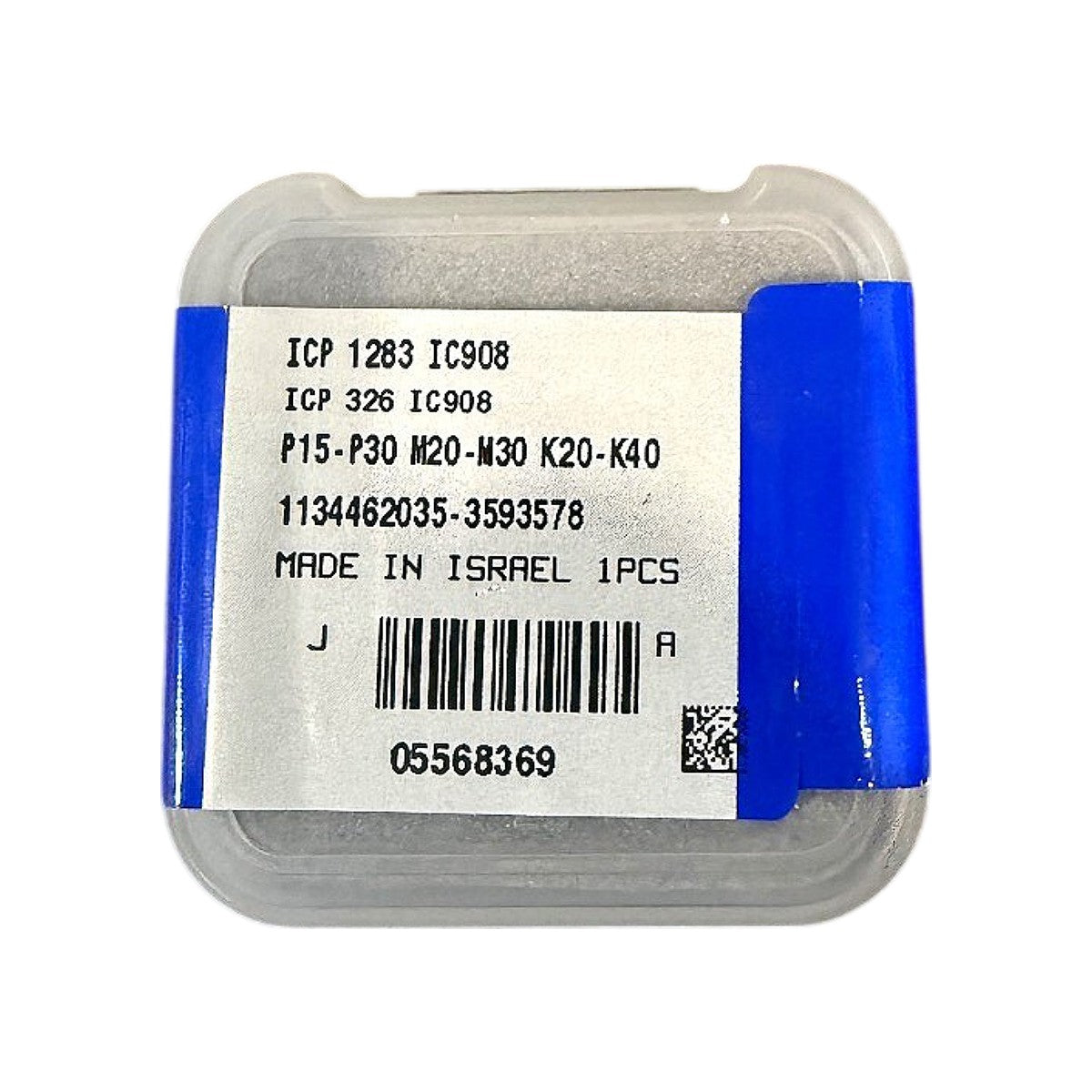

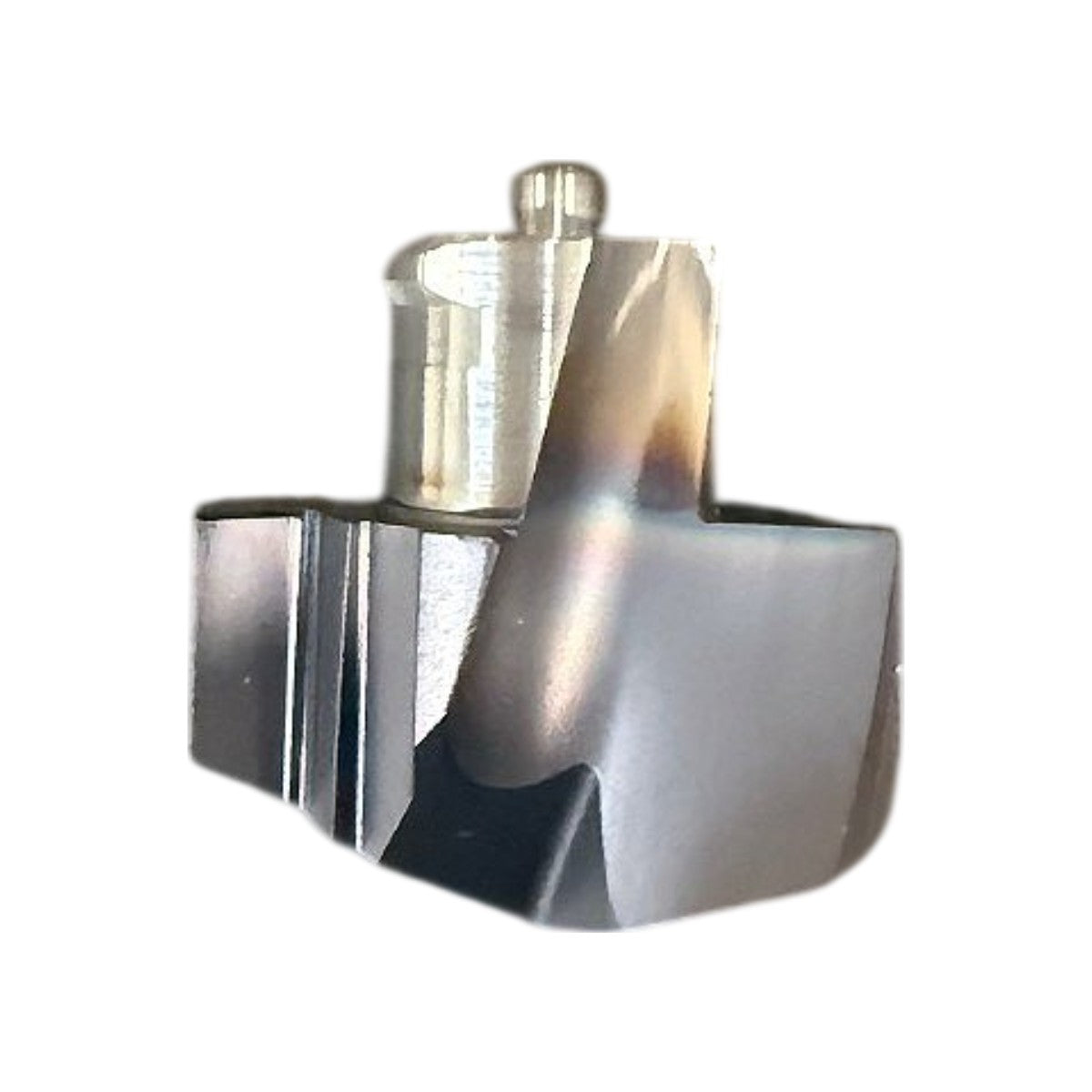

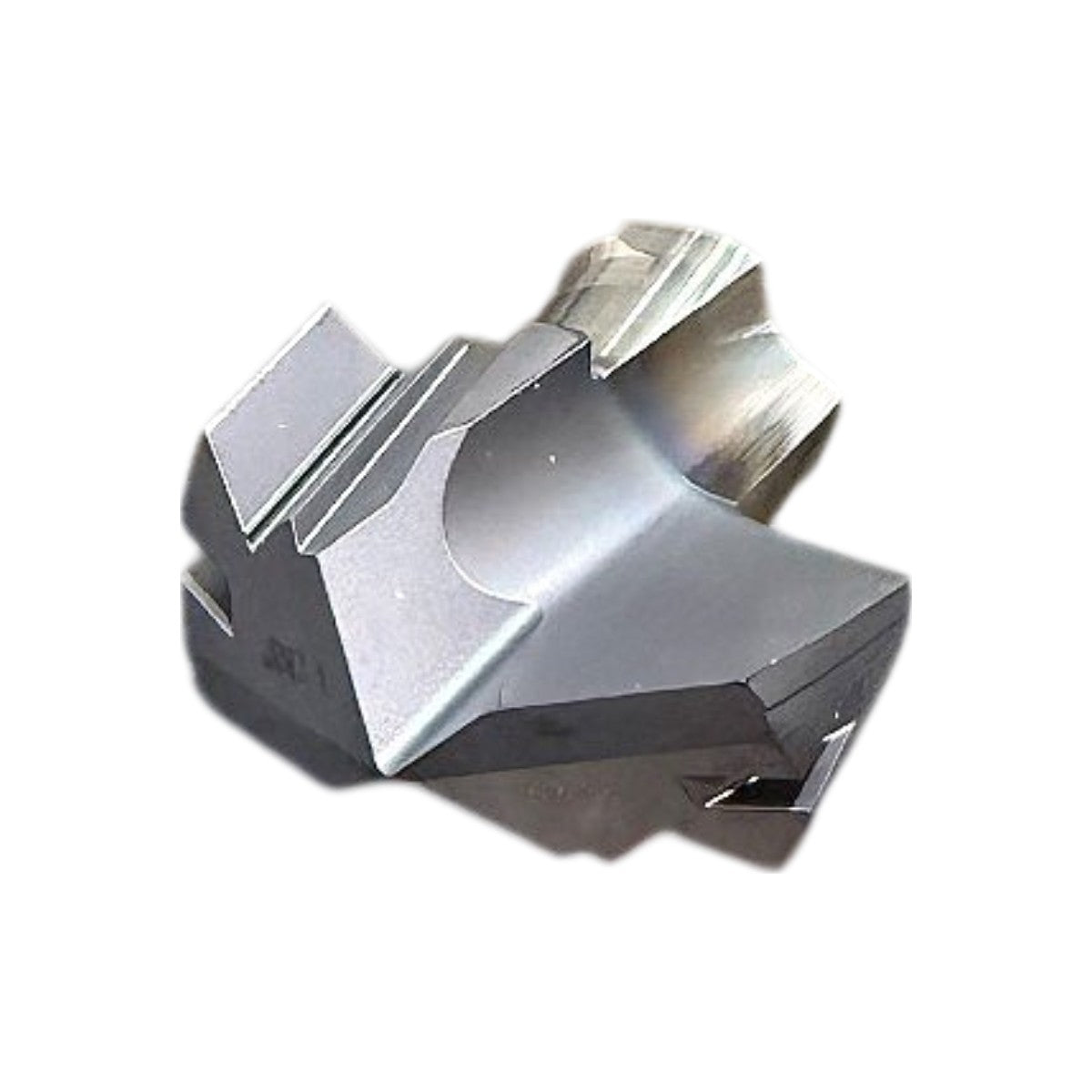

This new Iscar SUMOCHAM Chamdrill replaceable carbide drill tip, item 05568369, is designated ICP 326 (ICP 1283 in inch sizing) and made in Israel. It is supplied in grade IC908, a PVD-coated submicron carbide grade, and the box label lists application ranges of P15-P30 (steel), M20-M30 (stainless steel) and K20-K40 (cast iron). The tip has a self-centering point geometry with two cutting edges and a locating pin on the back that seats it in the pocket of a matching Iscar SUMOCHAM Chamdrill holder body. The designation corresponds to a 32.6 mm (1.283 in) drilling diameter. Sold as a single piece; the holder body is not included.
Product Specifications
| Brand | Iscar |
| MPN | 05568369 |
| Series | SUMOCHAM Chamdrill Line |
| Designation | ICP 326 |
| Inch Designation | ICP 1283 |
| Grade | IC908 |
| Material | Carbide |
| Coating | PVD Coated |
| Drill Diameter | 32.6 mm |
| Drill Diameter (Inch) | 1.283 in |
| Workpiece Materials | ISO P15-P30, M20-M30, K20-K40 |
| Workpiece Material Type | Steel, Stainless Steel, Cast Iron |
| Operation | Drilling |
| Compatible System | Iscar SUMOCHAM Chamdrill Holders |
| Number of Cutting Edges | 2 |
| Country of Origin | Israel |
| Quantity | 1 pc |
