Iscar 3359499 DCN 0335-102-0394C-3D 8.5mm 3xD 10mm Shank Indexable Drill
Regular price
$101.22
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

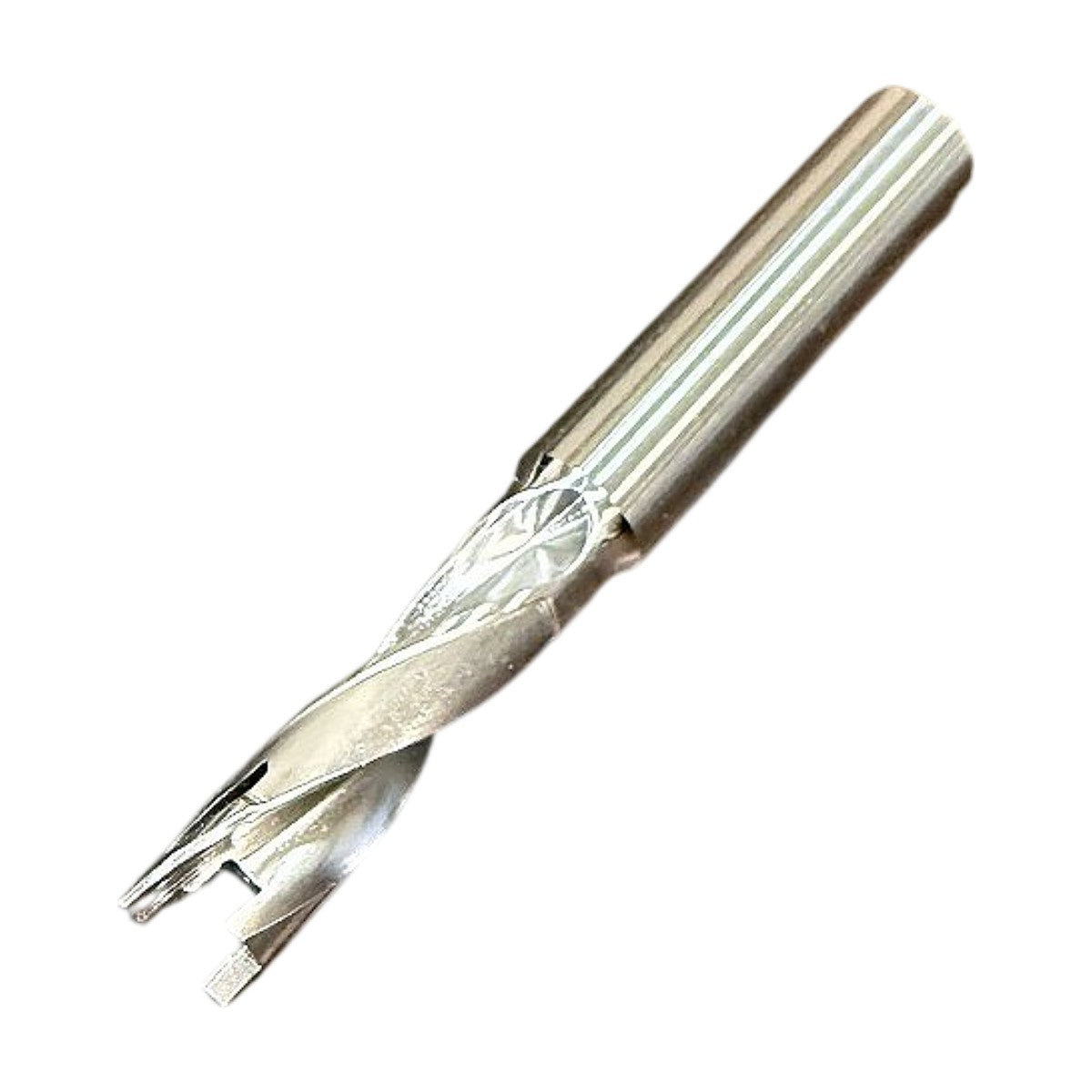

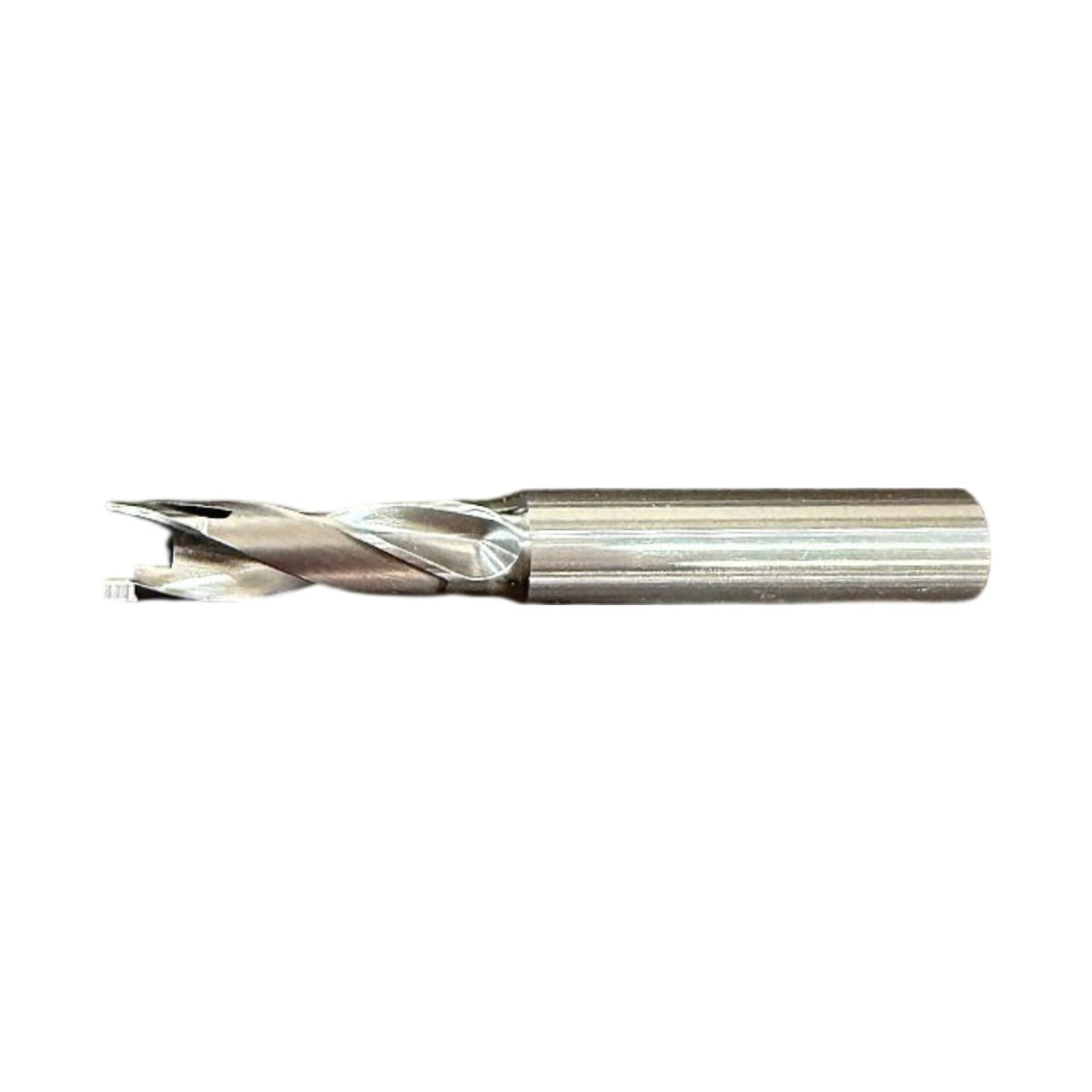

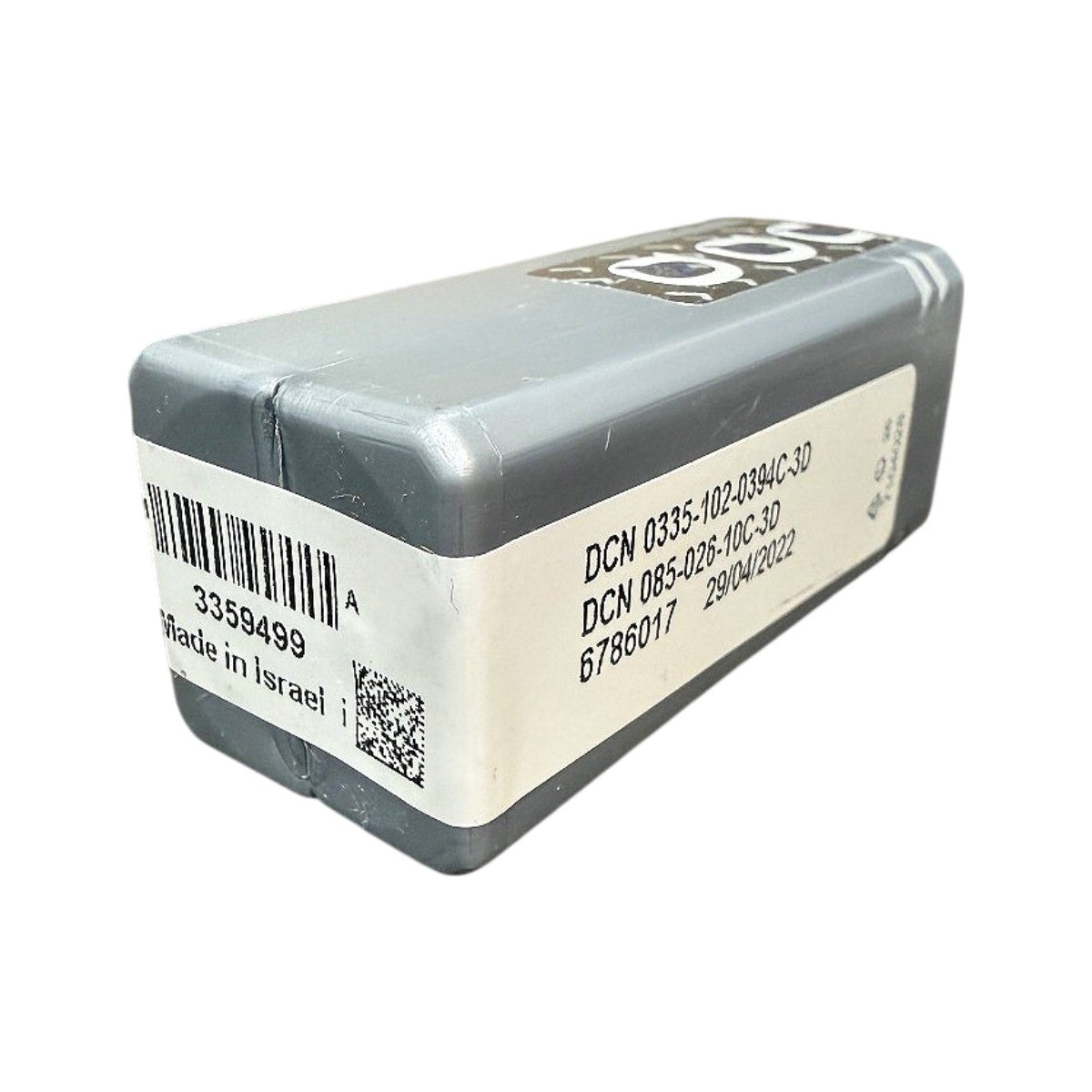

This Iscar DCN 0335-102-0394C-3D (item 3359499, metric designation DCN 085-026-10C-3D) is a 2-flute drill with a 0.335 in (8.5 mm) cutting diameter and a 3xD depth ratio. The designation indicates a 1.02 in (26 mm) drilling length and a 0.394 in (10 mm) cylindrical shank. The photos show a spur and center-point style tip on a ground, bright shank. Made in Israel, this unused drill ships in the original sealed Iscar packaging.
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number | 3359499 |
| Catalog Designation | DCN 0335-102-0394C-3D |
| Metric Designation | DCN 085-026-10C-3D |
| Series | DCN |
| Drill Diameter | 0.335 in (8.5 mm) |
| Depth Ratio | 3xD |
| Drilling Length | 1.02 in (26 mm) |
| Shank Diameter | 0.394 in (10 mm) |
| Shank Type | Cylindrical (C) |
| Number of Flutes | 2 |
| Country of Origin | Israel |
