Iscar 3601070 SVJCR 12-3 3/4in Shank RH Indexable Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

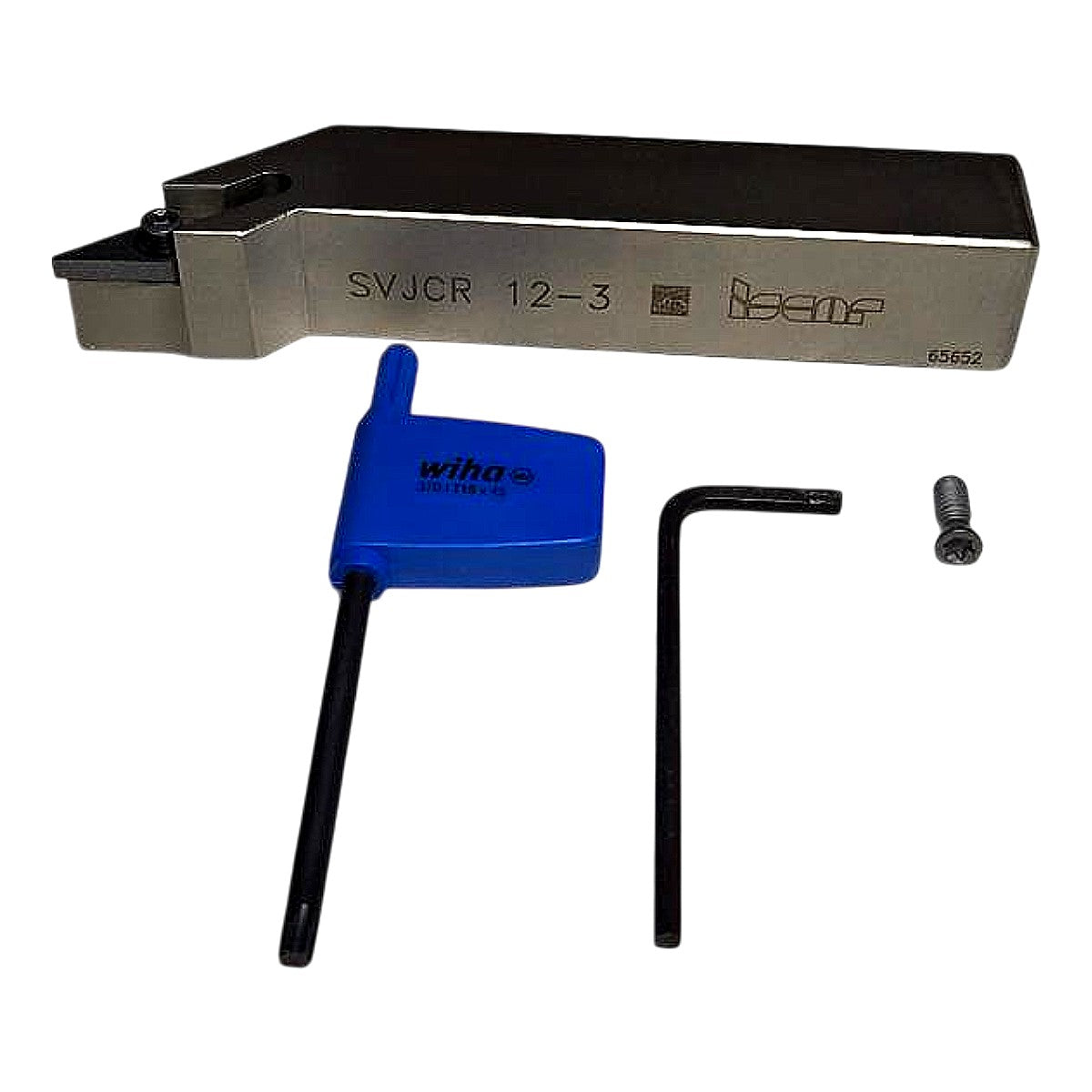

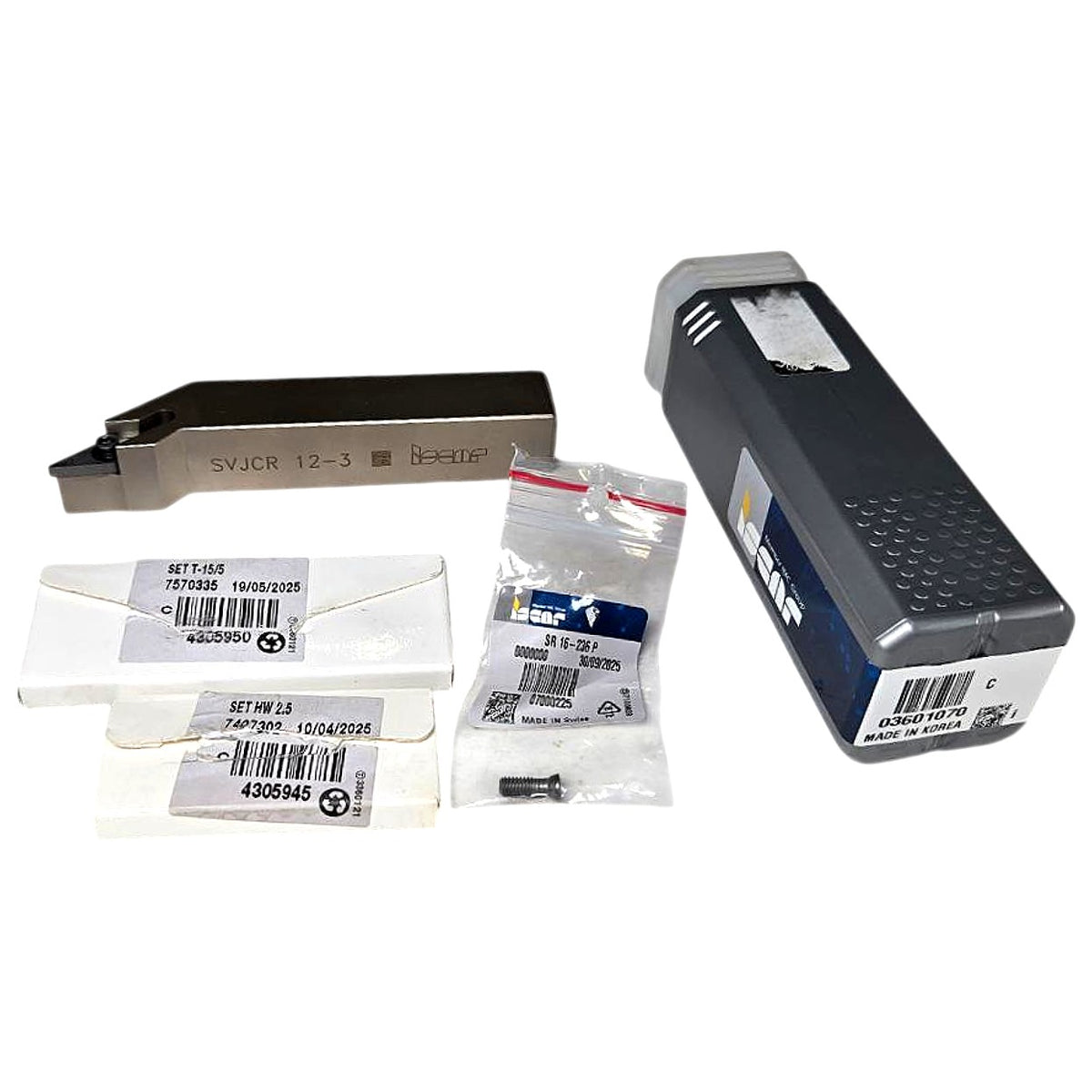

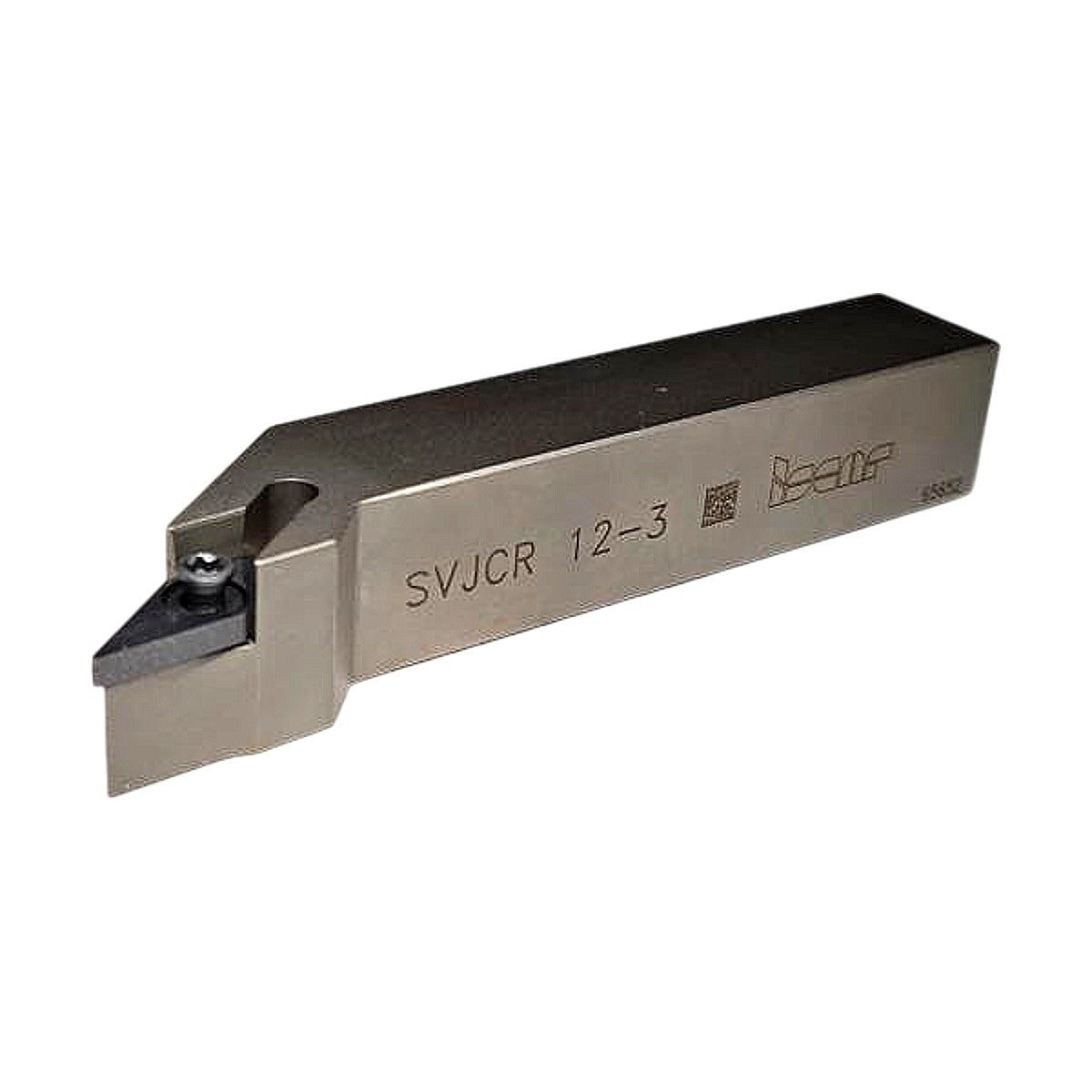

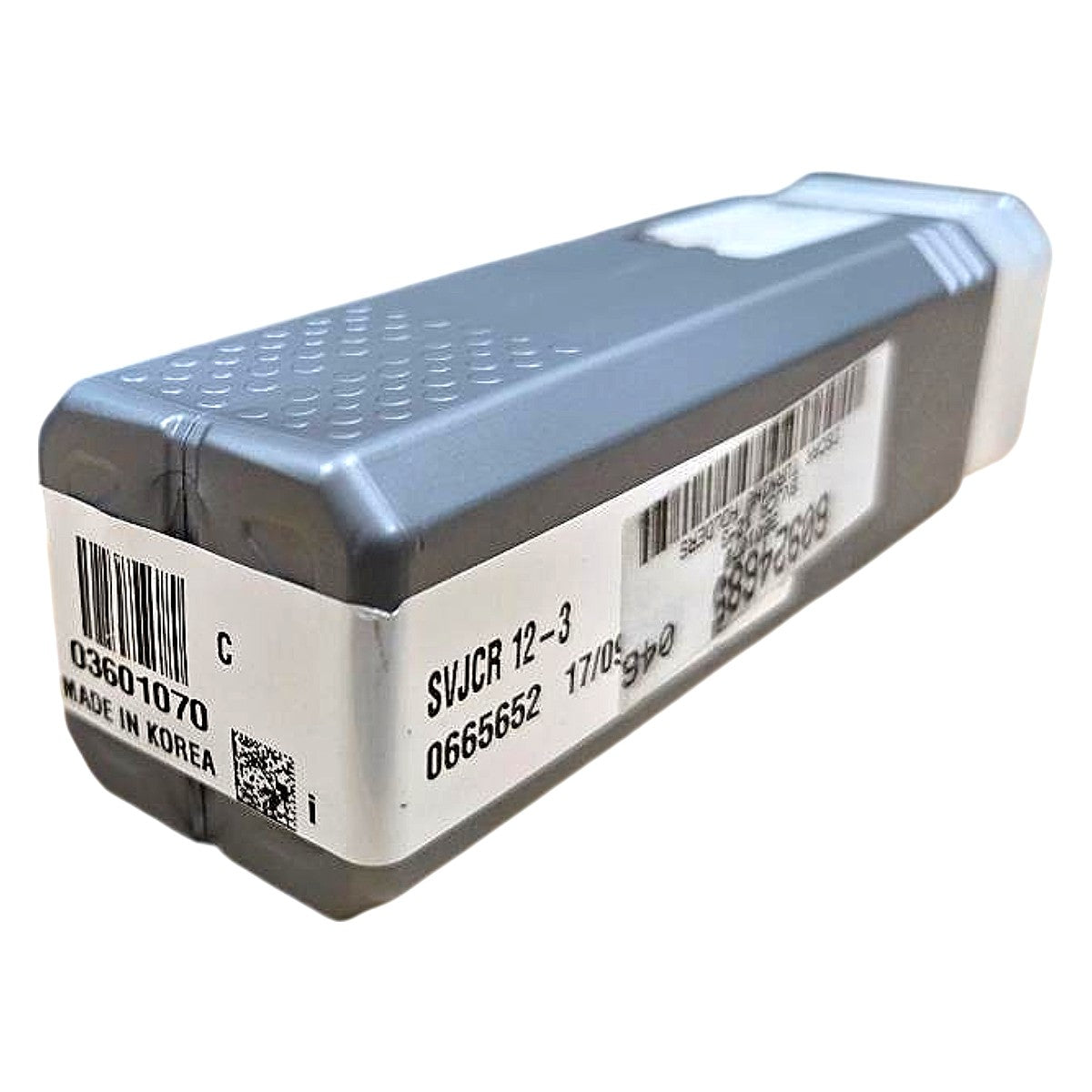

This Iscar SVJCR 12-3 is a right-hand external turning toolholder, item number 3601070, with a 3/4 x 3/4 in square shank and a 4-1/2 in overall length. The designation decodes as screw clamping (S), 35° diamond insert shape (V), 93° lead angle (J), 7° insert clearance (C) and right-hand cut (R), with size 3 (3/8 in IC) inserts, i.e. VCMT/VCGT 331 style, in the inch-shank 12-3 size. The holder is machined from alloy tool steel and clamps inserts with a Torx insert screw, so it suits profiling, contouring and facing on lathes with 3/4 in tool posts. It is new and comes with the insert screw (SR 16-236 P), a T-15/5 Torx key and an HW 2.5 hex key in the original Iscar box.
Product Specifications
| Brand | Iscar |
| MPN | 3601070 |
| Holder Designation | SVJCR 12-3 |
| Alternate Catalog Number | 0665652 |
| Hand of Cut | Right Hand |
| Clamping Style | Screw Clamp |
| Insert Shape | V, 35° Diamond |
| Lead Angle | 93° |
| Insert Clearance Angle | 7° |
| Compatible Inserts | VCMT 331, VCGT 331 (3/8 in IC) |
| Insert Size | 3 (3/8 in IC) |
| Shank Size | 3/4 x 3/4 in |
| Shank Type | Square |
| Overall Length | 4-1/2 in |
| Operation | External Turning, Profiling, Facing |
| Insert Screw | SR 16-236 P |
| Included Wrenches | T-15/5 Torx Key, HW 2.5 Hex Key |
| Country of Origin | Korea |
| Material | Alloy Tool Steel |
| Unit of Measure | Inch |
