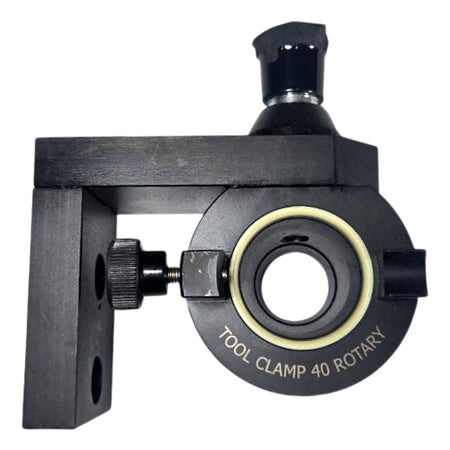

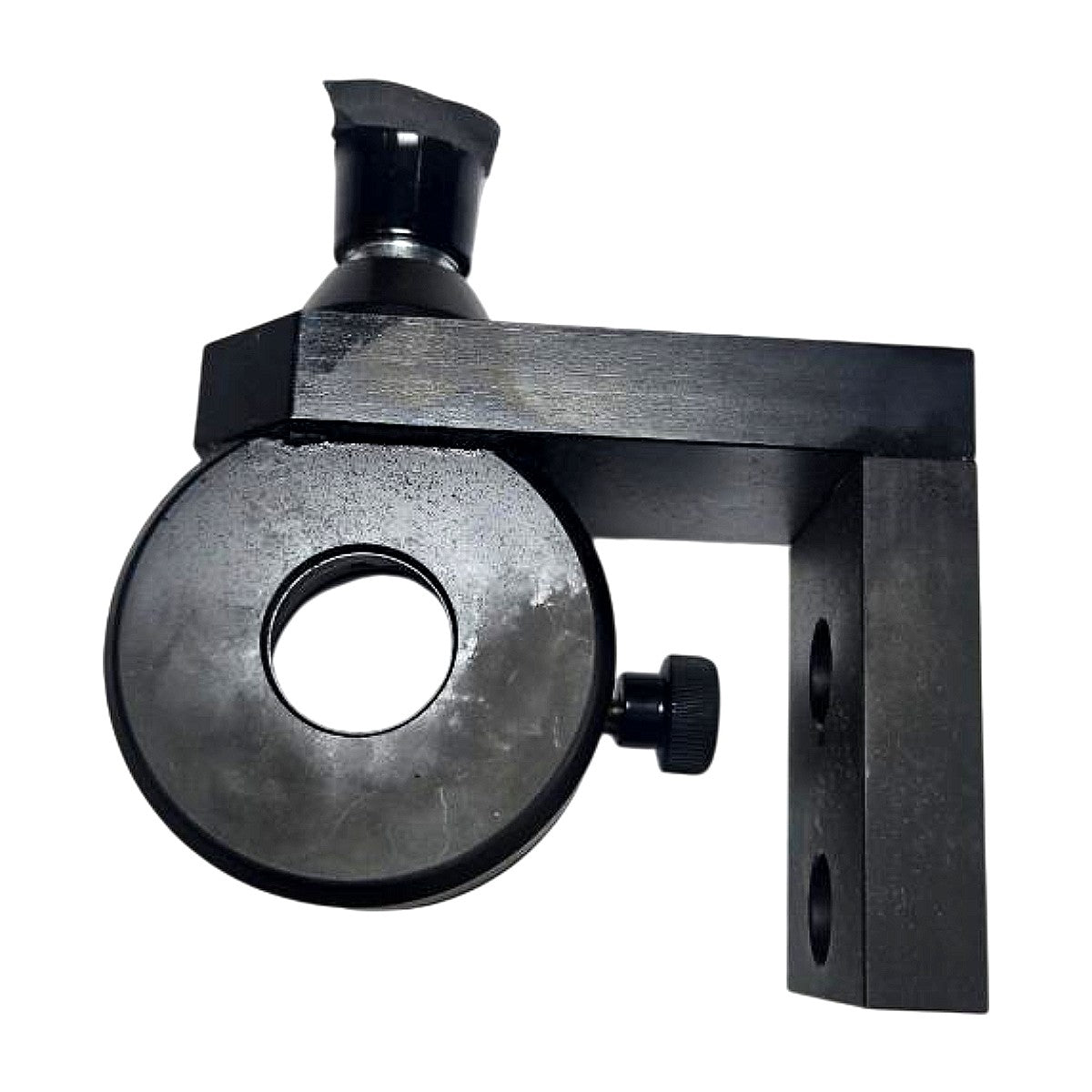

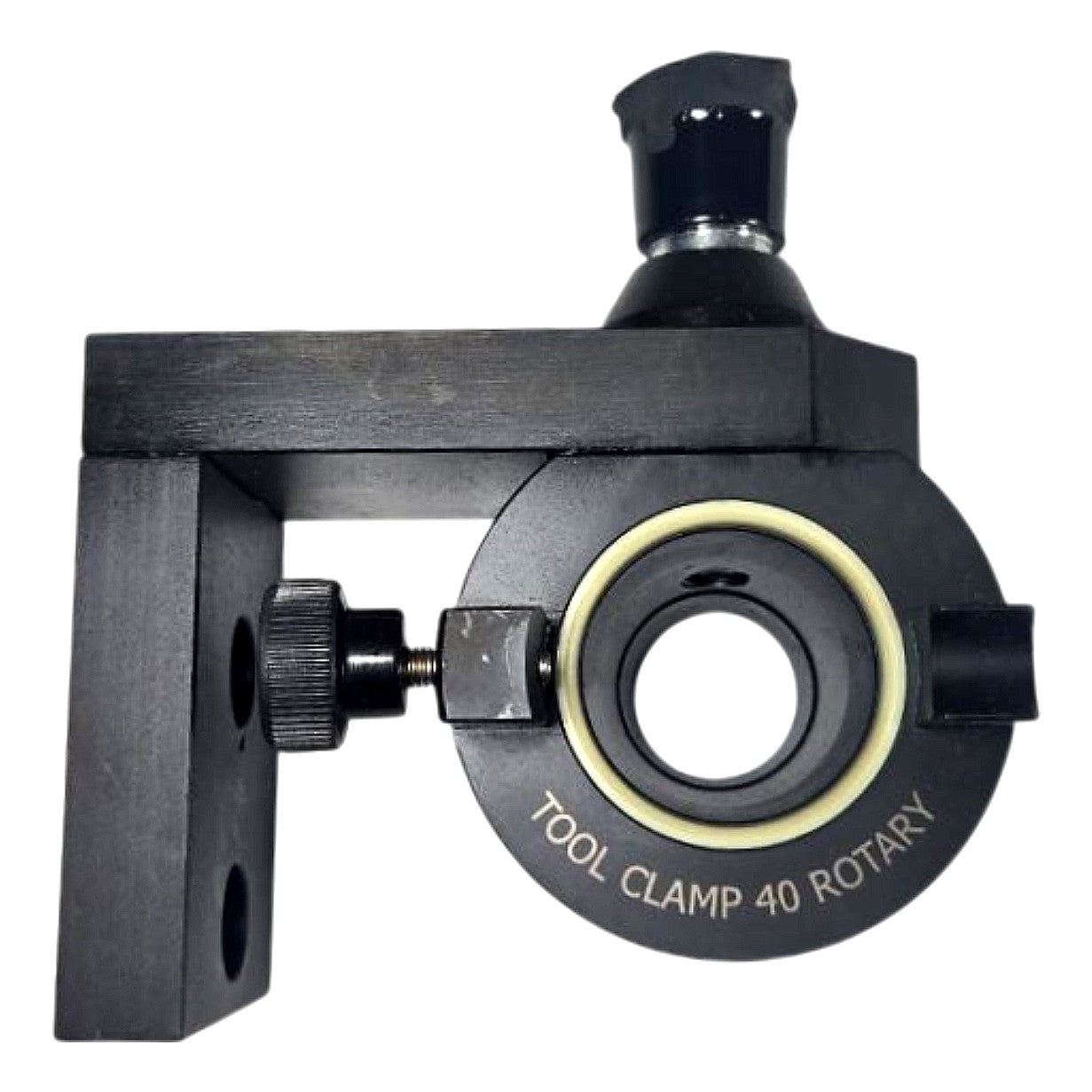

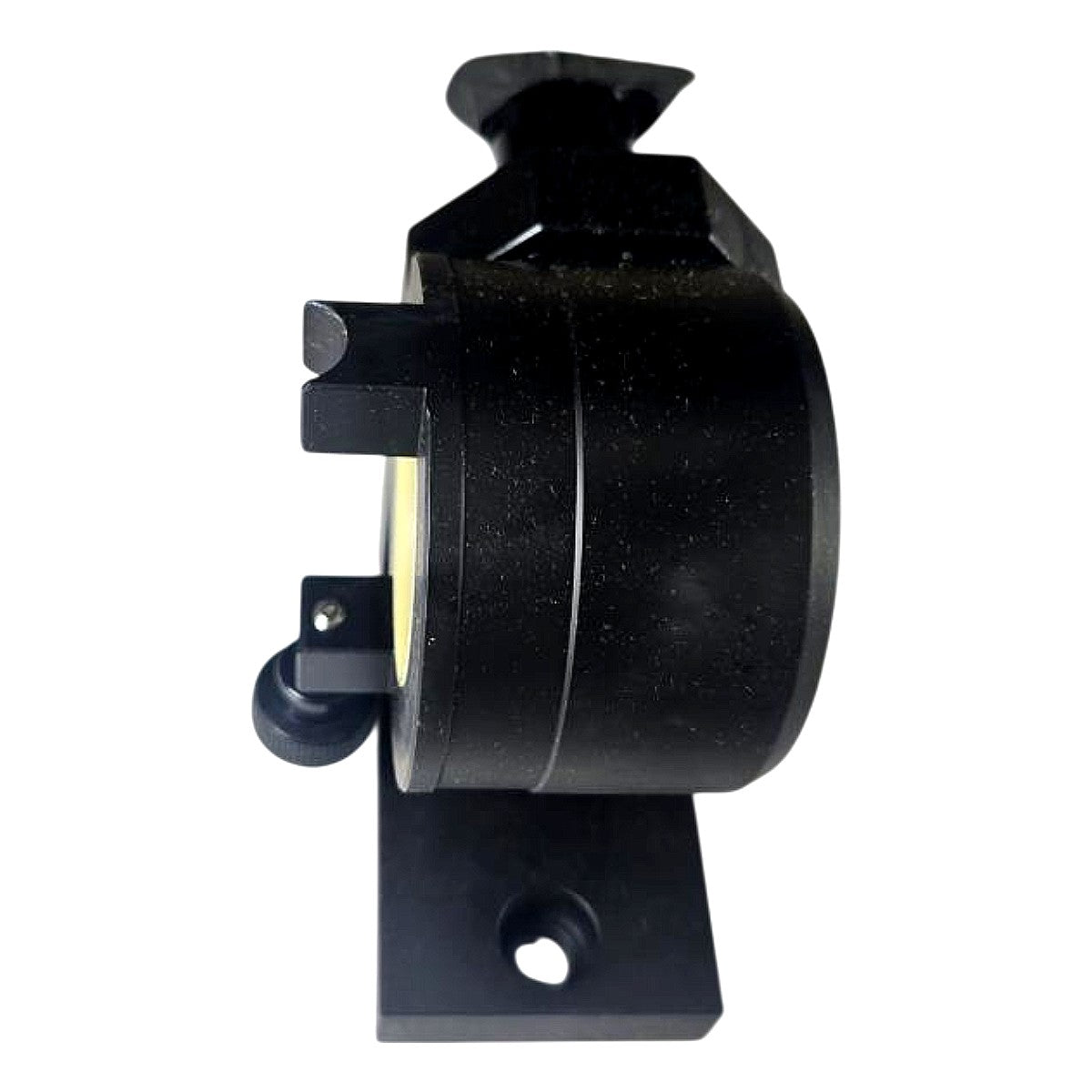

The Iscar 4513063 Tool Clamp 40 Rotary is a presetter or tool setter clamping fixture designed to securely hold BT40 (ISO 7388-2 / MAS 403 BT) taper toolholders during tool length presetting operations, produced under the ISCAR/ETM Tool brand, a member of the IMC Group. The rotary design incorporates a precision ball-bearing ring (visible cream/yellow polymer bearing race) that allows the clamped toolholder to rotate freely about its axis — enabling spindle-speed or runout measurements without unclamping. The L-bracket mounting base features two slotted bolt holes for rigid fixture mounting to presetter tables or surface plates, and a knurled thumbscrew with a ball-plunger provides positive angular indexing/locking of the rotary ring. Supplied new in original Iscar/IMC Group packaging (box shows some shelf wear); the unit itself is in new, unused condition. Compatible with BT40 taper shank toolholders and designed for use with tool presetters, CMMs, or inspection fixtures.
Product Specifications
| Brand | Iscar / ETM Tool (IMC Group) |
| Part Number | 4513063 |
| Product Name | Tool Clamp 40 Rotary |
| Taper Size | BT40 (ISO 7388-2 / MAS 403 BT) |
| Clamp Type | Rotary (360° free rotation w/ locking) |
| Mounting Base | L-bracket w/ 2 slotted bolt holes |
| Locking Mechanism | Knurled thumbscrew w/ ball-plunger detent |
| Bearing Type | Polymer/composite race rotary bearing ring |
| Body Finish | Black oxide / black anodized steel |
| Country of Origin | China (per box label) |
| Condition | New — other (original box, shelf wear) |
