Iscar 4513064 Tool Clamp 50 Rotary Tool Clamp Fixture
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

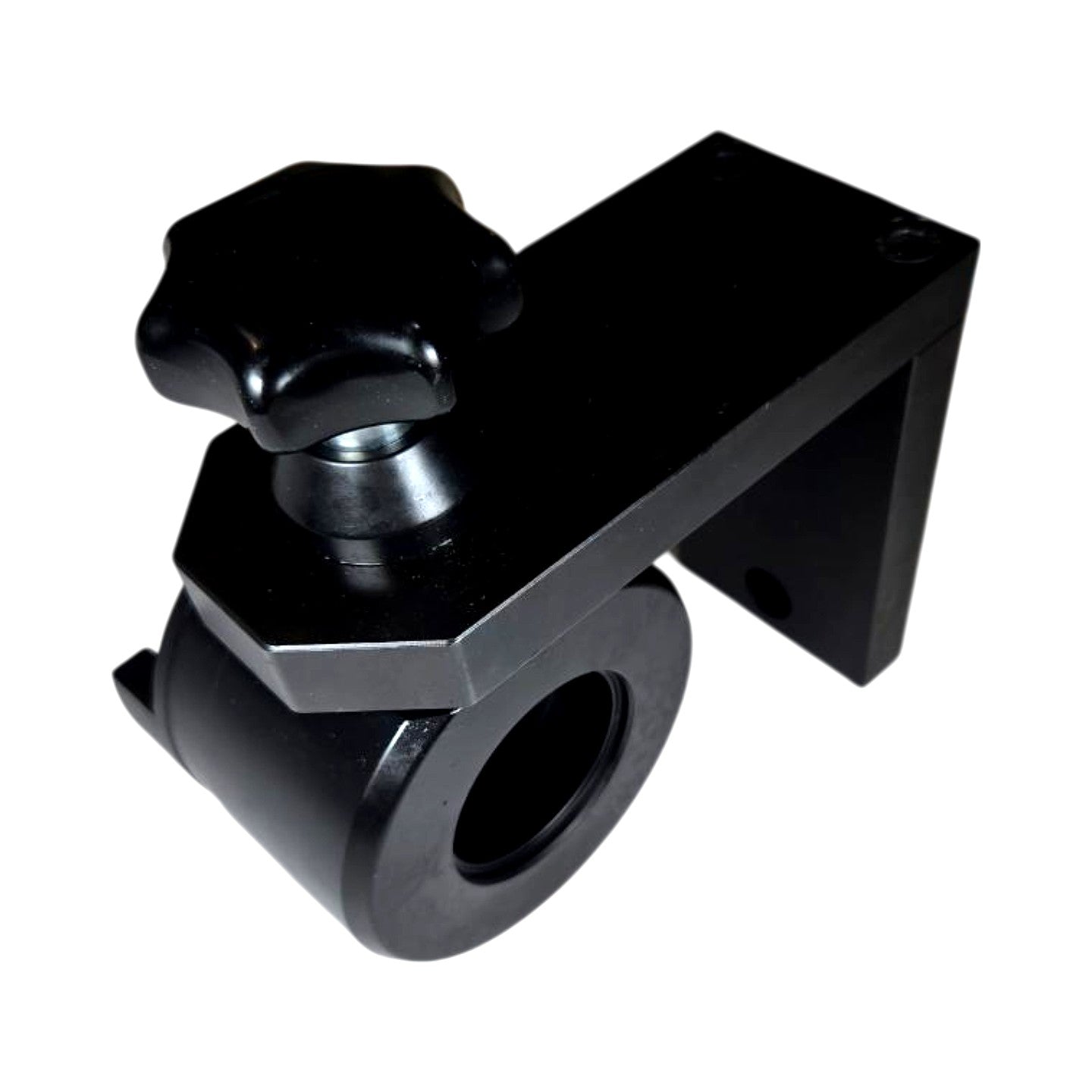

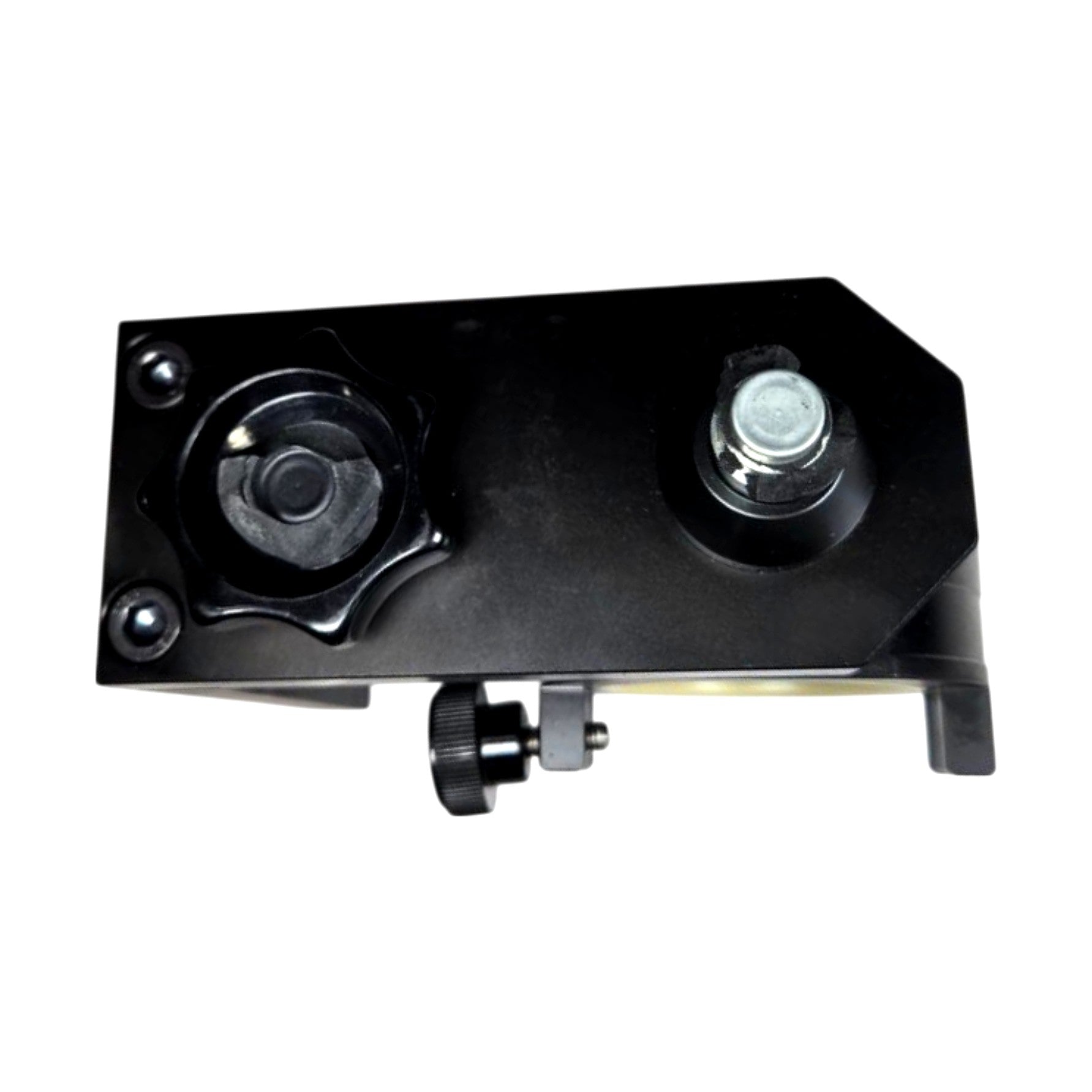

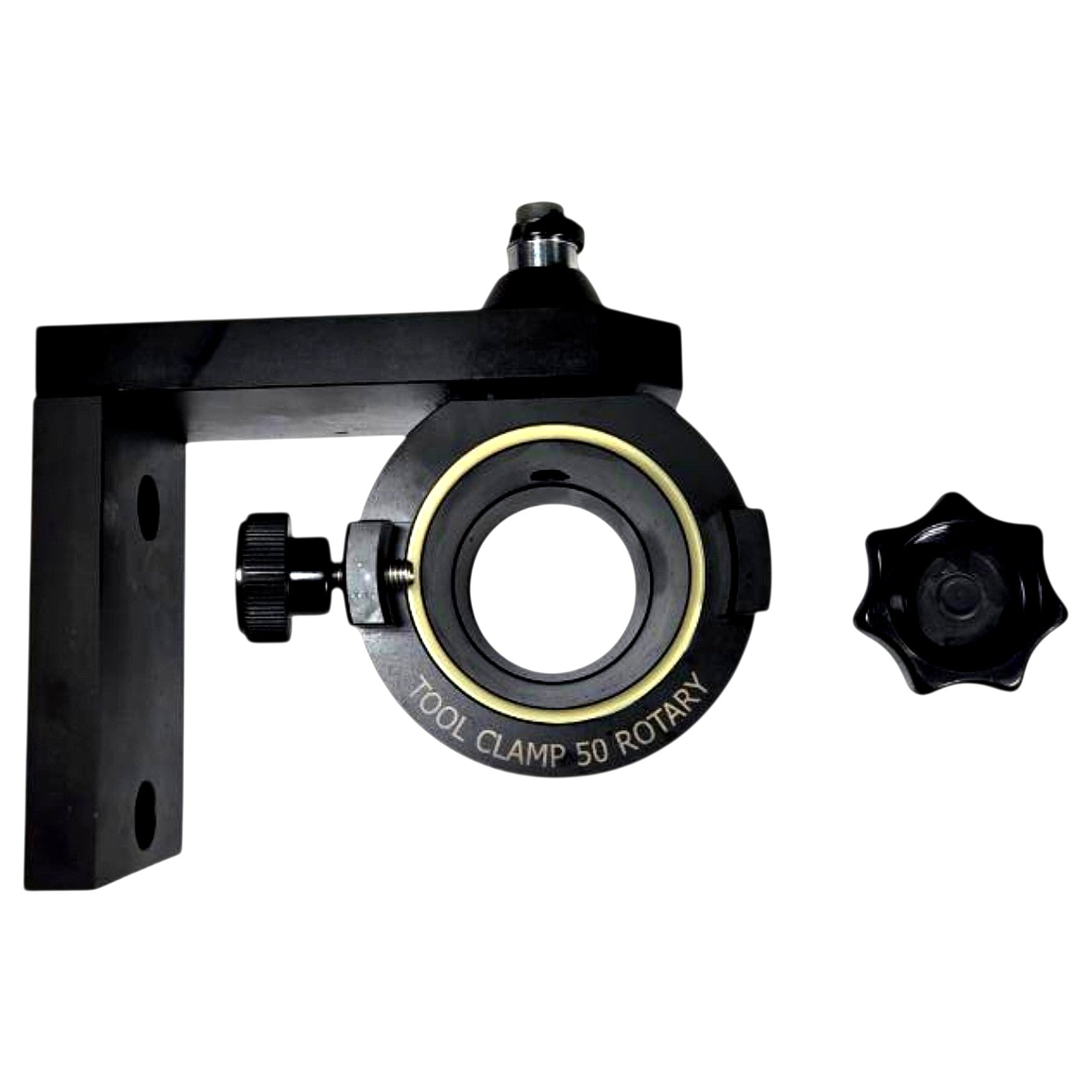

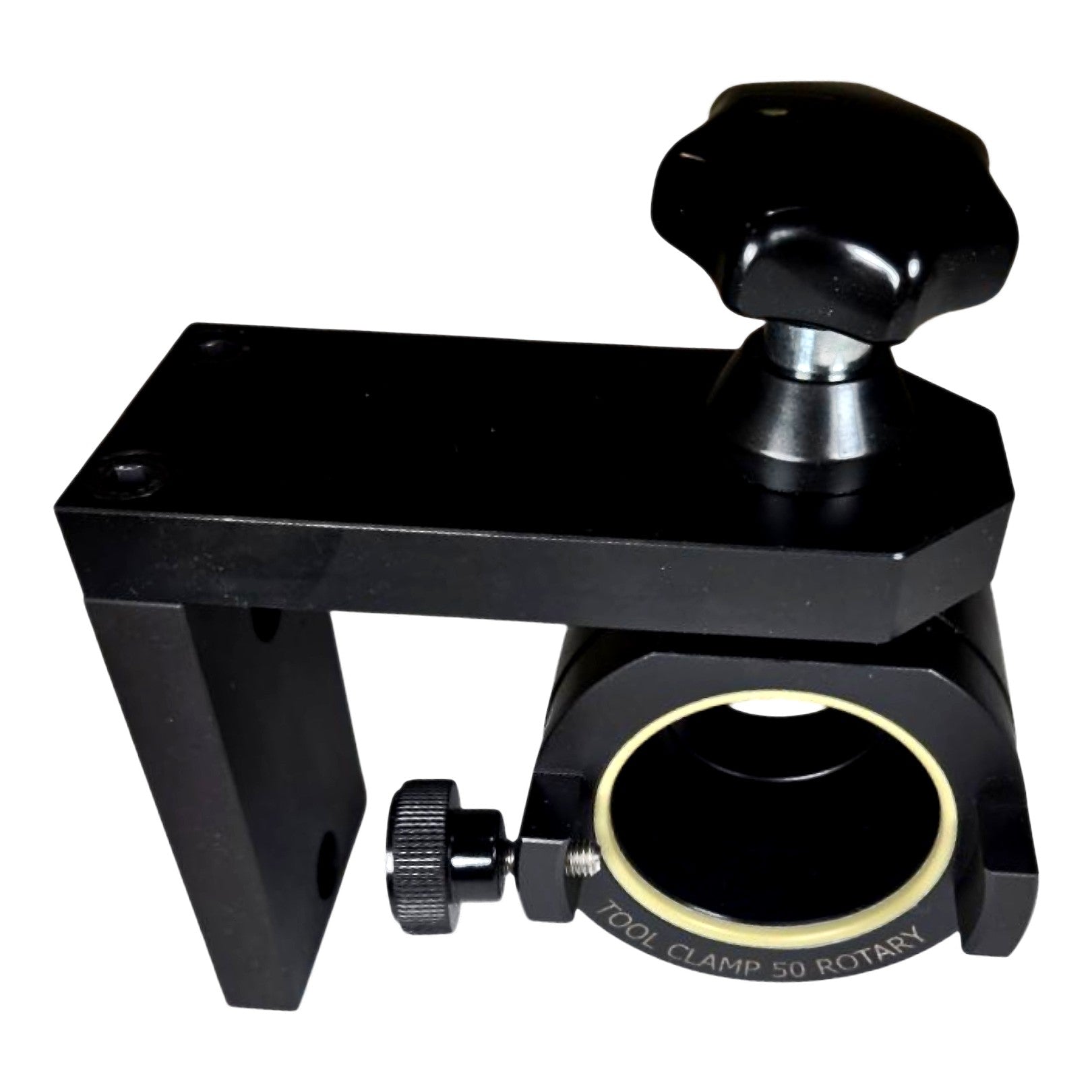

The Iscar 4513064 Tool Clamp 50 Rotary is a precision tool clamping fixture from Iscar (IMC Group) designed to hold and position cutting tools with a 50mm bore diameter, incorporating a rotary ring mechanism that allows angular positioning of the clamped tool. The fixture body is constructed from hardened steel with a black oxide finish, featuring an L-shaped mounting bracket with two slotted mounting holes for bench or machine mounting, a top-clamping star knob for axial locking, and a secondary knurled set-screw for rotational position locking via a detent mechanism visible on the ring. This unit is supplied new-other in its original Iscar/IMC Group box (MSC order label present), showing minor box wear consistent with warehouse storage but the fixture itself is unused; it is compatible with Iscar's tool presetting and fixture system accessories for 50mm shank or body diameter tooling.
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number (MPN) | 4513064 |
| Model Name | Tool Clamp 50 Rotary |
| Bore / Clamp Diameter | 50 mm |
| Clamp Type | Rotary (360° angular positioning) |
| Mounting Style | L-bracket w/ slotted mounting holes |
| Locking Mechanism | Star knob (axial) + knurled set-screw (rotary) |
| Body Finish | Black oxide |
| Body Material | Steel |
| Manufacturer Group | IMC Group |
| Condition | New — other (original box, unused) |
| Country of Origin | China (per box label) |
