Iscar 5605872 H490 ANKX 170624PNTR IC928 Carbide Milling Insert (10 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

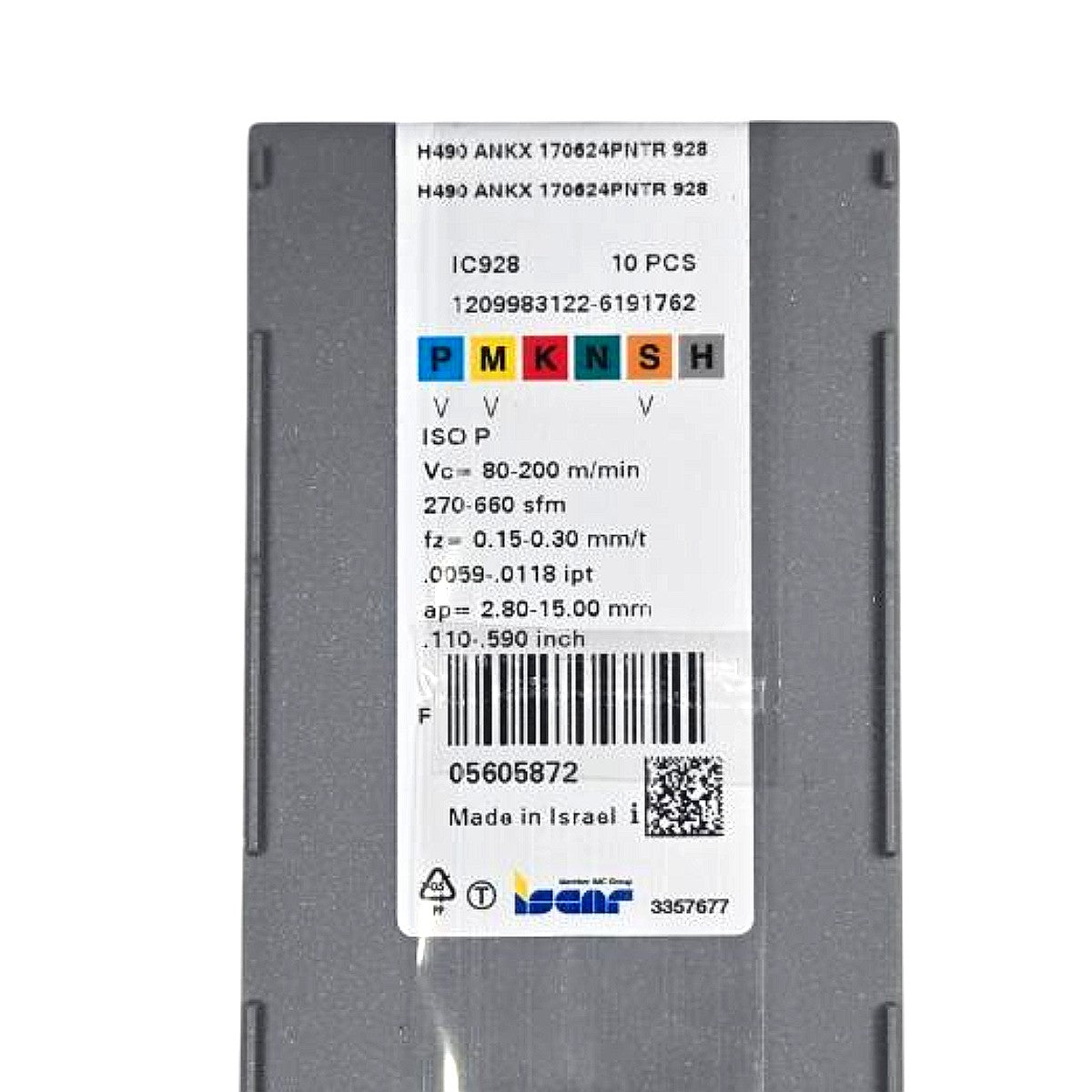

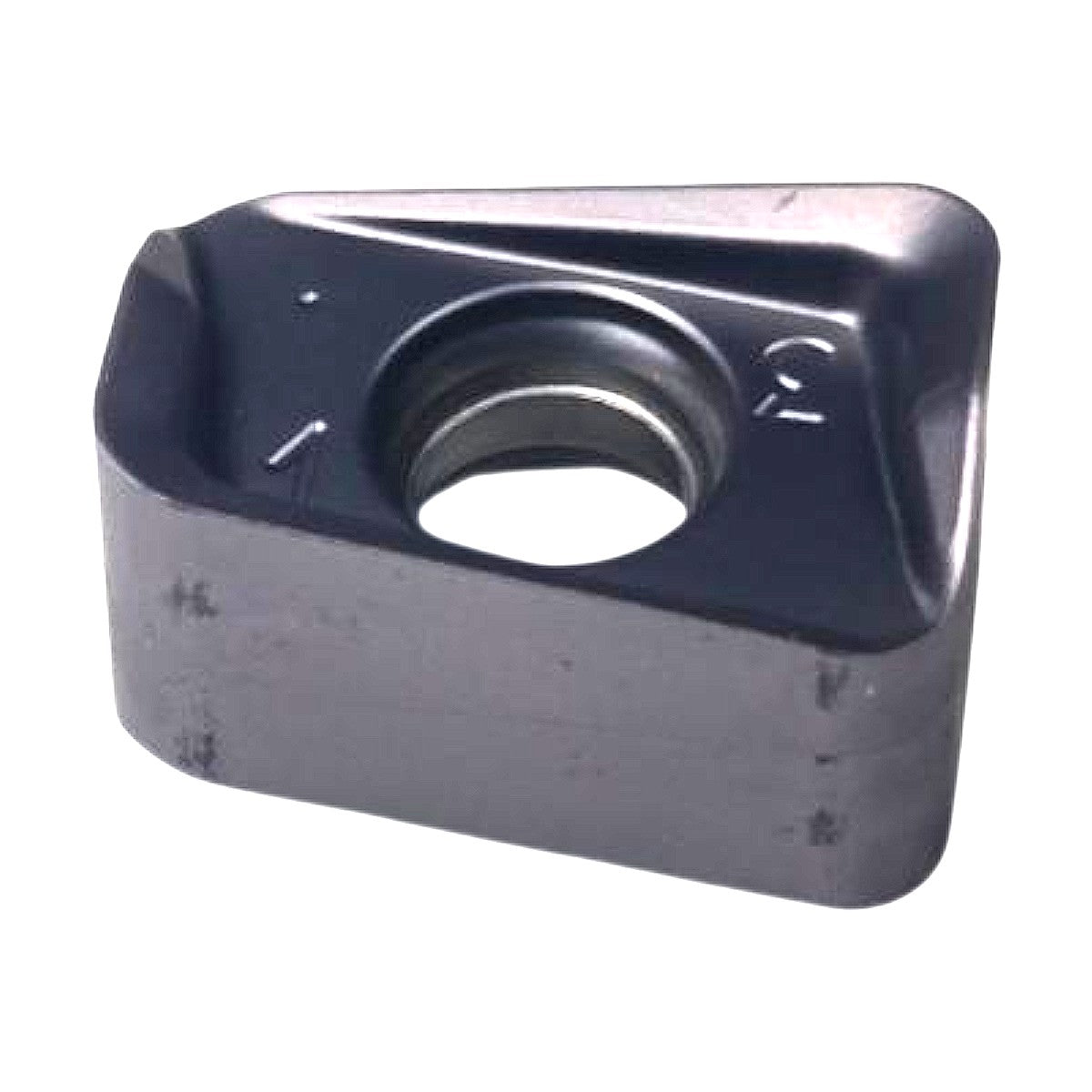

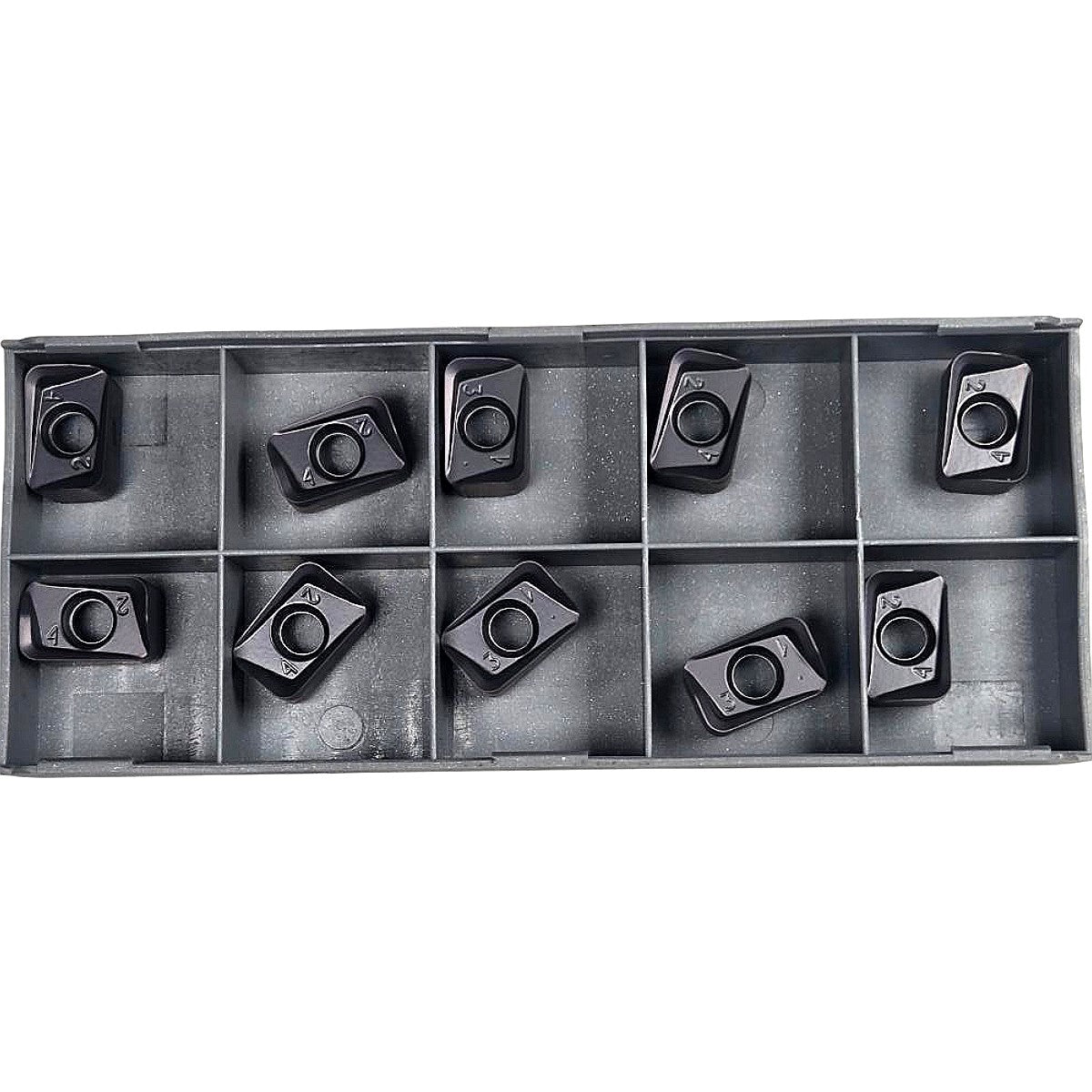

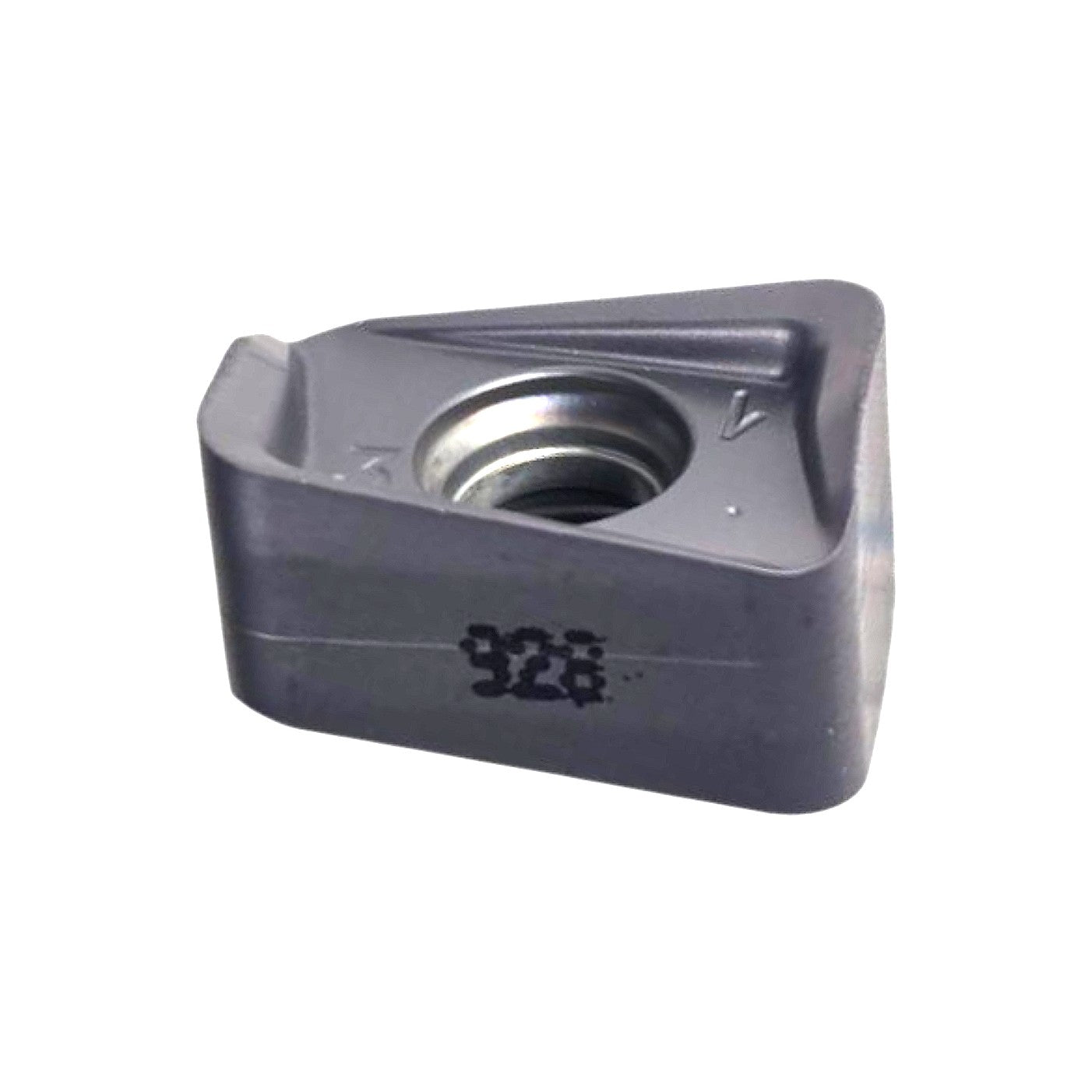

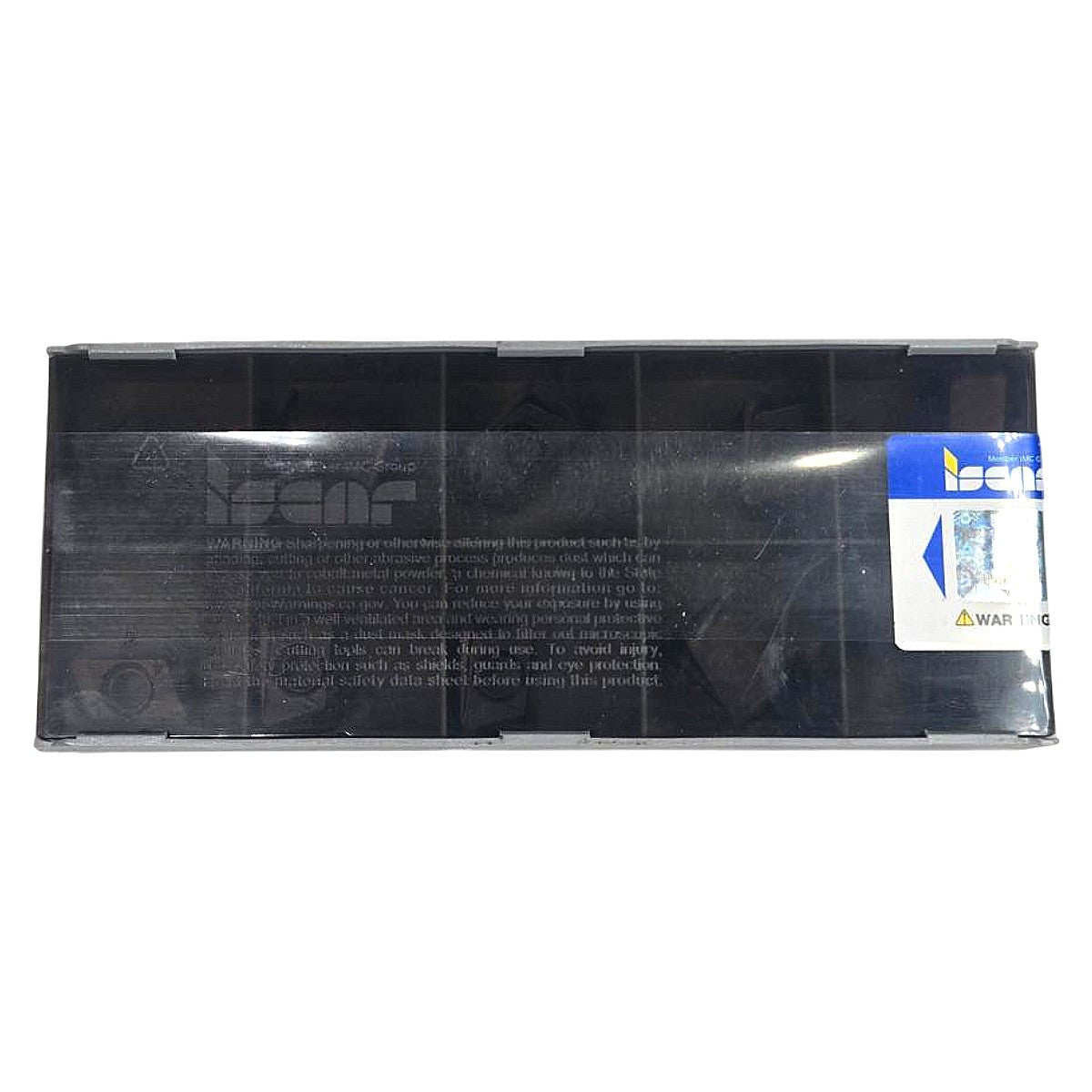

New Iscar 5605872 milling inserts marked H490 ANKX 170624PNTR in IC928 grade, supplied as a 10-piece pack in the factory Iscar case. The insert designation identifies the H490/ANKX milling insert style with 17 size, 06 thickness code, 24 edge-length/geometry code, and PNTR geometry suffix as marked on the manufacturer label. The label lists ISO P cutting data of Vc 80-200 m/min, 270-660 sfm, fz 0.15-0.30 mm/t, .0059-.0118 ipt, and ap 2.80-15.00 mm, .110-.590 in. The label also shows application icons checked for ISO P, ISO M, and ISO S material groups, and the inserts are solid carbide with parallelogram shape as stated for this item.
Product Specifications
| Brand | Iscar |
| MPN | 5605872 |
| Insert Designation | H490 ANKX 170624PNTR |
| Grade | IC928 |
| Insert Style | ANKX |
| Insert Size | 17 |
| Thickness Code | 06 |
| Geometry Suffix | PNTR |
| Material | Solid carbide |
| Shape | Parallelogram |
| Application Groups | ISO P, ISO M, ISO S |
| ISO P Cutting Speed | 80-200 m/min, 270-660 sfm |
| ISO P Feed per Tooth | 0.15-0.30 mm/t, .0059-.0118 ipt |
| ISO P Axial DOC | 2.80-15.00 mm, .110-.590 in |
| Quantity | 10 pcs |
| Country/Region of Mfr | Israel |
| Condition | New |
