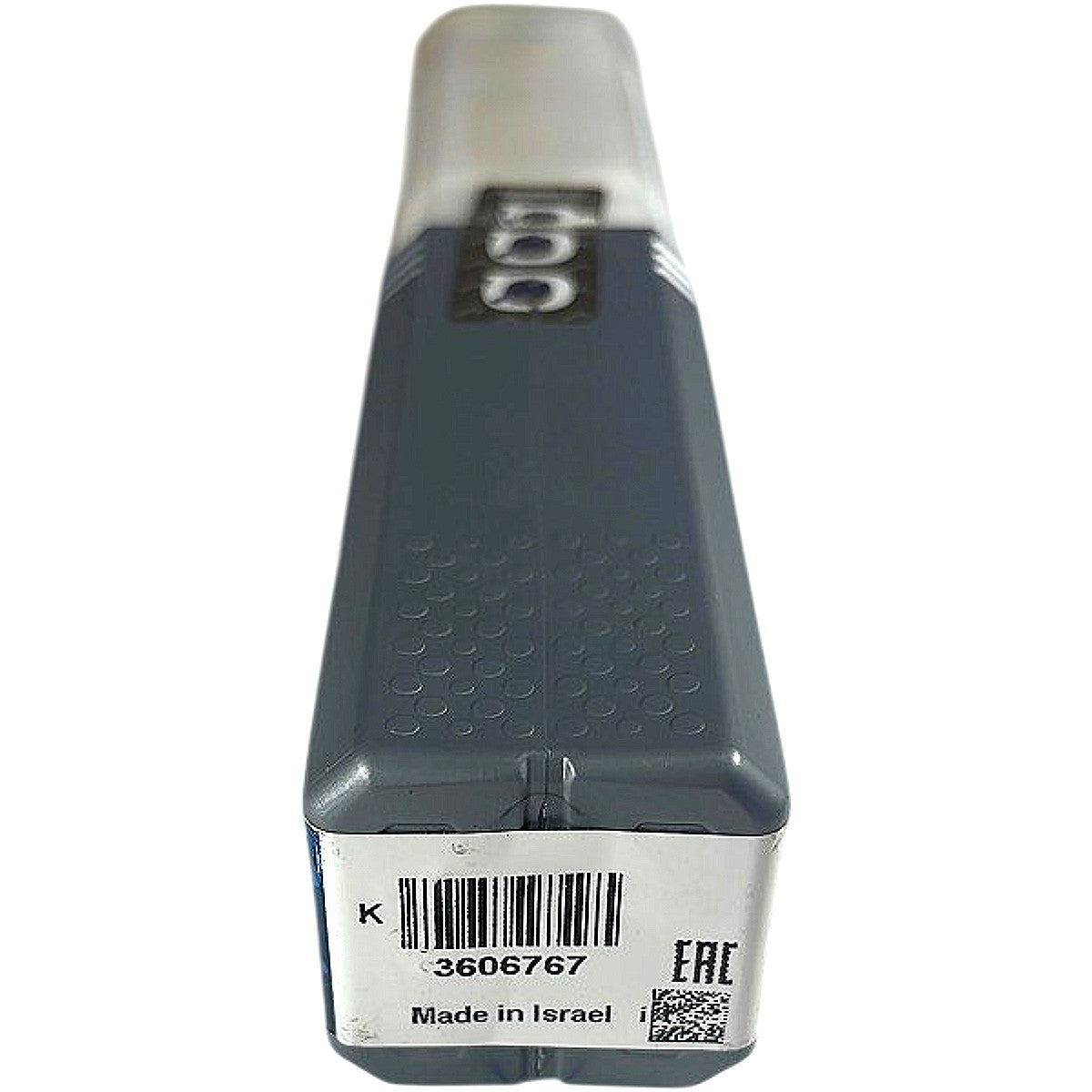

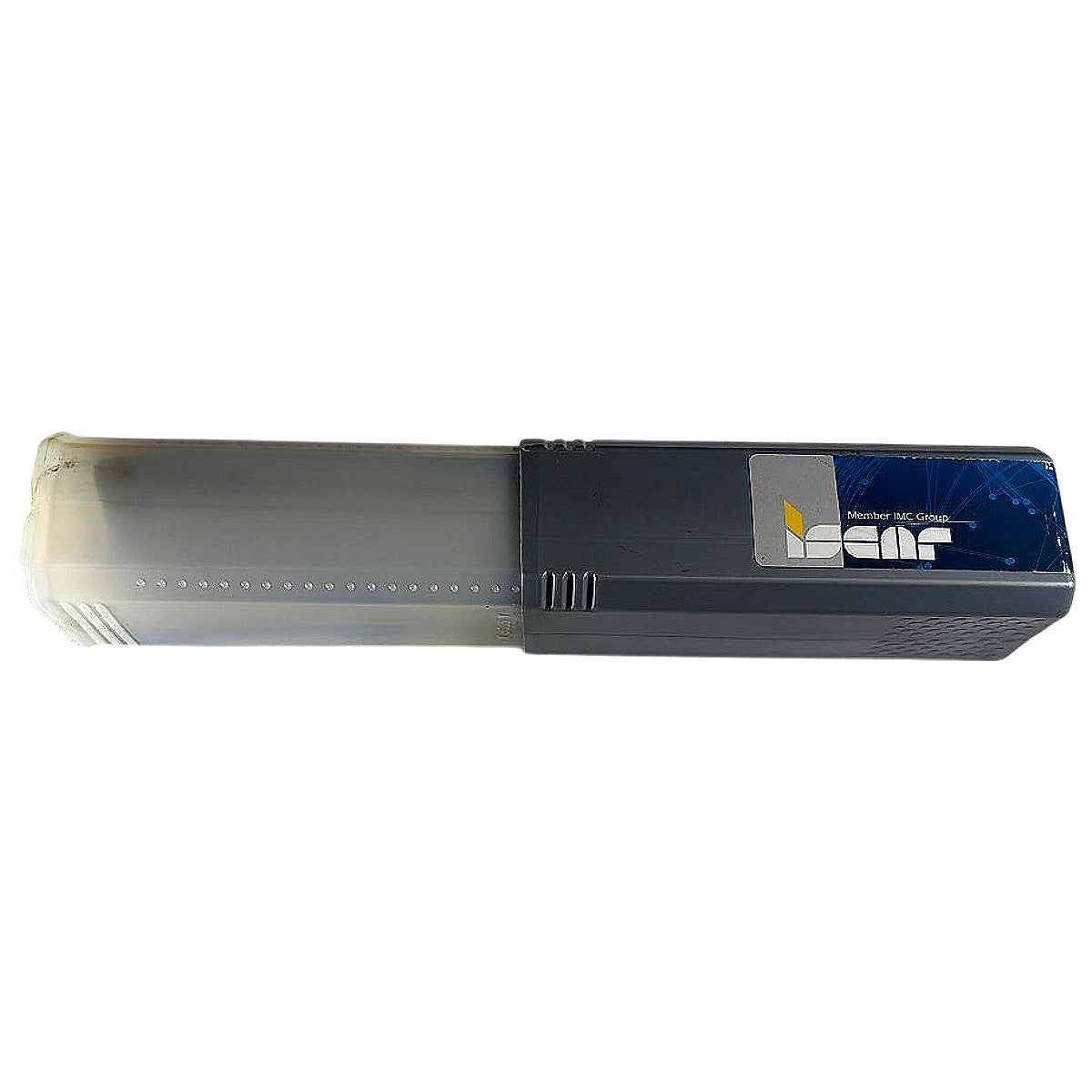

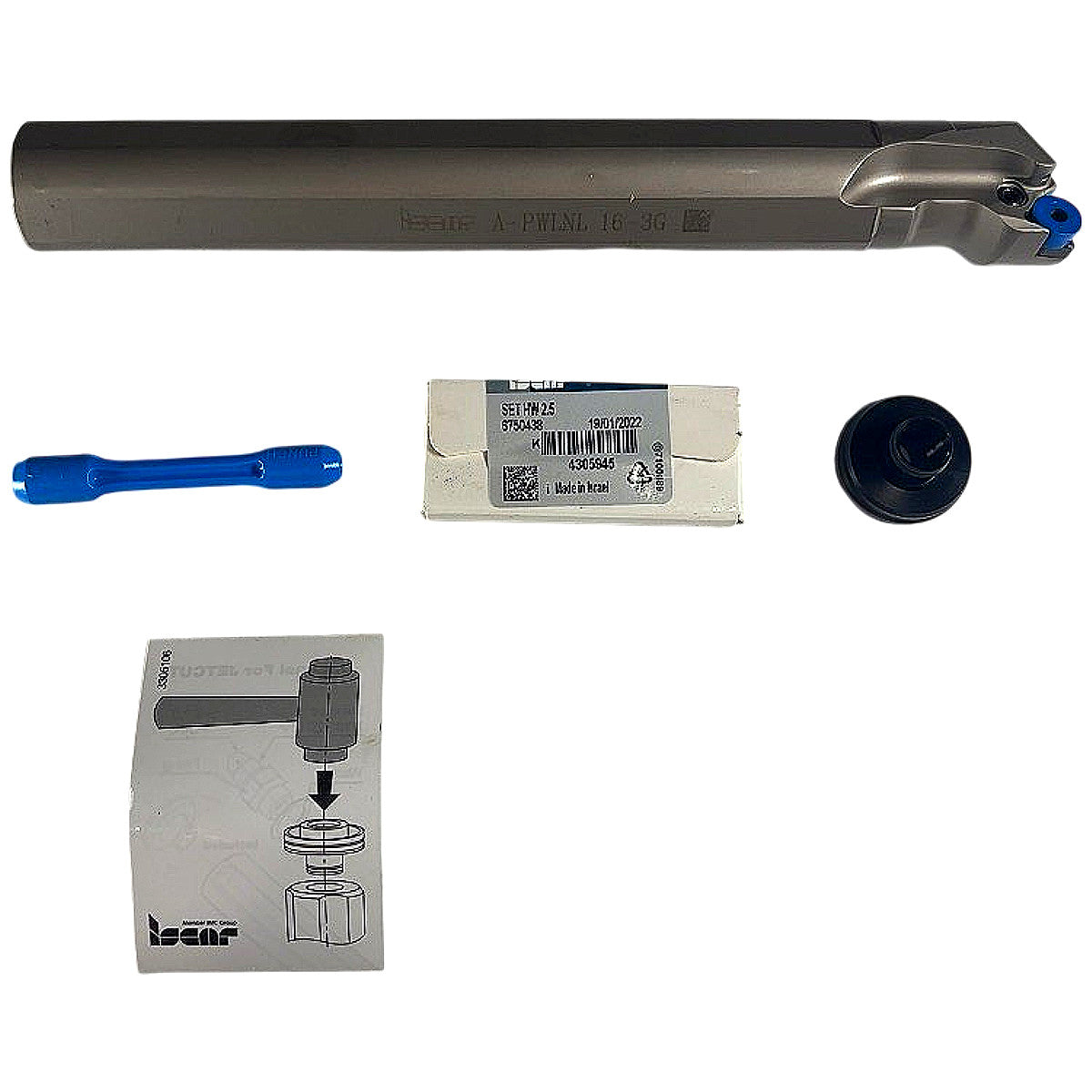

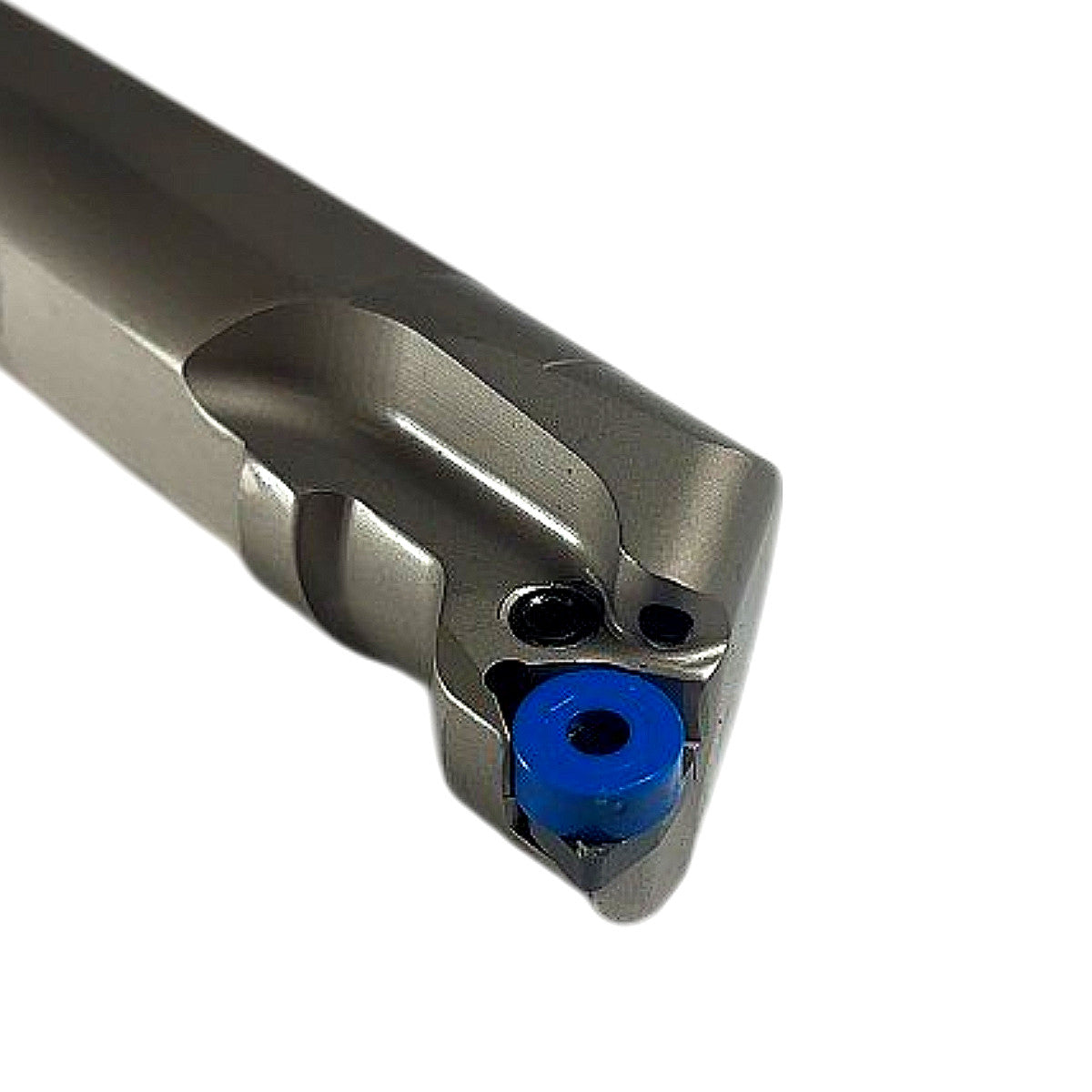

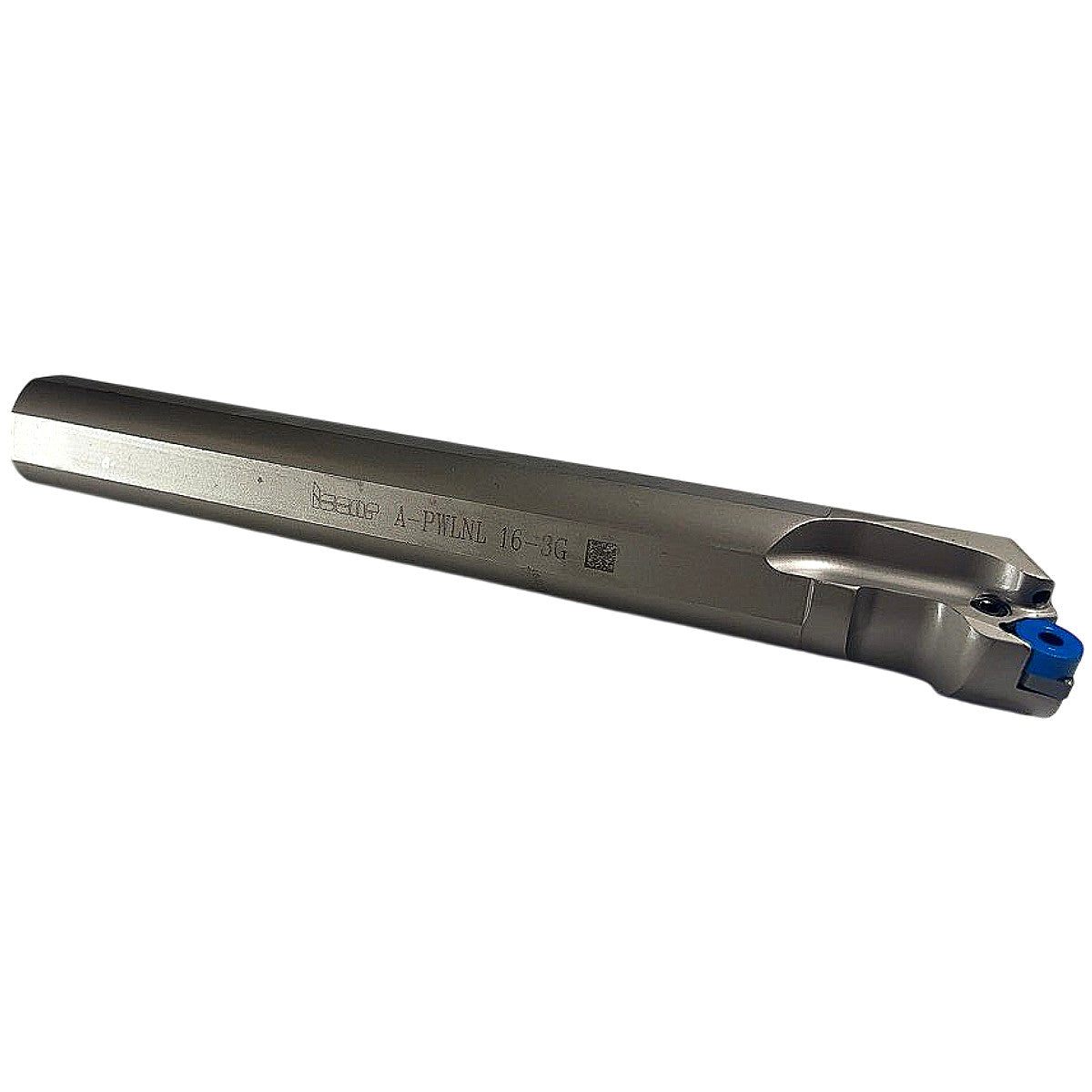

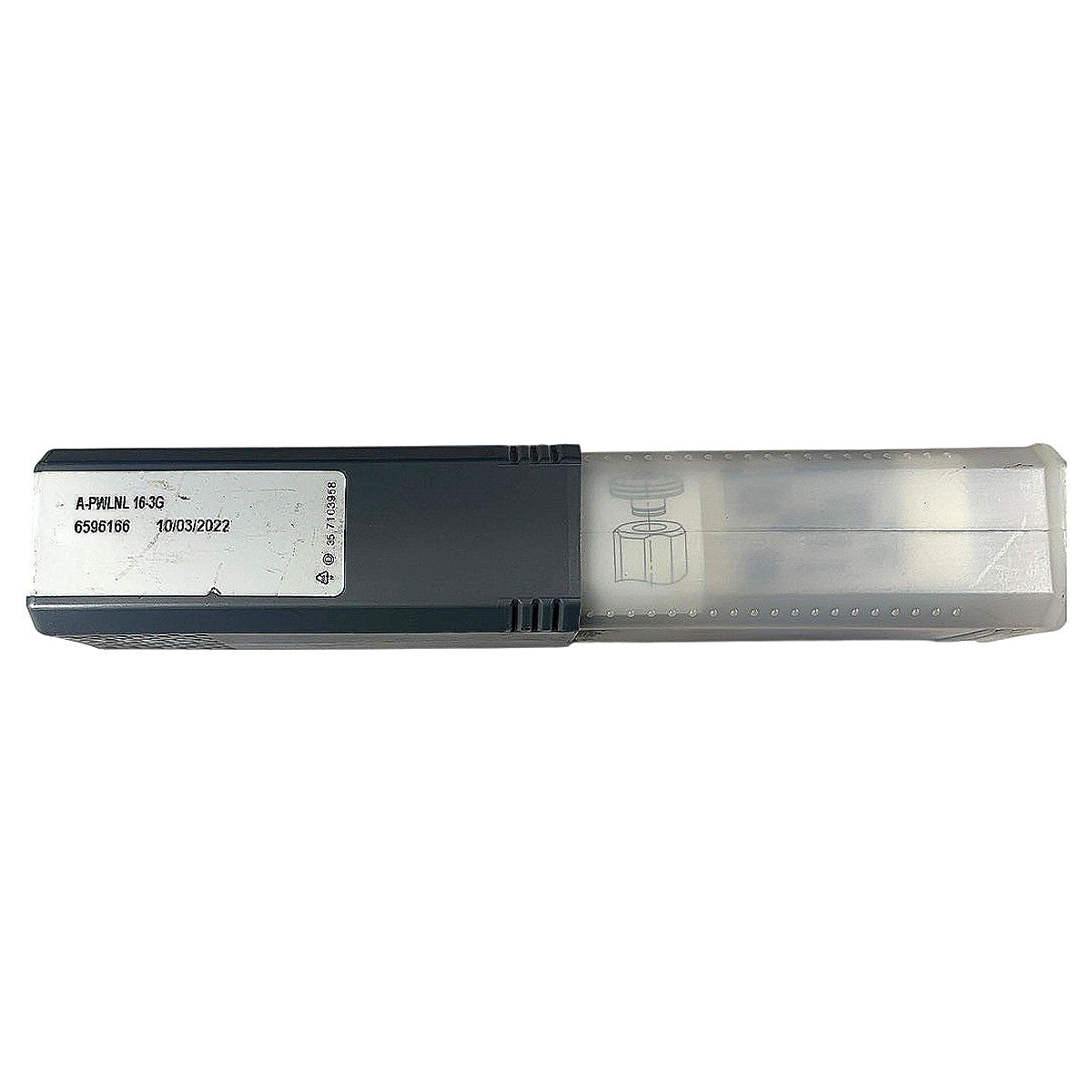

The Iscar A-PWLNL 16-3G is a new, left-hand indexable boring bar from Iscar's PWLN series, designed for internal turning and boring operations on CNC lathes and turning centers. Decoding the designation: "A" = cylindrical shank with coolant hole, "PWLN" = toolholder style accepting trigon (W-shape, 80° included angle) negative-rake inserts with no side rake and 0° clearance angle, "L" = left-hand cutting direction, "16" = 16 mm (approx. 5/8 in) shank diameter, "3" = insert size 3 (WNMG/WNMA 080 series), and "G" = coolant-through designation per Iscar convention. The body is manufactured from hardened alloy steel with an internal coolant channel that delivers high-pressure coolant directly to the cutting zone, enabling extended tool life and effective chip evacuation in deep-bore applications. The bar accepts WNMG 080408-style trigon inserts (W-shape, 80° point angle), and the third photo confirms the kit ships with an installed insert, spare insert, torx wrench, and Iscar SET HN 2.5 clamping hardware, all in Iscar's standard protective case (Iscar item 6596166, manufactured 10/03/2022, barcode 3606767).
Product Specifications
| Brand | Iscar |
| MPN | A-PWLNL 16-3G |
| Iscar Item Number | 6596166 |
| Shank Diameter | 16 mm (approx. 5/8 in) |
| Shank Style | Cylindrical (A-style) w/ internal coolant |
| Cutting Direction | Left-hand (L) |
| Insert Style | WNMG / WNMA 080 trigon, 80° point angle |
| Insert Clamping | Screw-on (G-type) |
| Coolant Through | Yes, internal coolant channel |
| Toolholder Series | PWLN |
| Application | Internal turning / boring |
| Country of Origin | Israel |
| Condition | New |
| Kit Contents | Bar, insert, spare insert, torx wrench, clamp hardware |
