Iscar DGR 2200JS-6D IC354 Carbide Grooving Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

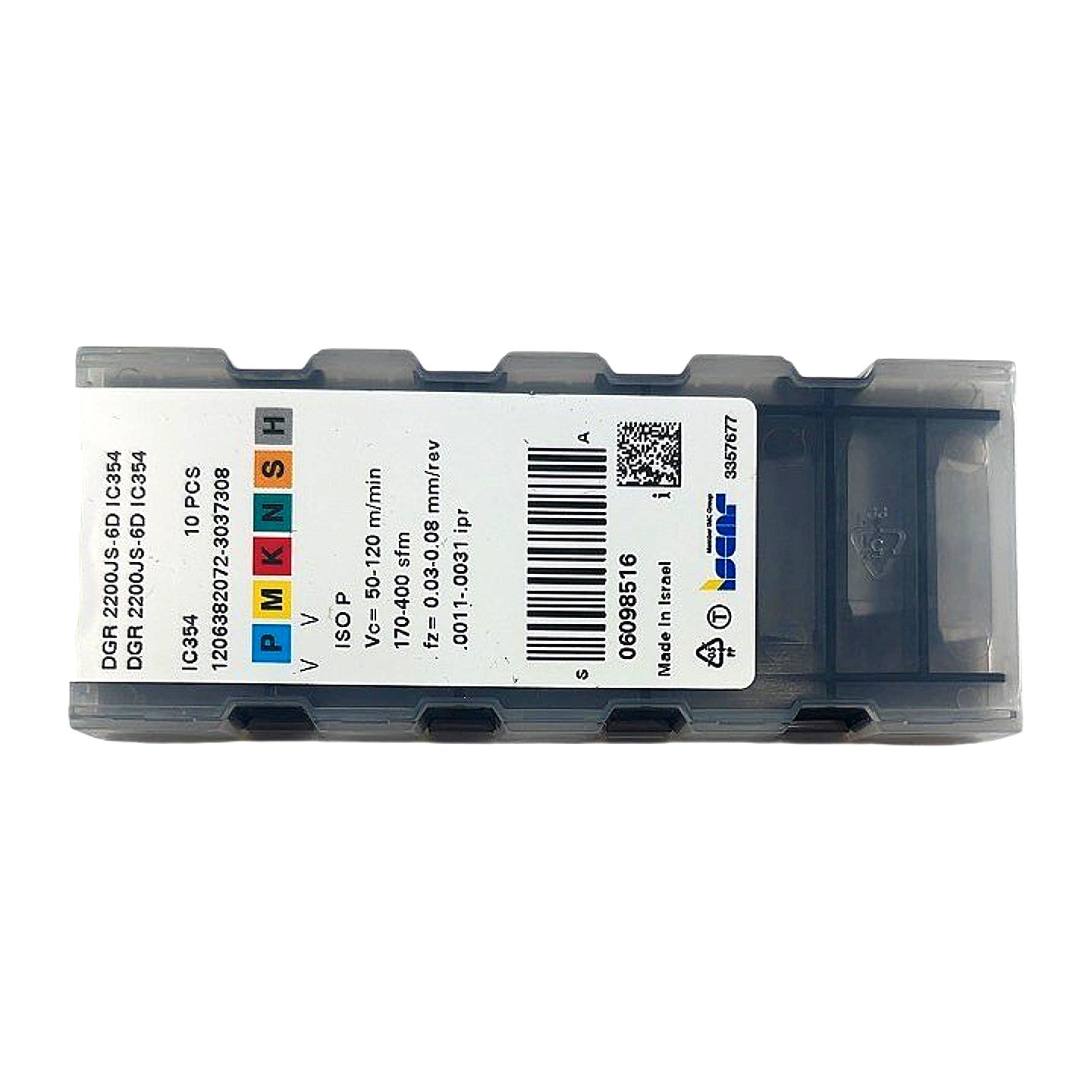

The Iscar DGR 2200JS-6D IC354 is a double-ended indexable carbide grooving insert from Iscar's DGFH/DGR family, designed for use in compatible Iscar DGFH-style toolholders and DGR slotting/grooving systems. The "2200" designates a 22 mm total insert length, "JS" indicates the JS-type chipbreaker geometry optimized for P, M, K, N, S, and H material groups across a broad cutting range, and "6D" specifies a 6 mm grooving width with a double-sided (2-edge) configuration. The grade IC354 is a CVD-coated carbide substrate featuring an Al₂O₃/TiCN multilayer coating over a tough carbide base, rated for ISO P applications and suited for machining steel, stainless steel, cast iron, non-ferrous materials, super alloys, and hardened materials. Recommended cutting data per the factory label: Vc = 50–120 m/min (170–400 SFM), fz = 0.03–0.08 mm/rev (0.0011–0.0031 IPR). Each factory-sealed Iscar plastic cassette contains 10 new, inspected inserts made in Israel.
Product Specifications
| Brand | Iscar |
| MPN | DGR 2200JS-6D IC354 |
| Grade | IC354 |
| Coating | CVD Al₂O₃/TiCN multilayer |
| Insert Width (Groove Width) | 6 mm |
| Insert Length | 22 mm |
| Cutting Edges | 2 (double-ended) |
| Chipbreaker | JS |
| ISO Material Groups | P, M, K, N, S, H |
| ISO Application | ISO P |
| Cutting Speed (Vc) | 50–120 m/min (170–400 SFM) |
| Feed Rate (fz) | 0.03–0.08 mm/rev (0.0011–0.0031 IPR) |
| Insert Material | Cemented carbide |
| Country of Origin | Israel |
| Qty per Package | 10 pcs |
| Condition | New |
