Iscar DR0594-2375-075-05-4D-N 0.594in 4xD Indexable Insert Drill
Regular price
$343.57
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

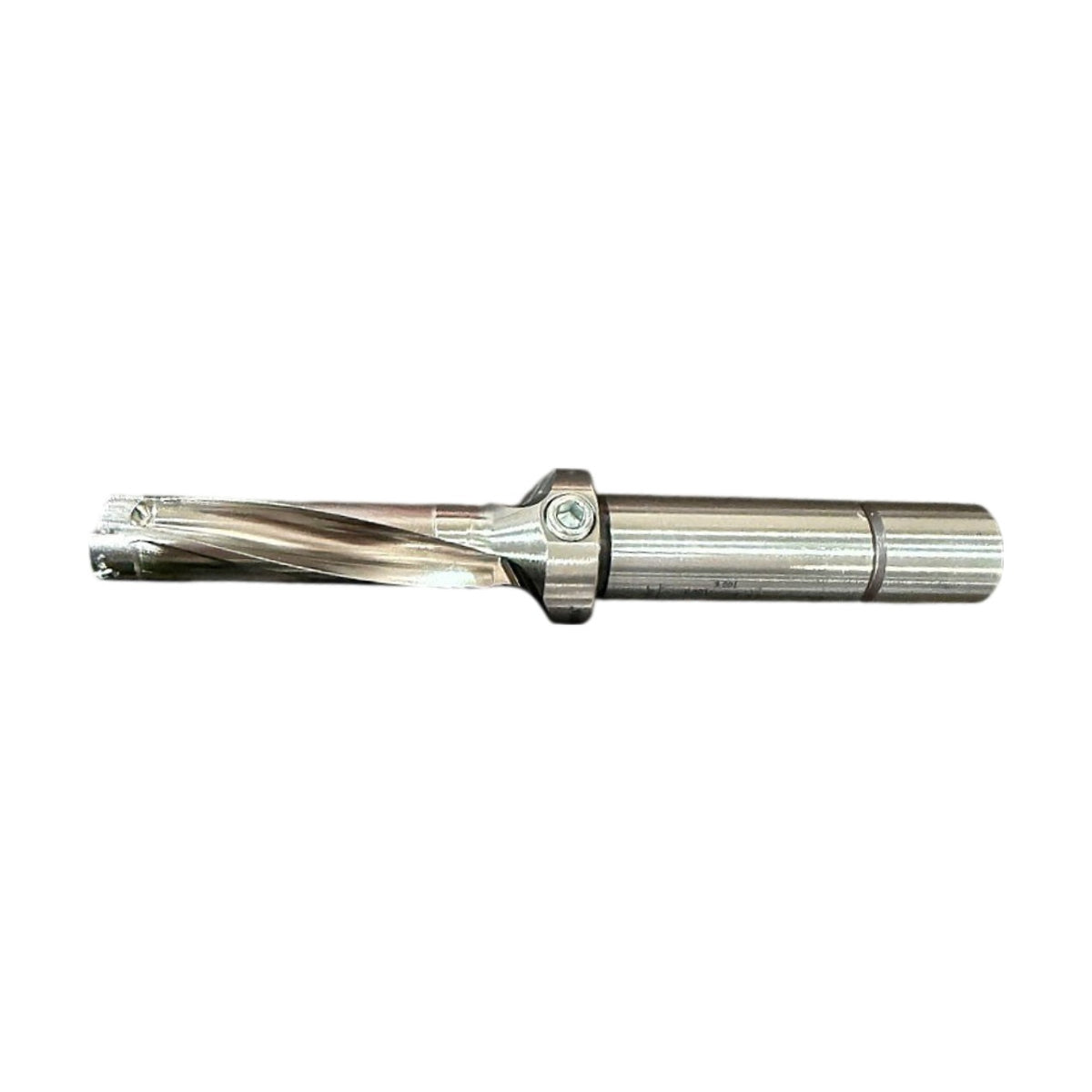

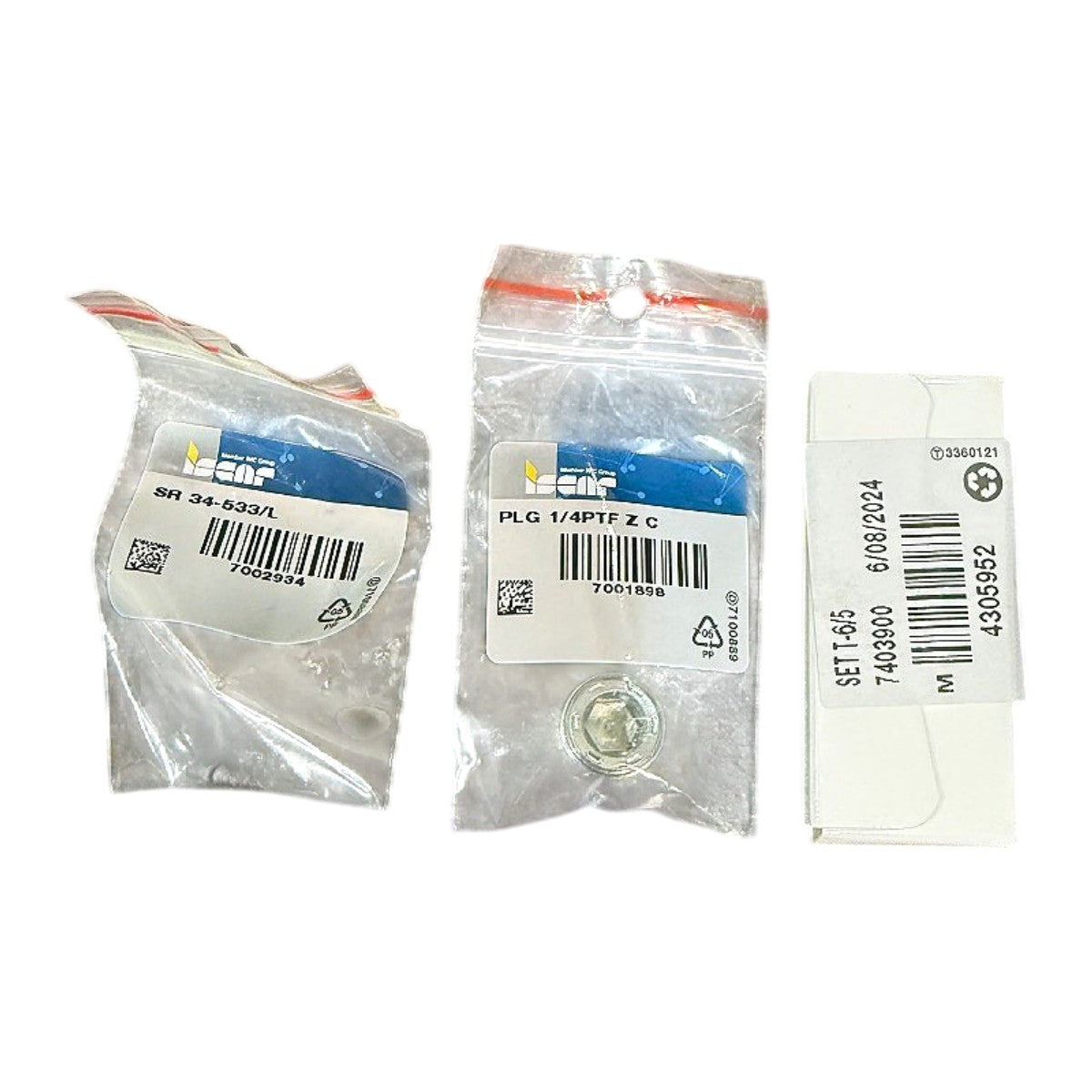

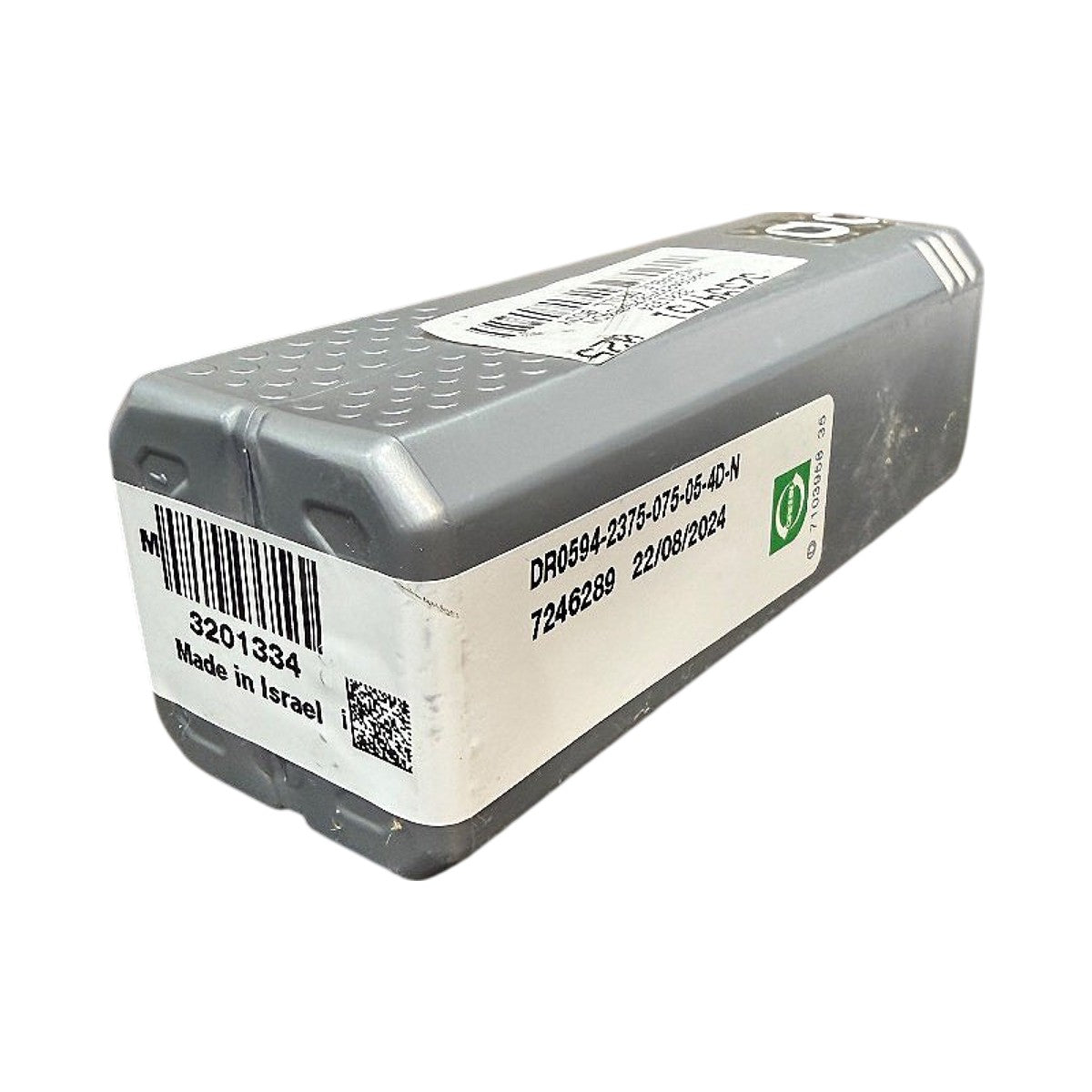

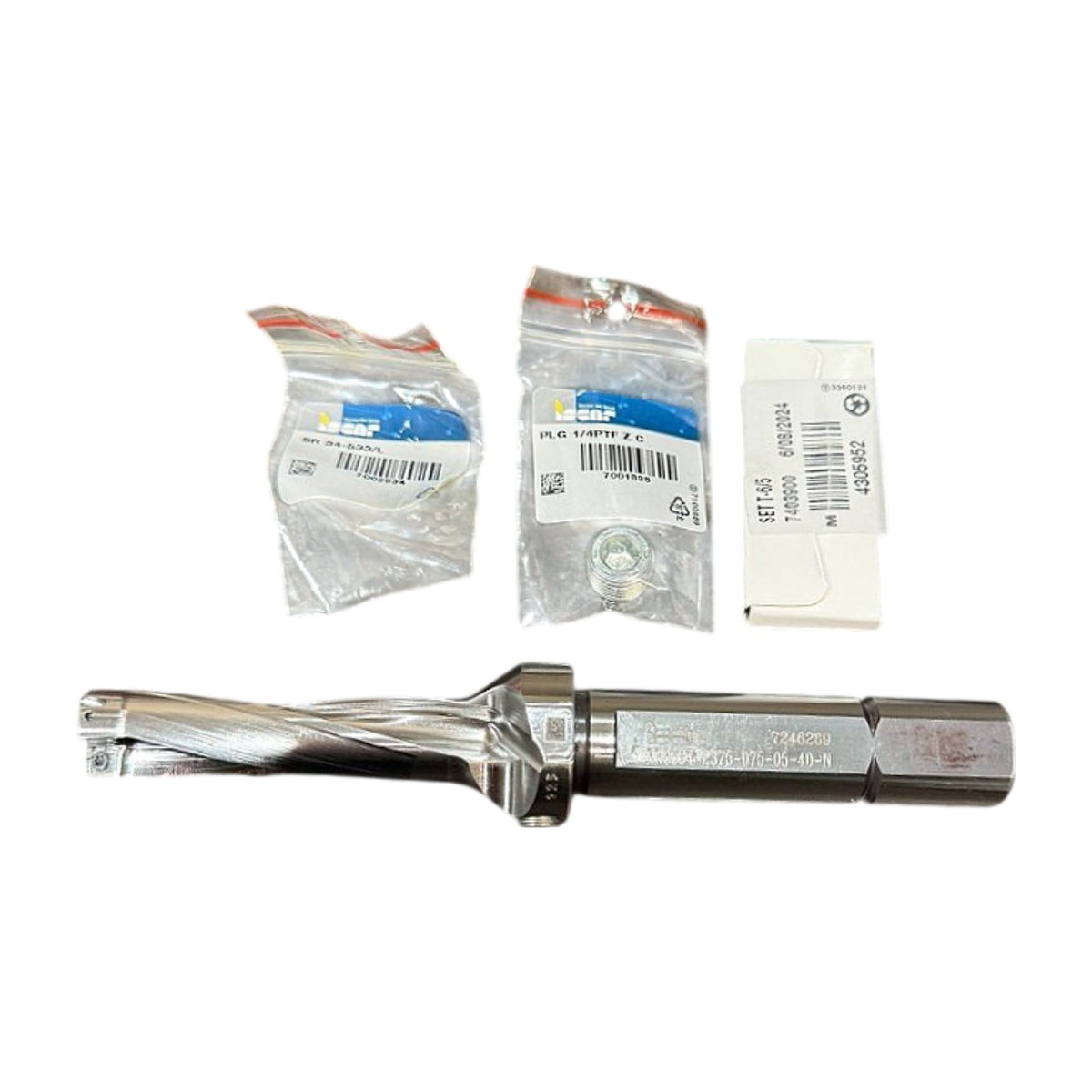

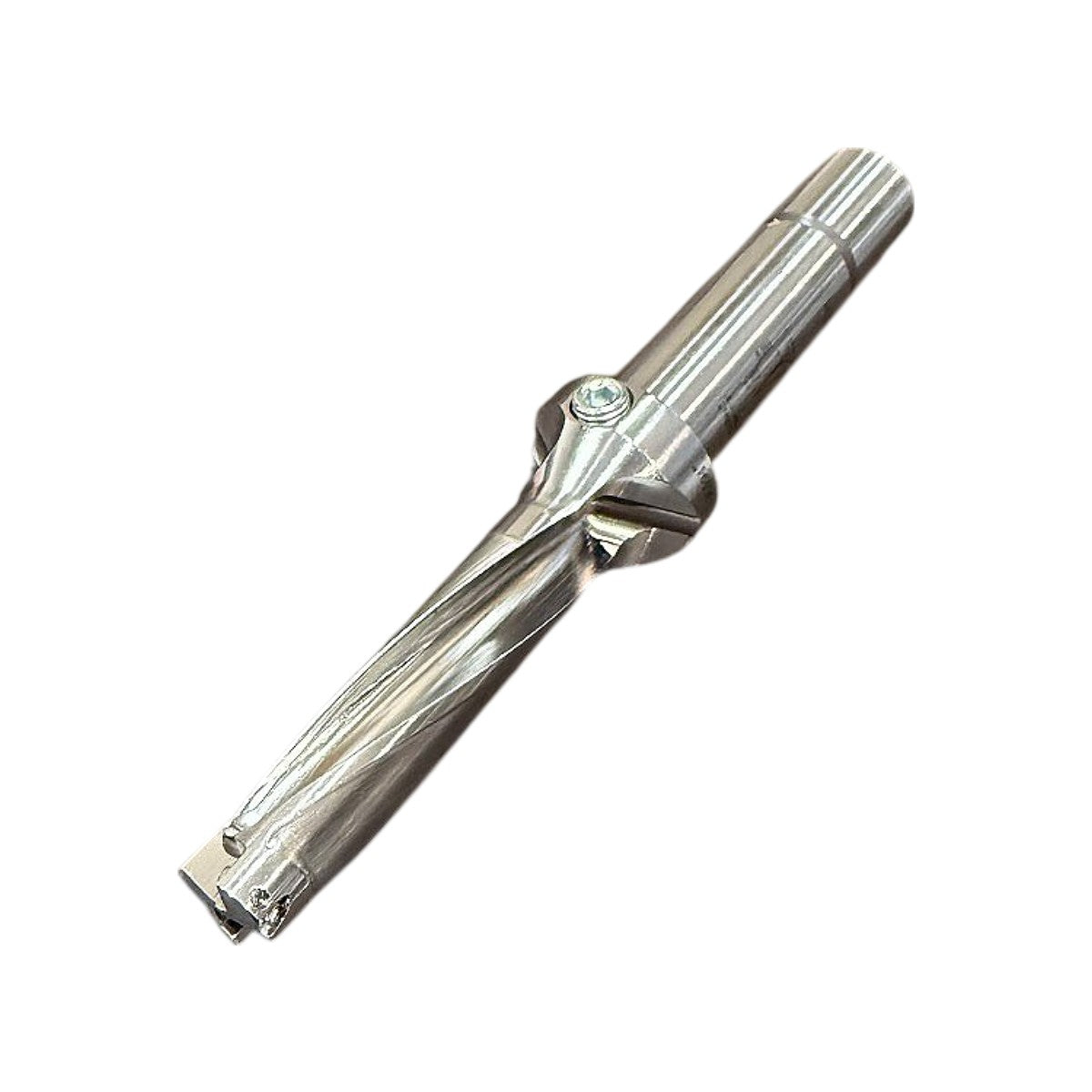

This Iscar DR0594-2375-075-05-4D-N (EDP 7246289, catalog 3201334) is an indexable insert drill body with a 0.594 in cutting diameter and a 4xD drilling depth, giving a 2.375 in drill depth. It has a 0.75 in shank with a clamping flat, a helical flute body, and a replaceable carbide insert held by a screw at the drill tip. The drill ships with an Iscar SR 34-533/L insert screw, a PLG 1/4PTF Z C plug, and a SET T-6/5 Torx key in sealed packaging. It was made in Israel and is offered new in the original Iscar box.
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number | DR0594-2375-075-05-4D-N |
| EDP Number | 7246289 |
| Catalog Number | 3201334 |
| Drill Diameter | 0.594 in |
| Drill Depth | 2.375 in |
| Depth Ratio | 4xD |
| Shank Diameter | 0.75 in |
| Shank Type | Flat (Weldon-style) shank |
| Drill Type | Indexable Insert Drill |
| Number of Flutes | 2 |
| Flute Form | Helical |
| Operation | Drilling |
| Country of Origin | Israel |
| Included Insert Screw | SR 34-533/L |
| Included Plug | PLG 1/4PTF Z C |
| Included Torx Key | SET T-6/5 |
