Iscar DSD-EF 50.80-FB Indexable Face Mill Cutter 50mm 4-Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

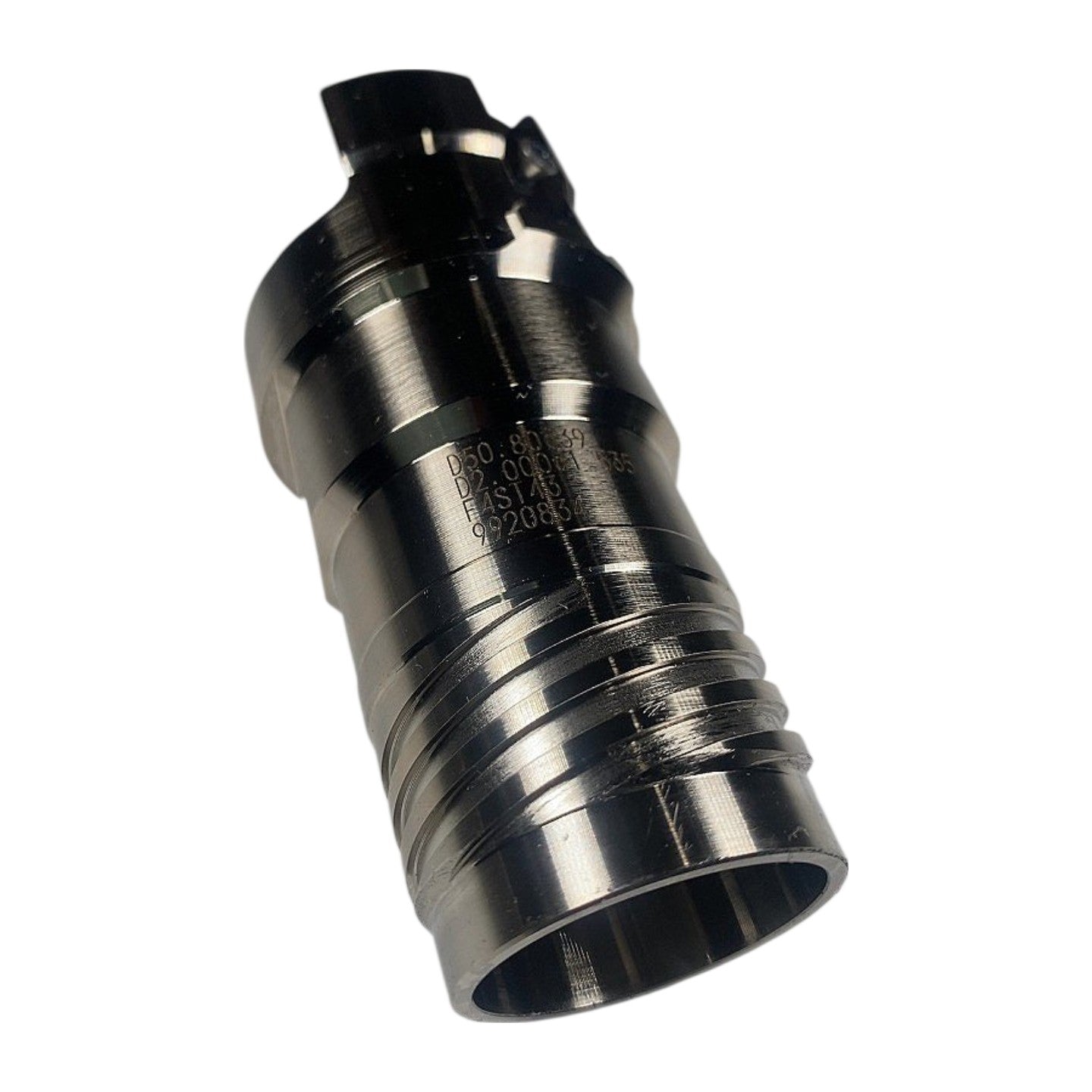

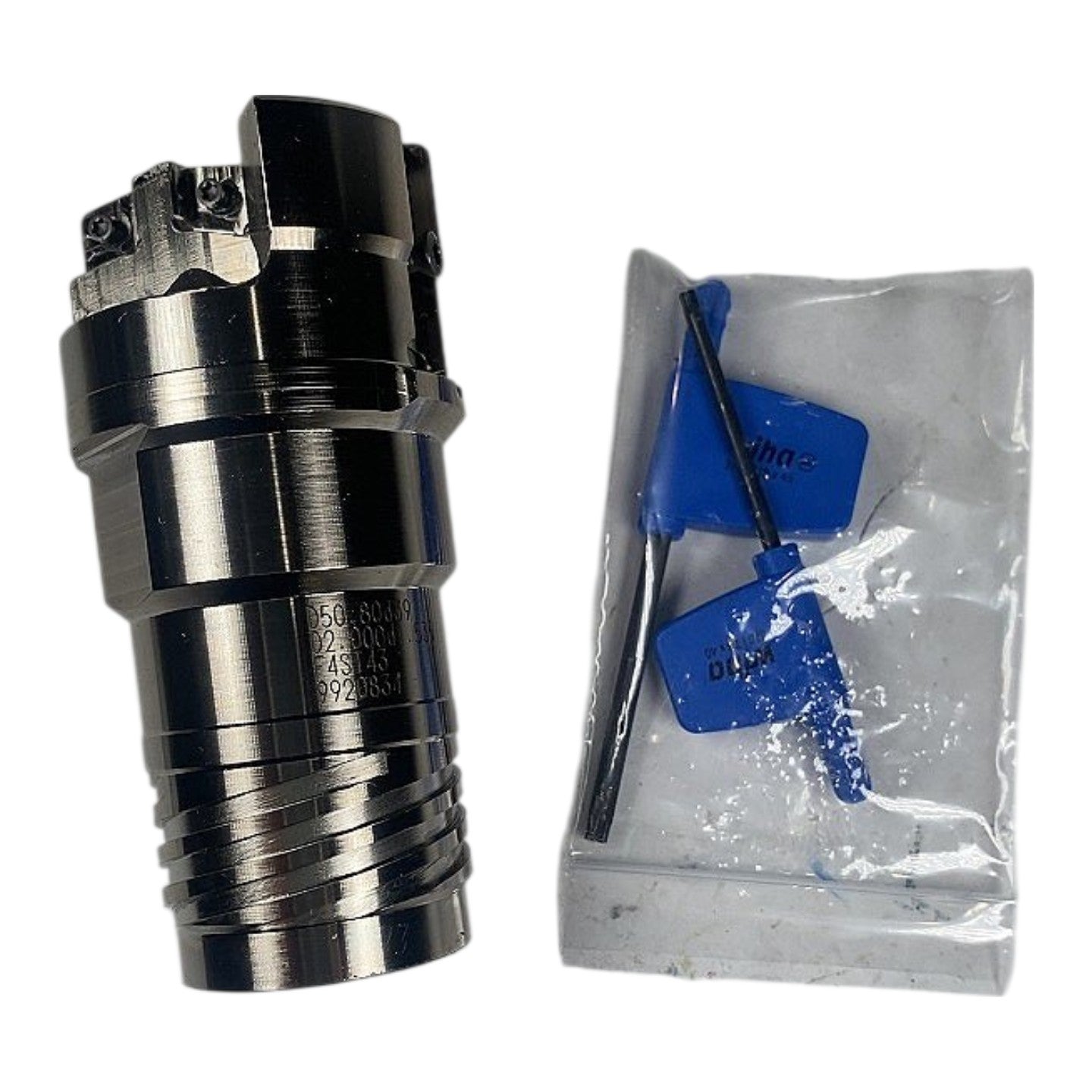

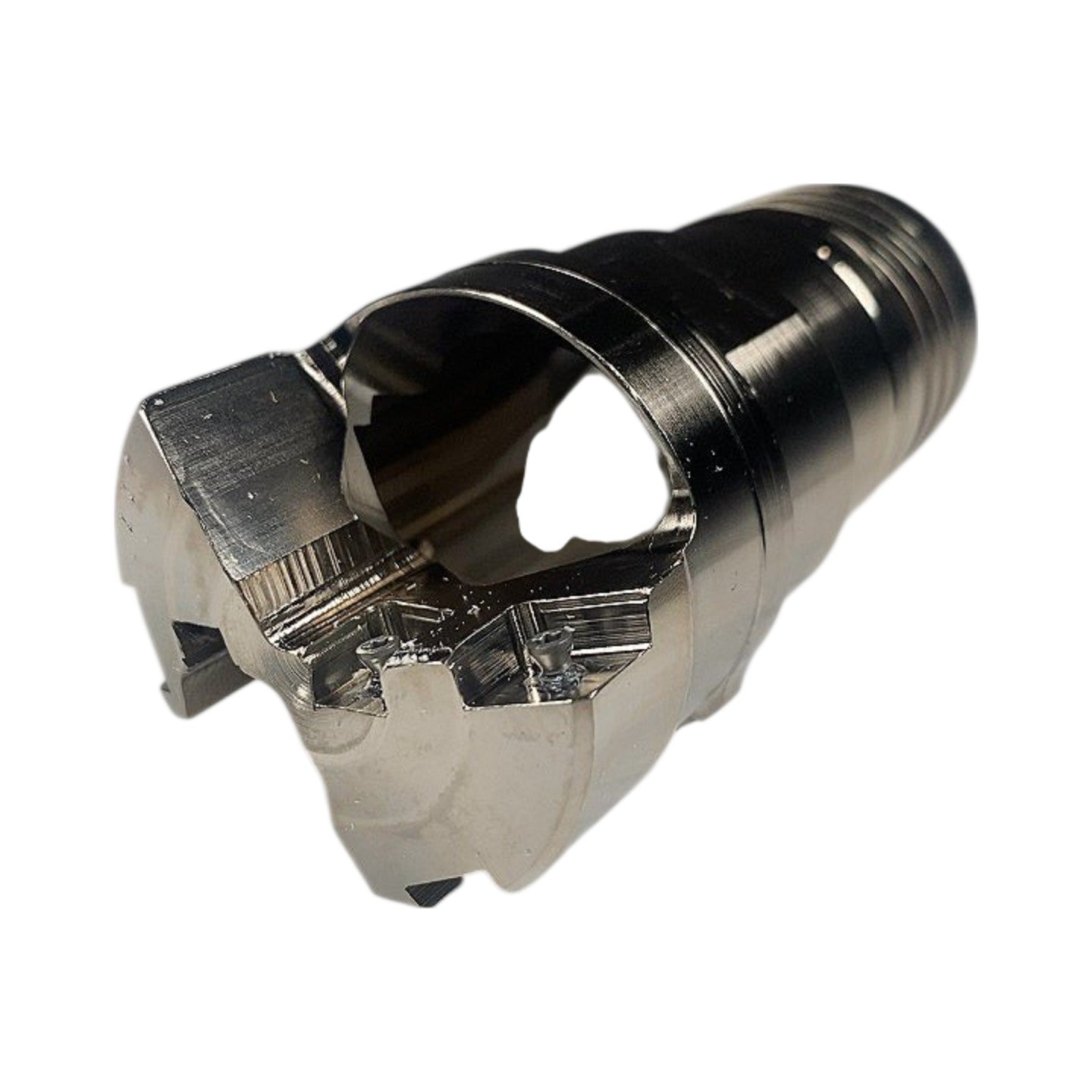

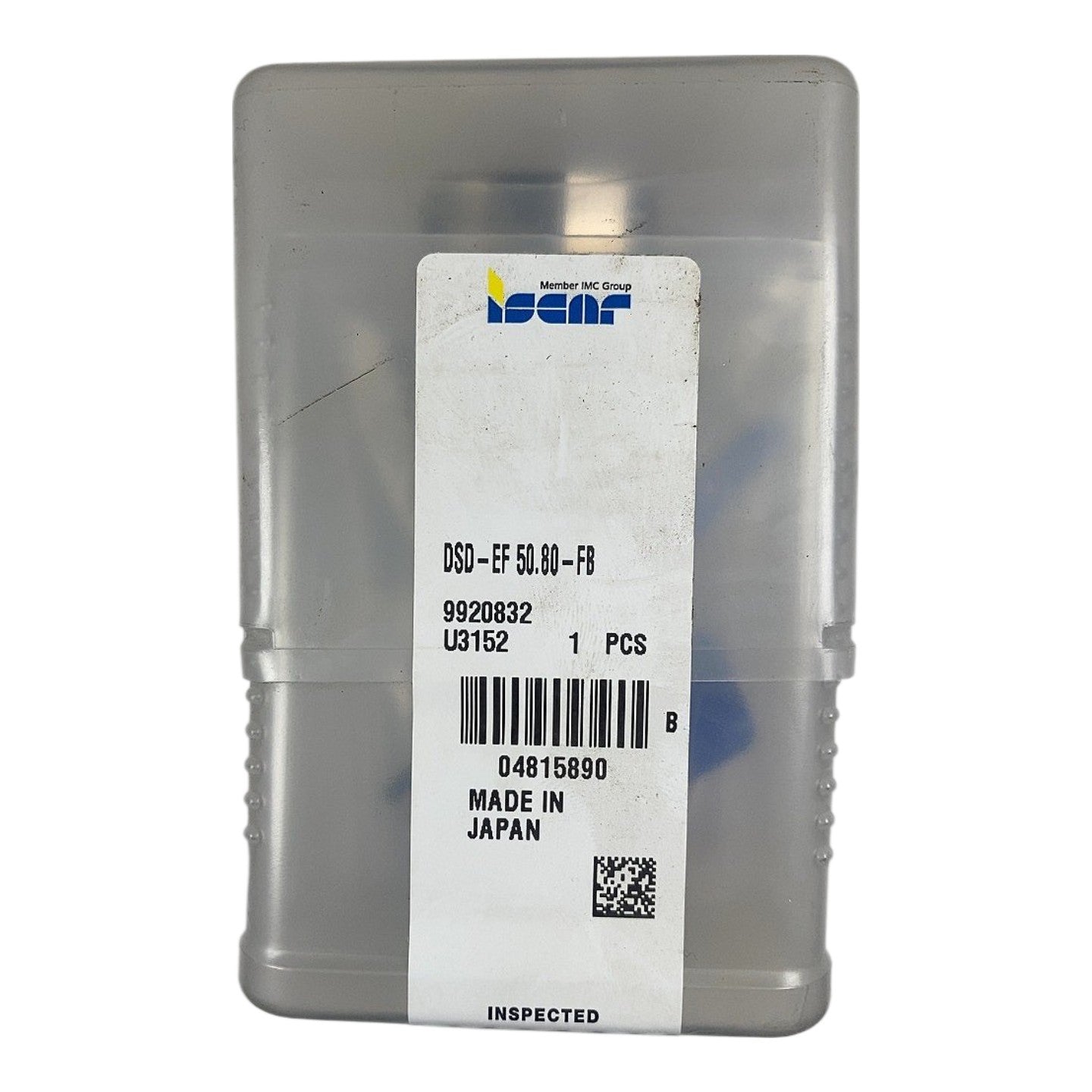

The Iscar DSD-EF 50.80-FB (catalog/order # 9920832, U3152) is a new, indexable face milling cutter body from Iscar's DOVE-IQ FEED system, designed to accept LNHU/LNKU-style high-feed square inserts at a near-zero lead angle for aggressive axial depth-of-cut face milling. The cutter body measures 50 mm in cutting diameter with an 80 mm overall body length, features a Fine-Bore (FB) connection — a precision threaded bore interface — for direct mounting onto compatible Iscar modular tooling adapters or arbors. The 4-insert pocket configuration (4 flutes) enables high metal removal rates in face milling, shoulder milling, and ramping operations on steel, stainless, cast iron, and non-ferrous materials. Manufactured in Japan per the label, the steel body features a nitrided/dark-finish treatment for corrosion resistance and is supplied with the torx insert clamping wrench. Compatible inserts from Iscar's LNHU/LNKU family (e.g., LNHU 11T3…) are sold separately.
Product Specifications
| Brand | Iscar |
| MPN | DSD-EF 50.80-FB |
| Catalog / Order # | 9920832 |
| Cutting Diameter (D1) | 50 mm |
| Body Length (L) | 80 mm |
| Number of Inserts (Flutes) | 4 |
| Connection Type | FB (Fine Bore threaded) |
| Bore Diameter (D2) | 2.0000 in (approx. 50.8 mm) |
| Insert System / Series | DOVE-IQ FEED (LNHU/LNKU style) |
| Lead Angle | ~90° (high-feed / near-axial) |
| Body Material / Finish | Alloy steel, nitrided dark finish |
| Country of Origin | Japan |
| Included Accessories | Torx insert clamping wrench |
| Condition | New |
