Iscar E93CN D.750-3L60C.750-07 0.750in 3/4" 3 Flute Indexable End Mill
Regular price
$130.02
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

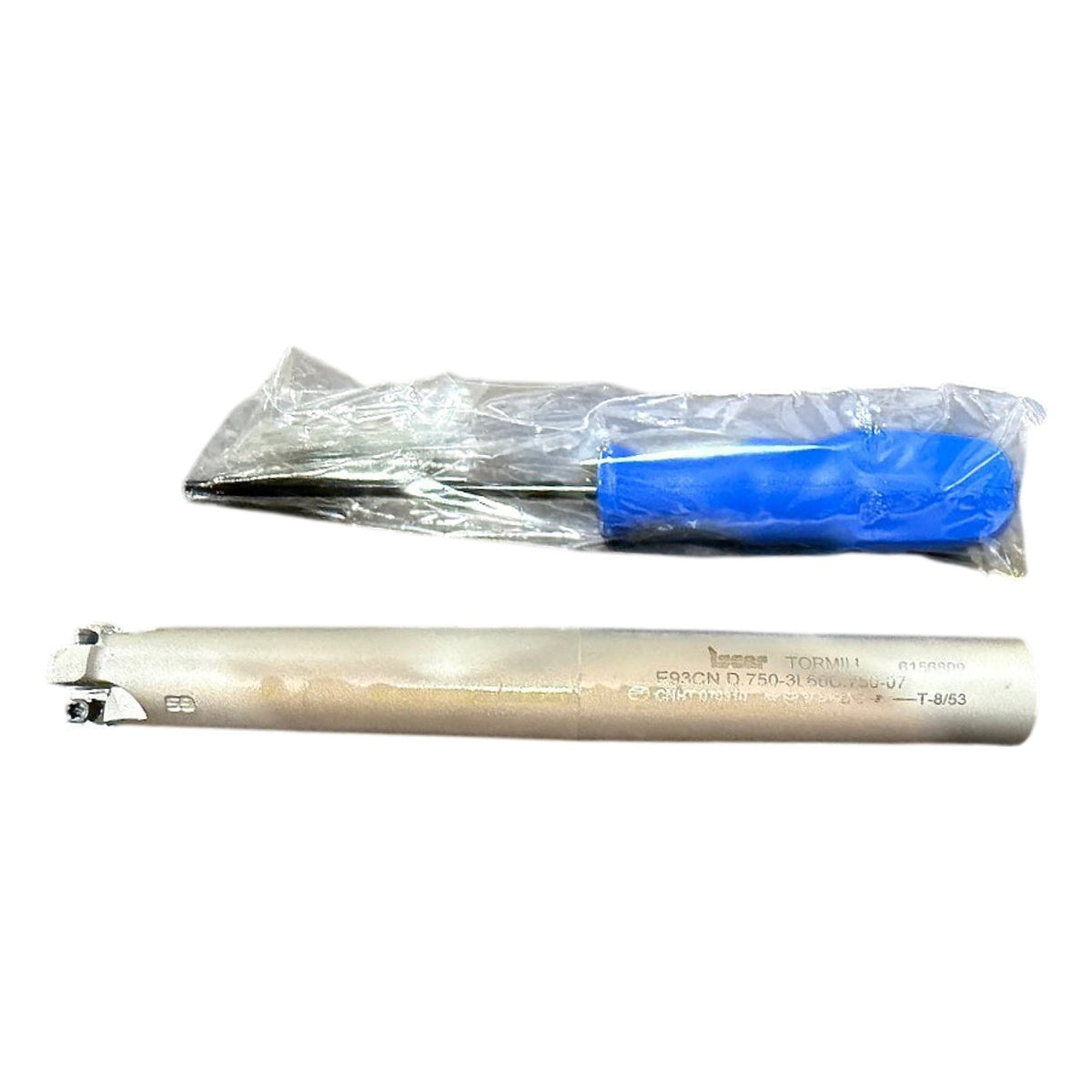

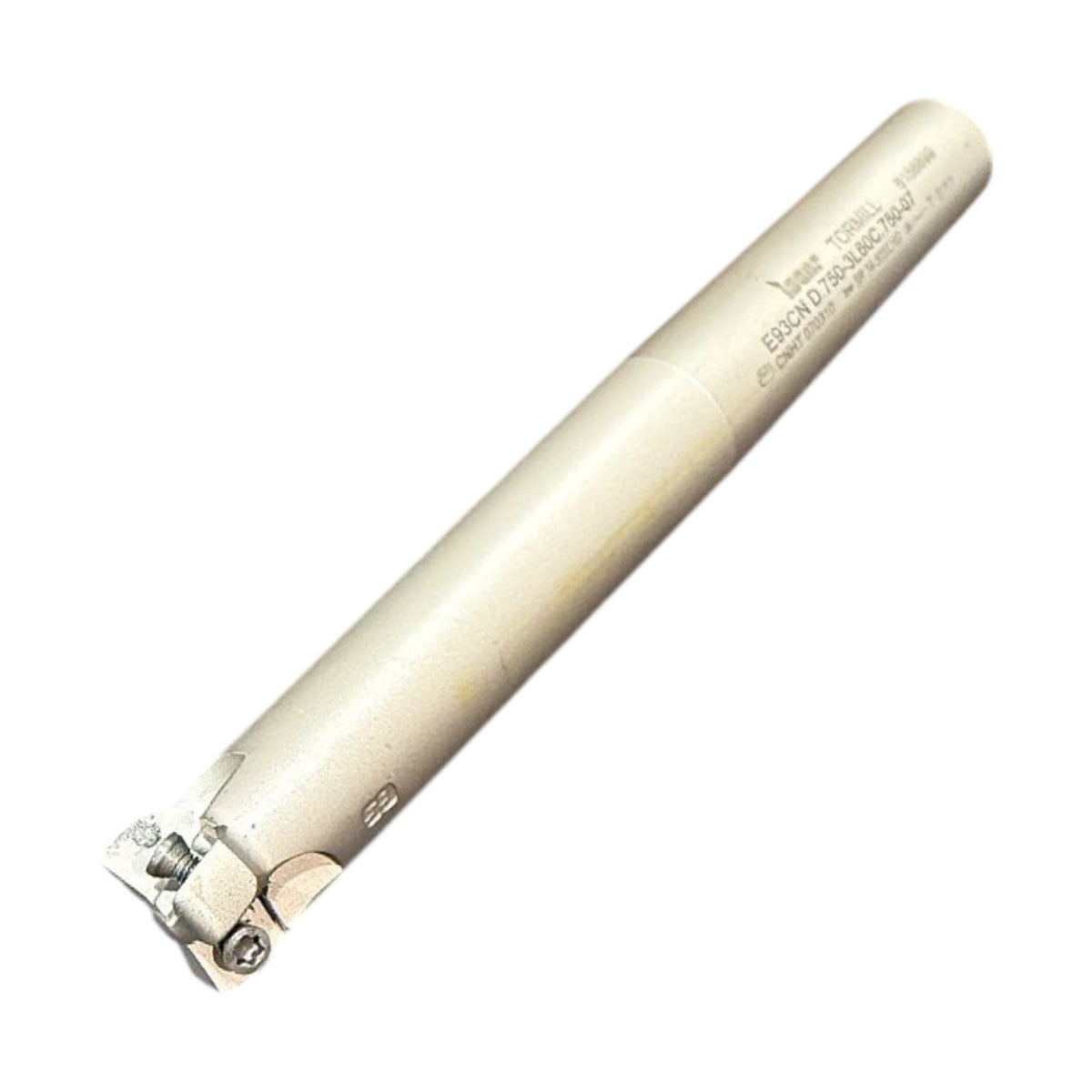

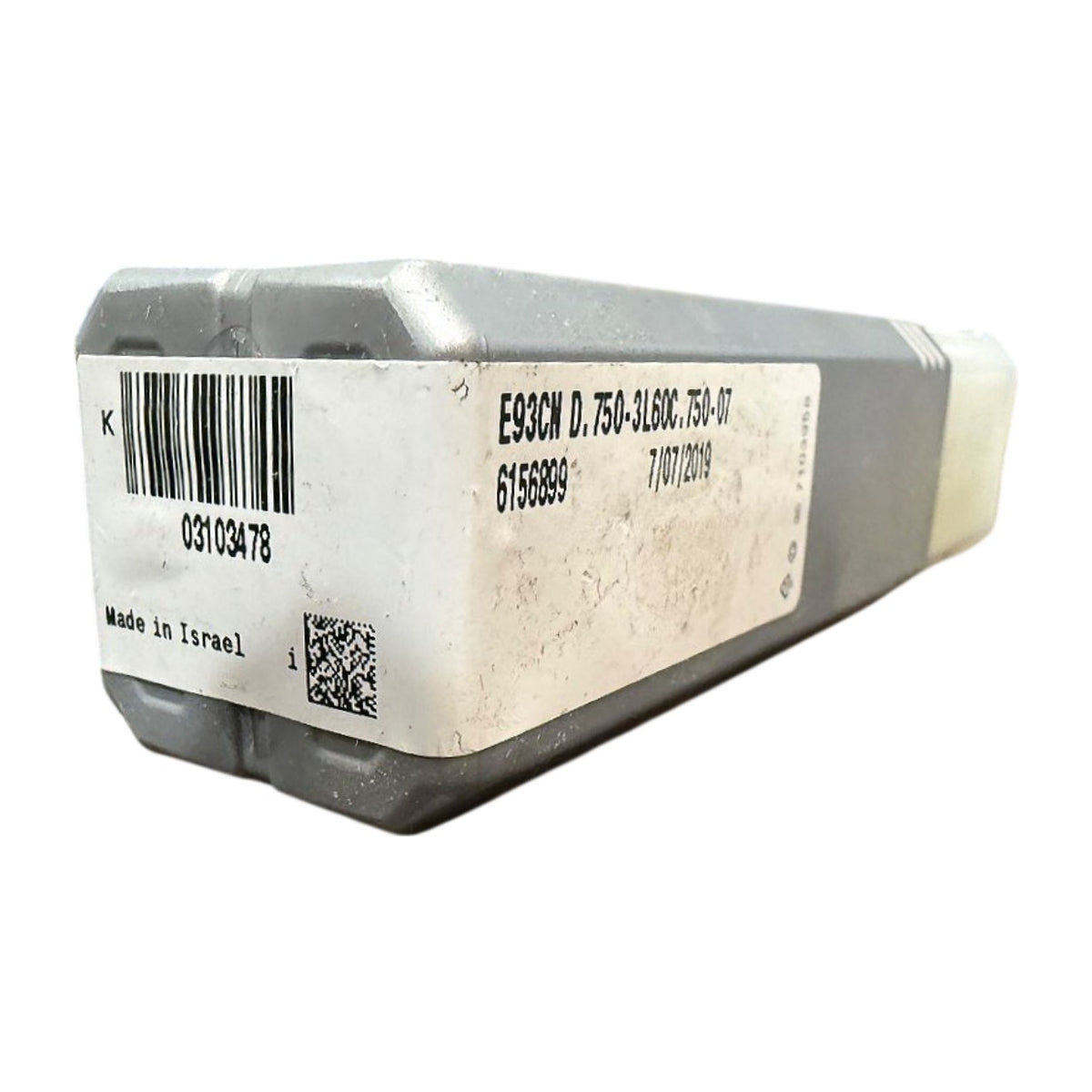

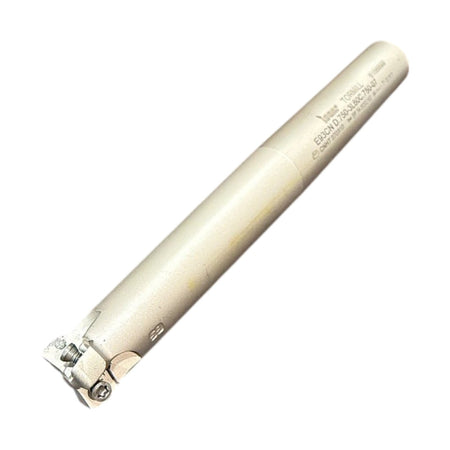

This Iscar TORMILL E93CN D.750-3L60C.750-07 (catalog 6156899, EDP 03103478) is an indexable end mill with a 0.750 in cutting diameter and a 0.750 in cylindrical shank. The designation indicates a 3-flute cutter that takes size 07 inserts, and the body is marked CNHT 070310 for the insert style. Inserts and clamp screws are already installed on the tool, and a Torx driver with a blue handle is included for indexing. It was made in Israel and is offered new.
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number | E93CN D.750-3L60C.750-07 |
| Catalog Number | 6156899 |
| EDP Number | 03103478 |
| Series | TORMILL |
| Cutting Diameter | 0.750 in |
| Shank Diameter | 0.750 in |
| Shank Type | Cylindrical |
| Number of Flutes | 3 |
| Insert Size | 07 |
| Insert Type | CNHT 070310 |
| Cutter Type | Indexable End Mill |
| Operation | Milling |
| Insert Clamping | Torx screw |
| Included Items | Torx driver |
| Inserts Included | Yes, installed |
| Country of Origin | Israel |
