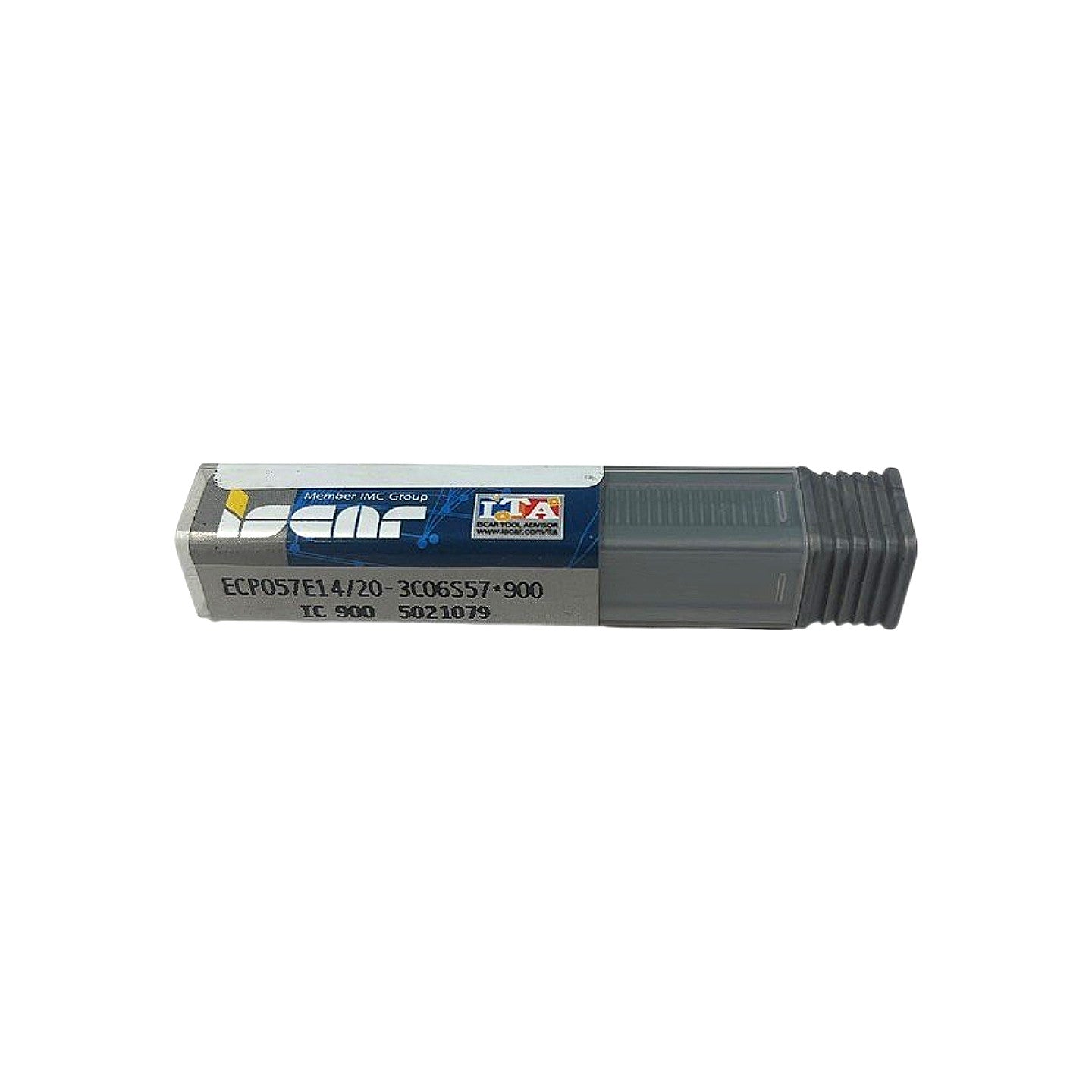

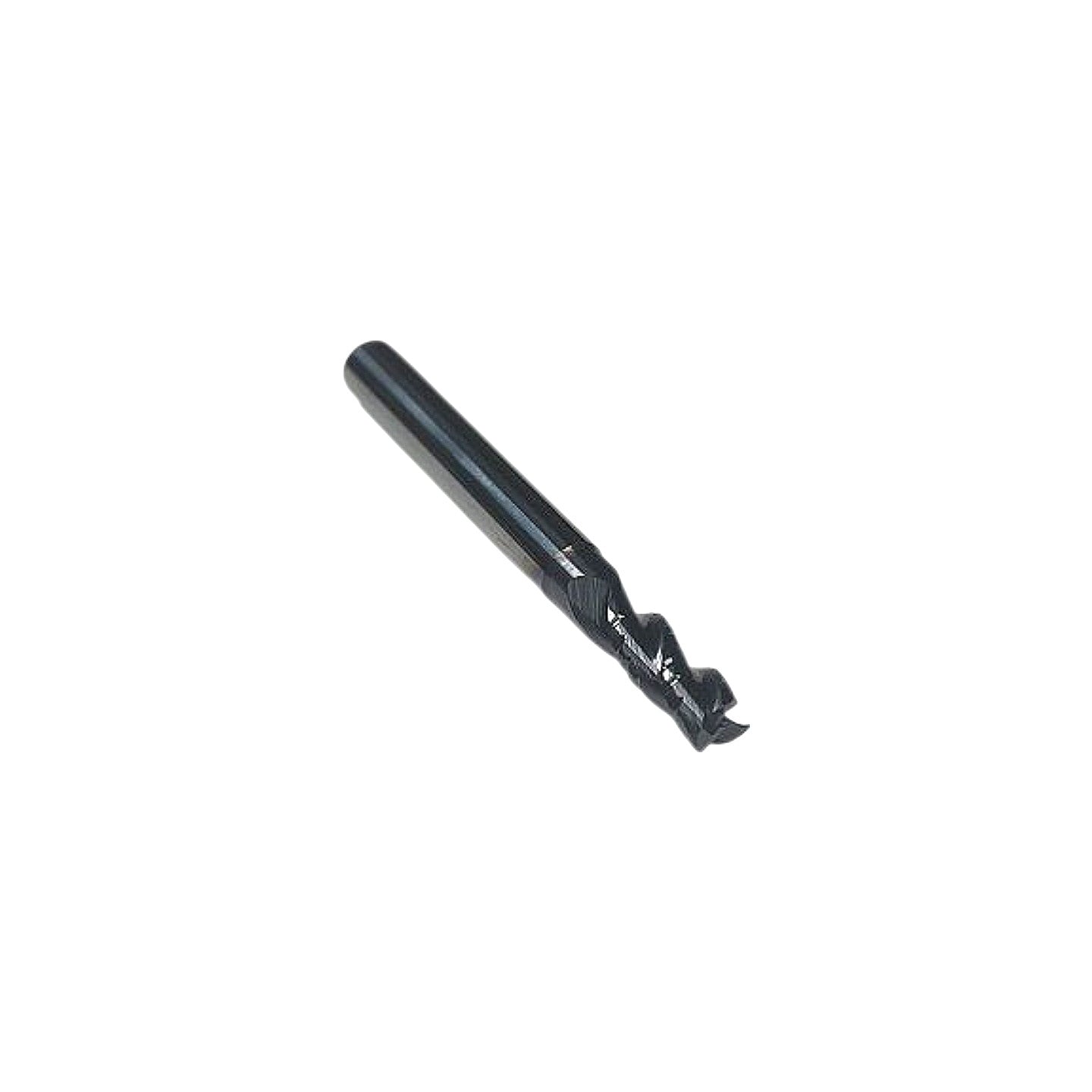

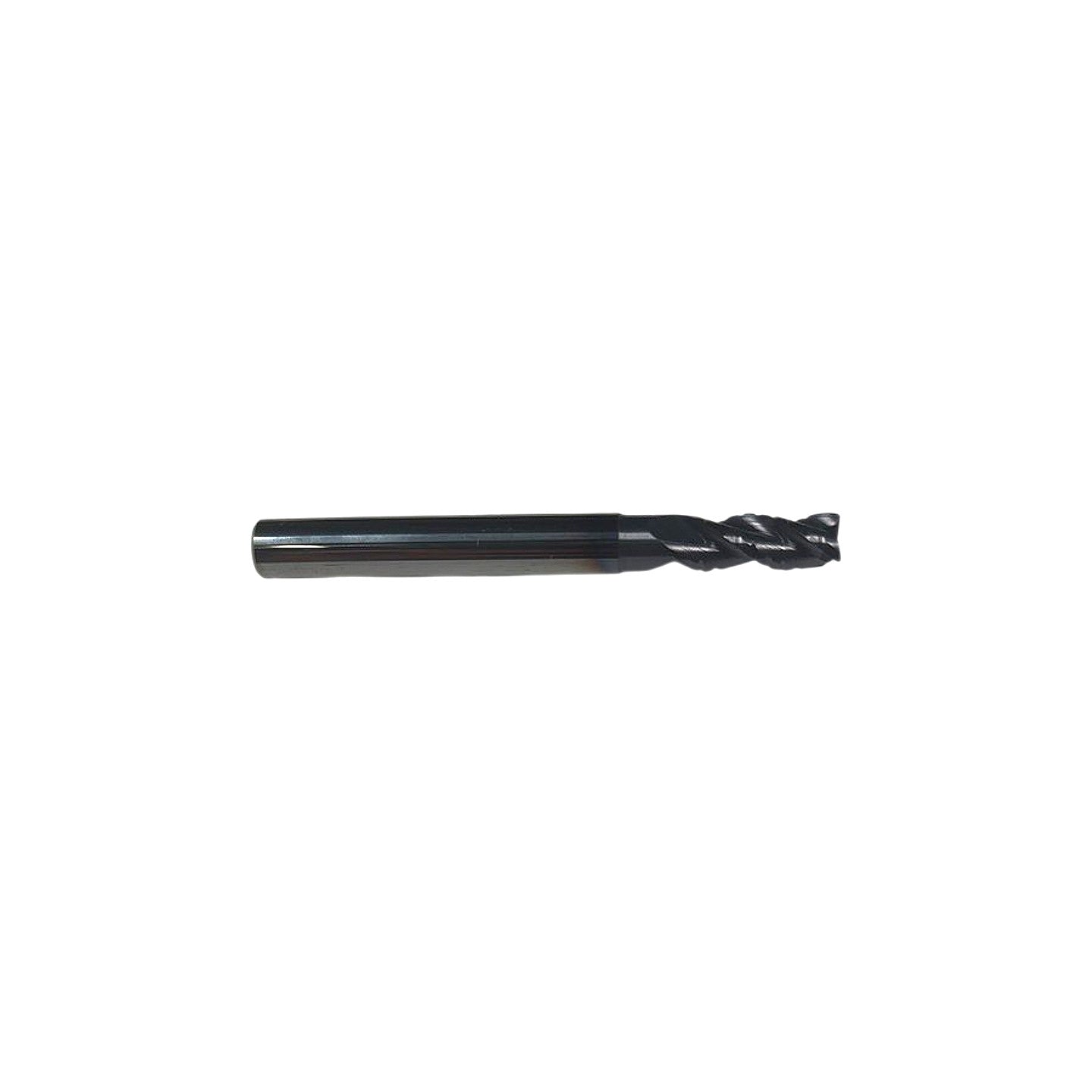

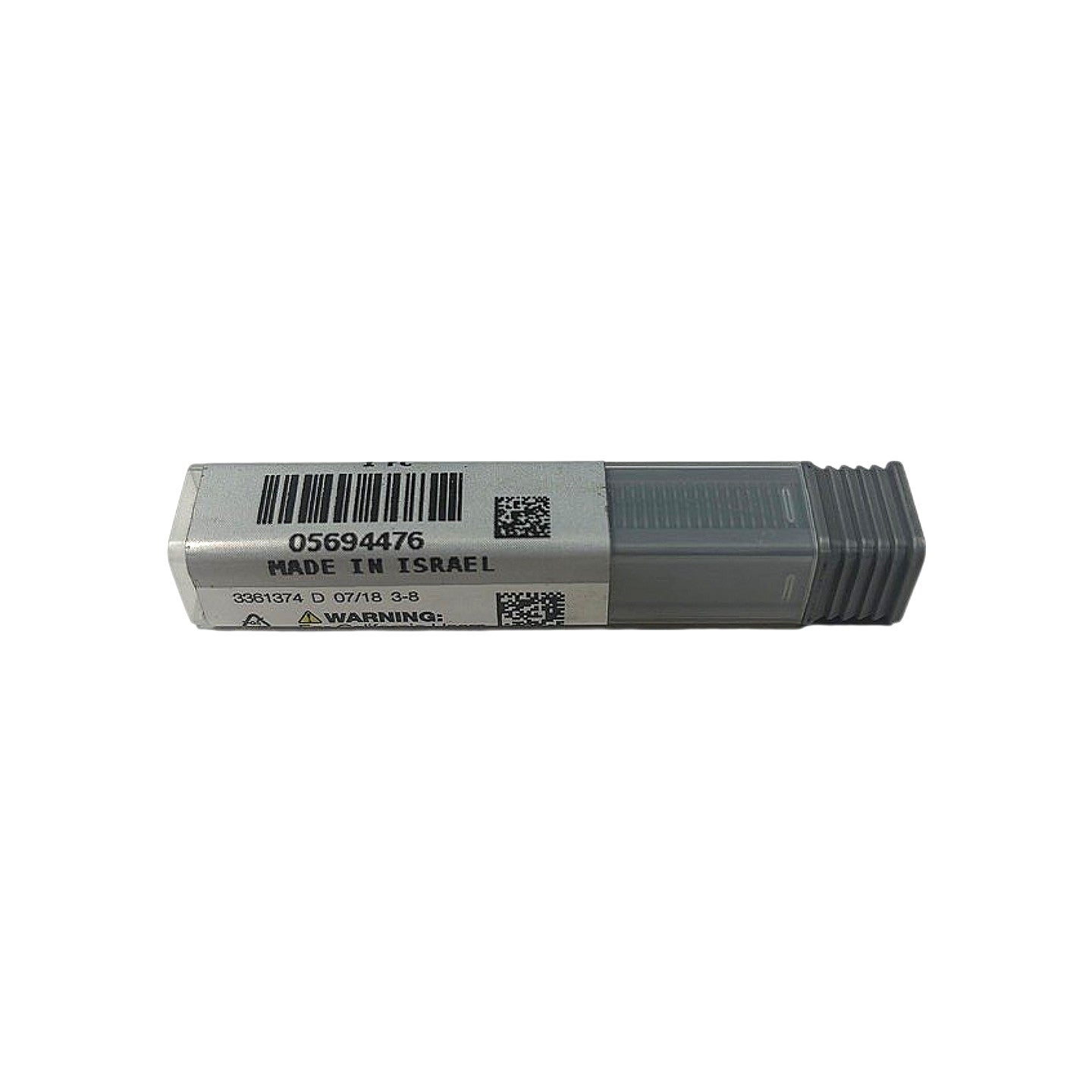

Iscar ECP057E14/20-3C06S57*900 IC900 3-Flute Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This is a new Iscar ECP057E14/20-3C06S57*900 solid carbide end mill from the ECPower series, carrying grade IC900 — a PVD-coated submicron carbide grade engineered for high-performance milling of steel, stainless steel, and heat-resistant alloys. The part number decodes as follows: ECP = ECPower end mill series; 057 = 5.7mm cutting diameter; E = eccentric relief (enhanced geometry); 14/20 = 14mm flute length over a 20mm shank diameter; 3 = 3 flutes; C = corner radius type; 06 = 0.6mm corner radius; S57 = 57mm overall length; *900 = IC900 grade designation. IC900 features an AlTiN-based PVD coating that provides high hot hardness and oxidation resistance, supporting aggressive cutting parameters in ISO P and M material groups. The 3-flute eccentric-relief geometry offers a balance between chip clearance and core strength, making it well-suited for slotting, profiling, and ramping operations on CNC machining centers using a 20mm bore toolholder or collet chuck.
Product Specifications
| Brand | Iscar |
| MPN | ECP057E14/20-3C06S57*900 |
| Series | ECPower |
| Grade | IC900 |
| Coating | PVD AlTiN-based |
| Number of Flutes | 3 |
| Cutting Diameter | 5.7 mm |
| Corner Radius | 0.6 mm |
| Flute Length | 14 mm |
| Shank Diameter | 20 mm |
| Overall Length | 57 mm |
| Relief Type | Eccentric relief |
| End Geometry | Corner radius (bull nose) |
| Material | Solid submicron carbide |
| ISO Material Group | P, M |
| Country of Origin | Israel |
| Condition | New |
