Iscar FGMA 840 IC07 Carbide Grooving Insert (10 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

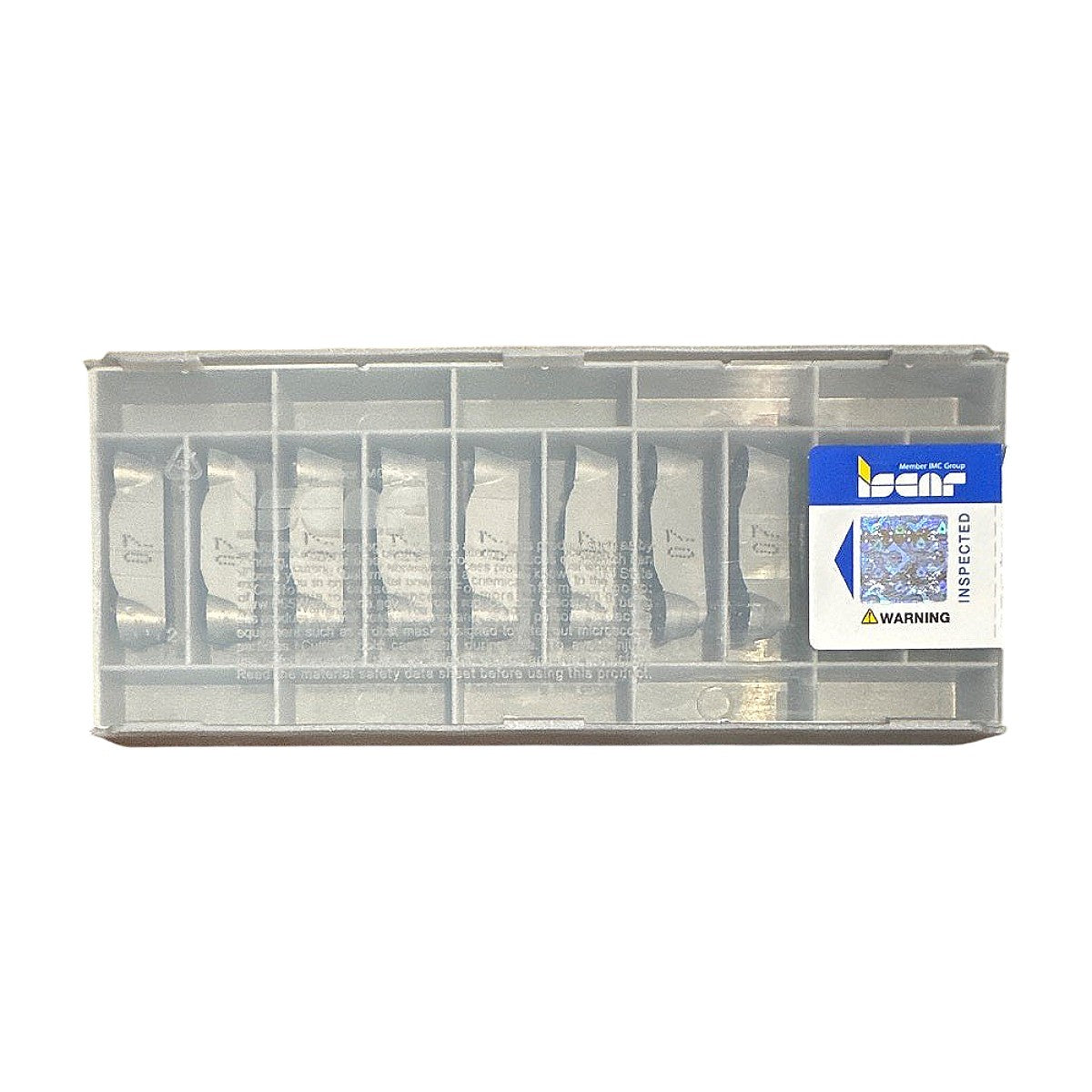

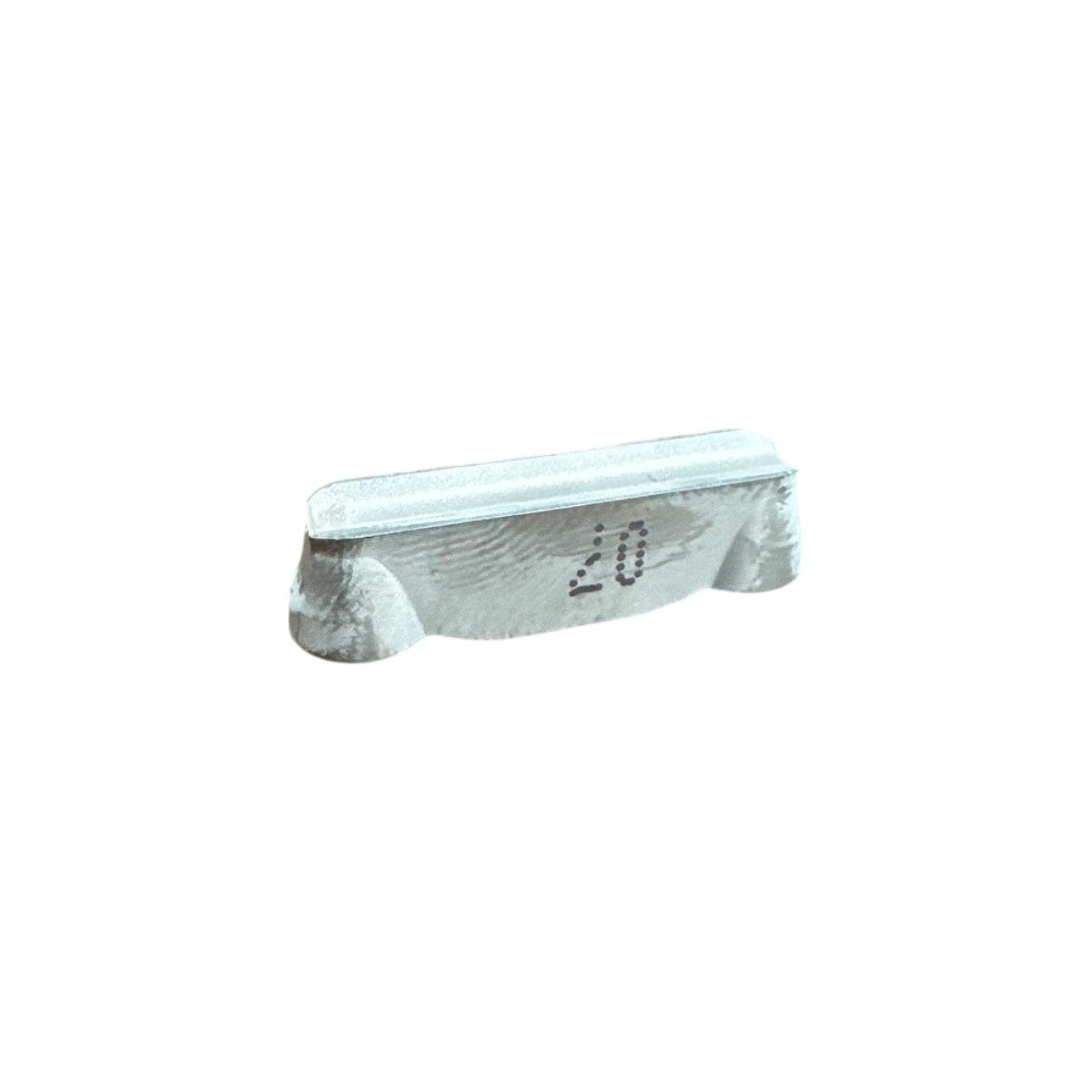

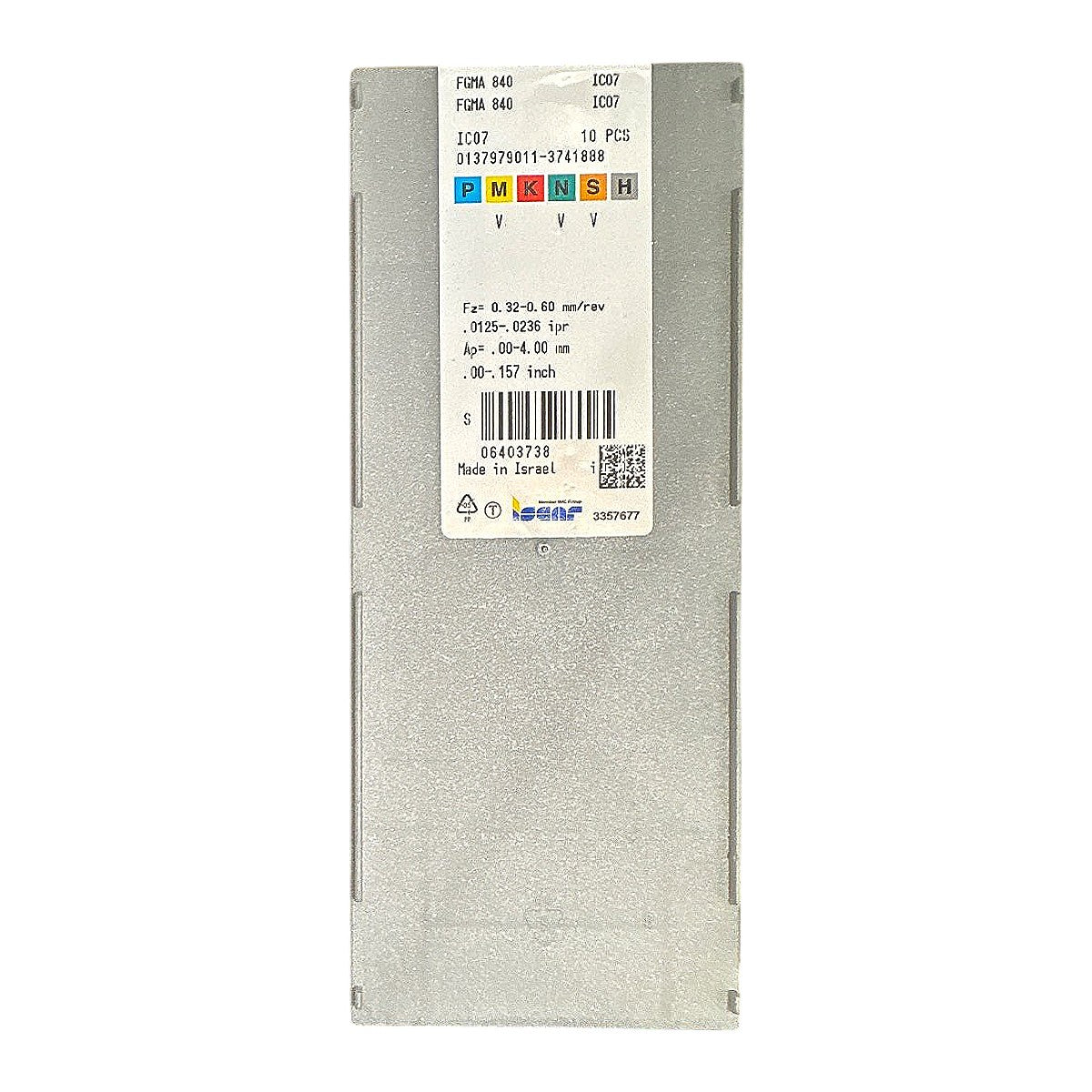

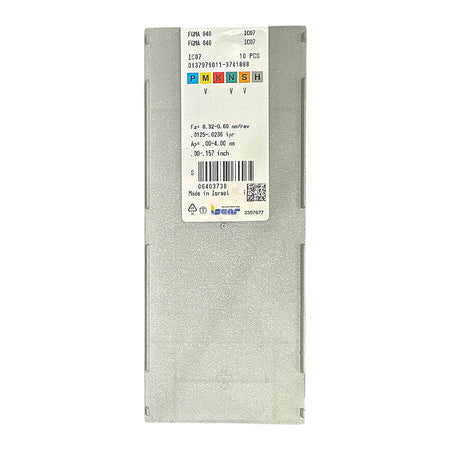

This is a factory-new, sealed box of 10 Iscar FGMA 840 IC07 carbide grooving/parting inserts, made in Israel and carrying Iscar's "INSPECTED" holographic quality seal. The FGMA designation indicates a full-profile groove/part insert with a double-ended geometry and a flat top; "840" encodes an 8 mm groove width and a 4.0 mm depth-of-cut capacity, while the double-ended design provides two usable cutting edges per insert. IC07 is Iscar's uncoated, ultra-fine-grain carbide grade optimized for non-ferrous and superalloy materials, including aluminum, copper, brass, titanium, and heat-resistant alloys — consistent with the "M, K, N, S, H" material applicability checkmarks (P, M, K, N, S, H) shown on the label, with verified suitability for M, N, and S workpiece materials. The label confirms a feed range of Fz = 0.32–0.60 mm/rev (0.0125–0.0236 ipr) and an axial depth-of-cut range of Ap = 0.00–4.00 mm (0.00–0.157 in); these inserts are designed for use in Iscar GHDR/GHDL and compatible tangential grooving toolholders that accept the FGMA insert geometry.
Product Specifications
| Brand | Iscar |
| MPN | FGMA 840 IC07 |
| Grade | IC07 |
| Grade Type | Uncoated ultra-fine grain carbide |
| Insert Style | FGMA (full-profile grooving/parting, double-ended) |
| Groove Width | 8 mm |
| Max Depth of Cut (Ap) | 0.00–4.00 mm (0.00–0.157 in) |
| Feed Range (Fz) | 0.32–0.60 mm/rev (0.0125–0.0236 ipr) |
| Cutting Edges per Insert | 2 |
| Applicable Work Materials | M, N, S (stainless, non-ferrous, superalloy) |
| Country of Origin | Israel |
| Quantity | 10 pcs |
| Condition | New |
