Iscar GFN 4B IC308 Carbide Grooving Insert 4mm Width Uncoated 6090376 (10 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

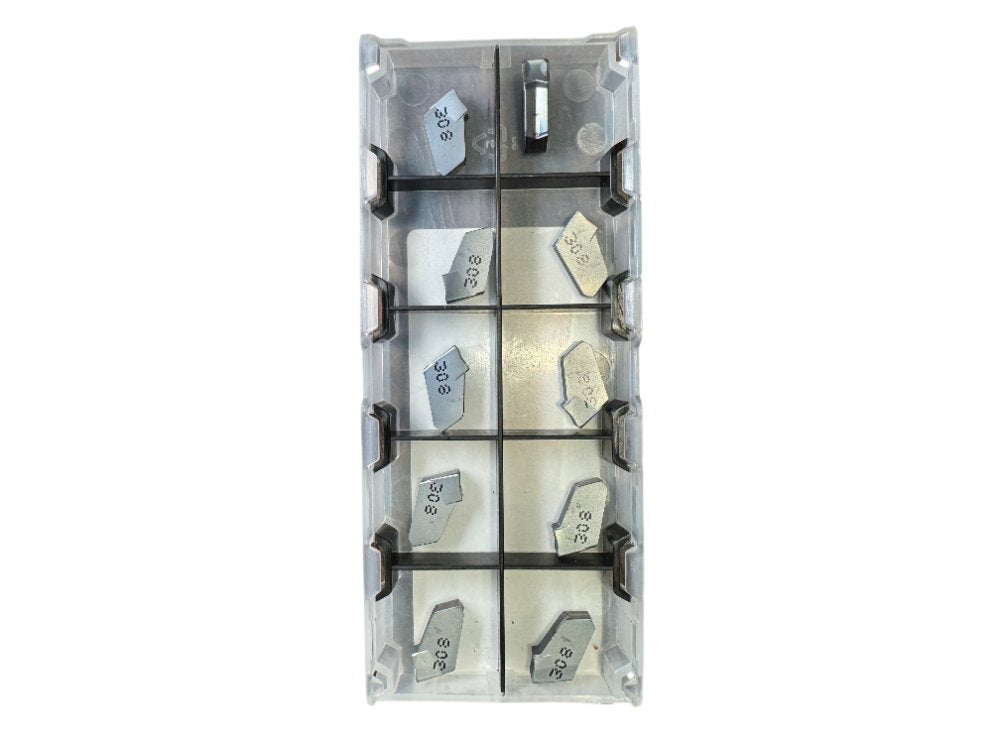

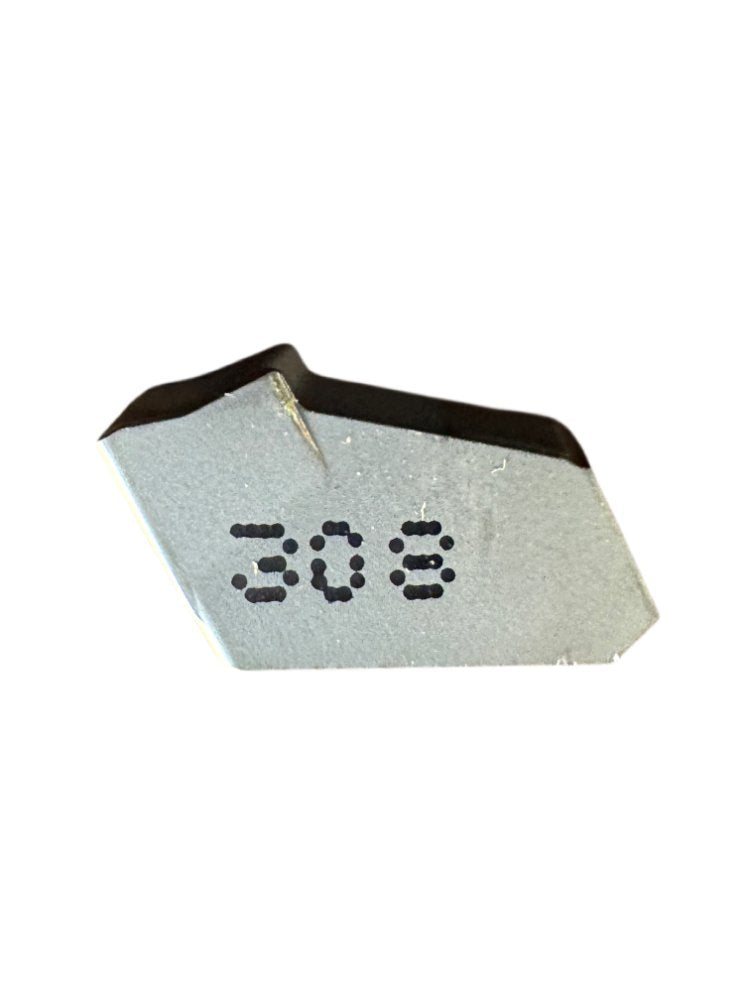

This is a factory-new, sealed box of 10 Iscar GFN 4B IC308 carbide grooving inserts, manufactured in Israel. The GFN designation identifies these as single-ended grooving inserts in Iscar's GIGA-N system, with a 4mm grooving width and 'B' chipbreaker geometry optimized for medium-feed grooving; the uncoated IC308 grade is a fine-grain cemented carbide without PVD or CVD coating, suited for grooving stainless steel and other ISO M materials. Per the package label, recommended cutting parameters are Vc = 140–180 m/min (460–590 sfm) and feed fz = 0.10–0.30 mm/t (0.004–0.012 ipr). These inserts are compatible with Iscar GIGA-N toolholders designed for the GFN insert family, including holders in the GHDR and GHBL series that accept 4mm-width single-ended grooving inserts.
Product Specifications
| Brand | Iscar |
| Part Number (MPN) | GFN 4B IC308 |
| Insert Series | GIGA-N (GFN) single-ended grooving insert |
| Grooving Width | 4 mm |
| Chipbreaker Geometry | B (medium-feed grooving) |
| Grade | IC308 |
| Grade Description | Uncoated fine-grain cemented carbide |
| ISO Material Group | ISO M (stainless steel primary) |

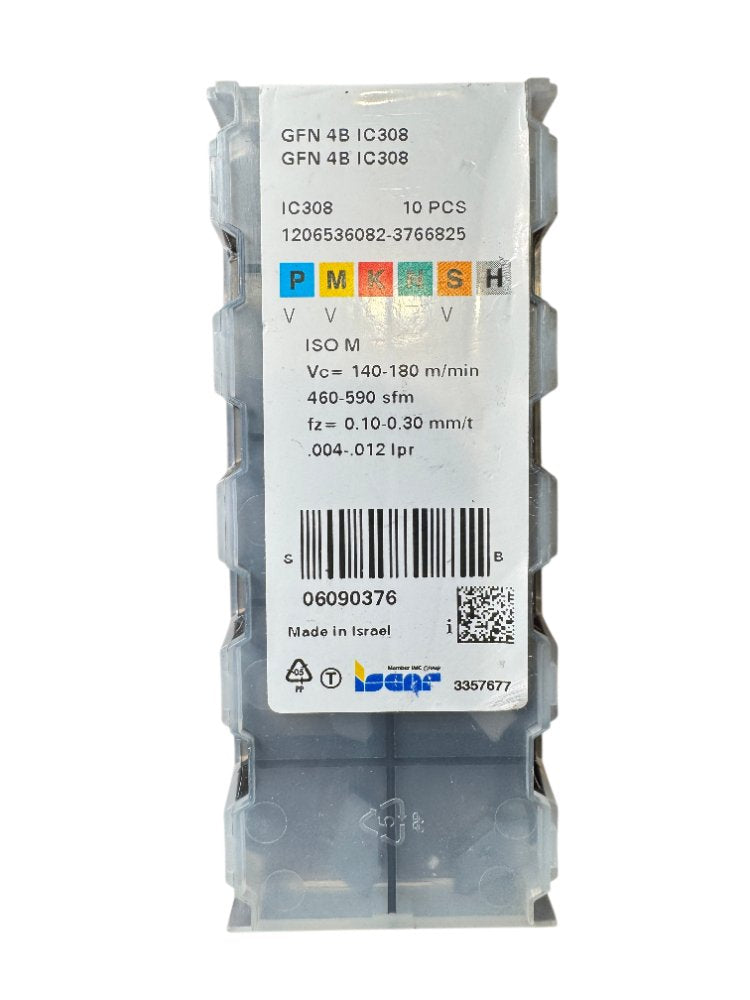

| ISO Material Applicability | P (V), M (V), K, H (V), S (V) — per package label |
| Cutting Speed (Vc) | 140–180 m/min (460–590 sfm) |
| Feed Rate (fz) | 0.10–0.30 mm/t (0.004–0.012 ipr) |
| Quantity per Package | 10 pieces |
| Country of Origin | Israel |
| Condition | New (factory sealed) |
| Iscar Catalog / Barcode | 06090376 |
