Iscar GPB-14-40-260+4 CDZAP Drill Cartridge (5pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

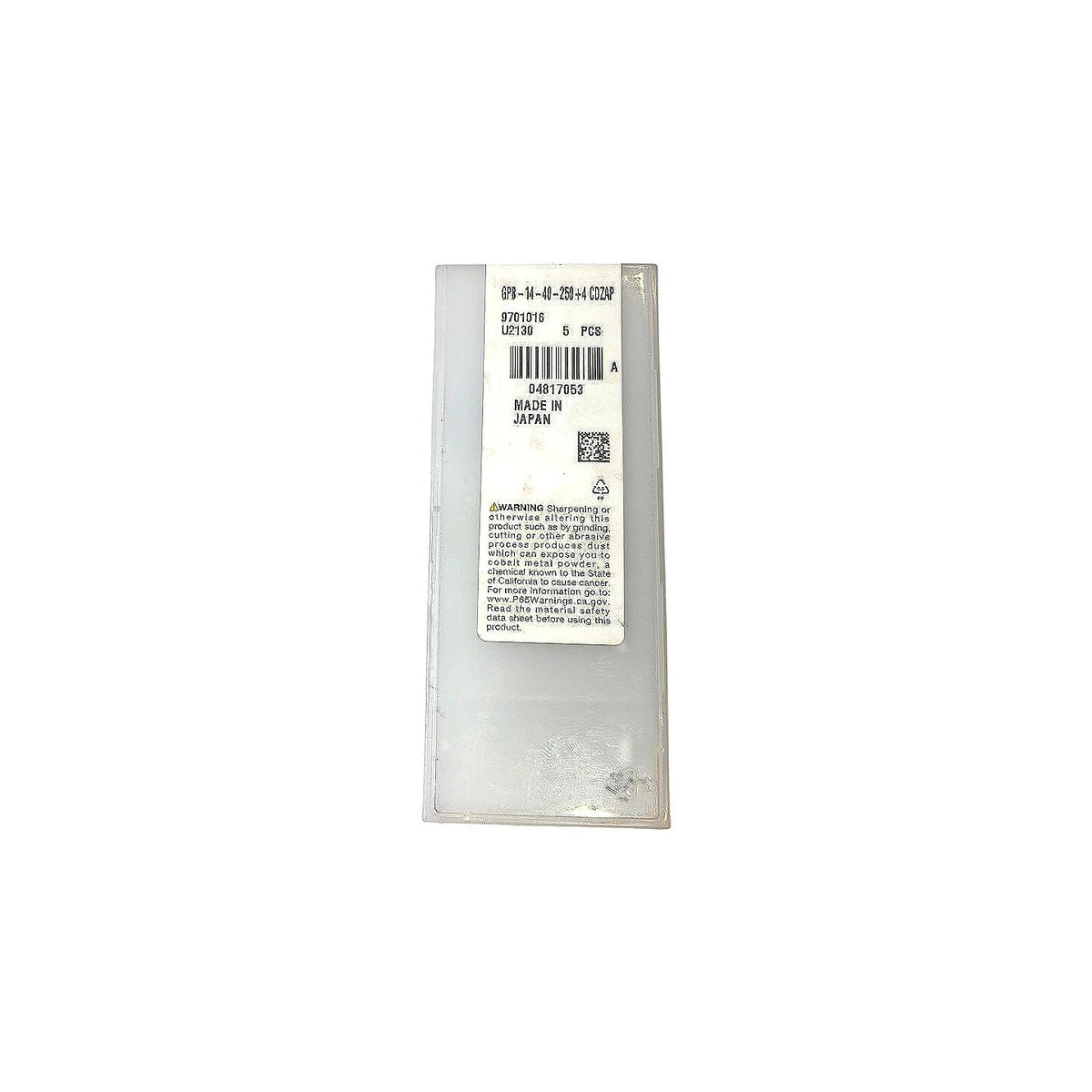

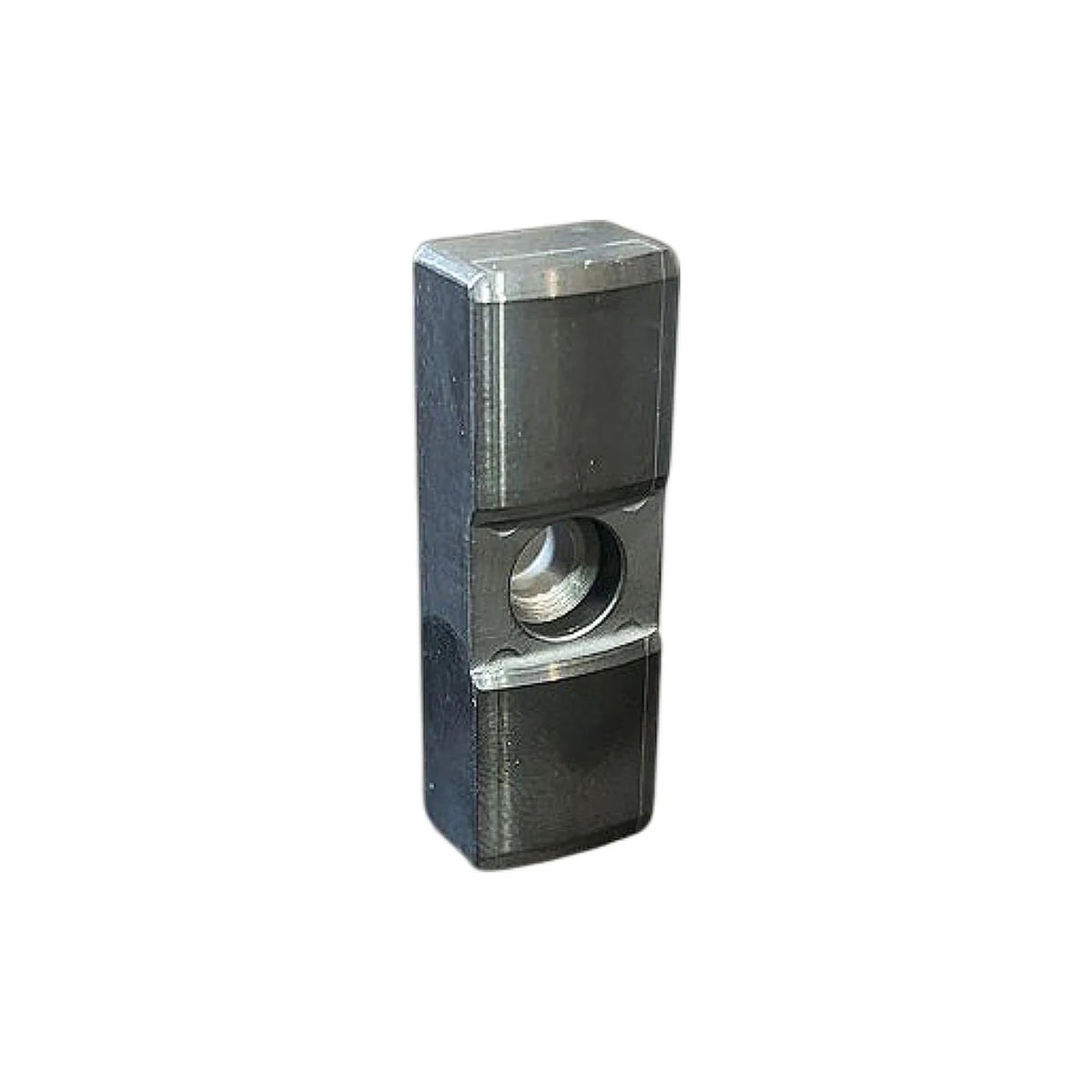

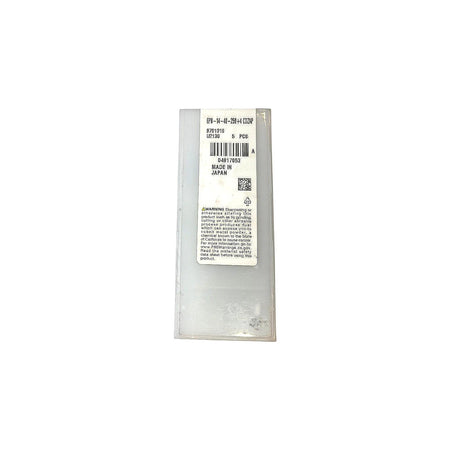

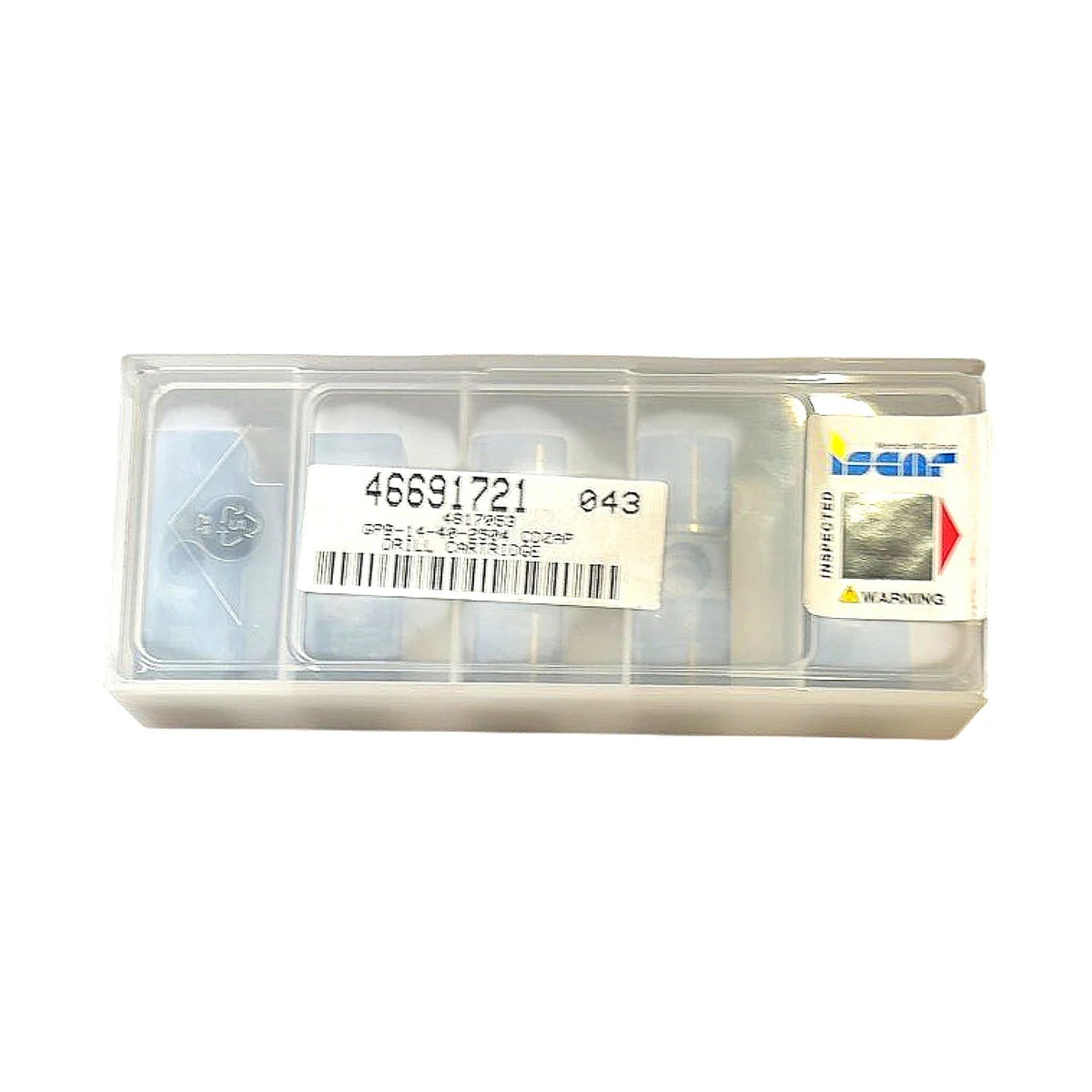

This is a factory-new pack of 5 Iscar GPB-14-40-260+4 CDZAP drill cartridges, made in Japan, for use in Iscar's GP (Gun Processor) modular indexable drill body system. The part number decodes as follows: GPB = Gun Processor Body cartridge, 14 = 14mm diameter class, 40 = 40mm pocket length, 260 = 260° seat angle/orientation designation, +4 = radial offset adjustment of +4 position, CDZAP = Iscar's proprietary carbide grade designation indicating a PVD-coated fine-grain carbide substrate optimized for steel and cast iron drilling applications. The cartridge body is precision-ground steel with a threaded clamp bore visible in the product photo, designed to accept indexable inserts and seat securely within the GP drill body's cartridge pocket, enabling diameter adjustment and insert replacement without removing the drill from the spindle. Iscar part number 4817053 (barcode) and order code 9701016 are confirmed from the label; compatibility is specific to Iscar GP-series drill bodies of the corresponding diameter range.
Product Specifications
| Brand | Iscar |
| Part Number (MPN) | GPB-14-40-260+4 CDZAP |
| Iscar Order Code | 9701016 |
| Iscar Barcode / Item No. | 04817053 |
| Product Type | Drill Cartridge (GP Series) |
| Tool System | Iscar GP (Gun Processor) Indexable Drill |
| Diameter Class | 14 mm |
| Pocket/Cartridge Length | 40 mm |
| Seat Orientation Code | 260+4 |
| Grade | CDZAP |
| Grade Type | PVD-coated carbide |
| Country of Origin | Japan |
| Quantity per Pack | 5 pcs |
| Condition | New |
